Overview

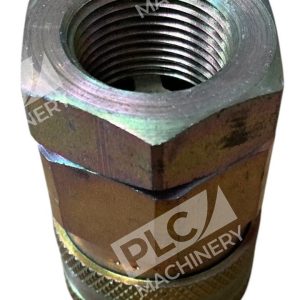

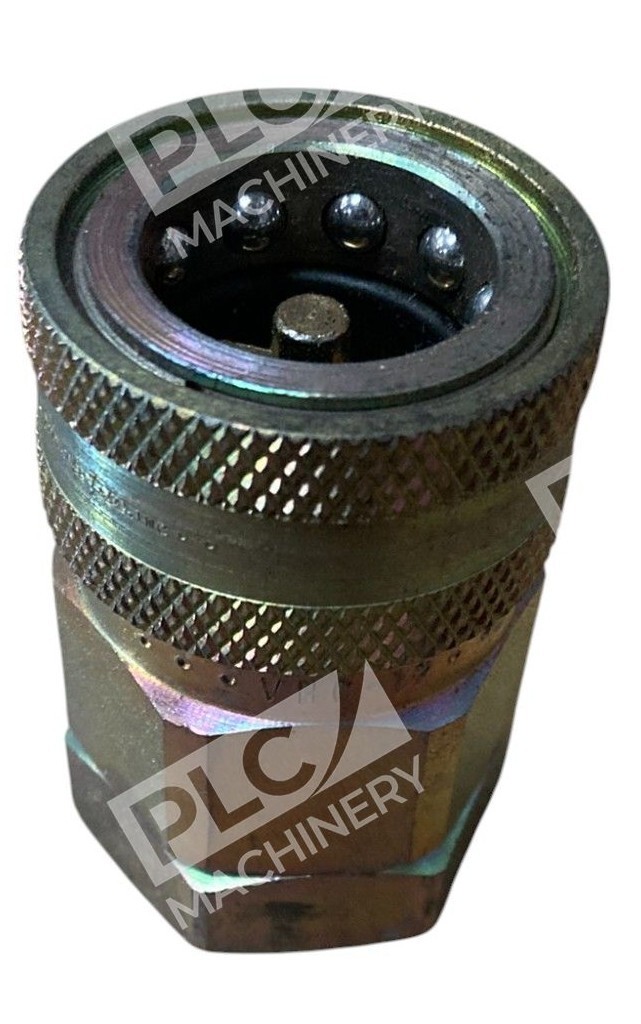

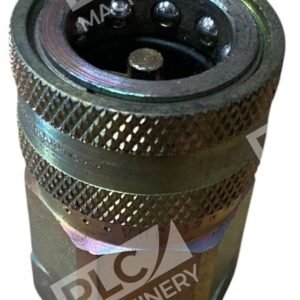

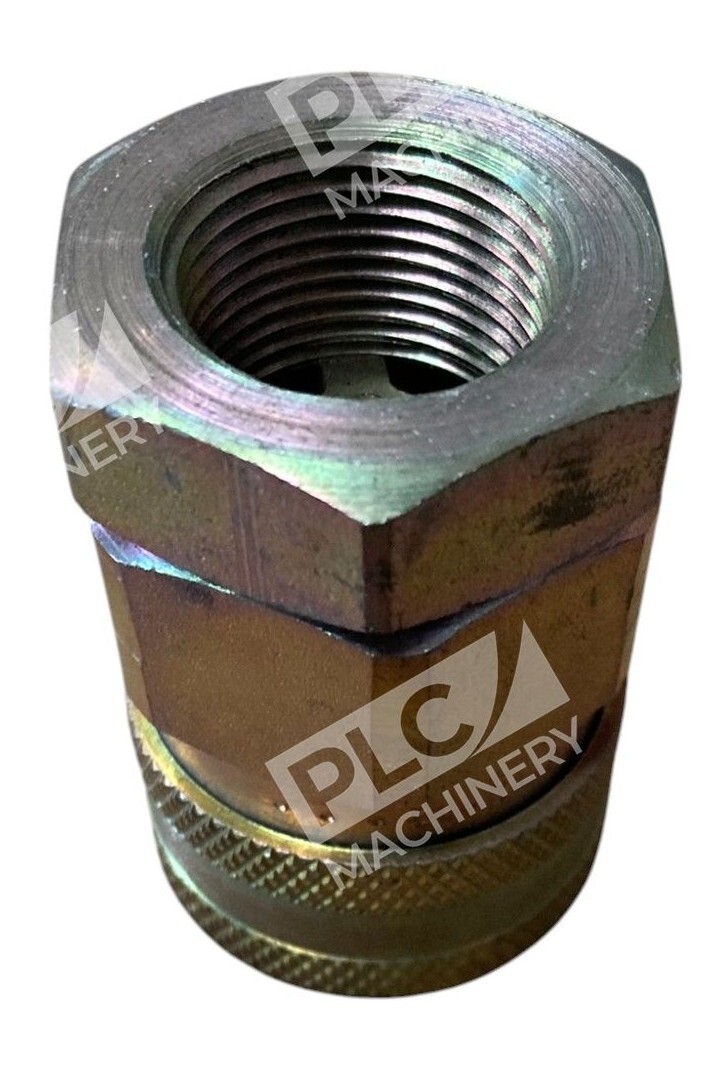

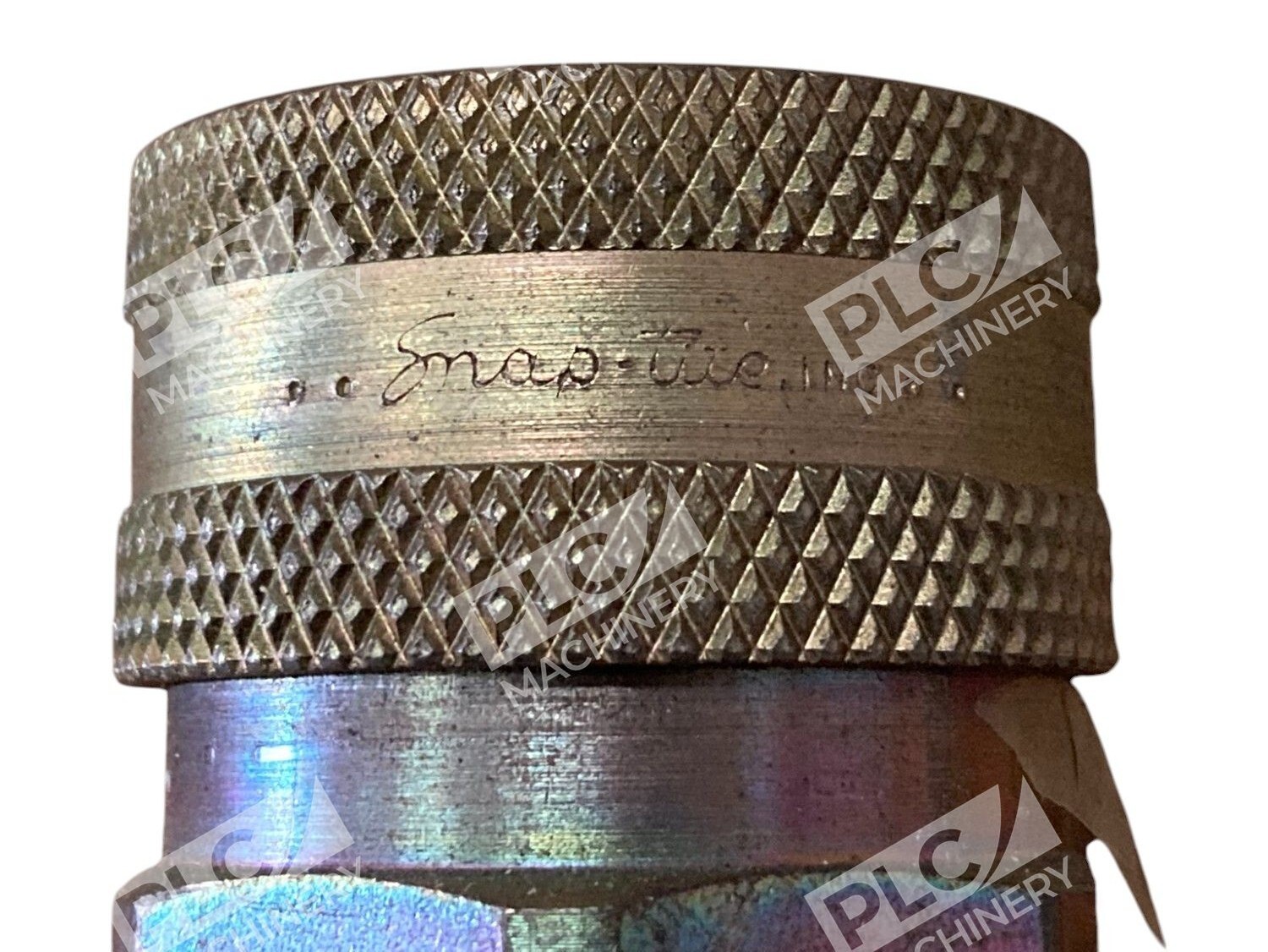

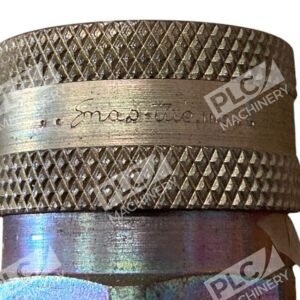

The Snap-Tite VHC12-12F quick disconnect coupling is a Parker Hannifin hydraulic quick coupler designed for reliable, multi-purpose fluid transfer applications. This H Series coupling features a steel body with zinc plating and a sleeve-lock socket mechanism for safe, secure connections. Rated for pressures up to 11,000 psi, the VHC12-12F is widely used in industrial hydraulic lines, mobile equipment, food and chemical processing, and water/coolant systems.
Key Features
- Pressure rating up to 11,000 psi for industrial and mobile hydraulic applications
- Steel body with zinc plating for corrosion resistance
- 3/4″ NPTF female port end with 3/4″ coupling body size
- Sleeve-lock socket design prevents accidental disconnection
- Compatible with Snap-Tite H and PH Series nipples for flexible valve configurations
- Double or single shut-off valve options available
Technical Specifications
- Body Material: Steel (zinc-plated)
- Pressure Rating: Up to 11,000 psi
- Coupling Size: 3/4″
- Port End Type: Female NPTF (3/4″-14 thread)
- Connection Style: Sleeve-lock socket, manual sleeve
- Body Length: 2.42 inches
- Largest Diameter: 1.73 inches
- Wrench Flats: 1.50 inches
- Series: Parker Snap-Tite H Series
- Valve Configuration: Valved coupler (poppet valve type)
- Condition: New, no box
Typical Applications
- Industrial hydraulic power transmission lines
- Mobile and construction equipment hydraulics
- Food and chemical processing fluid transfer
- Water and coolant circulation systems
- High-pressure fluid transfer in automated manufacturing
- Agricultural equipment hydraulic connections
Compatibility & Replacements
Compatible With
- Snap-Tite H Series nipples (aluminum, brass, steel, stainless)
- Snap-Tite PH Series quick couplers (connect-under-pressure designs)
- Standard 3/4″ NPTF threaded systems and fluid transfer equipment
- Parker quick coupling networks and manifold systems
Replaces / Drop-In Replacement For
- VHN12-12F (non-valved H Series nipple counterpart)
- Other 3/4″ NPTF female quick couplers rated 11,000 psi or lower
- Verify part interchangeability with your system integrator before ordering
Works With
- Parker Hannifin Snap-Tite H & PH Series component ecosystems
- Standard NPTF threaded piping and hose assemblies
- Poppet valve cartridge systems and manifold-mounted couplings
- Industrial hydraulic and fluid transfer automation systems
