Overview

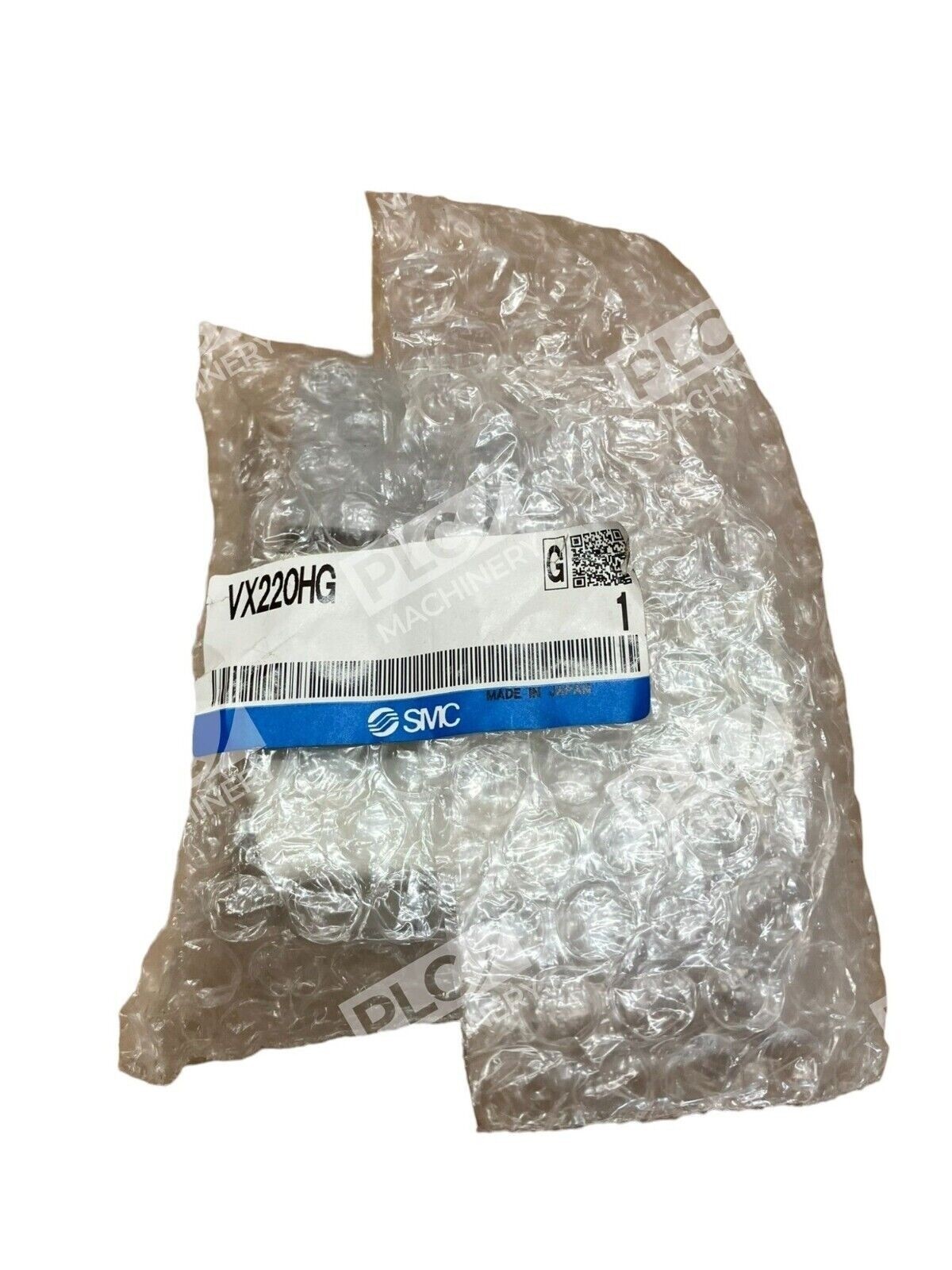

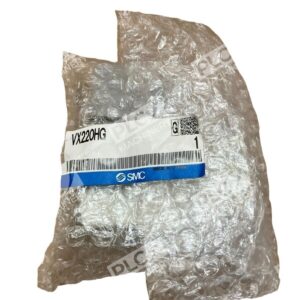

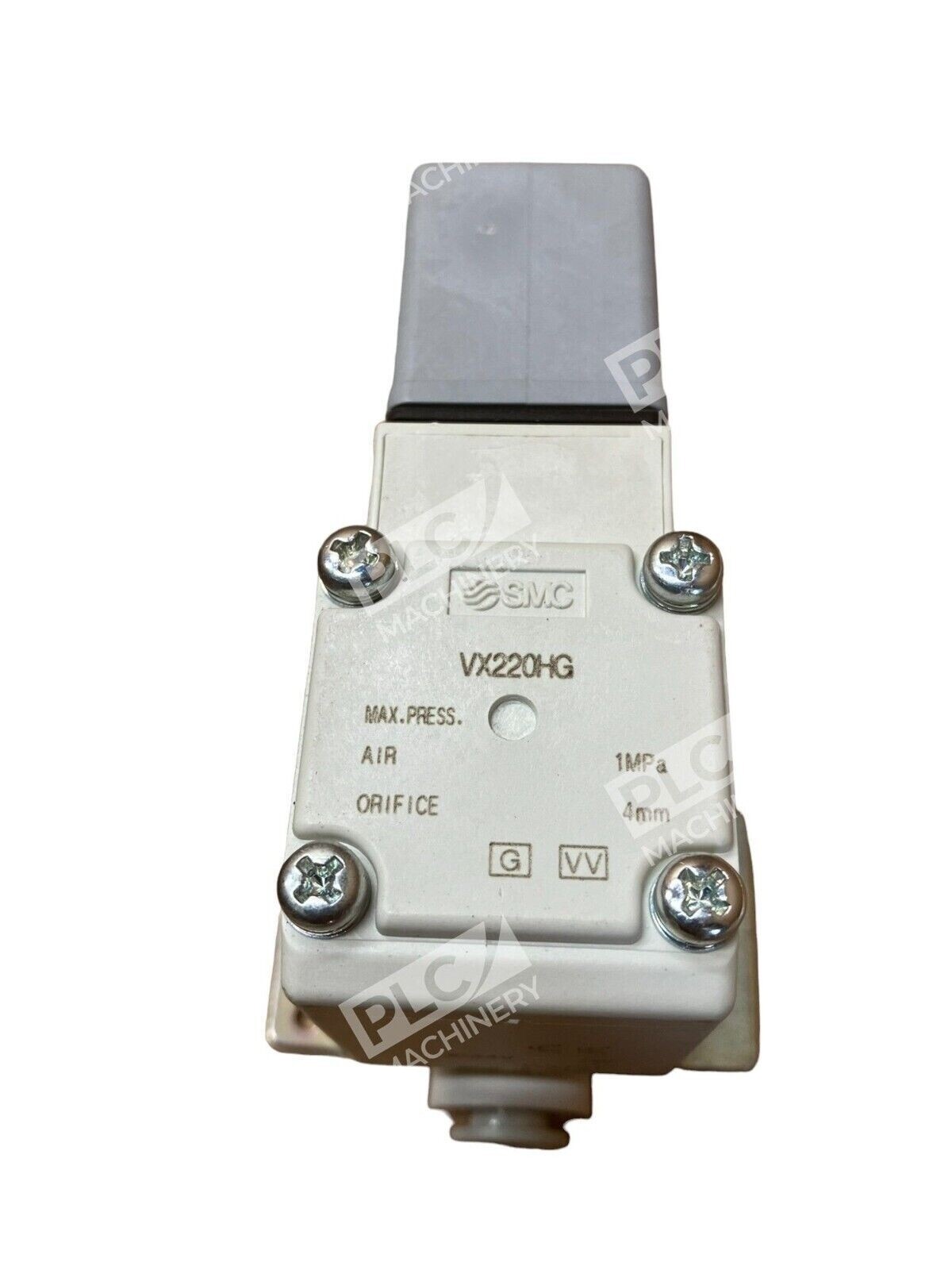

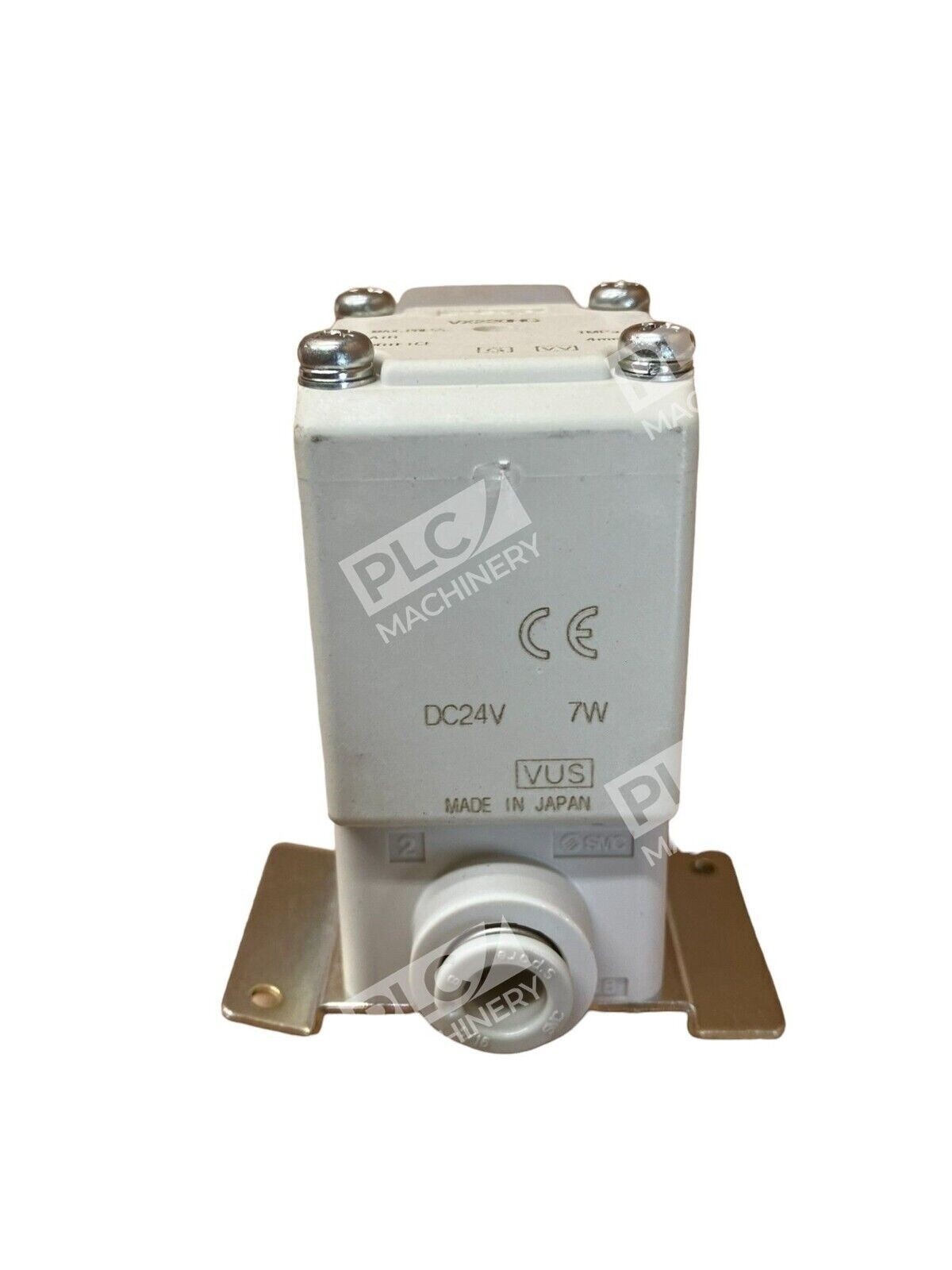

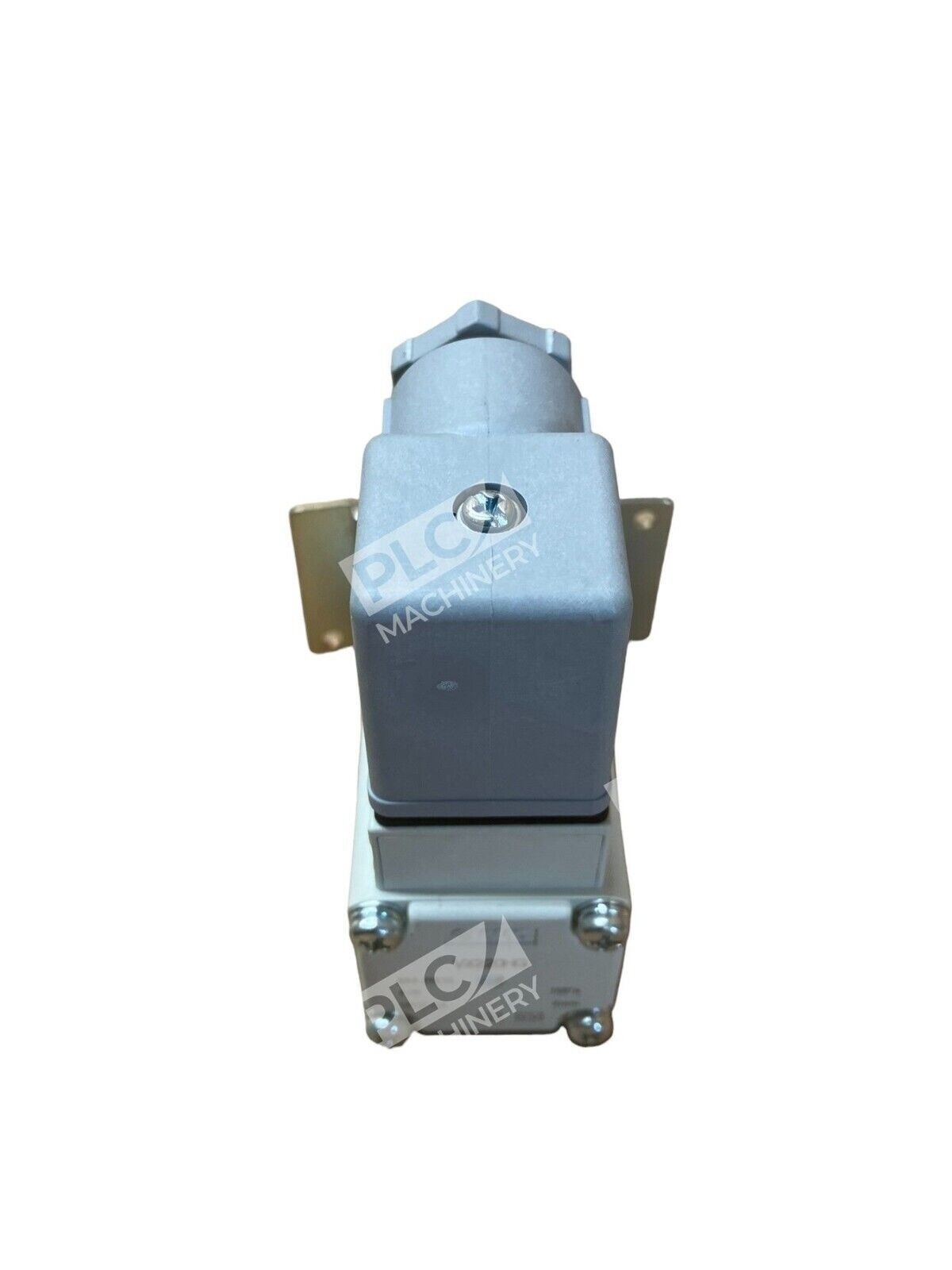

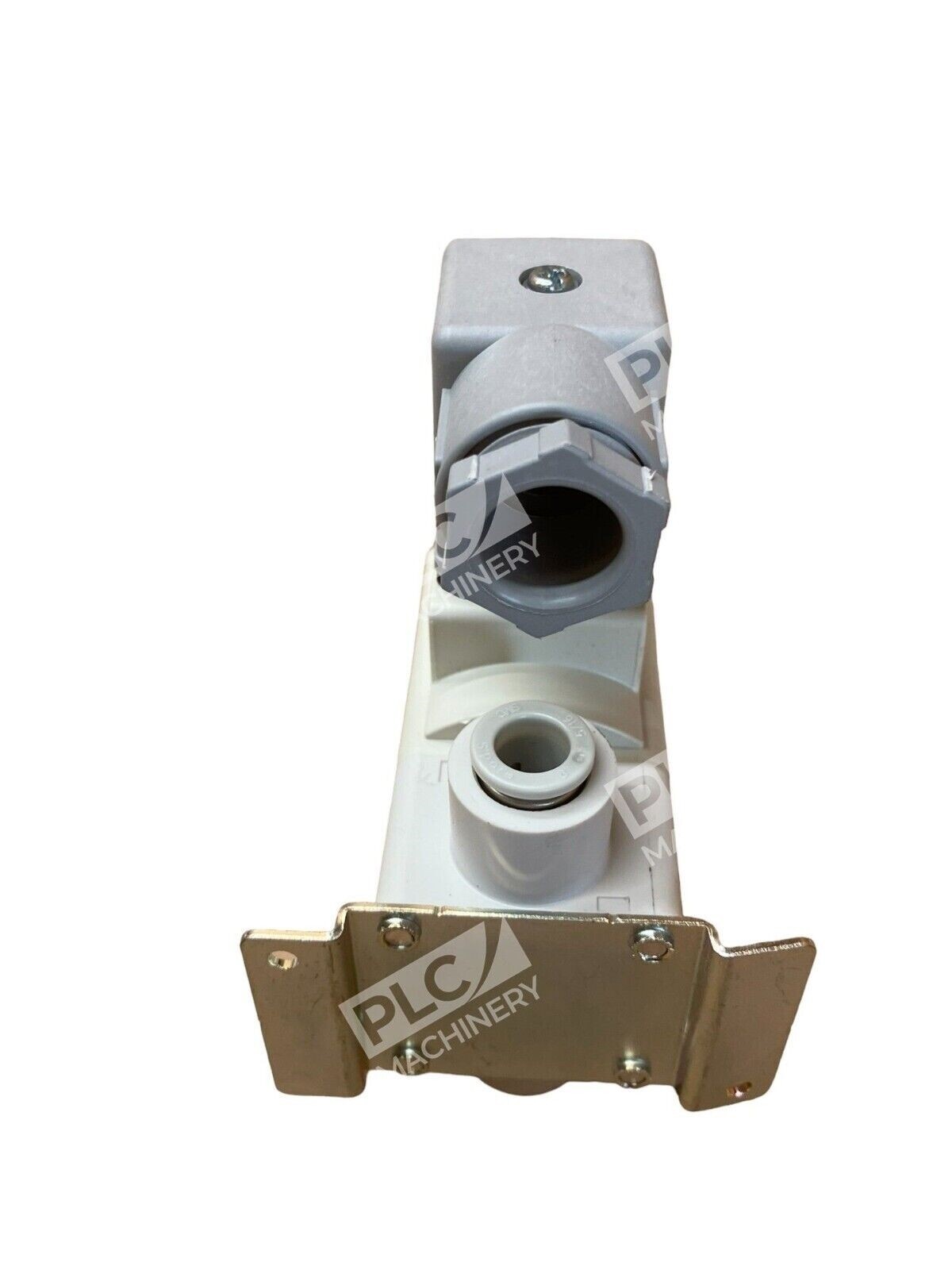

The SMC VX220HG is a direct operated 2-port solenoid valve from the VX2 series, designed for precise fluid and gas control in industrial automation systems. Suitable for use with air, water, oil and medium vacuum environments, this normally closed (NC) valve delivers reliable performance in demanding applications. The valve features a compact resin and aluminum body construction, making it ideal for space-constrained installations.
Key Features
- Direct Operation: Solenoid-actuated 2-port design for responsive fluid/gas control
- Compact & Lightweight: 10% smaller and 30% lighter compared to the older VX21 model
- Enhanced Flow Performance: 20% larger flow rate than the older VX21 valve
- Low Power Consumption: Reduced apparent power with rubber bumper to reduce valve noise during operation
- Quick Installation: One touch fitting for speed of installation
- Durable Construction: Resin and aluminum body with improved sealing for extended service life
Technical Specifications
All specifications verified from manufacturer and authorized distributor sources.
Typical Applications
The SMC VX220HG is well-suited for:
- Pneumatic automation systems and air control circuits
- Hydraulic and fluid power applications
- Medium vacuum applications
- Water and oil system controls
- Industrial machinery and equipment automation
- OEM equipment integration and replacement
Compatibility & Replacements
Compatible With
- Standard 24 VDC solenoid coil power supplies
- Pneumatic and hydraulic system manifolds with 8mm port connections
- Industrial automation control systems
- Standard solenoid valve control circuits
Replaces / Drop-In Replacement For
- SMC VX210HG and other VX2 Size 2 models with identical port configuration
- Older SMC VX21-series 2-port valves (with performance improvements)
Works With
- 24 VDC solenoid control circuits
- Industrial PLC and automation controller outputs
- Pneumatic and hydraulic manifold systems
- Standard one-touch push-to-connect fittings (8mm)
