Overview

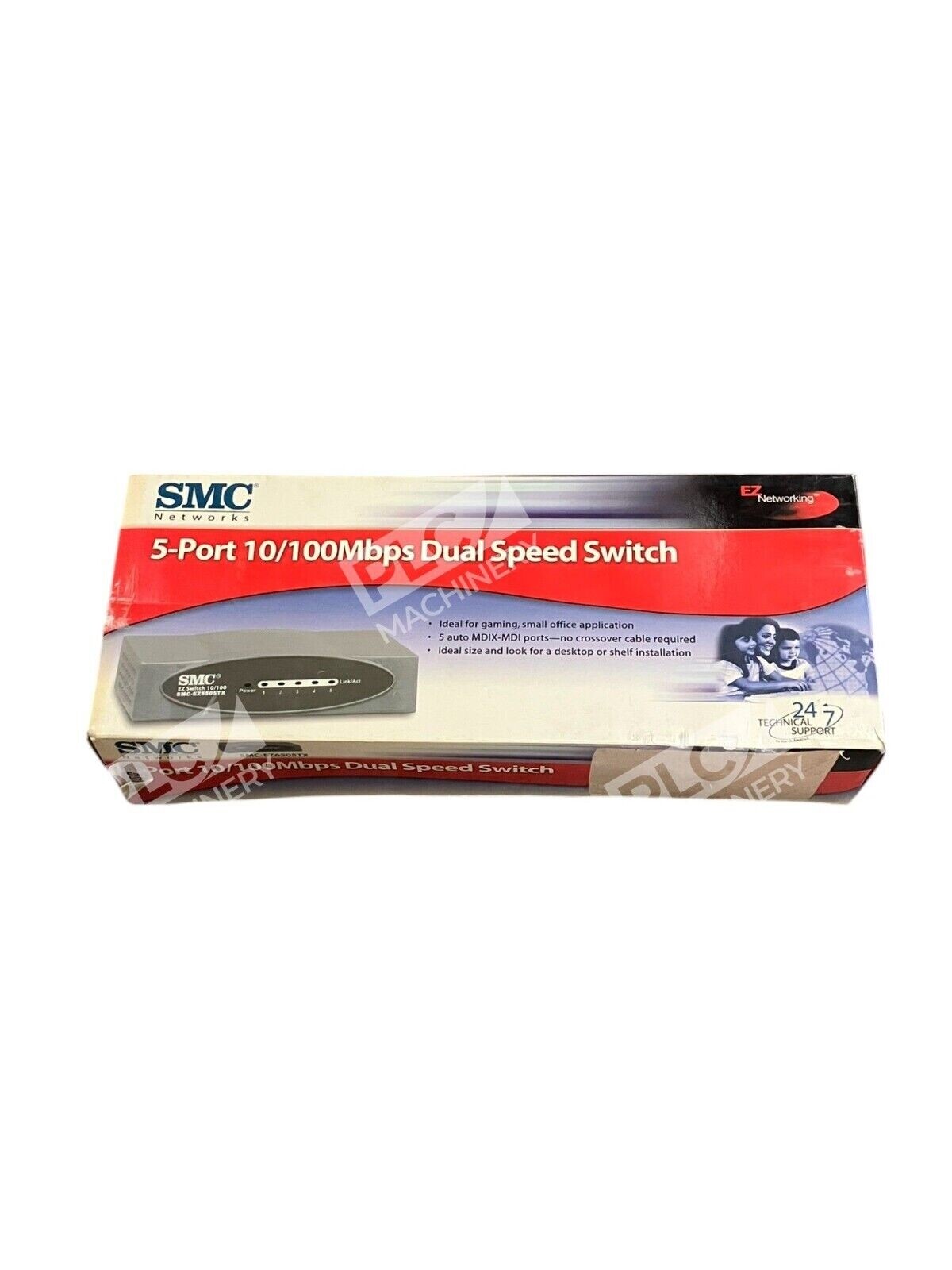

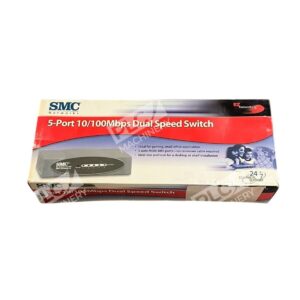

The SMC-EZ6505TX is a compact 5-port dual-speed Ethernet switch that combines ease of use with reliable performance for small office and industrial networks. This switch offers speeds up to 200Mbps per port, making it suitable for both legacy 10Base-T and modern 100Base-TX deployments. Designed for easy integration with any Home or Small Office network, the SMC-EZ6505TX contains added features like Store-and-Forward and Flow Control to ensure data delivery and network integrity.
Key Features
- Auto MDI/MDI-X on each port, providing added functionality and ease of use
- Store-and-Forward and Flow Control to ensure data delivery and network integrity
- Unmanaged operation — no configuration required, plug-and-play deployment
- Dedicated bandwidth on each individual port, avoiding congestion problems of shared hubs
- Desktop or rack-mountable form factor suitable for control room and plant floor installations
Technical Specifications
Operating temperature: 0 to 50°C (32 to 122°F); Storage temperature: -40 to 70°C (-40 to 158°F)
Power input: 6V DC, 1A; Maximum power consumption: 6 watts; Heat dissipation: 13.1 BTU/hr
Dimensions: 120 x 84 x 26mm; Weight: 0.167kg
Standards: IEEE 802.3, 802.3u, ISO/IEC 8802-3; Certifications: CE Mark, FCC Class B, EN 55022 Class B, C-Tick (AS/NZS 3548)
Typical Applications
The SMC-EZ6505TX serves as a reliable bridging solution for:
- Industrial control networks requiring fast Ethernet connectivity
- PLC and HMI device interconnection in automation systems
- SOHO network expansion and backbone support
- Legacy 10Base-T network migration to 100Base-TX
- Distributed I/O and peripheral device networking
Compatibility & Replacements
Compatible With
- Any 10Base-T or 100Base-TX Ethernet device (PLCs, HMIs, computers, printers)
- Category 3, 4, or 5 UTP cabling for 10Base-T
- Category 5 UTP cabling for 100Base-TX
- Standard RJ-45 connectors and pinouts
- Industrial automation platforms using standard Ethernet protocols
Replaces / Drop-In Replacement For
The SMC-EZ6505TX directly replaces other 5-port 10/100Mbps switches in the EZ Switch product line. Verify compatibility with your system integrator before ordering.
Works With
- IEEE 802.3 and 802.3u Ethernet standards
- 10Base-T (10Mbps) and 100Base-TX (Fast Ethernet) protocols
- Any PLC, HMI, or industrial device with standard RJ-45 Ethernet ports
- Unmanaged, plug-and-play operation — no SNMP or advanced switching software required
