Overview
The SMC D-Y7P magnetic switch is a solid-state auto switch designed for detecting piston position in pneumatic actuators. Unlike traditional reed switches, the D-Y7P uses Hall-effect technology with no mechanical moving parts, making it ideal for high-cycle, repetitive-duty applications. This 3-wire PNP configuration ensures compatibility with standard industrial PLCs and control systems, while the included indicator LED provides visual feedback of switch state.
Key Features
- Solid-state Hall-effect design with no moving parts to wear out
- 3-wire PNP output for direct PLC integration
- Onboard red indicator LED for switch status visibility

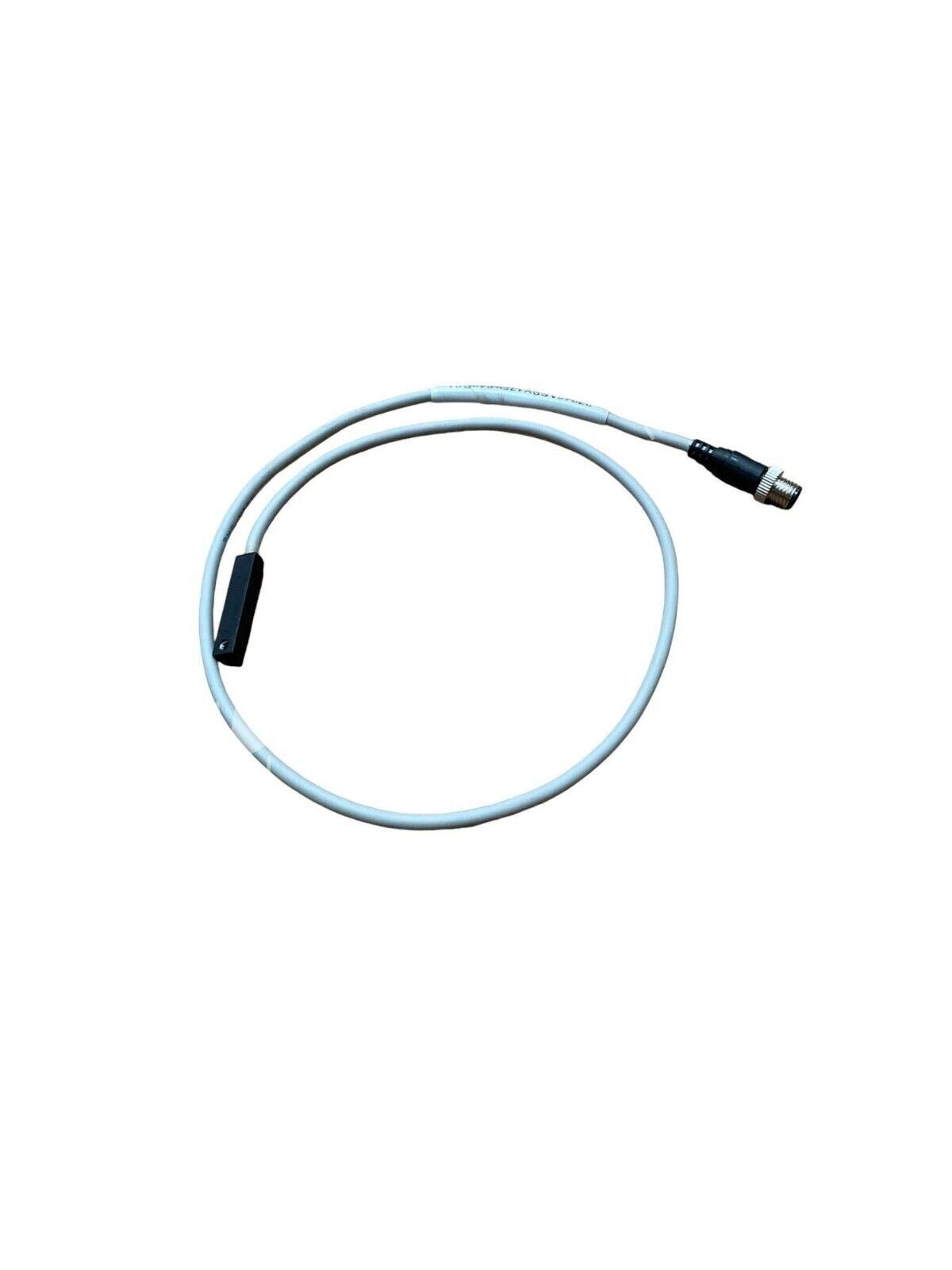

- 0.5-meter lead wire with M8 3-pin connector (pre-wired)
- Horizontal mounting orientation for in-line cylinder applications
- General-purpose configuration suitable for standard actuator detection
Technical Specifications
- Output Type: 3-Wire PNP (Sourcing)
- Detection Method: Solid-State (Hall-Effect)
- Lead Wire Length: 0.5 m (standard)

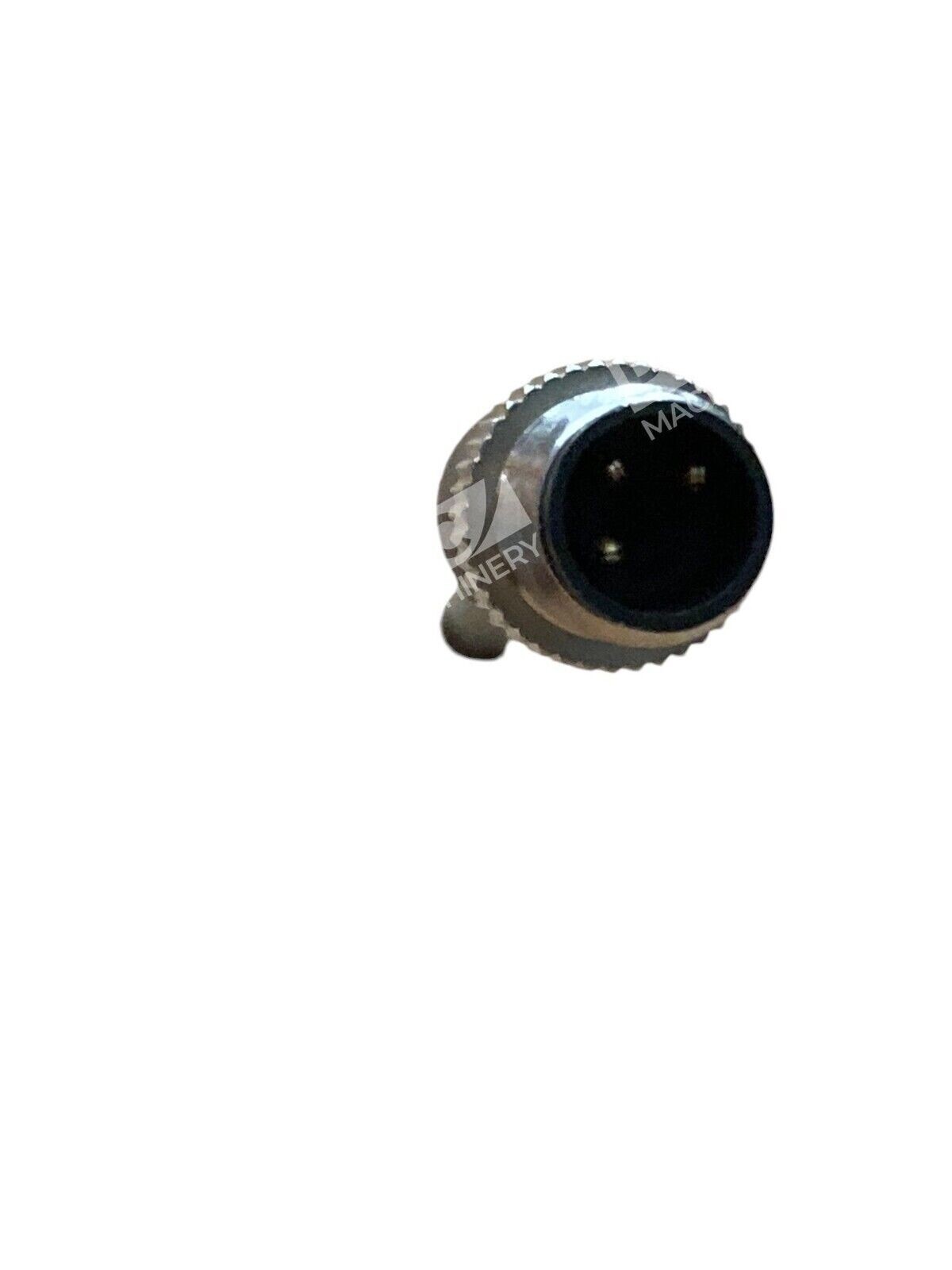

- Connector Type: M8 3-pin pre-wired
- Mounting: Band/Tie-Rod Mount (brackets sold separately)

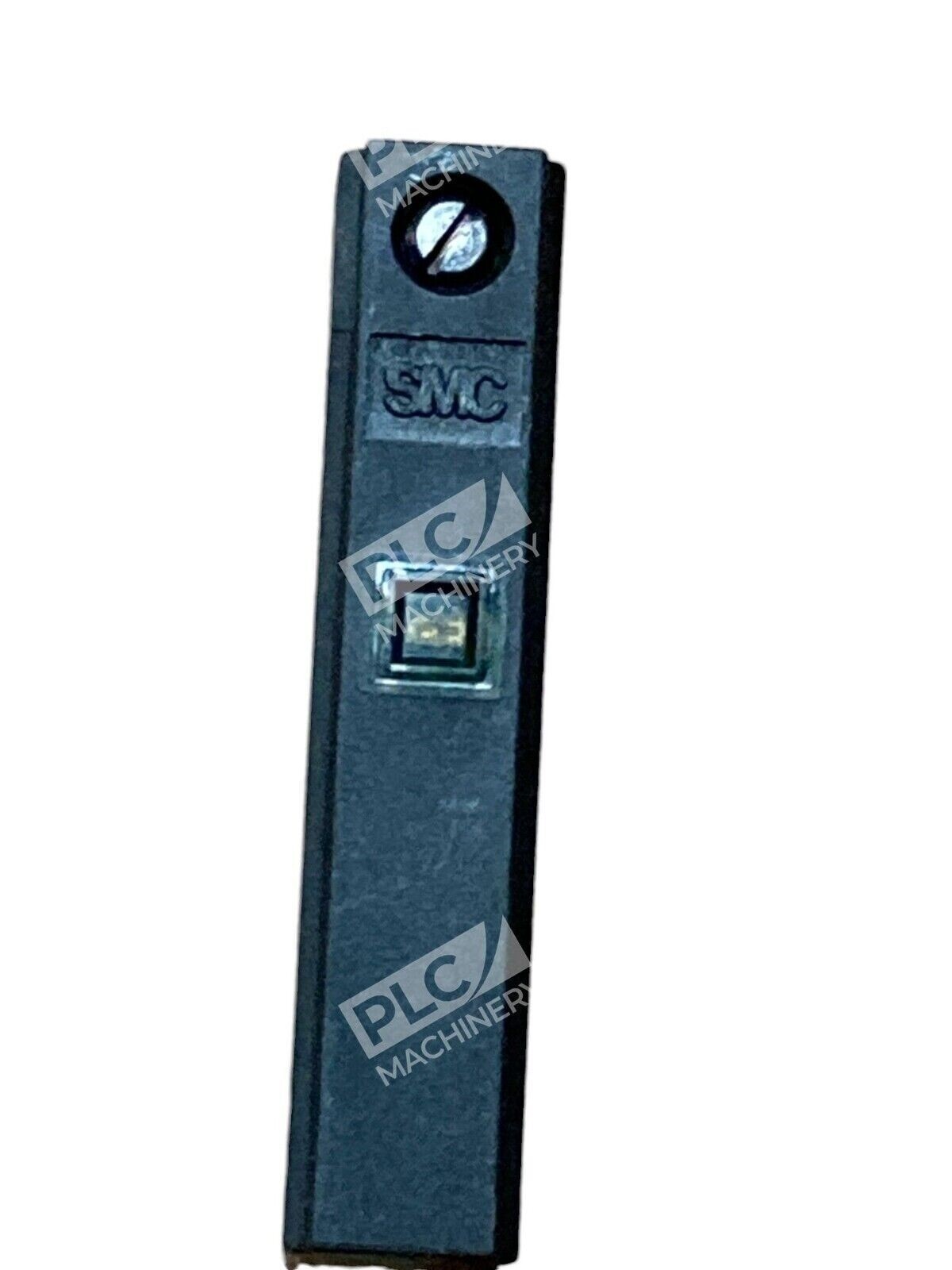

- Indicator: Red LED (illuminates when ON)
- Operating Voltage: 24 VDC typical
- Weight: Approximately 10 g
- Certifications: Designed for international standard compliance
- Series: D-Y7P (Solid State Auto Switch)
Typical Applications
- Pneumatic cylinder end-of-stroke detection
- Automated assembly line position sensing
- Air gripper and actuator feedback in robotic systems
- Workpiece recognition in material handling
- Machine tool positioning and limit switching
- Industrial automation and process control
Compatibility & Replacements
Compatible With
- SMC pneumatic cylinders with integrated magnets
- Standard 24 VDC industrial control systems
- PLC input cards (analog/discrete DC inputs)
- Industrial automation controllers and HMIs
- Relay logic and pneumatic control panels
Replaces / Drop-In Replacement For
- Earlier D-Y7 series magnetic switches
- Equivalent SMC reed switch auto switches in general-purpose applications
Works With
- 24 VDC power supplies
- PLC input modules (24 VDC sourcing logic)
- M8 connector wiring harnesses
- Band and tie-rod mounting brackets (sold separately)
