Overview

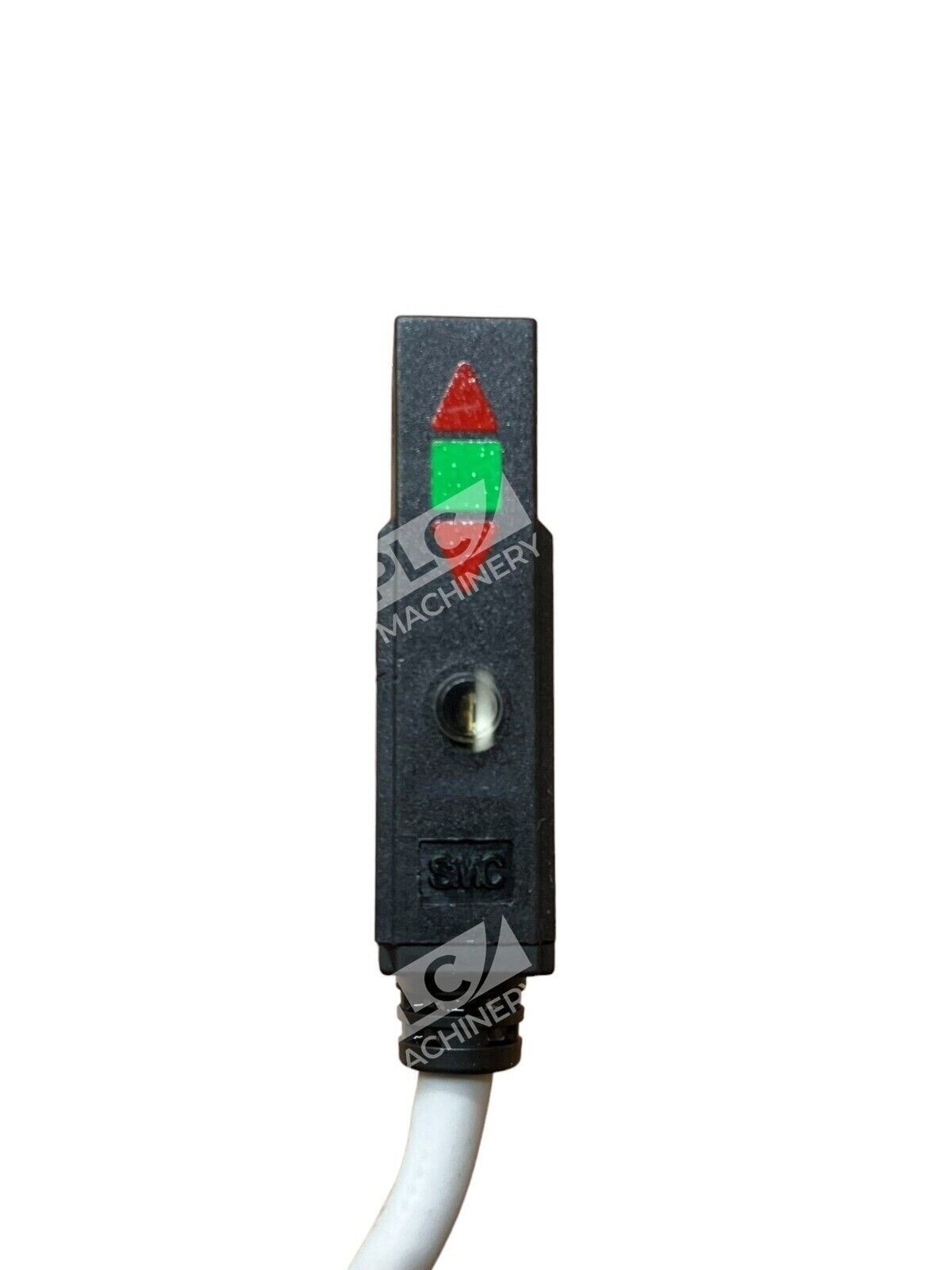

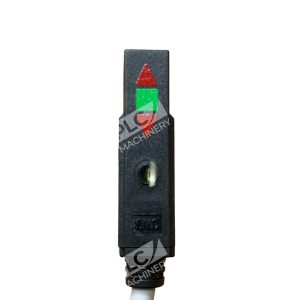

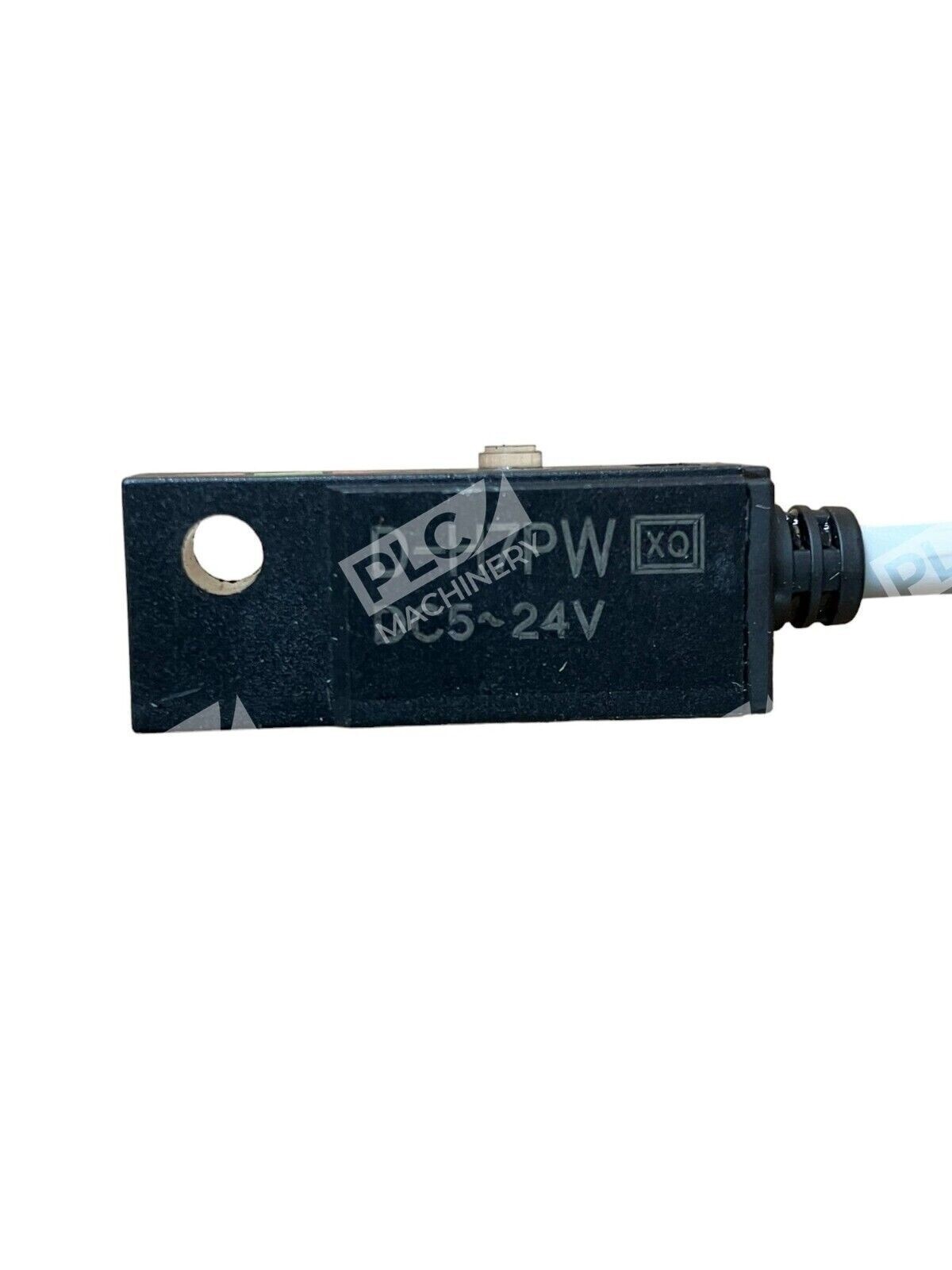

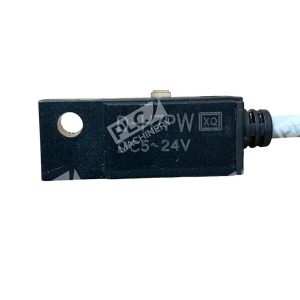

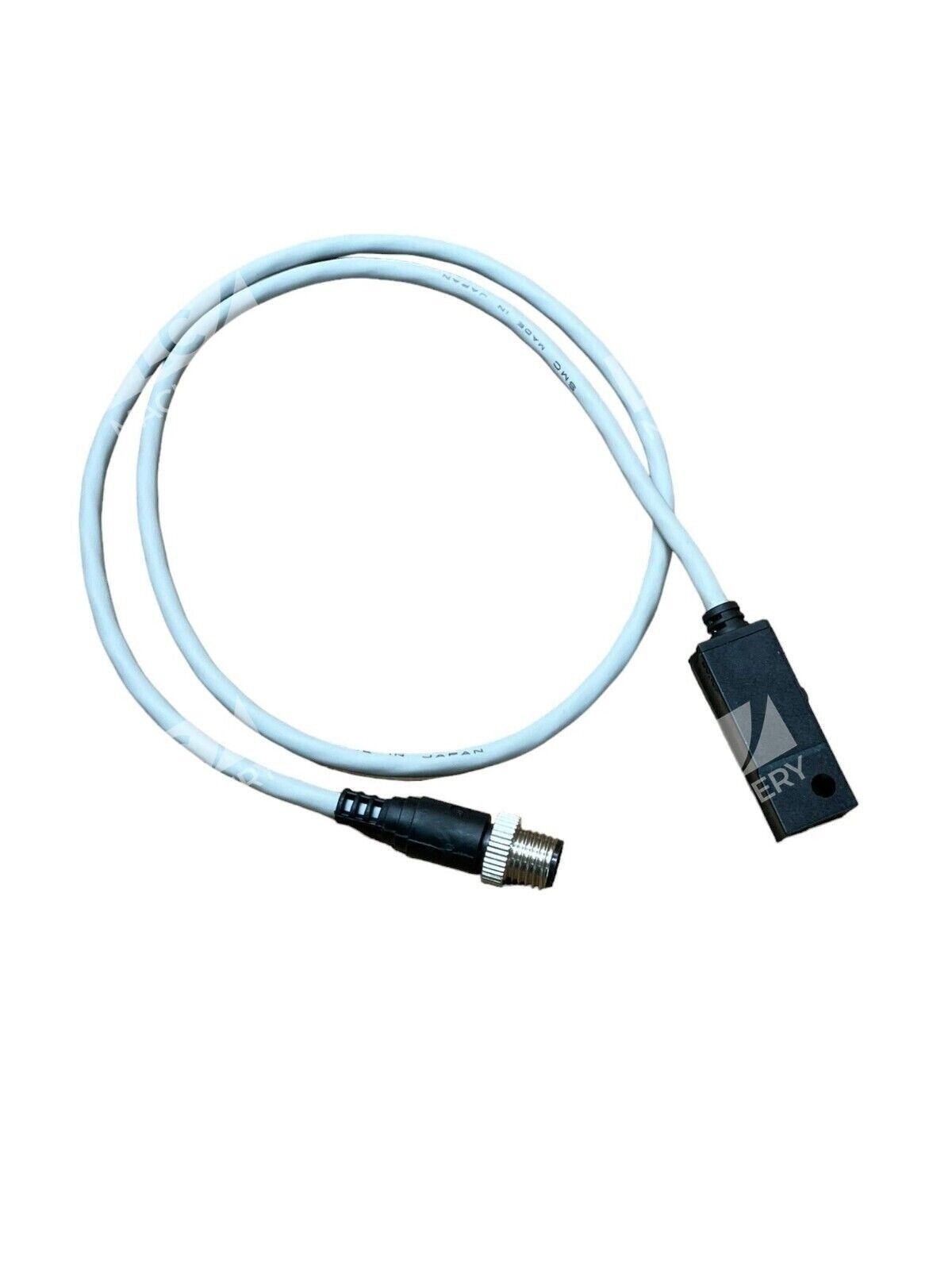

The SMC D-H7PW is a solid state auto switch with integrated 2-color LED indication for precise actuator position monitoring in pneumatic systems. This D-H7PW unit operates across DC5–24V supply voltages and features PNP output logic, making it suitable for direct integration with industrial controllers, PLCs, and relays. The dual-color indicator provides real-time feedback: red LED indicates out-of-range detection, green LED indicates optimum operating position.
Key Features
- 2-color LED indication for operating range diagnostics
- PNP solid state output (3-wire configuration)
- Wide operating voltage range: DC5–24V (4.5–28 VDC rated)
- Maximum load current: 80 mA
- Band mounting for cylinder-mounted installation
- IP67 enclosure rating for industrial environments
- Impact proof rated at 1000 m/s²
- CE and RoHS compliant
Technical Specifications
- Output Type: PNP (3-wire)
- Power Supply Voltage: DC5, 12, 24V (rated 4.5–28 VDC)
- Maximum Load Current: 80 mA
- Load Voltage: 28 VDC or less
- Current Consumption: 10 mA or less
- Internal Voltage Drop: 0.8 V or less at 10 mA load current
- Leakage Current: 100 µA or less at 24 VDC

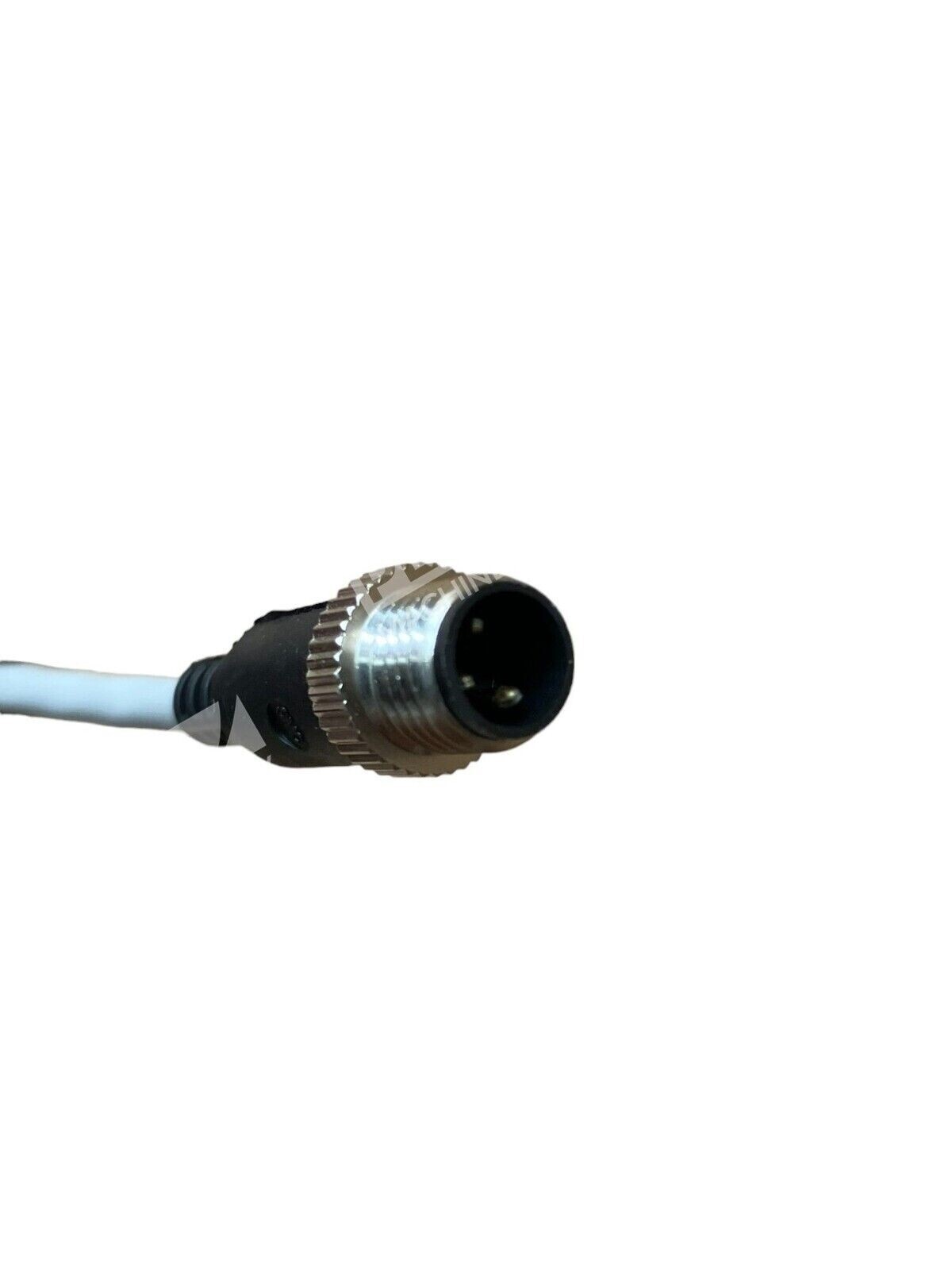

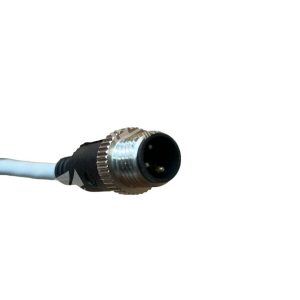

- Lead Wire: 3-core (Brown, Black, Blue); Ø3.4 mm, 0.2 mm²
- Ambient Temperature Range: −10 to +60 °C
- Enclosure: IP67
- Mounting Style: Band mount for cylinder attachment
- Insulation Resistance: 50 MΩ or more (500 VDC test)
- Withstand Voltage: 1000 VAC, 1 min
- Standards: CE, RoHS, IEC 60529
Typical Applications
- Pneumatic cylinder end-of-stroke detection
- Air gripper position monitoring
- Industrial automation and assembly line control
- PLC/relay input modules for actuator feedback
- OEM equipment requiring position sensing in manufacturing
Compatibility & Replacements
Compatible With
- SMC pneumatic cylinders and air grippers with band-mount capability
- Industrial PLC input modules (24 VDC logic)
- DC relays and solid-state relays
- Industrial control systems and automation networks
Replaces / Drop-In Replacement For
- Verify compatibility with your system integrator before ordering to ensure mounting style and output type match your pneumatic equipment.
Works With
- DC5, 12, and 24V power supply systems
- PNP-input capable PLCs and controllers
- Pneumatic actuation systems requiring position feedback
- Standard industrial I/O modules and relay logic
