SMC CDG1BN40-125 Pneumatic Cylinder

SMC CDG1BN40-125 Pneumatic Cylinder

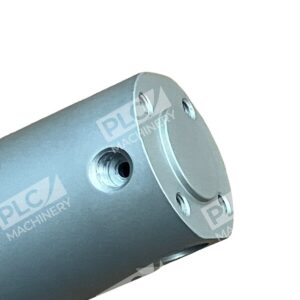

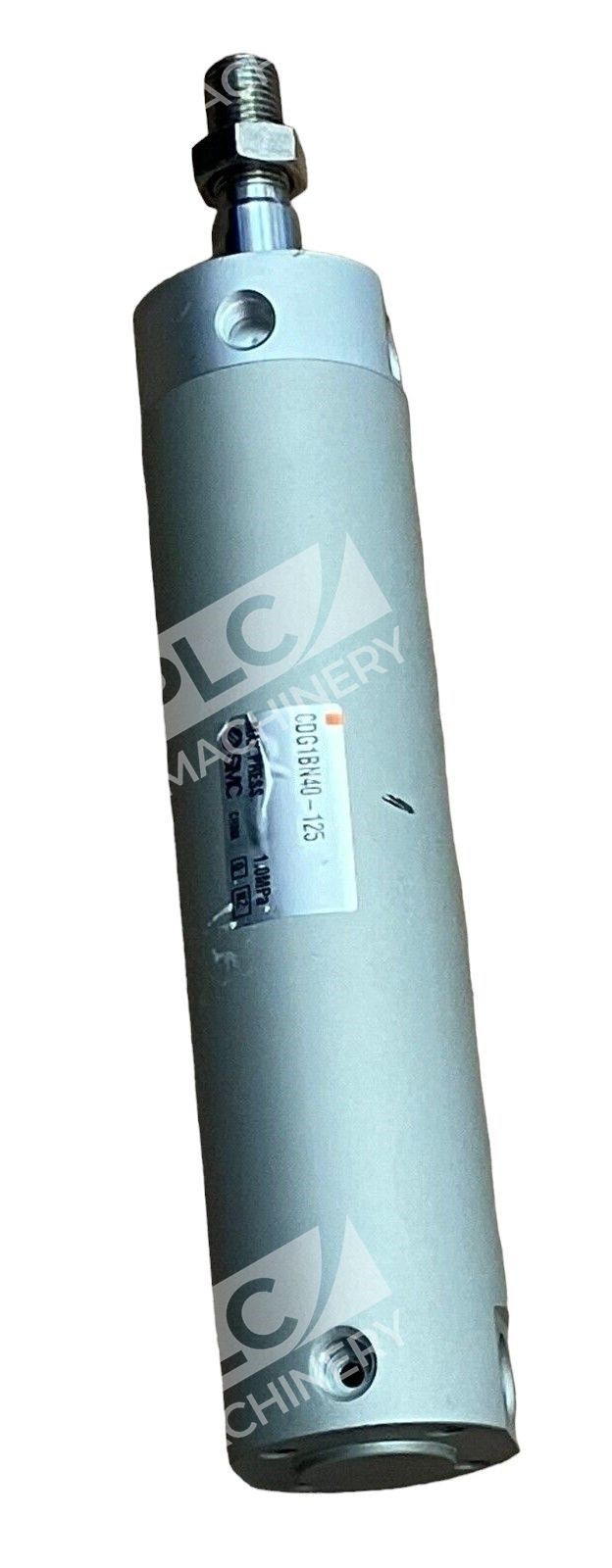

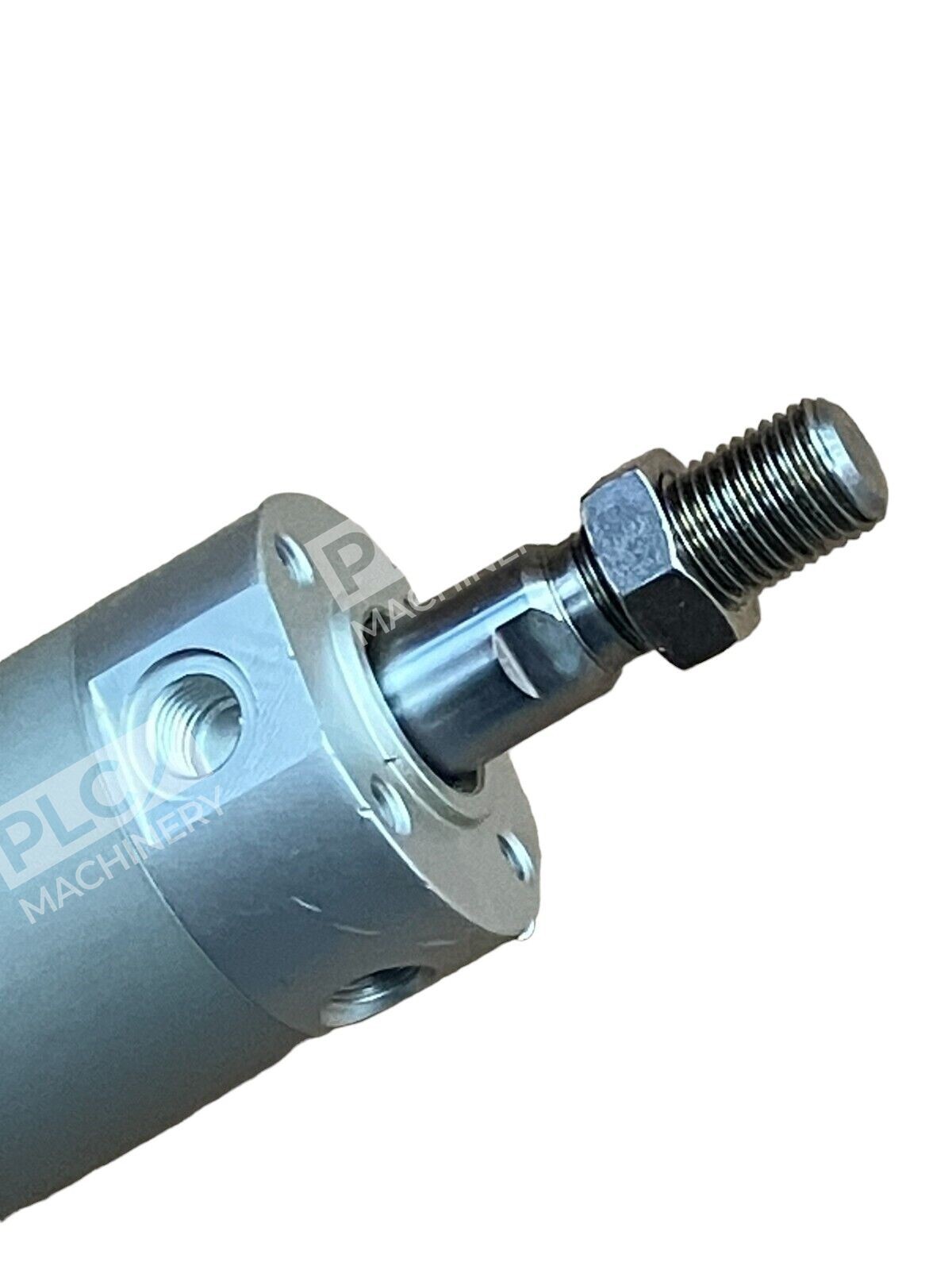

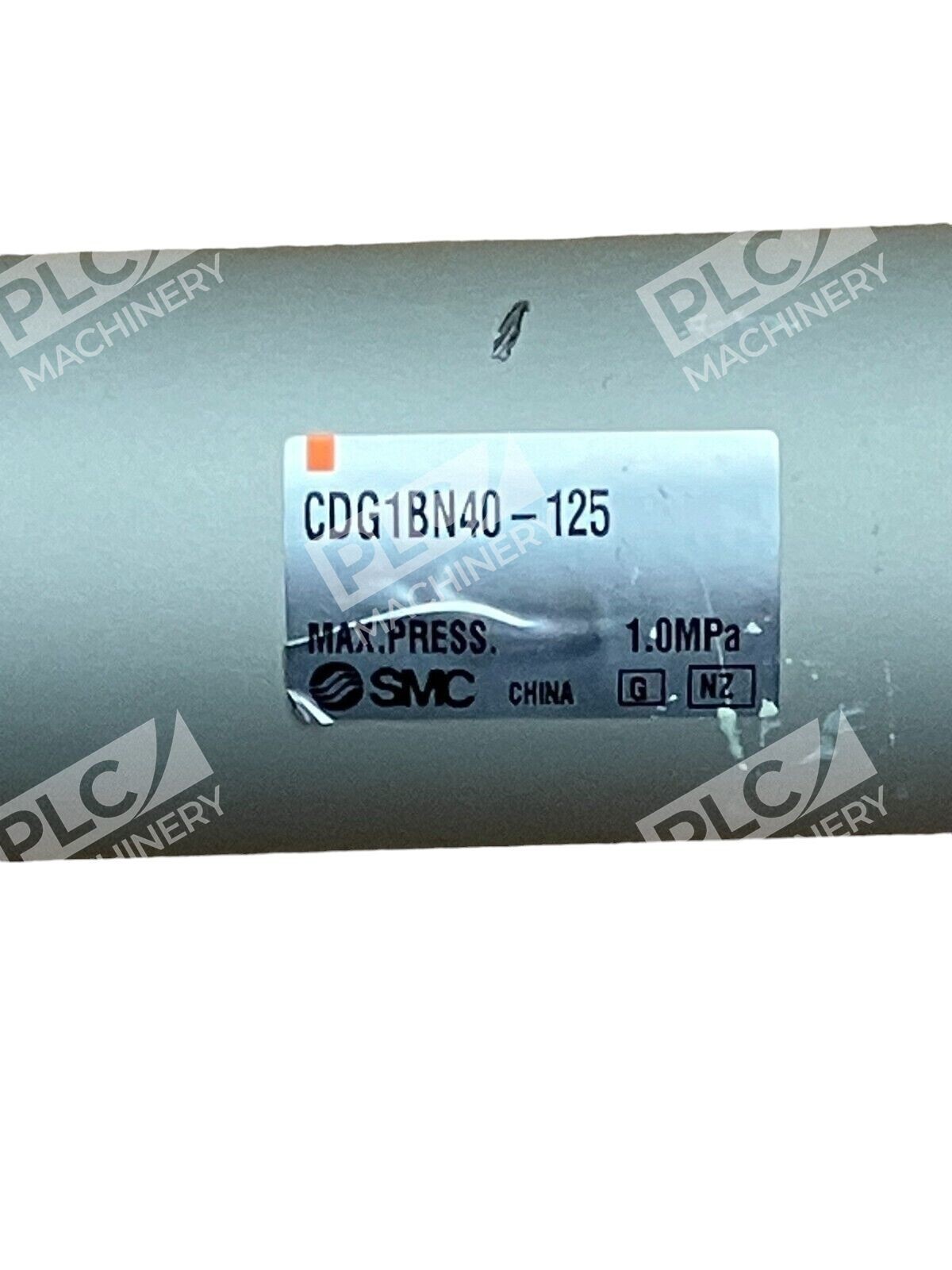

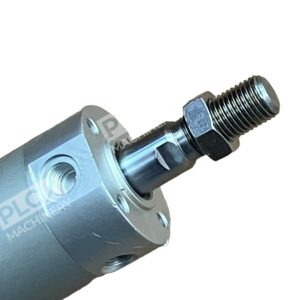

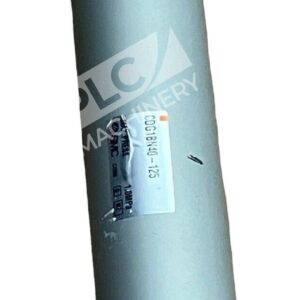

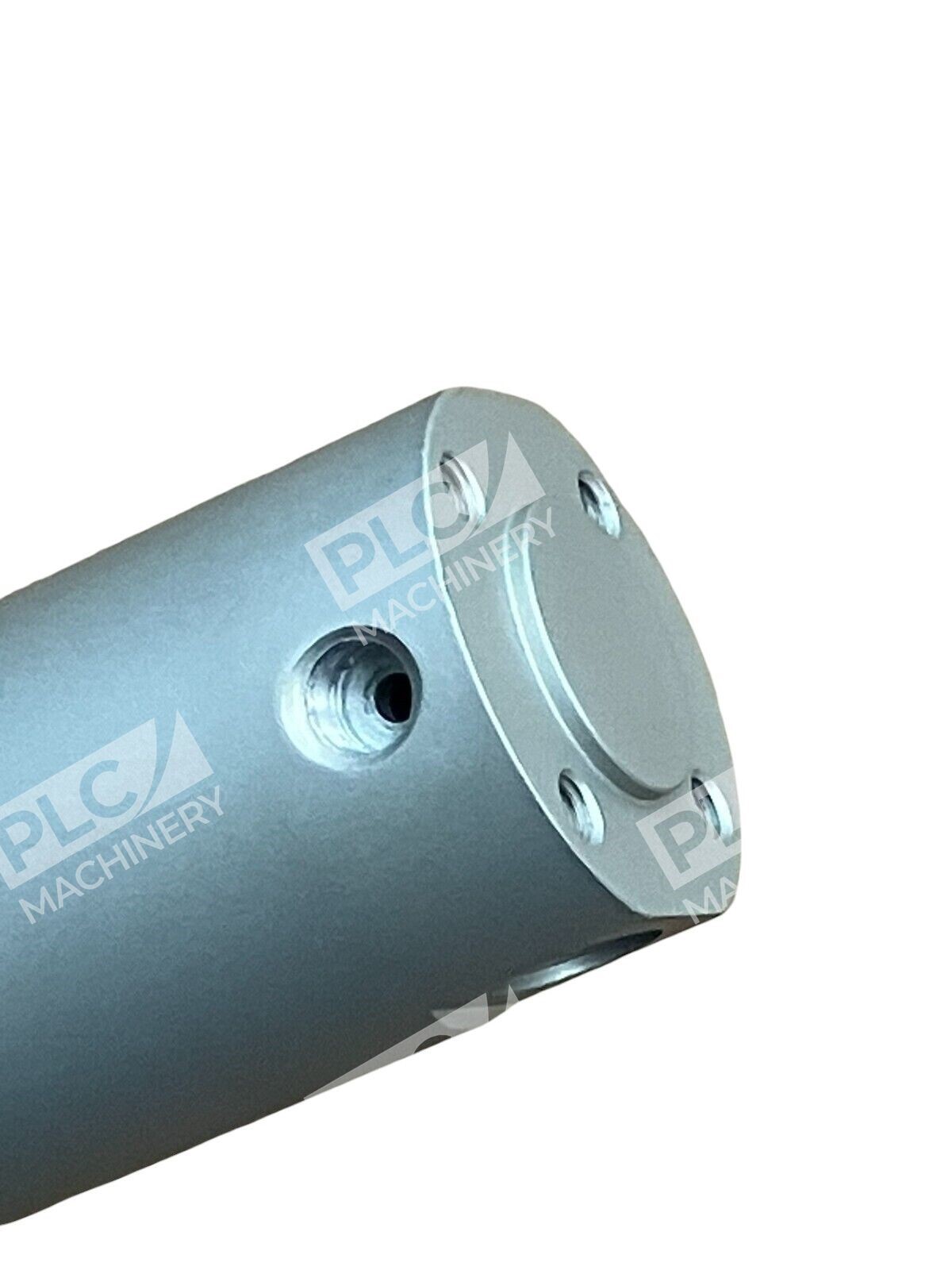

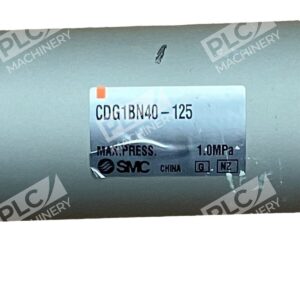

The SMC CDG1BN40-125 is a precision-engineered pneumatic cylinder from the CG1 series, designed to deliver reliable and efficient performance in various industrial applications. This double-acting, single-rod cylinder features a 40 mm bore size and a 125 mm stroke length, making it suitable for tasks requiring consistent force and smooth operation.

Key Features

• High-Quality Construction: The cylinder’s tube is impact-extruded aluminum, providing an exceptionally smooth finish that ensures low breakaway pressure and seamless stroke action.
• Versatile Mounting Options: With eight available mounting configurations, including basic, foot, front or rear flange, front or rear trunnion, and clevis, the CDG1BN40-125 offers flexibility to meet diverse installation requirements.
• Auto-Switch Capability: The cylinder is designed to accommodate auto switches, allowing for precise position sensing and enhanced control within automated systems.
• Compact and Lightweight Design: The round body design not only contributes to the cylinder’s compactness but also facilitates easy integration into existing machinery without compromising performance.

Specifications

• Bore Size: 40 mm
• Stroke Length: 125 mm
• Action: Double-acting, single rod
• Mounting Types: Basic, foot, front or rear flange, front or rear trunnion, clevis
• Auto Switch Compatibility: Yes

The SMC CDG1BN40-125 pneumatic cylinder is engineered to meet the demands of precision and durability in industrial environments, offering a reliable solution for applications requiring consistent pneumatic actuation.
