Overview

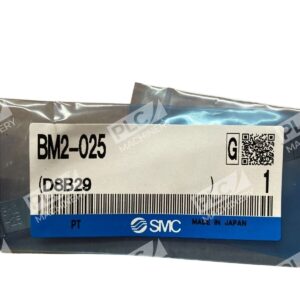

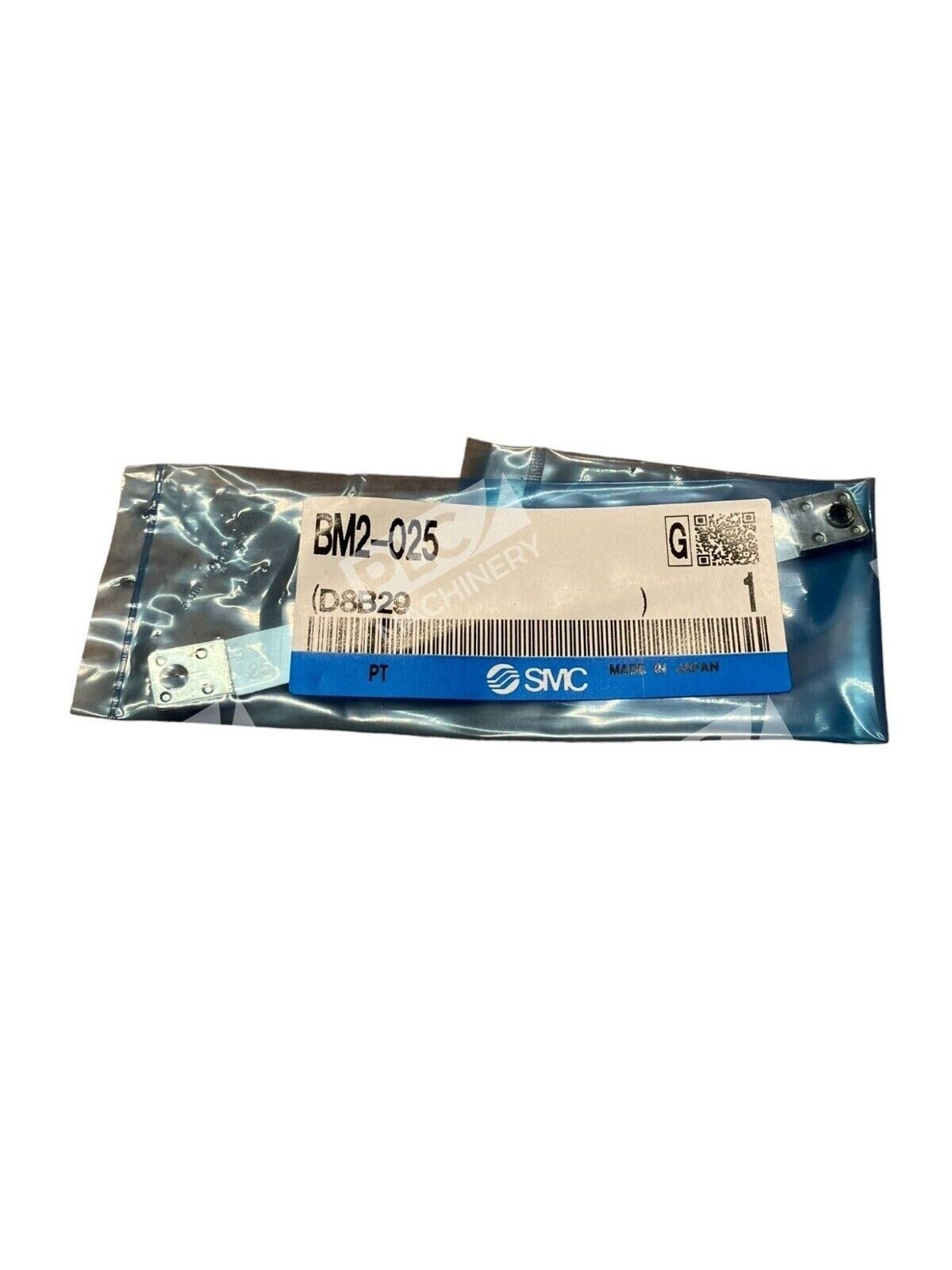

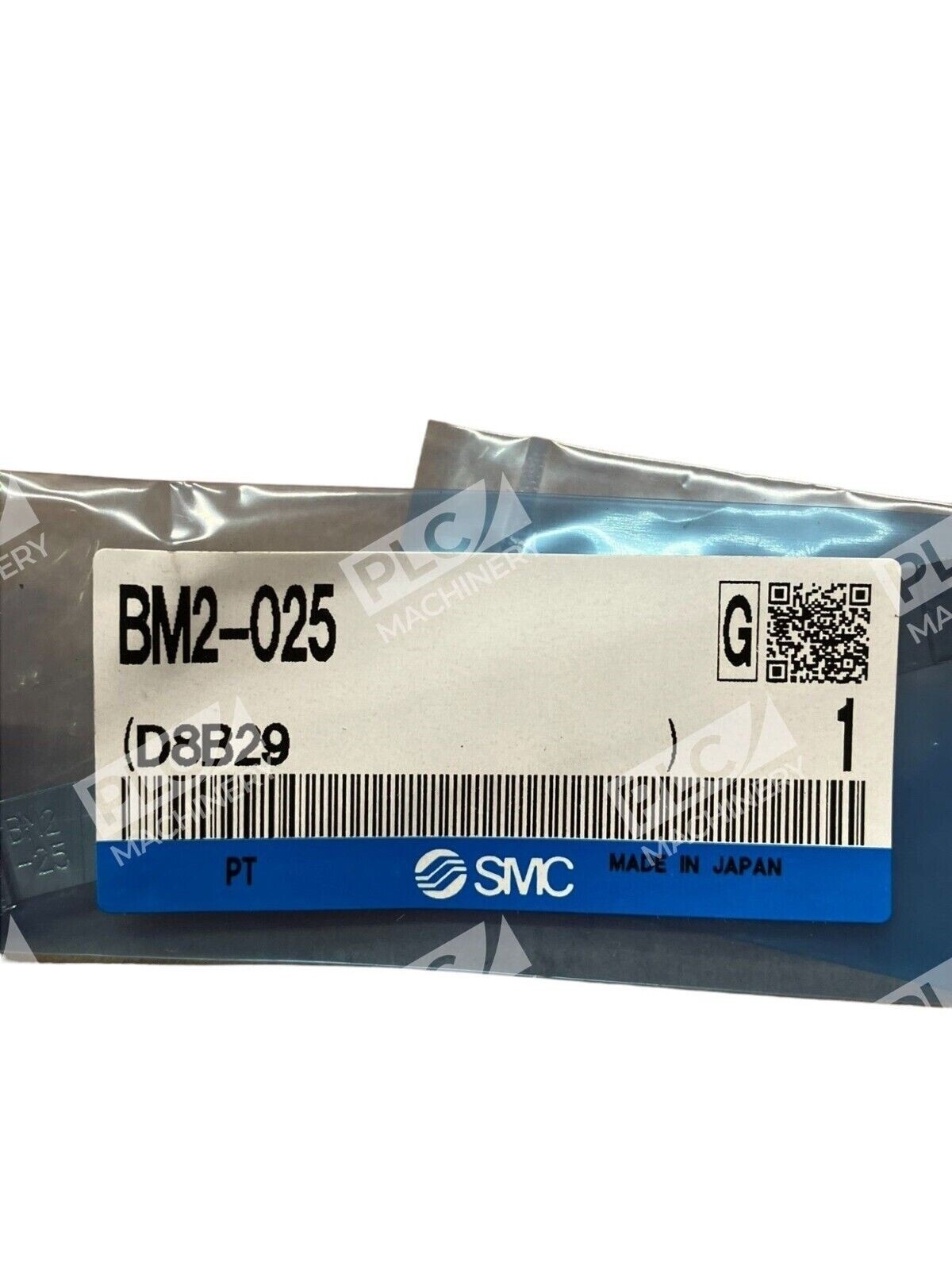

The SMC BM2-025 is a precision auto-switch mounting bracket designed for pneumatic cylinders with a 25mm bore. This lot includes three units in new, factory-sealed packaging. The bracket provides a secure mechanical mounting point for installing auto-switch sensors on standard double-acting cylinders, enabling position feedback and automated control in pneumatic applications across manufacturing, automation, and fluid power systems.
Key Features
- Designed for 25mm bore cylinders in pneumatic automation
- Direct mounting compatibility with SMC auto-switch sensors
- Lightweight nylon construction for reduced assembly weight
- Supports band and rail mounting styles

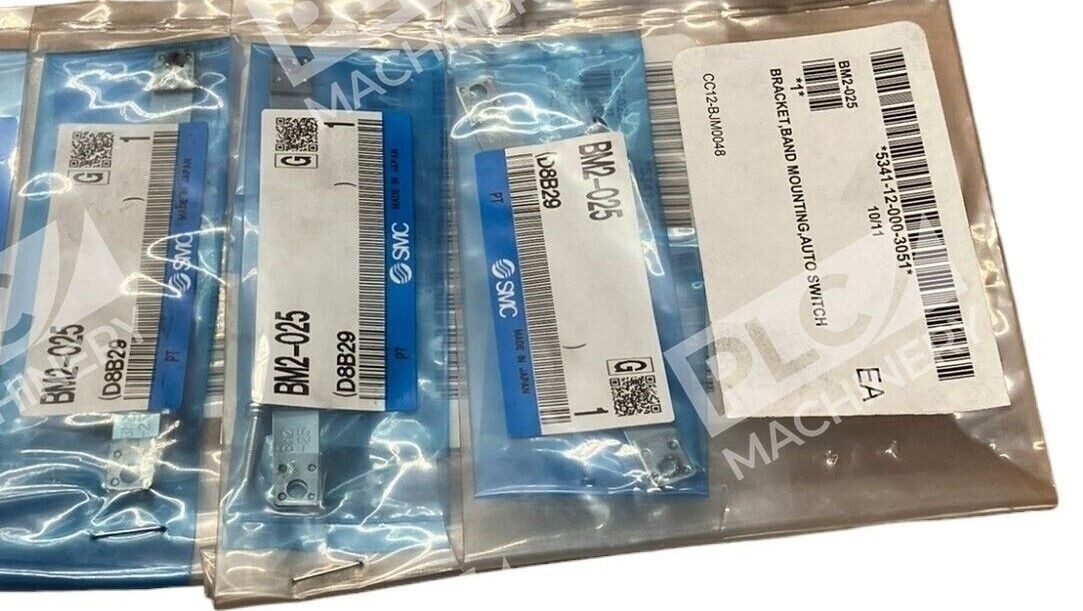

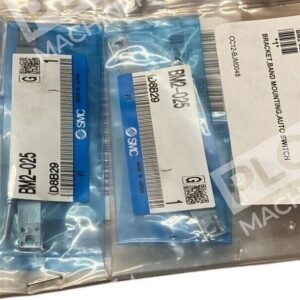

- New in box condition – three units per order
- Manufactured by SMC, global leader in pneumatic components
Technical Specifications
- Part Number: BM2-025
- Cylinder Bore Size: 25mm (ø25)
- Product Type: Auto-switch mounting bracket
- Material: Nylon (standard switching bracket)
- Weight: 2 grams per unit
- Quantity in Lot: 3 units
- Condition: New in box
- Manufacturer: SMC Pneumatics
- Mounting Style: Band mounting with standard screw attachment
Typical Applications
- Pneumatic cylinder position sensing and feedback
- Automated manufacturing and assembly line controls
- Pneumatic actuator end-of-stroke detection
- Industrial automation and hydraulic/pneumatic equipment
- Control switch mounting on double-acting cylinders
Compatibility & Replacements
Compatible With
- SMC double-acting cylinders with 25mm bore (CM2, CM3, CM4, CDM2P series)
- SMC auto-switch sensors (D-M9, D-A9, D-H7, D-C7/C80 models)
- Band and rail mounting pneumatic cylinder configurations
- Standard pneumatic control systems requiring cylinder position feedback
Replaces / Drop-In Replacement For
- BM2-025 original equipment mounting brackets
- Direct replacement for damaged or worn 25mm bore auto-switch brackets
- Verify compatibility with your specific auto-switch model before ordering
Works With
- SMC pneumatic automation product ecosystem
- Industrial pneumatic and hydraulic control systems
- PLC and industrial automation controllers
- Mechanical limit switch and proximity sensor mounting
