Overview

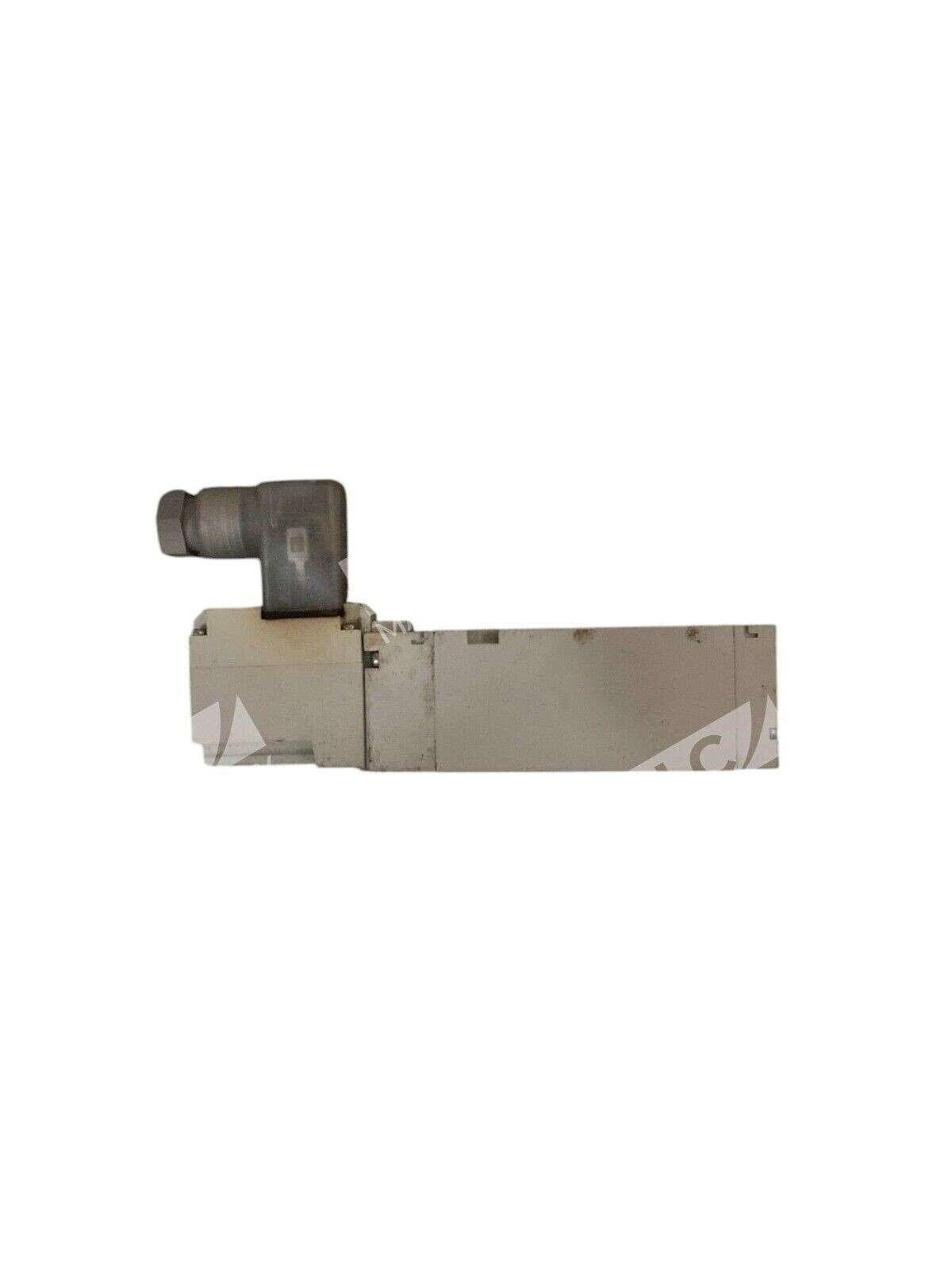

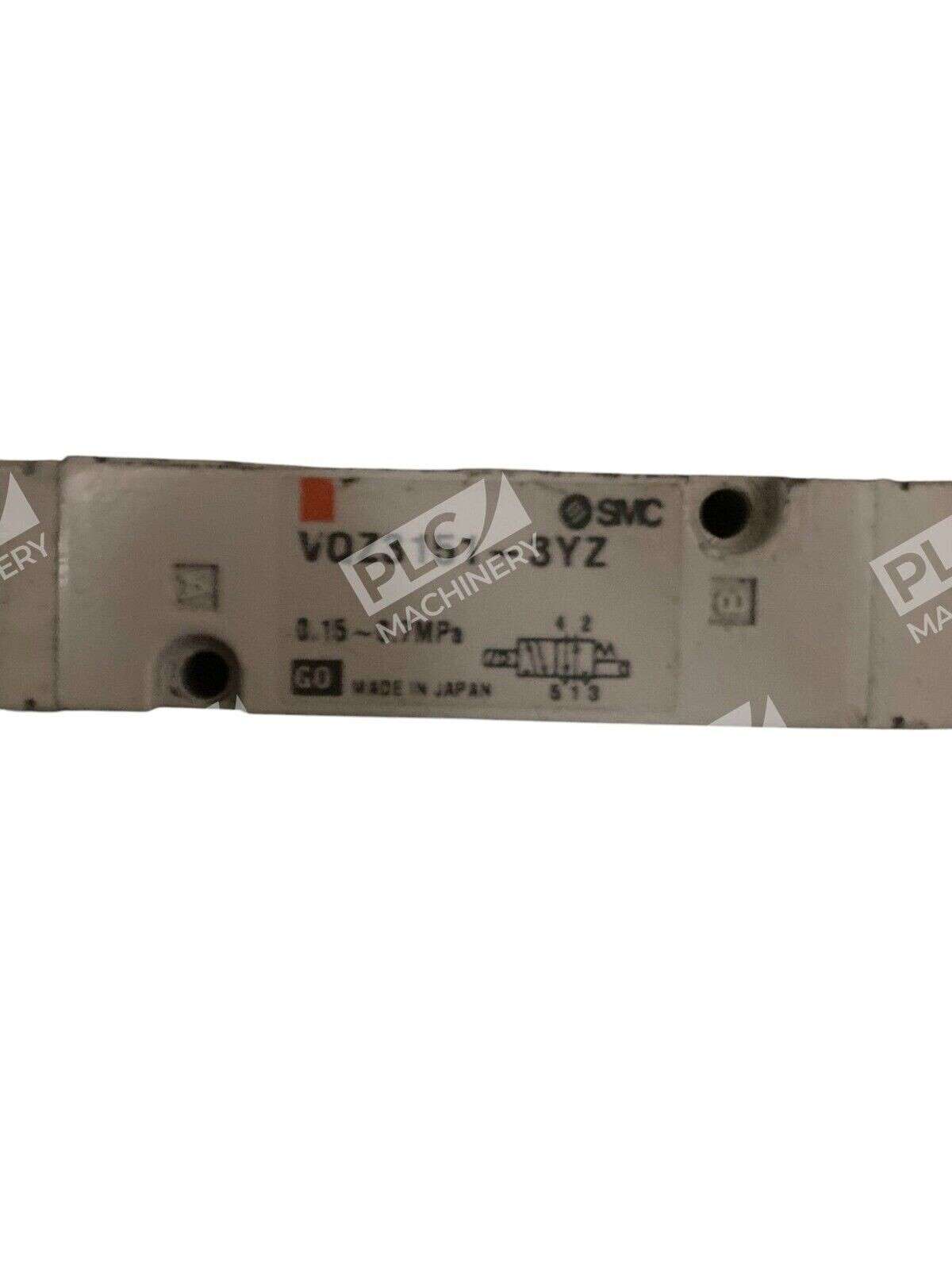

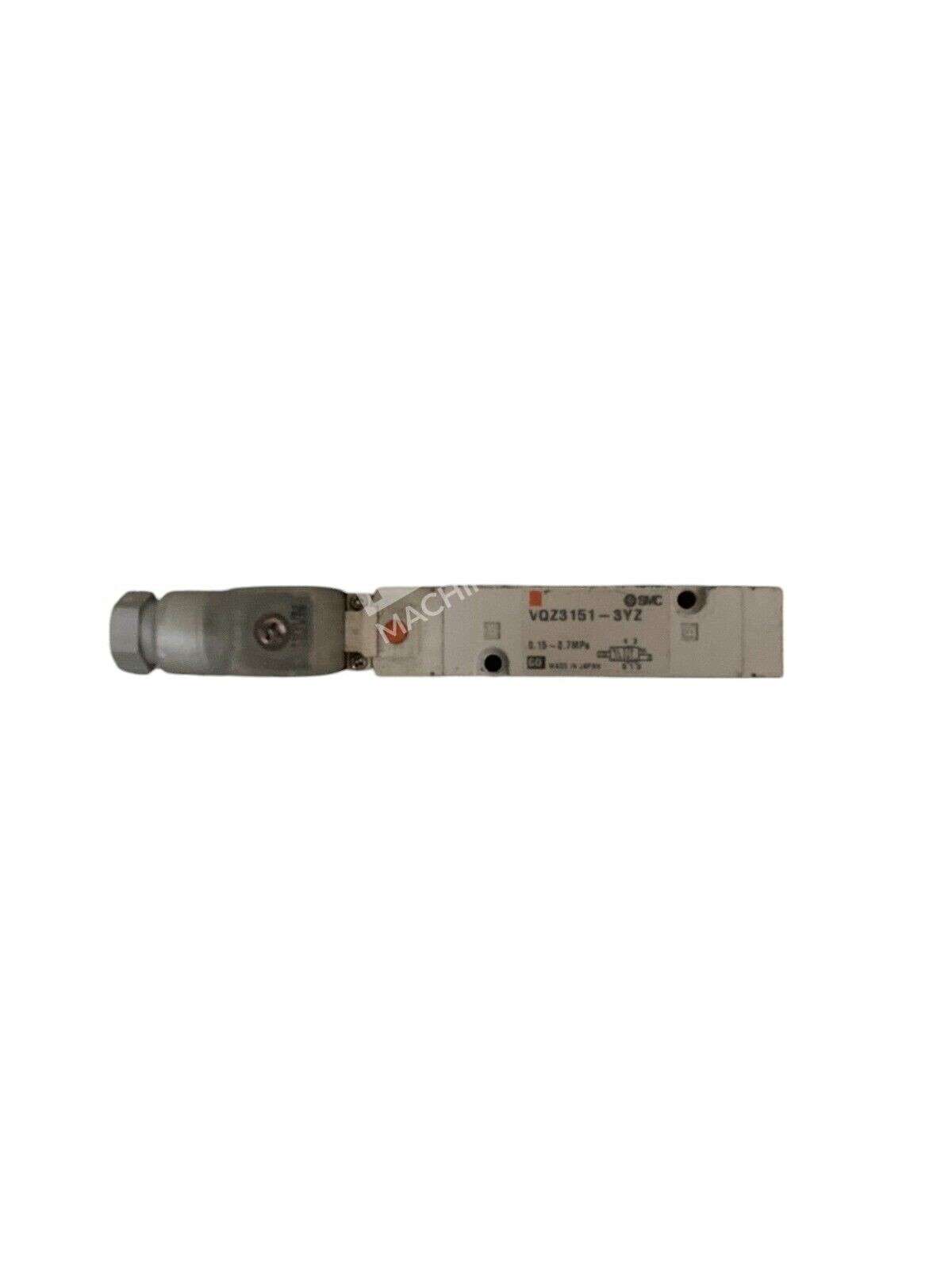

The SMC VQZ3151-3YZ is a 4/5-port base mount solenoid valve from SMC’s VQZ3000 series. This pneumatic control valve combines convenience with durability in a traditional mounting configuration, making it suitable for inline pneumatic circuit applications requiring precise directional control. The valve is rated for 110VAC coil voltage and operates at a maximum pressure of 0.7 MPa, accommodating both air and inert gas media.
Key Features
- 4/5-port configuration for flexible pneumatic circuit design
- Base mount style for traditional, stable mounting
- 110VAC coil voltage operation
- Maximum operating pressure 0.7 MPa
- Suitable for air and inert gas applications
- Part of proven VQZ3000 series platform
Technical Specifications
- Series: VQZ3000
- Configuration: 4/5-Port, 2-Position
- Mounting Style: Base Mount
- Coil Voltage: 110VAC
- Maximum Pressure: 0.7 MPa
- Fluid Media: Air, Inert Gas
- Condition: Used
- Reference SKU: 1063831
Typical Applications
- Pneumatic automation and control systems
- Industrial fluid power circuits requiring directional control
- Manufacturing equipment with solenoid-actuated pneumatic functions
- Valve manifold assemblies and subplates
- Automated production line equipment
Compatibility & Replacements
Compatible With
- SMC pneumatic valve manifolds and base plates
- Standard pneumatic circuits rated for 0.1–0.7 MPa operation
- 110VAC power supplies and solenoid control systems
- DIN-standard pneumatic subplates and cavity interfaces
Replaces / Drop-In Replacement For
The VQZ3151-3YZ may interchange with other 110VAC variants in the VQZ3151 family, such as the VQZ3151-3YZ1 and VQZ3151-3LO1. Verify compatibility with your system integrator before ordering, as suffix codes denote specific terminal and seal configurations.
Works With
- SMC integrated pneumatic design software and product selector tools
- Standard pneumatic circuit training and troubleshooting documentation
- Pneumatic simulation and control software platforms
- ISO 4401 (CETOP) cavity and porting standards
