Overview

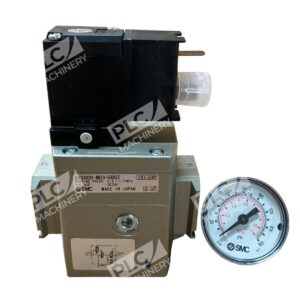

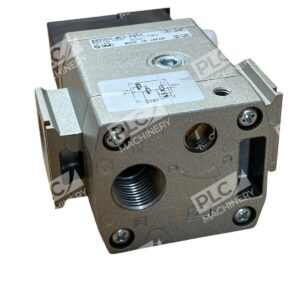

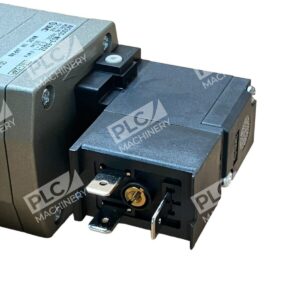

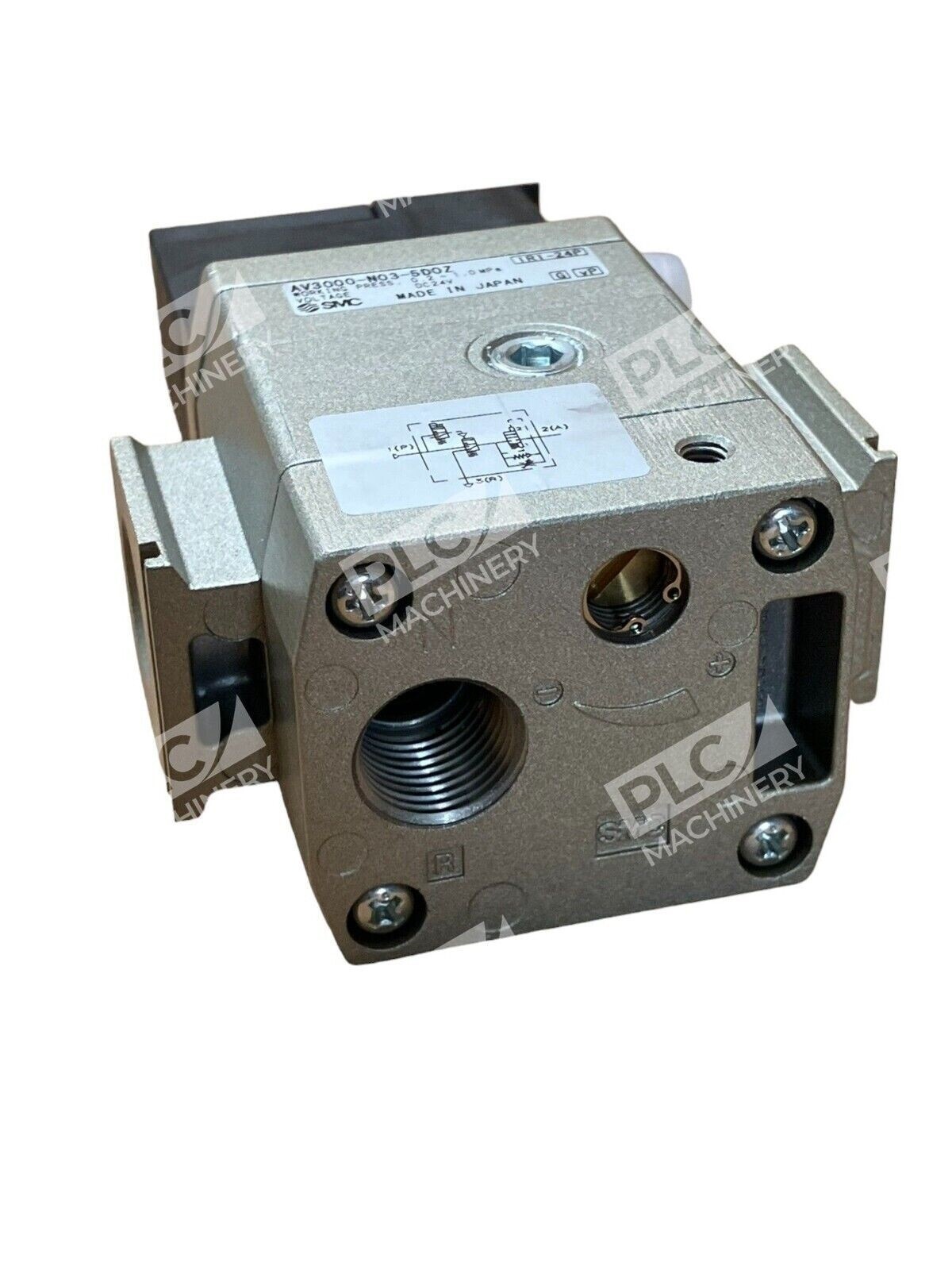

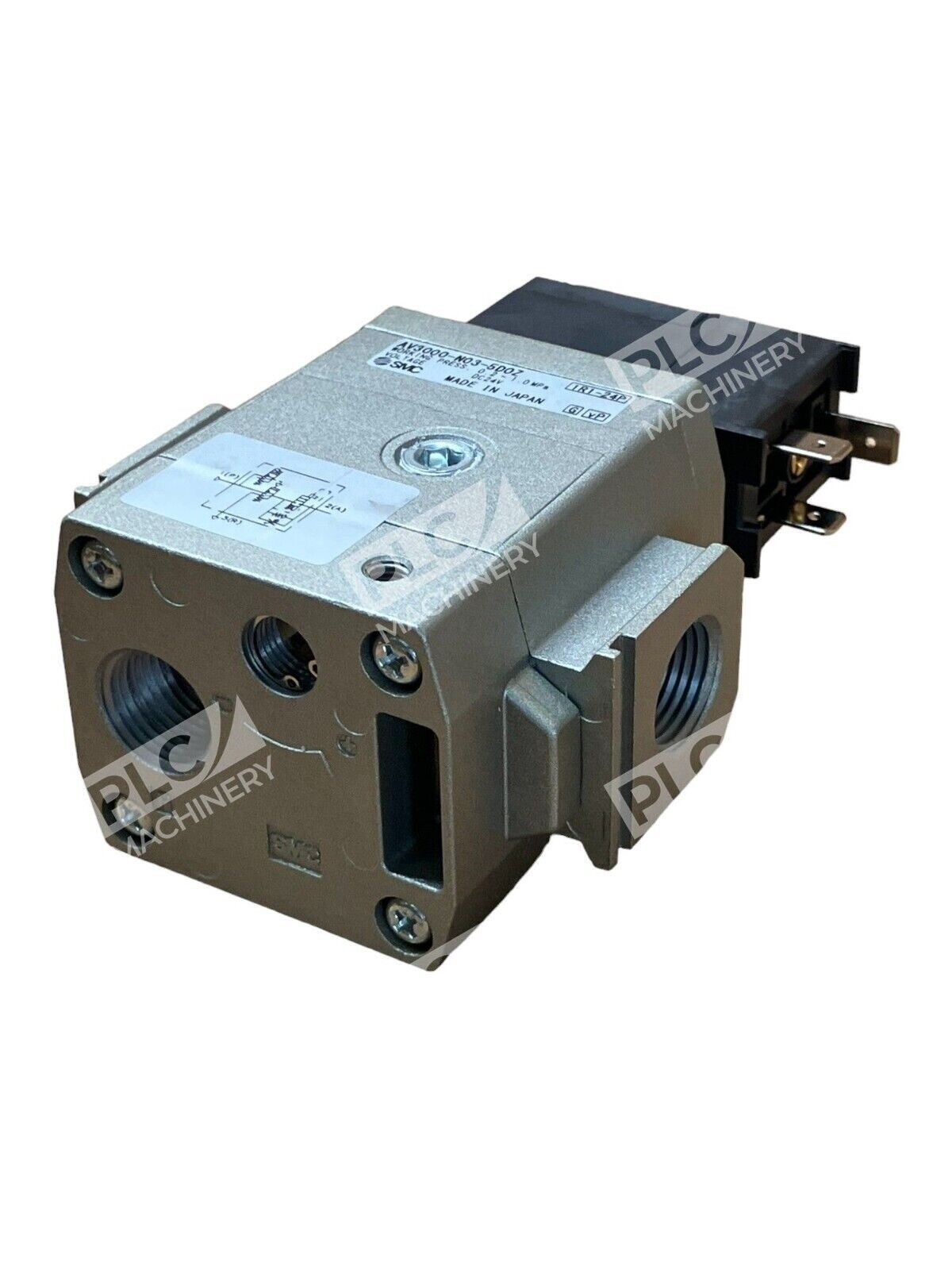

The SMC AV3000-N03G-5DOZ is a soft start-up valve designed for pneumatic control applications. This valve manages the startup sequence of pneumatic equipment by controlling air supply at low speed while enabling high-speed exhaust by blocking the main air supply. The 3/8″ body port configuration makes it suitable for standard industrial pneumatic systems requiring smooth, controlled startups.
Key Features
- Soft start-up operation—supplies low-speed air intake while maintaining high-speed exhaust capability
- 3/8″ NPT body port design for standard pneumatic system integration
- Reliable SMC construction proven in industrial automation environments
- Compact valve body suitable for panel mounting and manifold integration
- Minimal pressure drop across valve design
Technical Specifications
- Manufacturer: SMC (Japan)
- Series: AV3000
- Port Size: 3/8″ NPT
- Valve Type: Soft Start-Up (Air-Operated)
- Configuration: Body Port
- Flow Control: Low-speed supply, high-speed exhaust
- Operating Pressure: 0.5 to 1.0 MPa (recommended)
Typical Applications
- Pneumatic press and assembly equipment startup control
- Air tool cushioning and soft-start systems
- Manufacturing equipment requiring controlled pneumatic acceleration
- Automation systems with staged air supply requirements
- Panel-mounted pneumatic control circuits
Compatibility & Replacements
Compatible With
- Standard pneumatic control systems (0.5–1.0 MPa operating range)
- 3/8″ NPT port pneumatic manifolds and components
- SMC air preparation equipment and pneumatic circuits
- Industrial automation pneumatic networks
Replaces / Drop-In Replacement For
- SMC AV3000 series soft start valves with 3/8″ body port configuration
- Comparable soft start-up valves in the AV2000, AV3000, AV4000, and AV5000 series families
- Legacy soft start valves requiring 3/8″ NPT port integration
Works With
- SMC pneumatic directional control valves
- SMC speed control valves and regulators
- Standard pneumatic filtration and lubrication systems
- 3/8″ NPT pneumatic tubing and fittings
- Manifold-based pneumatic control stations
