SMC 3′ Magnetic Switch D-Y7P

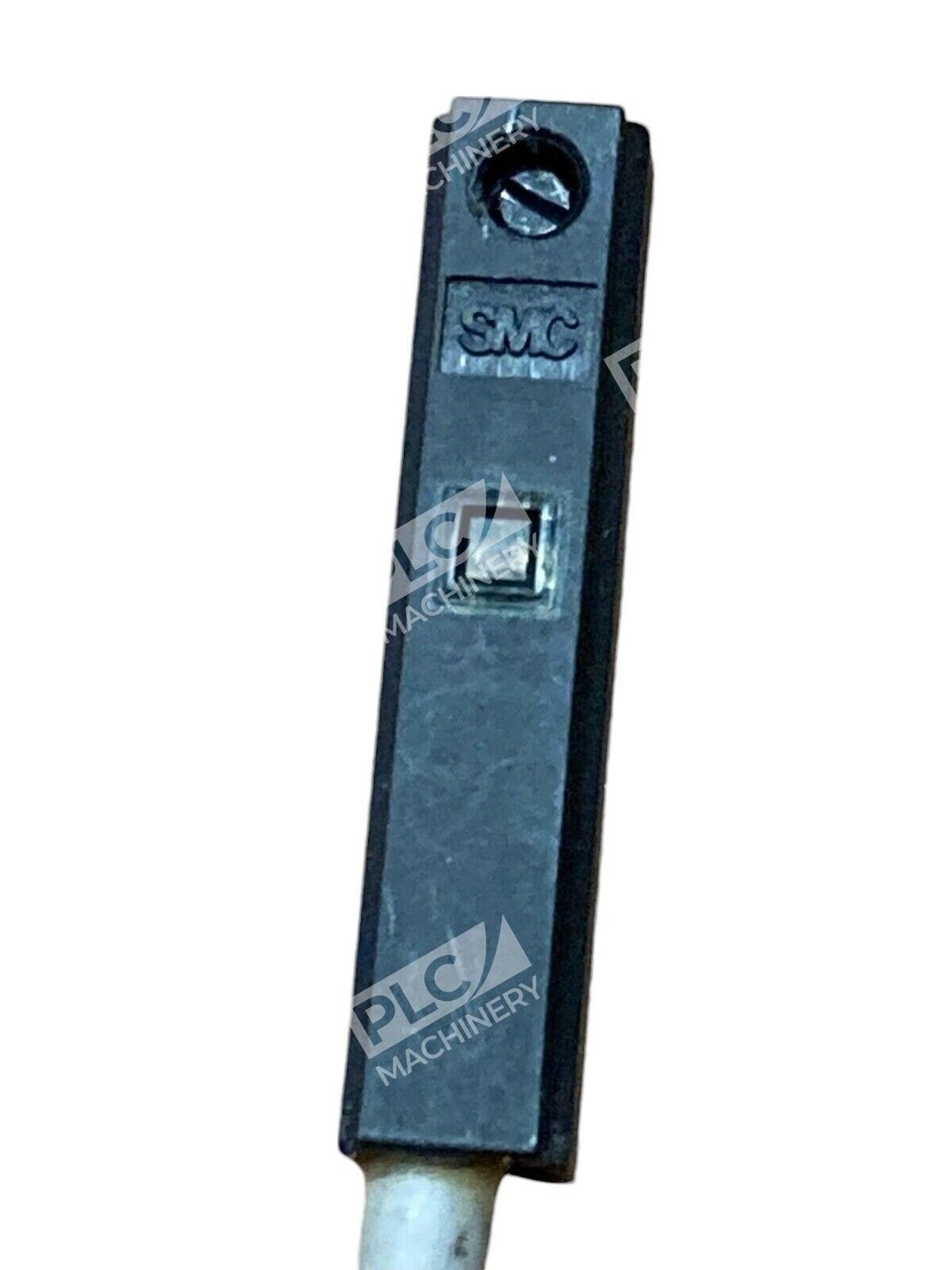

SMC D-Y7P Solid State Auto Switch

The SMC D-Y7P is a solid-state auto switch designed for precise and reliable position detection in pneumatic cylinders and actuators. Its compact design and robust features make it suitable for various industrial applications.

Key Features

• Output Type: PNP (3-wire) configuration, ensuring compatibility with a wide range of control systems.

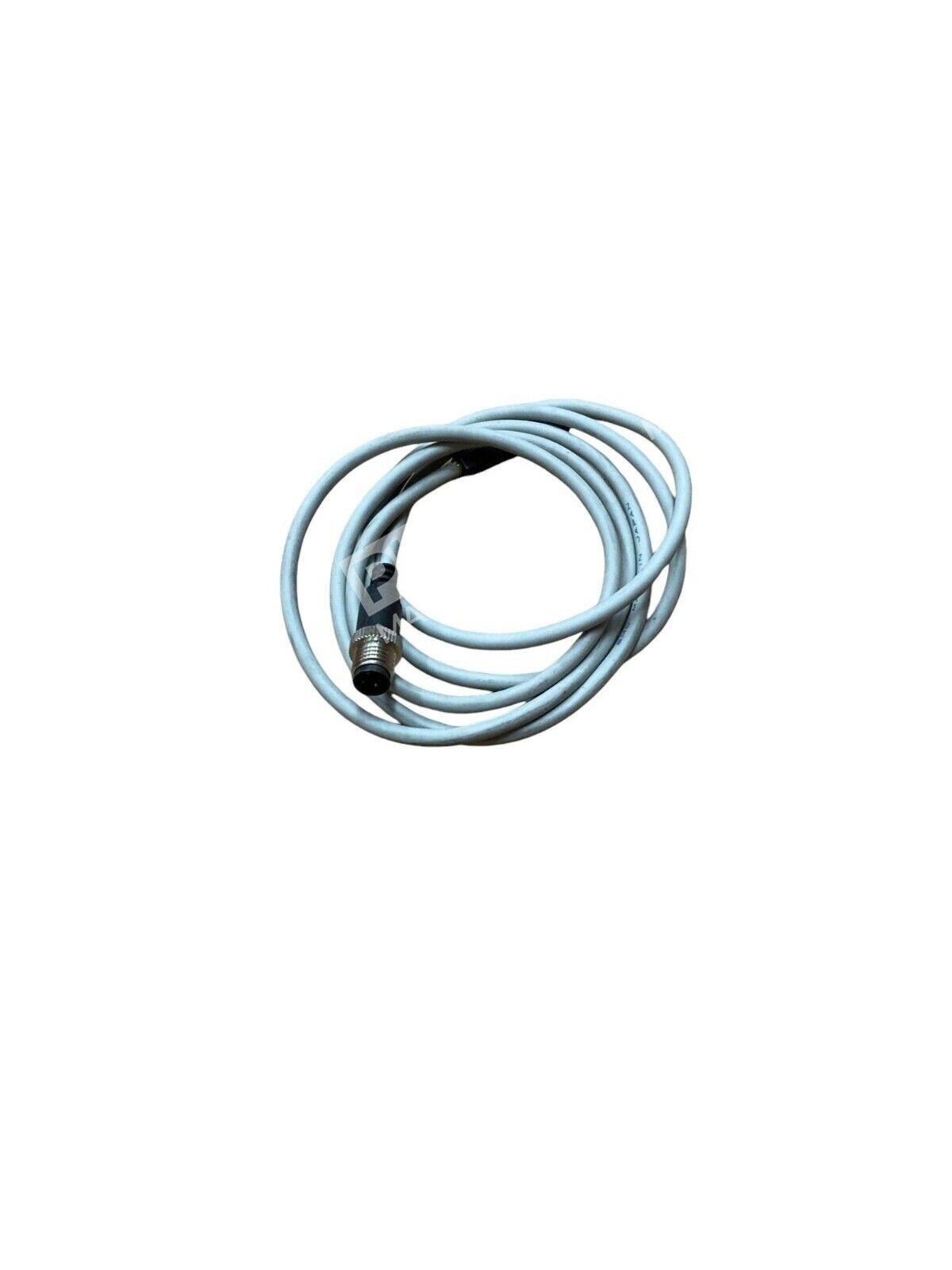

• Electrical Connection: Equipped with a 0.5-meter lead wire for straightforward installation.
• Applicable Load: Suitable for IC circuits, PLCs, and relays, offering versatility in application.
• Operating Voltage: Functions within a voltage range of 4.5 to 28 VDC, accommodating various power supply conditions.
• Maximum Load Current: Supports up to 80 mA, providing ample capacity for standard operations.
• Operating Temperature Range: Operates efficiently between -10°C and +60°C, suitable for diverse environmental conditions.
• Compact Dimensions: Measures 29 mm in length, 6.2 mm in width, and 5 mm in height, allowing for easy integration into space-constrained setups.
• Mounting Type: Direct mounting style simplifies the installation process.
• Indicator Light: Features a red LED that illuminates when the switch is activated, providing clear operational status.
• Protection Rating: Rated IP67, ensuring resistance to dust and water ingress for enhanced durability.

Applications

The D-Y7P auto switch is ideal for use in various industrial settings, including:

• Position detection in pneumatic cylinders and actuators.
• Integration with PLCs and relay systems for automated control processes.
• Environments requiring reliable and precise position sensing.

With its reliable performance and versatile features, the SMC D-Y7P auto switch is a valuable component for enhancing automation and control in industrial applications.
