Overview

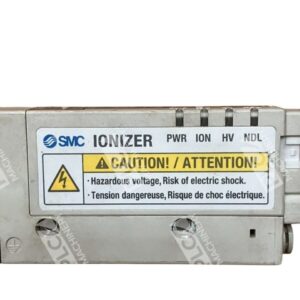

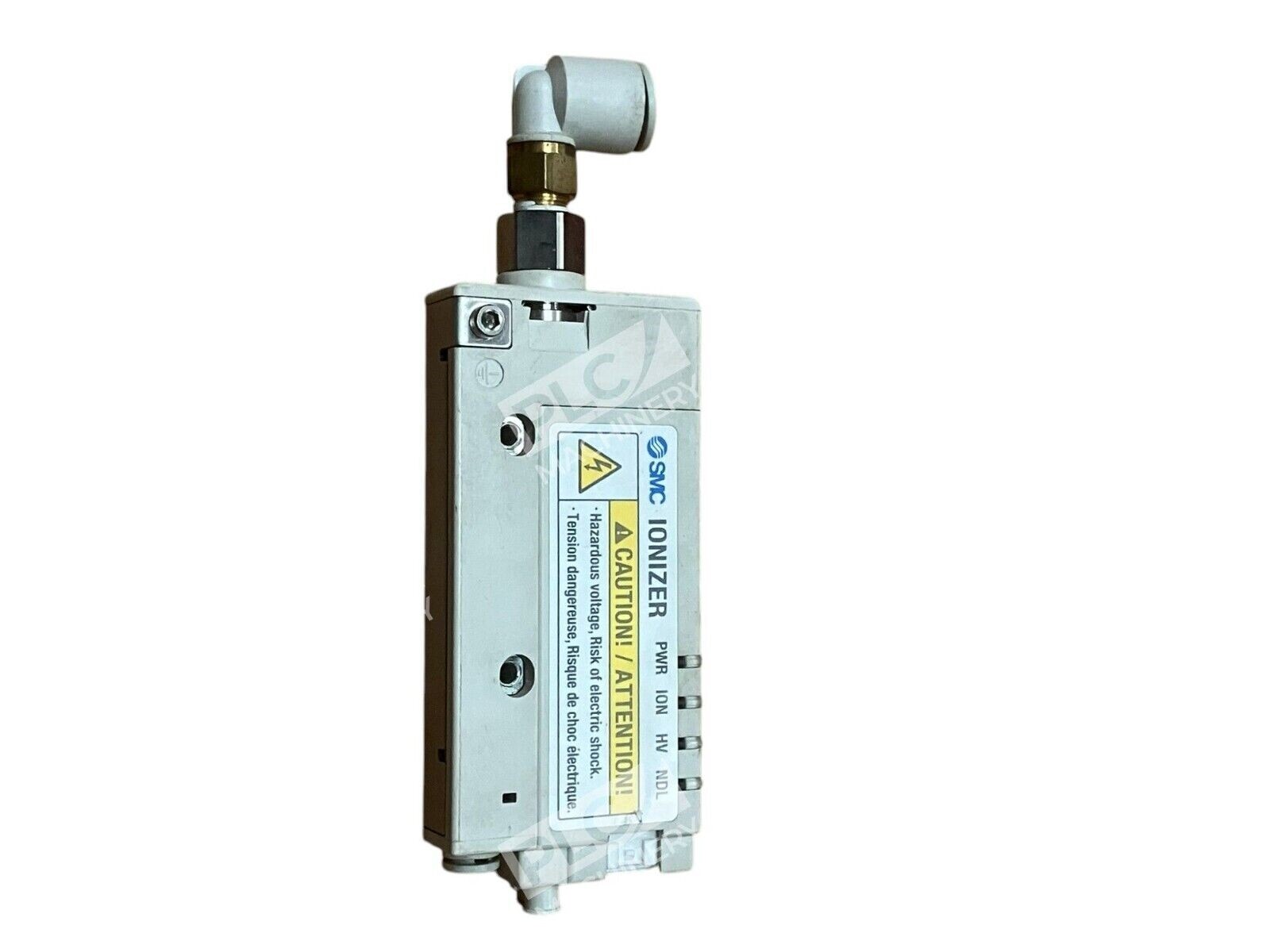

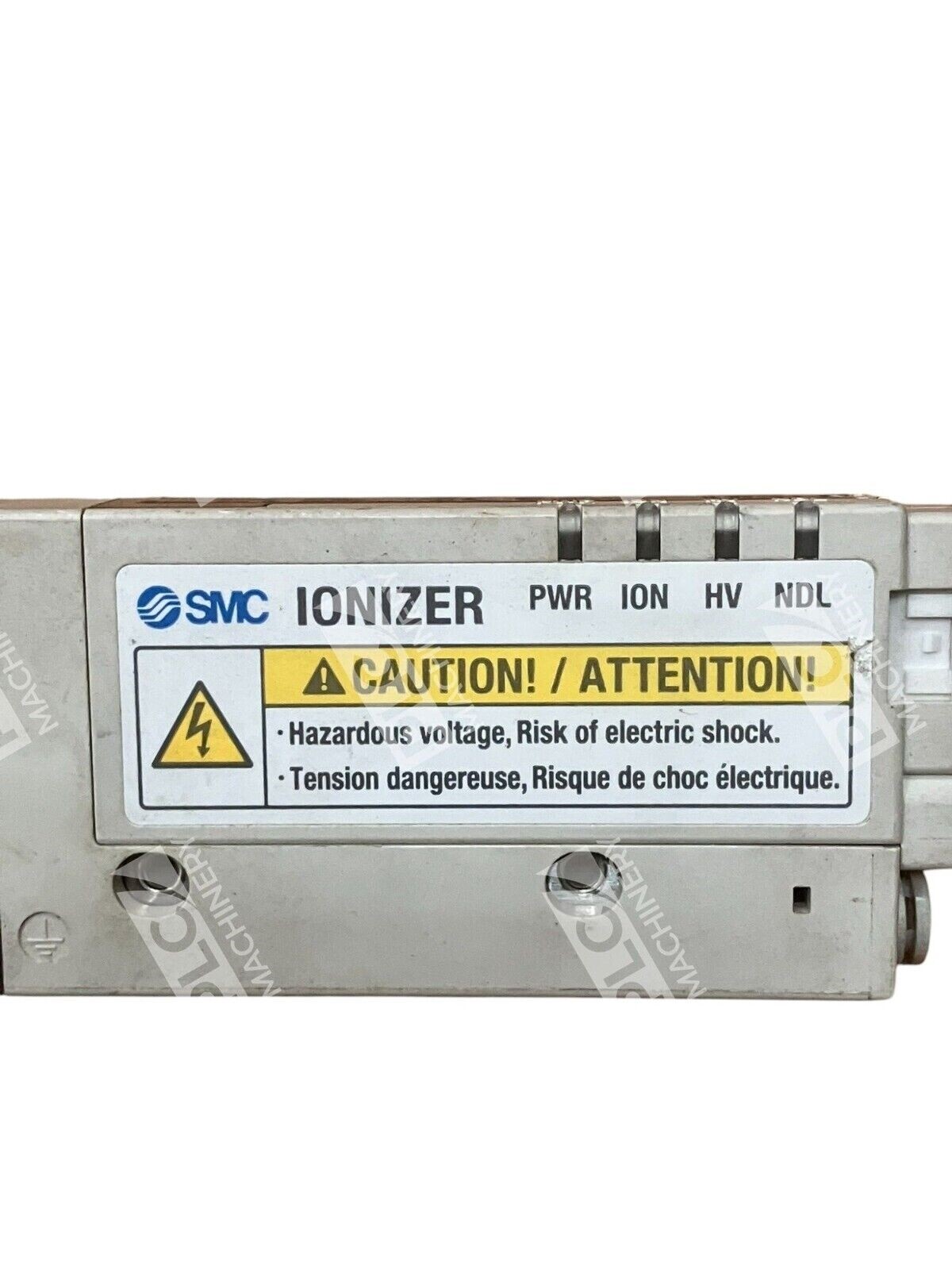

The SMC IZN10-11P06-B1 is a high-frequency AC nozzle-type ionizer designed for precision static charge elimination and dust removal applications. This model features corona discharge ion generation, delivering consistent charge neutralization across sensitive manufacturing and assembly processes. The compact design and proven reliability make the IZN10 series a trusted choice for electronics assembly, pharmaceutical manufacturing, and laboratory environments requiring validated static control.
Key Features
- Corona Discharge Technology: High-frequency AC ion generation for reliable, stable performance
- 24VDC Operation: Low-voltage power supply with internal high-voltage generation circuit
- PNP Output Configuration: Seamless integration with standard industrial PLC and control systems
- Female Thread Connection: Rc1/8 piping port (model code -11) for secure pneumatic fitting attachment
- Ion Balance Control: Precision ±10V maximum ion balance for charge equilibrium
- Maintenance Detection: Built-in electrode needle contamination monitoring with LED alert and maintenance output signal
- L-Bracket Mounting (B1): Fixed mounting configuration with included hexagon socket cap screws
Technical Specifications
Key operating parameters for integration into static control systems:

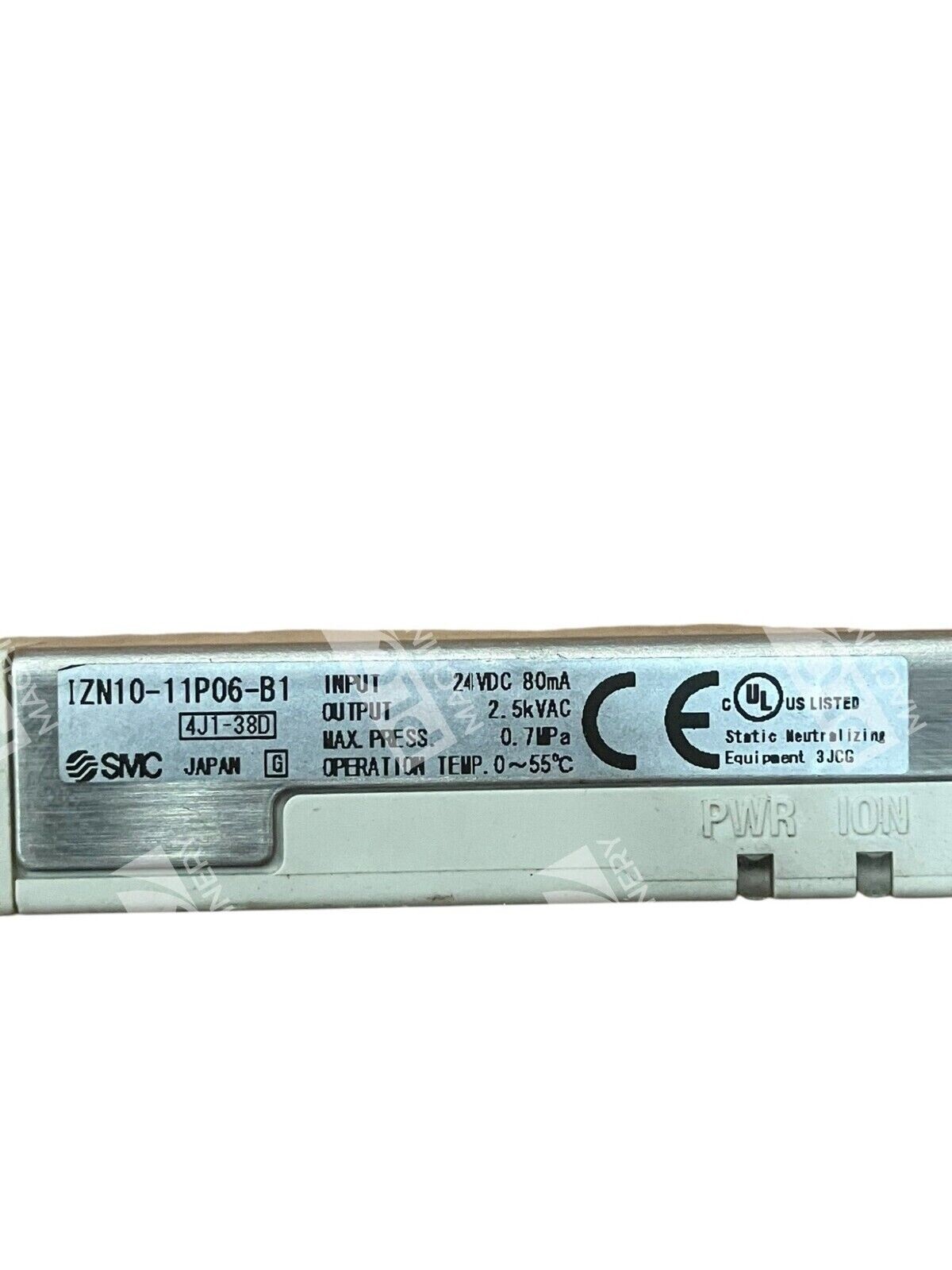

| Power Supply Voltage | 24VDC ±10% |
| Power Consumption | 80 mA |
| Discharge Output Voltage | 2500V AC (high frequency) |
| Ion Generation Method | Corona Discharge |
| Ion Balance (Max) | ±10V |
| Operating Temperature Range | 0 to 55°C |
| Output Specification | PNP (Positive Logic) |
| Piping Port Size | 6 mm metric (Rc1/8 female threads) |
| Mounting Type | L-Bracket (B1) with M3 cap screws |
| Pressure Rating | 0.7 MPa max |
| Control Signals | Discharge stop input, reset input, maintenance output |
| High Voltage Rating | 2.5 kVAC |
Typical Applications
- Electronics Manufacturing: PCB assembly, microelectronics handling, component placement
- Semiconductor Processing: Wafer handling, lithography support, contamination prevention
- Pharmaceutical & Medical Device Assembly: Clean room static control, precision instrument assembly
- Dust Removal & Air Ionization: Spot ionization, air blowing static elimination
- Industrial Automation: Static-sensitive process control, charge neutralization in packaging lines
Compatibility & Replacements
Compatible With
- PLC systems with 24VDC PNP input modules (Allen-Bradley, Siemens, Mitsubishi, Omron, etc.)
- Industrial control systems requiring corona discharge static elimination
- Pneumatic manifolds and distribution systems rated for 0.7 MPa operation
- Standard laboratory and manufacturing static control networks
- Pressure switches and electrostatic sensors (external signal input capable)
Replaces / Drop-In Replacement For
- Earlier SMC IZN10 series variants with matching nozzle type (-11), port size (-06), and L-bracket mounting (-B1)
- Direct mechanical and electrical replacement for identical IZN10-11P06-B1 units
- Note: Verify compatibility with your specific control configuration before ordering
Works With
- 24VDC industrial power supplies
- PLC input/output modules (PNP-compatible)
- Pneumatic control systems and tubing (6 mm metric port)
- External discharge stop and reset signal circuits
- SMC maintenance and service parts (electrode assembly, cleaning kits)
