Overview

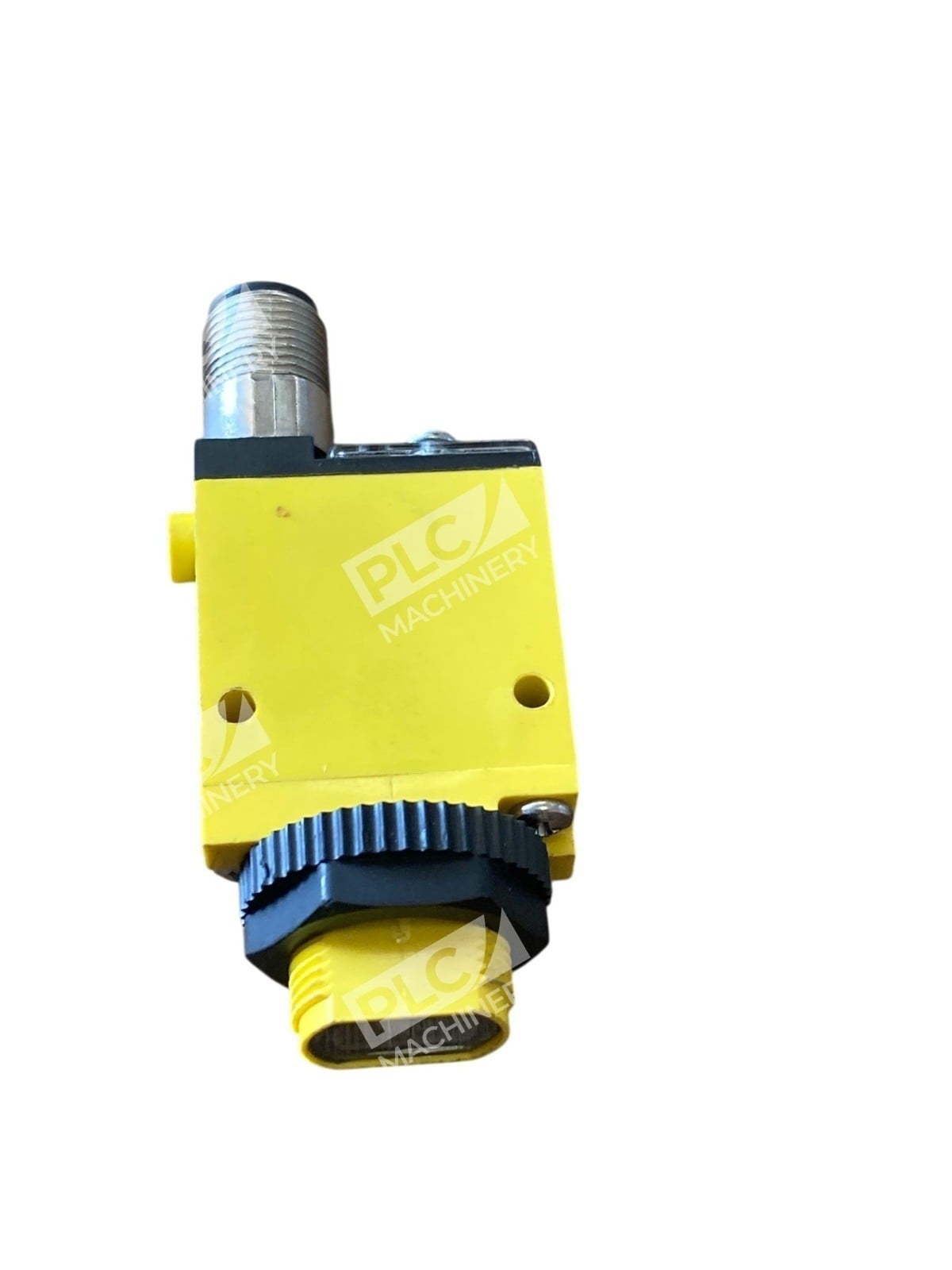

The Banner Engineering SM312DQD is an industry-standard mini-beam photoelectric sensor built for reliable diffuse-mode detection in manufacturing and automation environments. With a 380mm sensing range and dual NPN/PNP output capability, this sensor supports both light-operate and dark-operate configuration via switch selection. The integral 4-pin M12 quick-disconnect connector simplifies field installation and replacement.
Key Features
- Diffuse sensing mode — detects objects without requiring a reflector or opposed setup
- Bipolar output — configurable NPN or PNP transistor output for flexible PLC integration
- Light/Dark operation — switch-selectable operating mode for detect-on-presence or detect-on-absence
- M12 quick-disconnect — integral 4-pin QD connector for fast plug-and-play deployment
- Infrared LED source — robust sensing immune to ambient light interference
- Rugged construction — PBT thermoplastic housing, acrylic lenses, stainless steel hardware, IP67 rated
- Potentiometer adjustment — field-tunable sensitivity for application-specific optimization
Technical Specifications
- Supply Voltage: 10–30 VDC (12/24 VDC nominal)
- Output Current: 150 mA maximum
- Output Type: Bipolar (1 NPN, 1 PNP)
- Sensing Range: 380 mm (14.96 inches)
- Sensing Mode: Diffuse
- Light Source: Infrared LED
- Response Time: 1 ms
- Connector: 4-pin M12 integral quick-disconnect
- Housing Material: PBT thermoplastic (epoxy encapsulated)
- Lens Material: Acrylic
- Mount Type: M18 threaded barrel
- IP Rating: IP67
- Operating Temperature: −20 to +70°C
- Weight: 0.05 lbs (23 grams)
