Overview

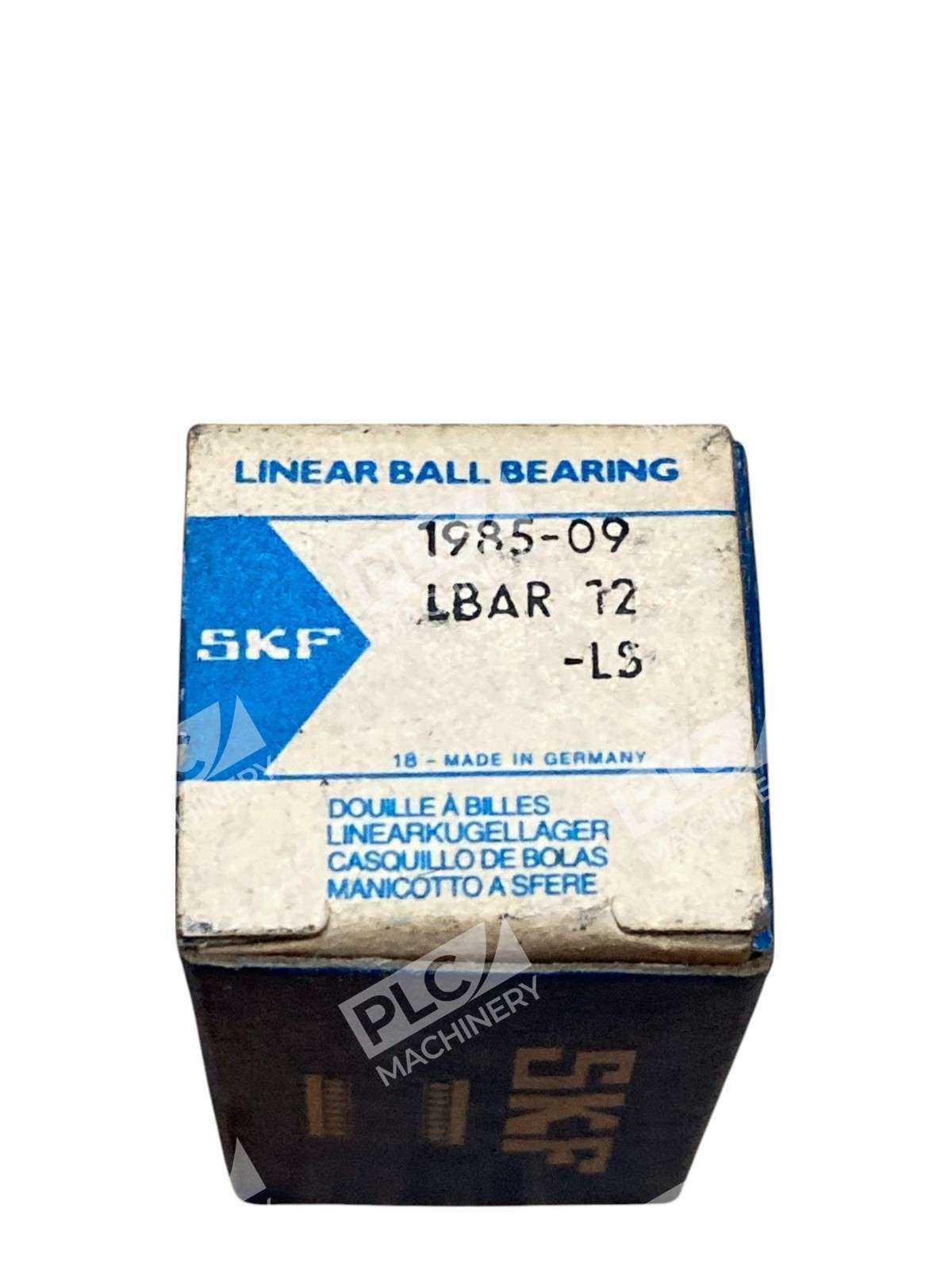

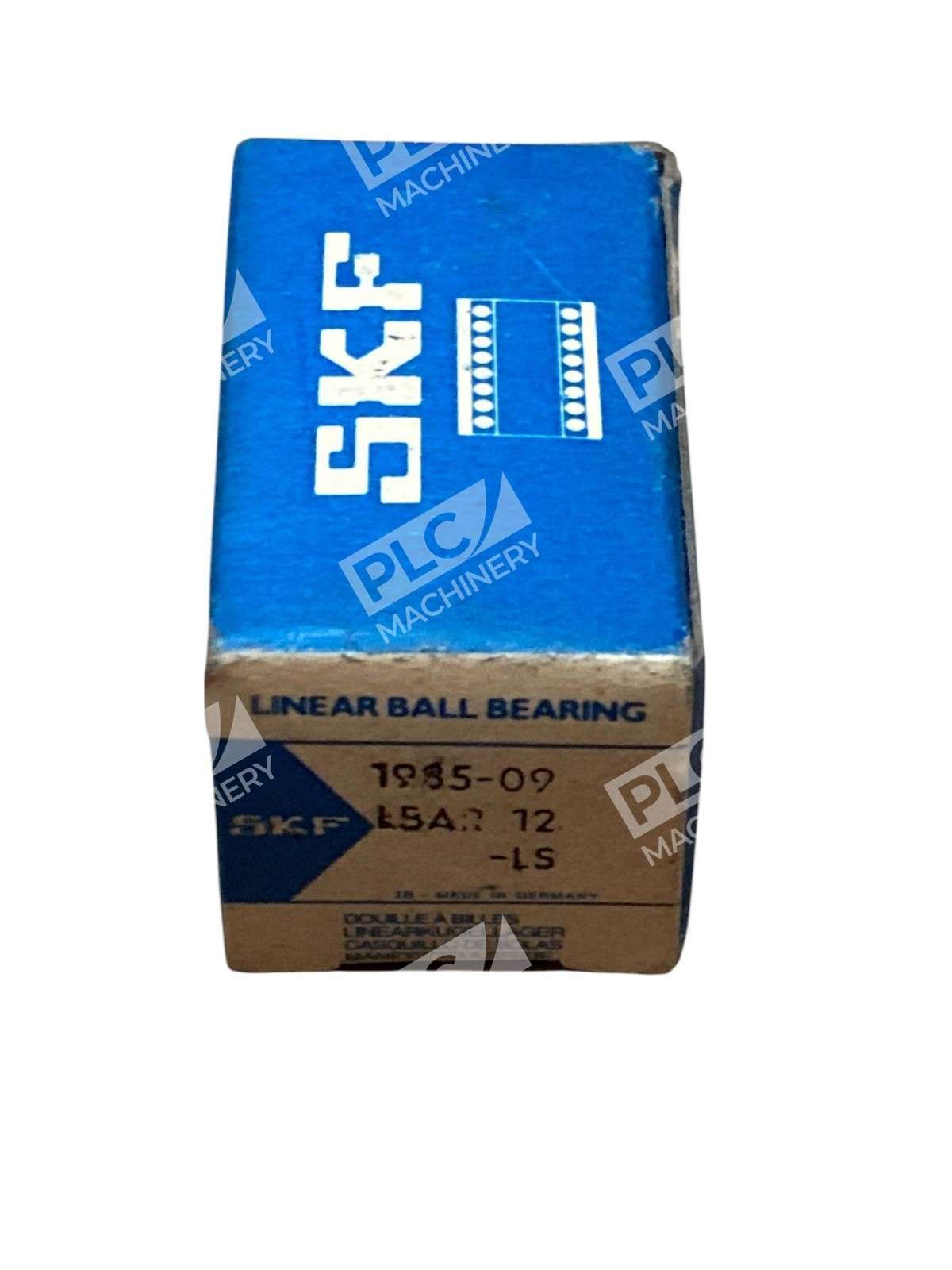

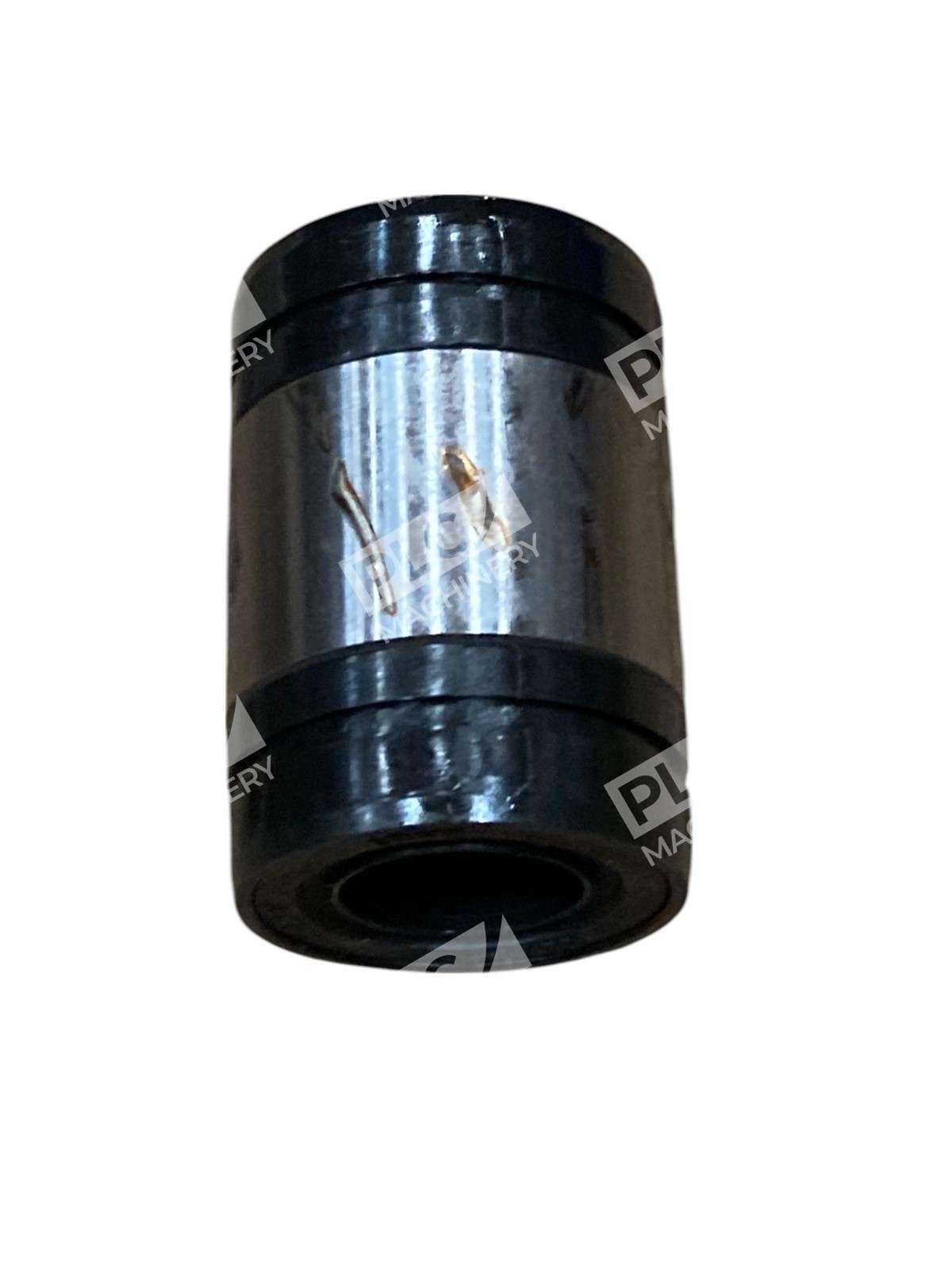

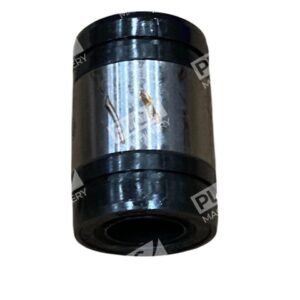

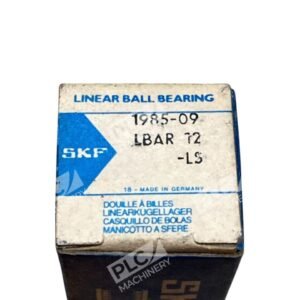

The SKF LBAR 12-LS is a sealed linear ball bearing engineered for precision motion control across automated manufacturing, positioning systems, and mechanical assemblies. This compact bearing features recirculating ball tracks that enable smooth, low-friction linear movement with unlimited stroke capability. The unit arrives new in box and is ready for immediate installation.
Key Features
- Sealed design with single-side contact seal (LS designation) for dust and contamination protection
- Recirculating ball track design minimizes friction and provides smooth linear motion
- Compact form factor suitable for space-constrained applications
- 12 mm bore diameter fits standard precision shafts
- Low-maintenance operation with factory pre-lubrication
- Compatible with SKF linear bearing systems and rail guides
Technical Specifications
The LBAR 12-LS shares dimensional characteristics with SKF’s LBBR 12-2LS series, which features:
- Bore Diameter (Inner): 12 mm (0.4724 inch)
- Outer Diameter: 19 mm (0.748 inch)
- Width: 28 mm (1.1024 inch)
- Weight: Approximately 0.018 kg
- Seal Type: LS-seal (contact seal on bearing side)
- Material: Hardened steel with precision ball elements
- Preload: Factory pre-lubricated
Typical Applications
- Automated assembly machinery and transfer systems
- CNC machine positioning tables and slides
- Printing and converting equipment
- Packaging and material handling systems
- Test and measurement fixtures requiring precise linear travel
- Industrial automation frameworks and cartesian robots
Compatibility & Replacements
Compatible With
- SKF linear bearing rails and guide systems
- Standard 12 mm precision shafts (ISO h7/g6 tolerance)
- SKF shaft carrier blocks (LSNS/LSHS series)
- Industrial automation frameworks with 12 mm linear motion axes
- Custom bearing housings designed for 12x19mm OD linear bearings
Replaces / Drop-In Replacement For
The SKF LBAR 12-LS is part of SKF’s linear bearing family. Similar sealed models in this family include LBBR 12-2LS (double-sealed version). Verify compatibility with your system integrator before ordering to confirm dimensional fit and seal configuration.
Works With
- SKF bearing housings and cartridge systems
- Linear rail and profile systems (requires confirmation of mounting interface)
- Industrial motion control platforms
- Standard fastening and clamping solutions for linear bearings
