Overview

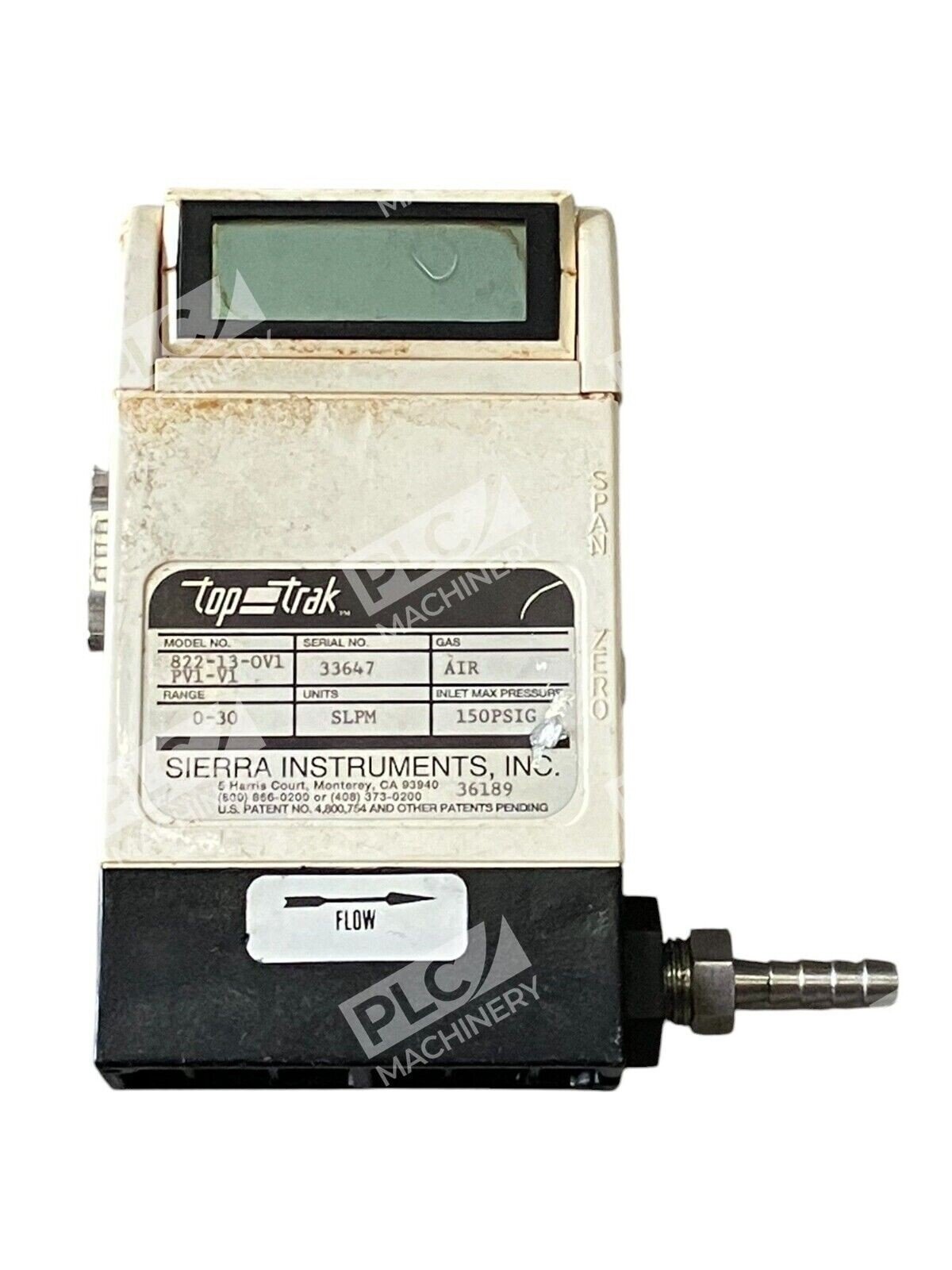

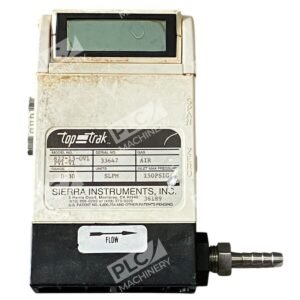

The Sierra Instruments 822-13-0V1-PV1-V1 is a TopTrak mass flow meter engineered for precise measurement of air and gas flow rates in industrial environments. This model belongs to Sierra’s 822 series, a line of high-accuracy flow measurement instruments used across manufacturing, laboratory automation, and pneumatic control systems. The 822-13-0V1-PV1-V1 configuration is optimized for mid-range gas flow applications and offers reliable performance in demanding process control scenarios.
Key Features
- TopTrak technology for stable, accurate mass flow measurement across varying pressure conditions
- Suitable for air and compatible gases at inlet pressures up to 50 psig
- Compact form factor for integration into pneumatic systems and process assemblies
- Used condition—fully functional and ready for deployment in existing systems
- Wide compatibility with industrial flow control and monitoring applications
Technical Specifications
The Sierra Instruments 822-13-0V1-PV1-V1 is configured with the following parameters:
- Flow Range: 500 SCCM (Standard Cubic Centimeters per Minute) nominal capacity
- Operating Inlet Pressure: 50 psig (3.4 bar) maximum
- Media: Air and compatible gases
- Series: 822 TopTrak Mass Flow Meter

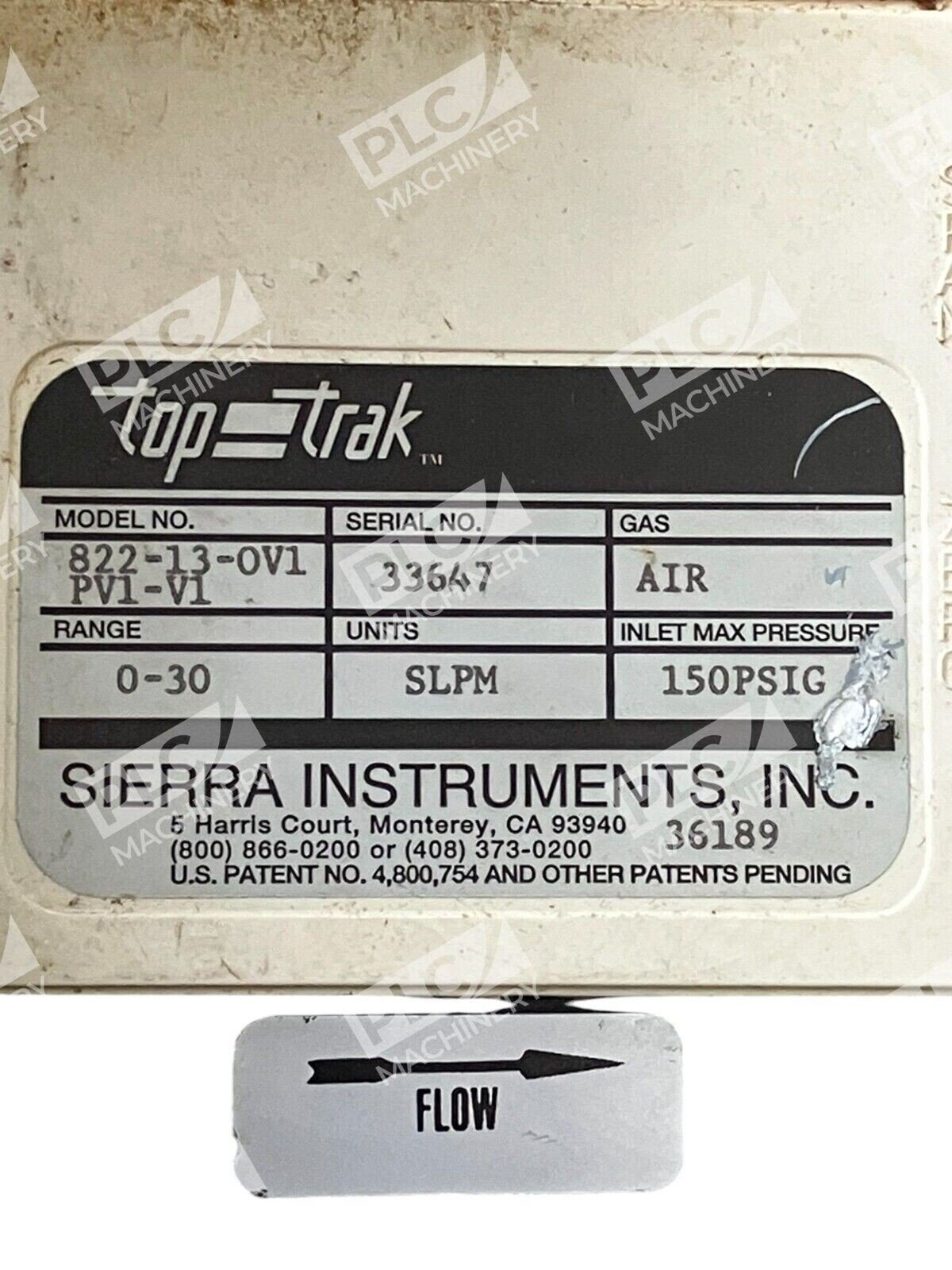

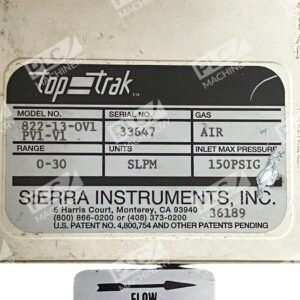

- Configuration Code: 822-13-0V1-PV1-V1 (digital display, analog output)
- Connection: 1/4 inch port (standard for 822 series)
Typical Applications
Sierra TopTrak 822-13 meters are commonly deployed in:
- Pneumatic control and automation systems
- Laboratory gas delivery and process control
- Calibration and metering of compressed air networks
- Industrial gas handling and monitoring
- OEM equipment integration requiring inline flow measurement
- HVAC and environmental chamber gas supply regulation
Compatibility & Replacements
Compatible With
- Compressed air systems and pneumatic networks
- Industrial gas handling equipment
- Process control and monitoring systems
- Laboratory automation platforms
- Pneumatic valve manifolds and control assemblies
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The 822-13-0V1-PV1-V1 is one variant within the 822 series; replacement models may include alternate PV (pressure/validation) and V (version) configurations such as PV2 or V4 suffixes. Consult manufacturer documentation for exact interchangeability.
Works With
- Analog signal conditioning and data acquisition systems
- Industrial control systems supporting 4-20 mA or voltage signal inputs
- Pneumatic test benches and calibration rigs
- Process SCADA and building automation platforms
- Standard industrial flow measurement protocols
