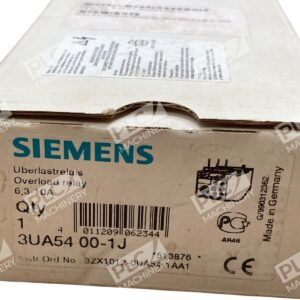

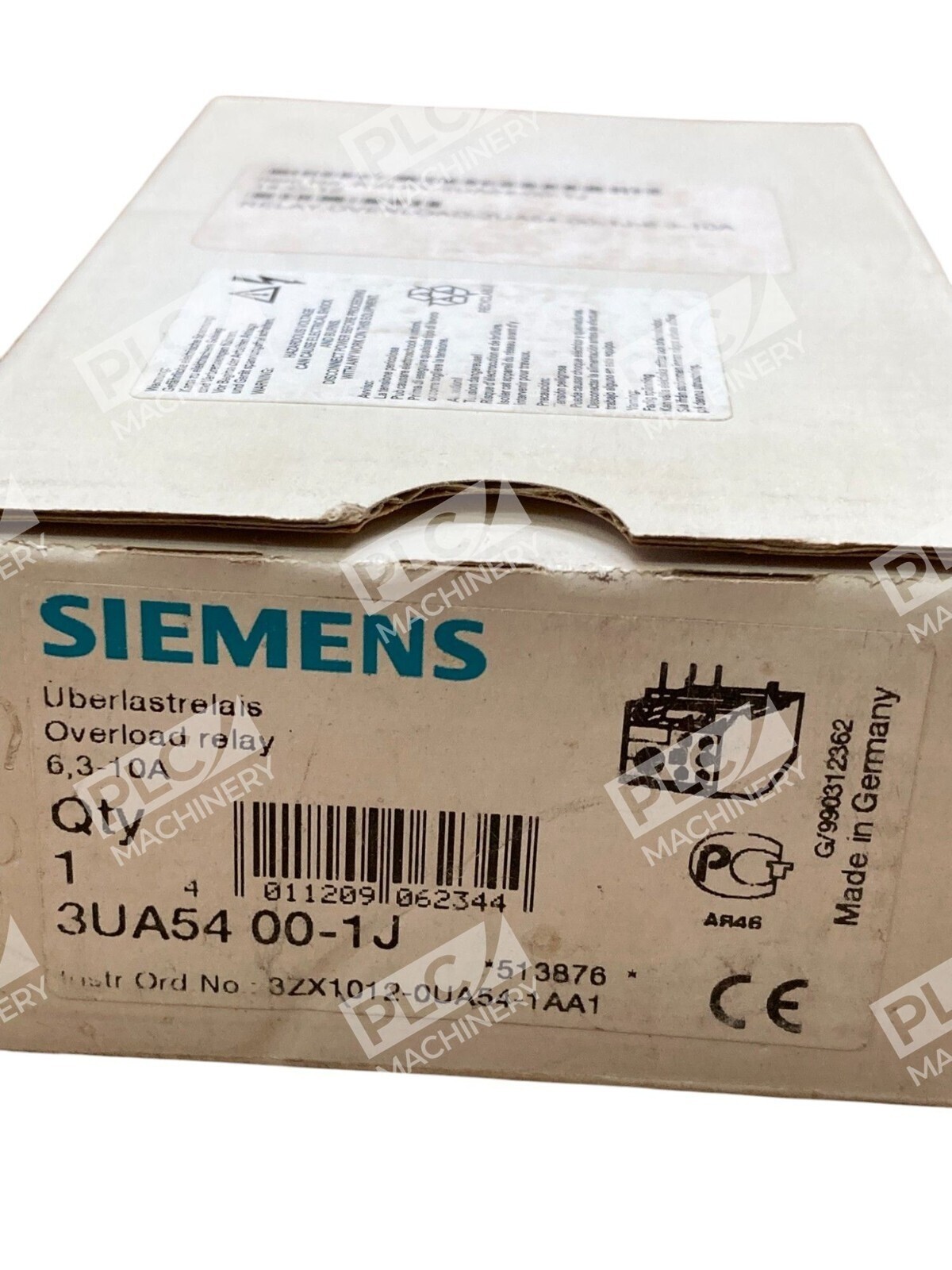

Siemens 3UA54 00-1J Overload Relay (6.3-10A)
The Siemens 3UA54 00-1J is a thermal overload relay designed to provide reliable protection for electrical systems by preventing damage caused by overcurrent conditions. This relay is suitable for a current range of 6.3 to 10 amperes, making it ideal for various industrial applications.
Key Features
- Current Range: Adjustable between 6.3 and 10A, allowing flexibility to match specific operational requirements.
- Tripping Class: Class 10A, ensuring prompt response to overcurrent situations to protect equipment.
- Compatibility: Designed for use with Siemens contactors, including models 3TF32/33, 3TF42/43, and 3TB42/43, facilitating seamless integration into existing systems.
- Auxiliary Contacts: Equipped with one normally open (NO) and one normally closed (NC) auxiliary contact, providing additional control and signaling options.
- Voltage Rating: Suitable for systems with a maximum voltage of 600V AC, accommodating a wide range of industrial power setups.
Applications
This overload relay is commonly used in motor protection circuits to safeguard against excessive current that can lead to overheating and potential equipment failure. Its adjustable current range and compatibility with various Siemens contactors make it a versatile choice for protecting motors and other electrical devices in industrial settings.
Installation and Mounting
The 3UA54 00-1J is designed for easy mounting onto compatible Siemens contactors, streamlining the installation process. Its compact design ensures it can be integrated into control panels without requiring significant space.
Additional Information
For detailed specifications and installation guidelines, refer to the product datasheet or consult with a Siemens representative to ensure proper application and compliance with safety standards.
