Overview
The Siemens 3SA8 810-0CD02 is a compact twin pushbutton unit with integrated indicator lamp, commonly used in industrial control panels and machinery. This pilot device combines manual pushbutton actuation with integrated lamp indication, allowing operators to trigger commands and monitor device status from a single mounting location. The 3SA8 810 series is widely deployed in manufacturing, automation, and process control systems where space and reliability are critical.
Key Features

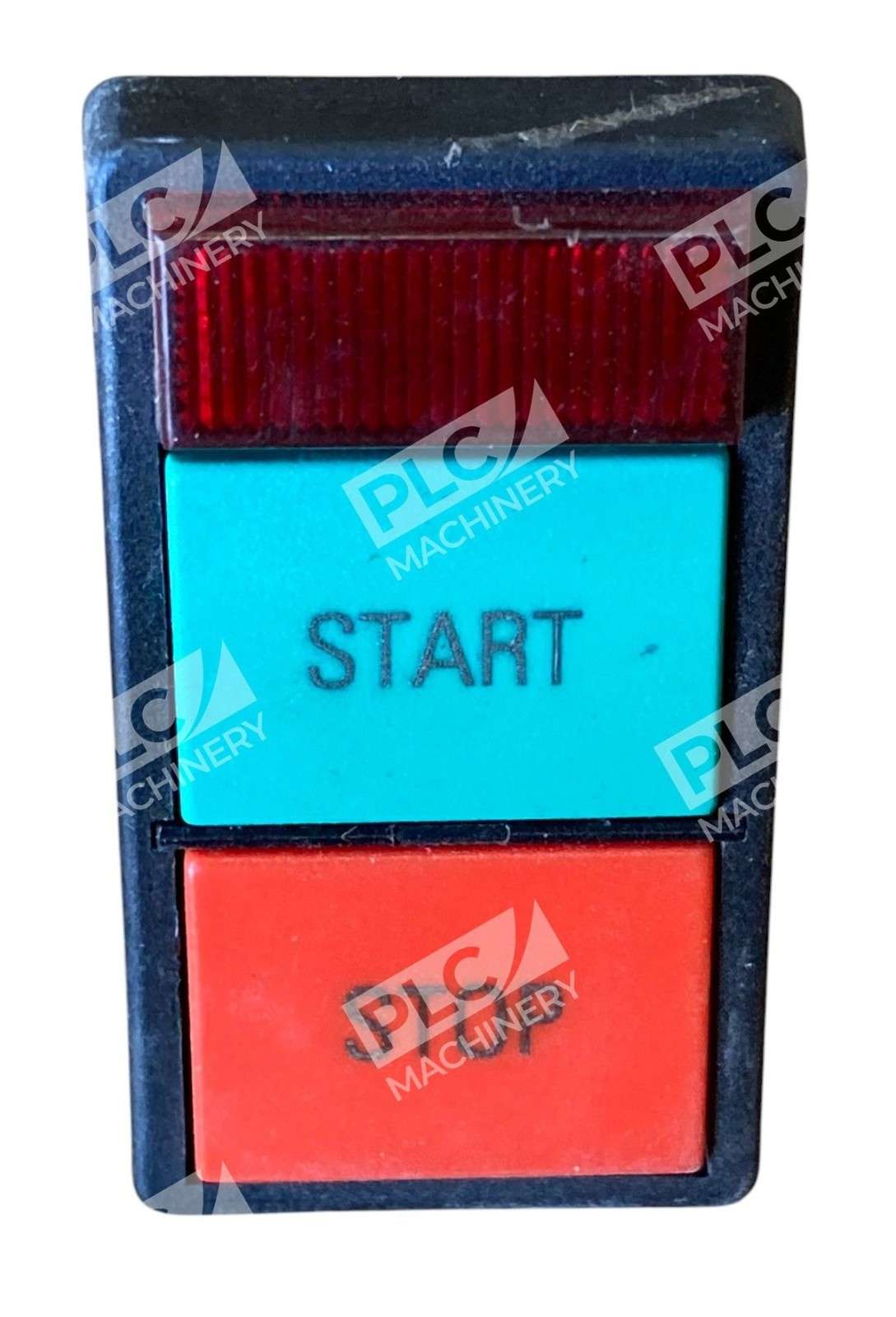

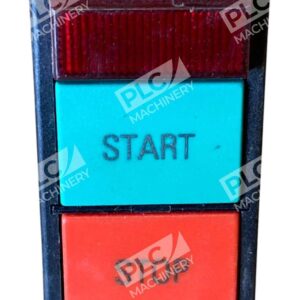

- Twin pushbutton configuration for dual control functions
- Integrated incandescent indicator lamp for status visibility
- Rated 6A at 380/460VAC for robust industrial duty
- Compact form factor fits standard control panel cutouts
- Proven Siemens engineering for long service life
- Socket-mount design for quick replacement and maintenance
Technical Specifications

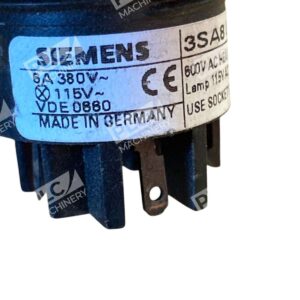

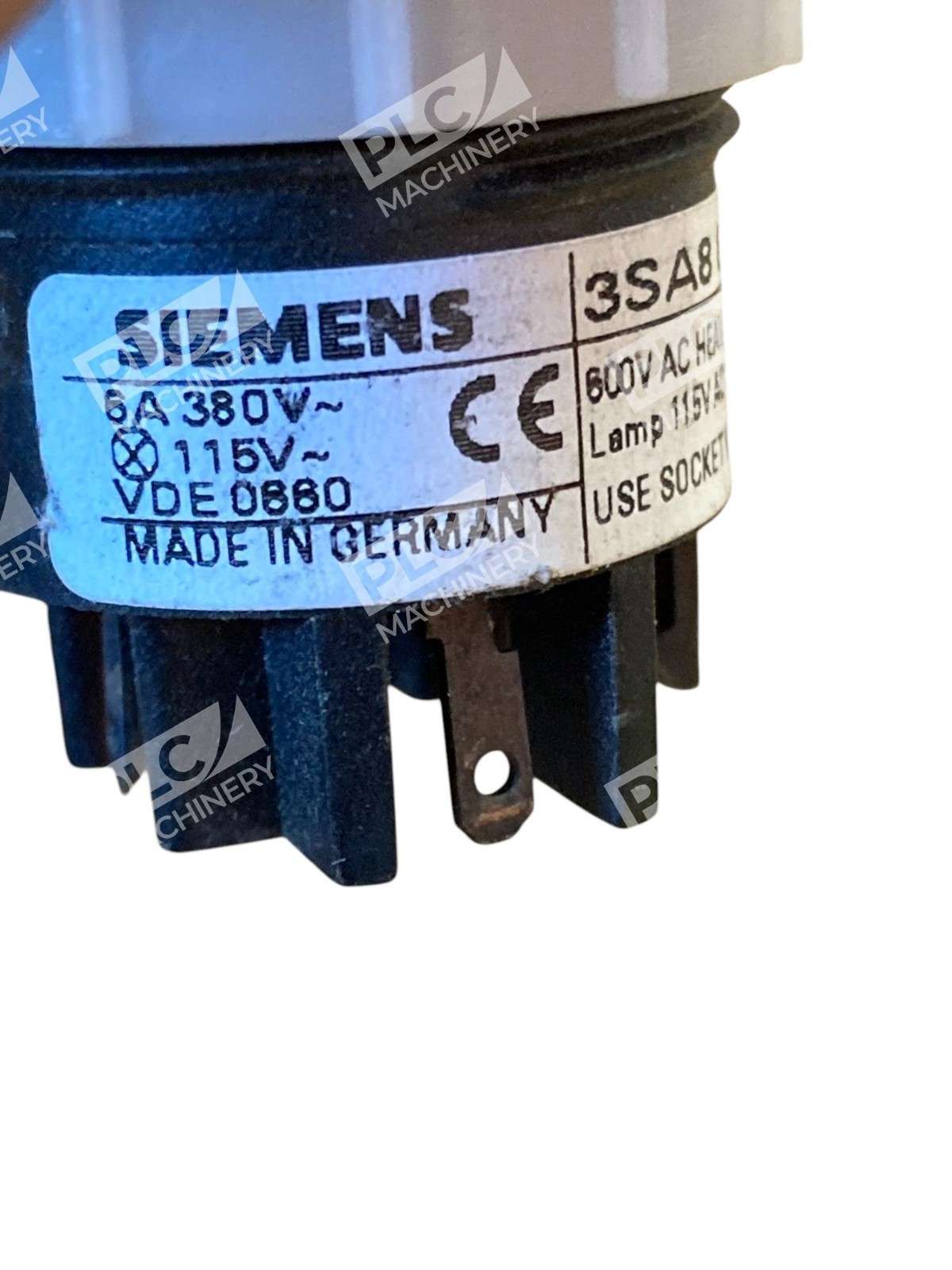

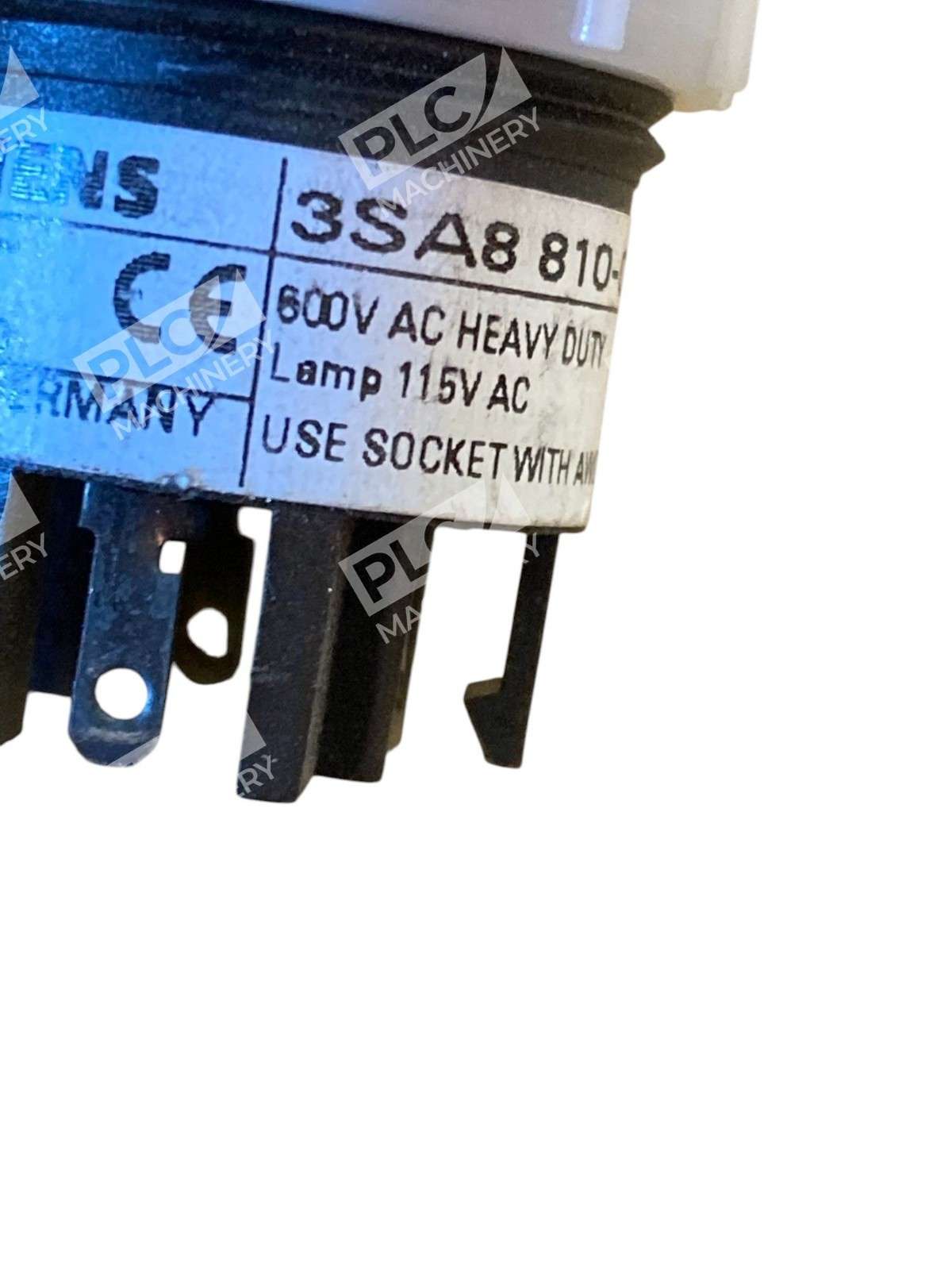

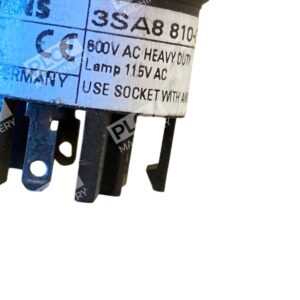

- Pushbutton Rating: 6A at 380/460VAC
- Indicator Lamp: Incandescent, integral

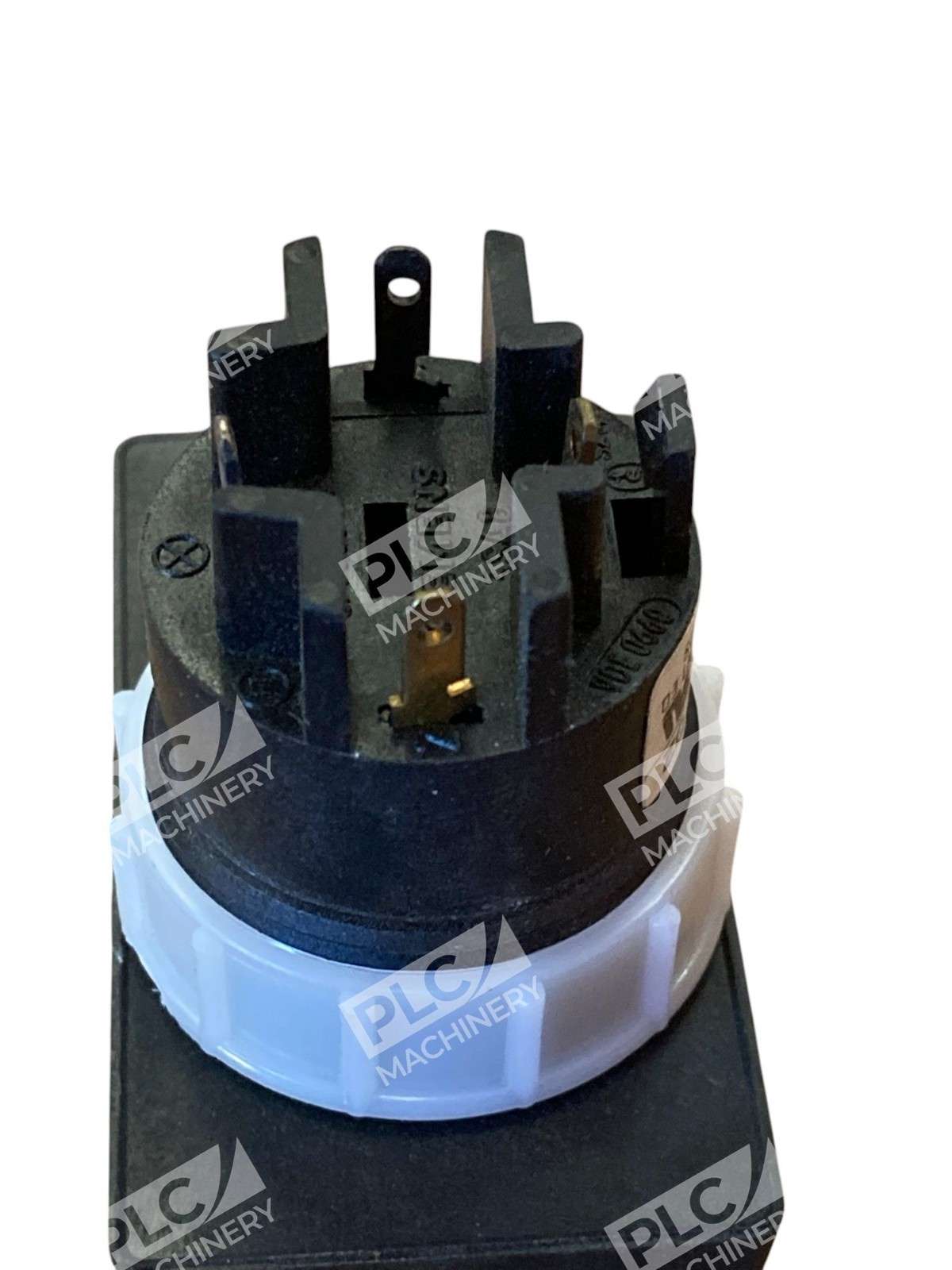

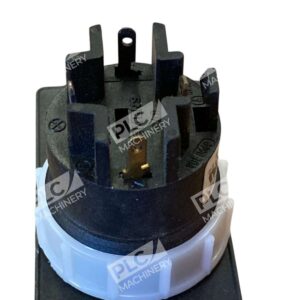

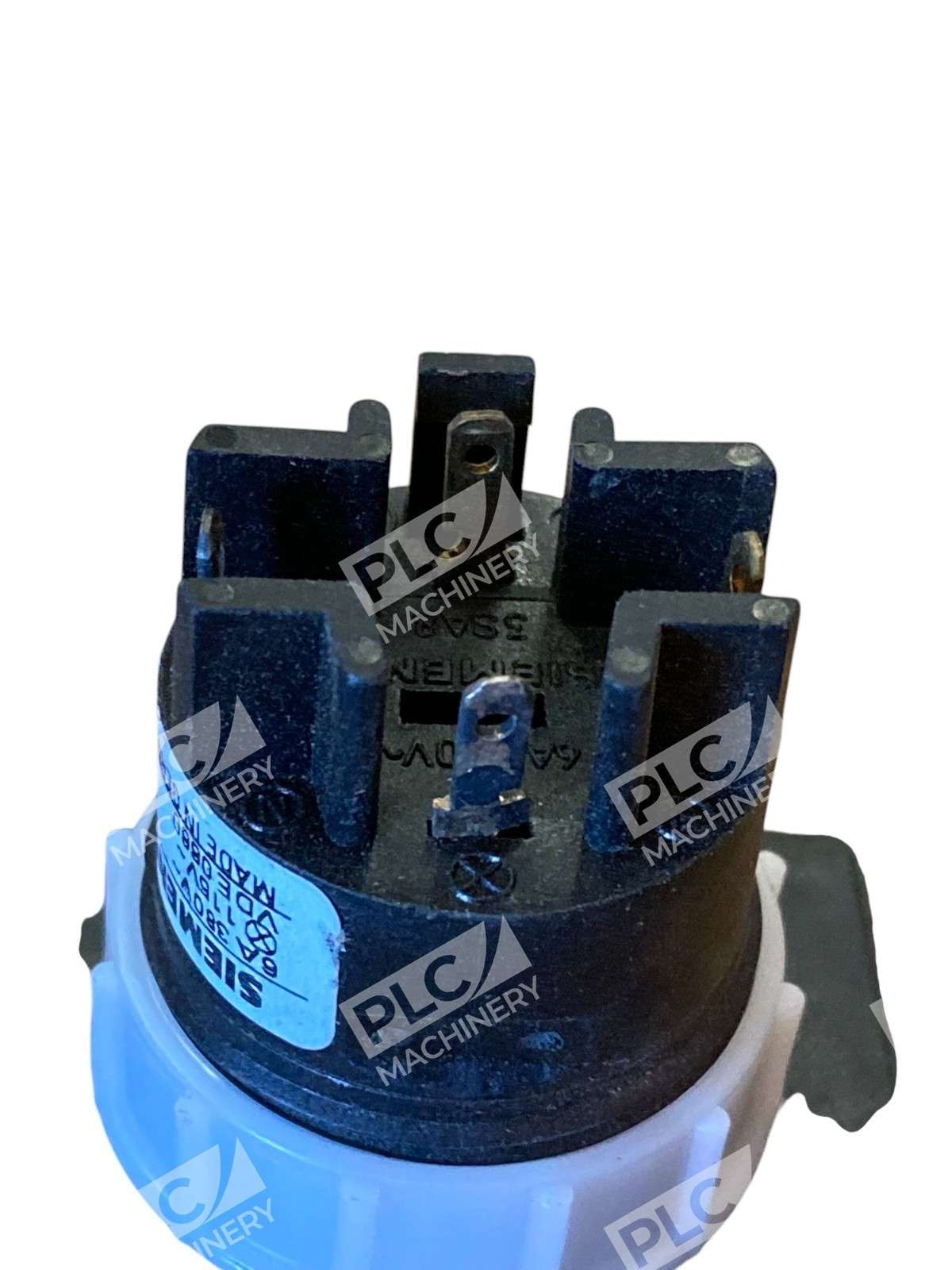

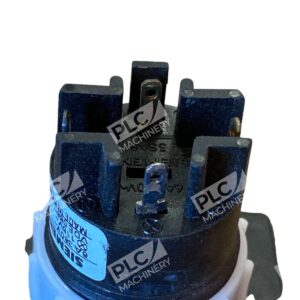

- Mounting: Socket-mount, standard industrial cutout
- Configuration: Twin pushbutton unit

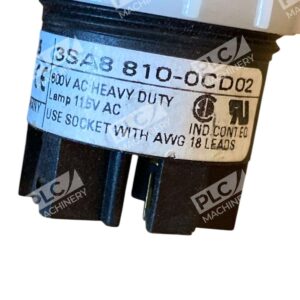

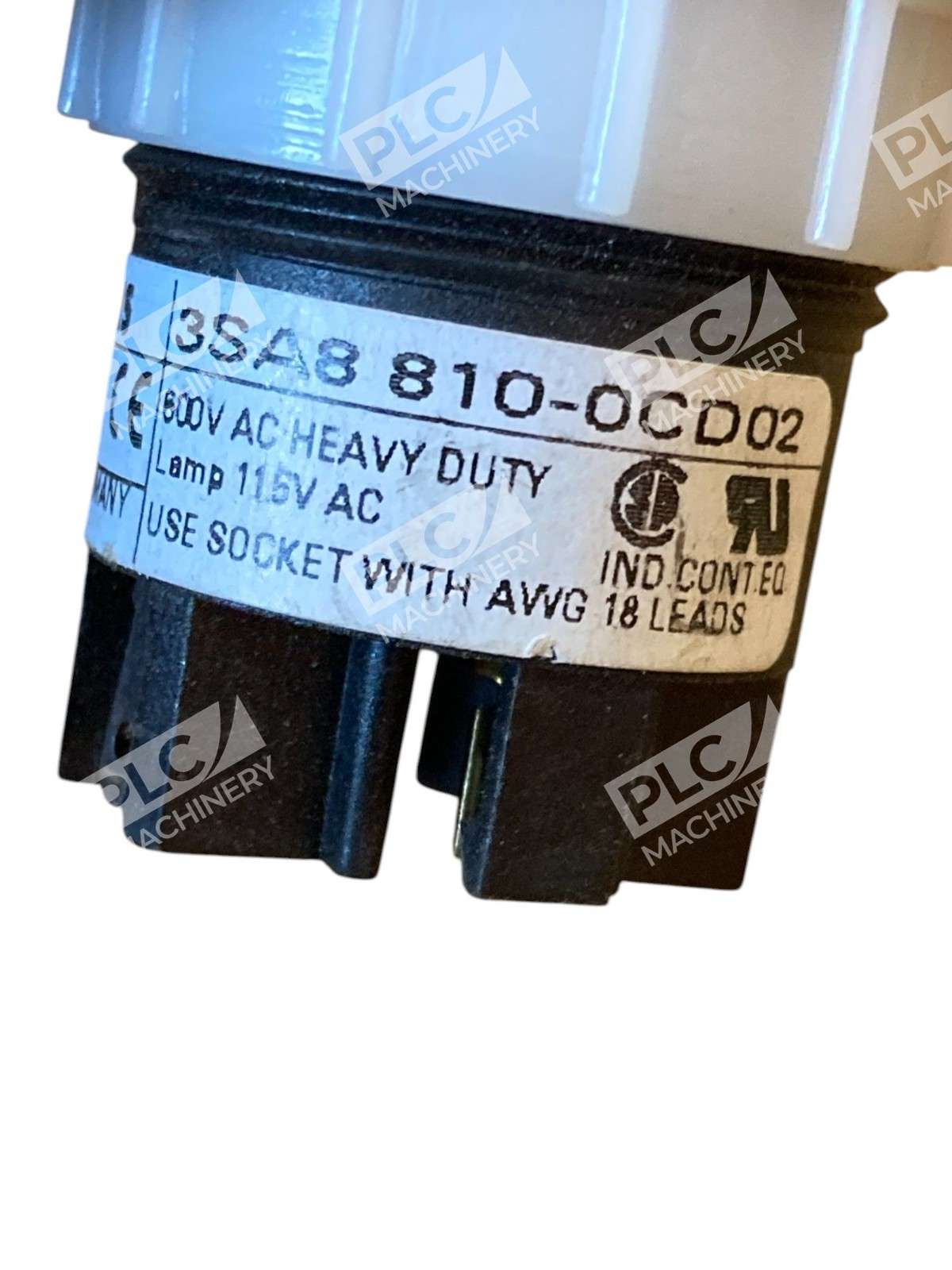

- Connection: AWG 18 wire leads
- Weight: Approximately 0.05 lbs
- Manufacturer: Siemens
- Product Category: Pilot Device / Pushbutton Control
Typical Applications
The 3SA8 810-0CD02 is commonly found in:
- Industrial machinery start/stop panels
- Process control cabinets requiring dual command inputs
- Manufacturing equipment with indicator lamp feedback
- Automated assembly lines and material handling systems
- Legacy and modern industrial automation systems
Compatibility & Replacements
The Siemens 3SA8 810 series is a mature product line with several variants available in the 3SA8 810 family. Equivalent models include the 3SA8 810-0HB02, 3SA8 810-0AB01, and other 3SA8 810 configurations with different lamp voltages (220V, 380/460VAC). For specific replacement or upgrade options, consult the Siemens parts cross-reference or contact an authorized distributor. Used units are typically sourced as replacements for legacy control panels.
