Overview

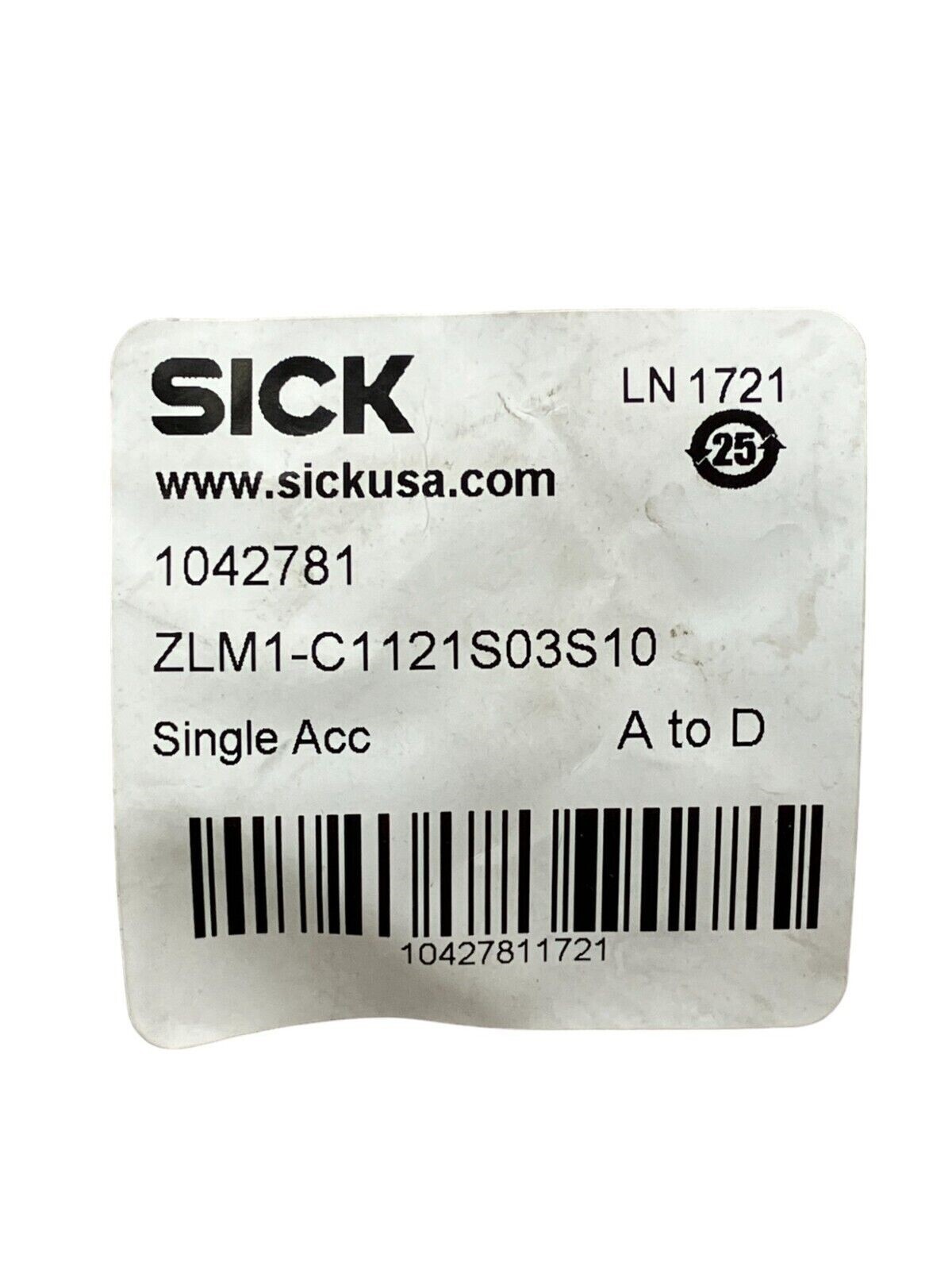

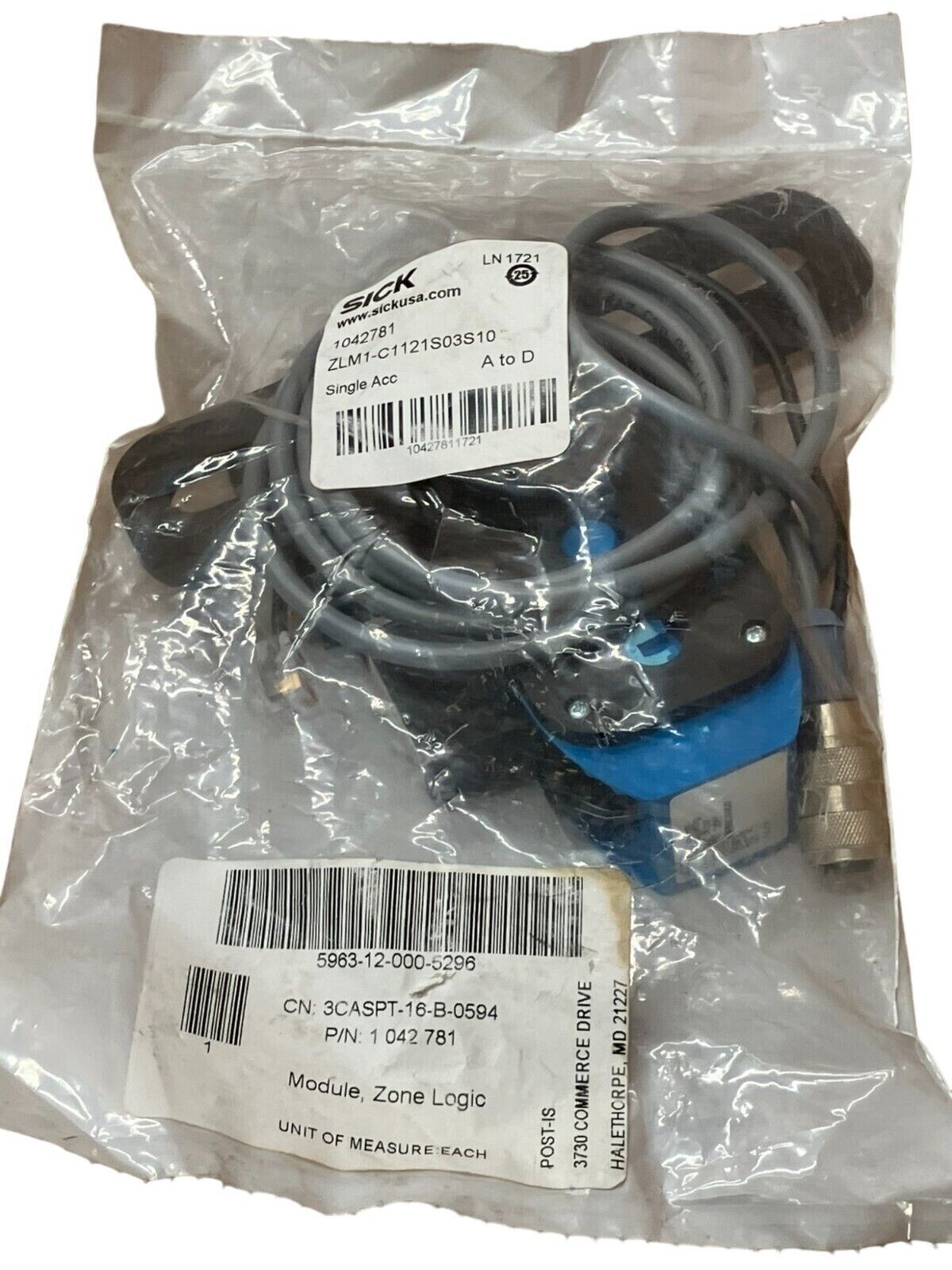

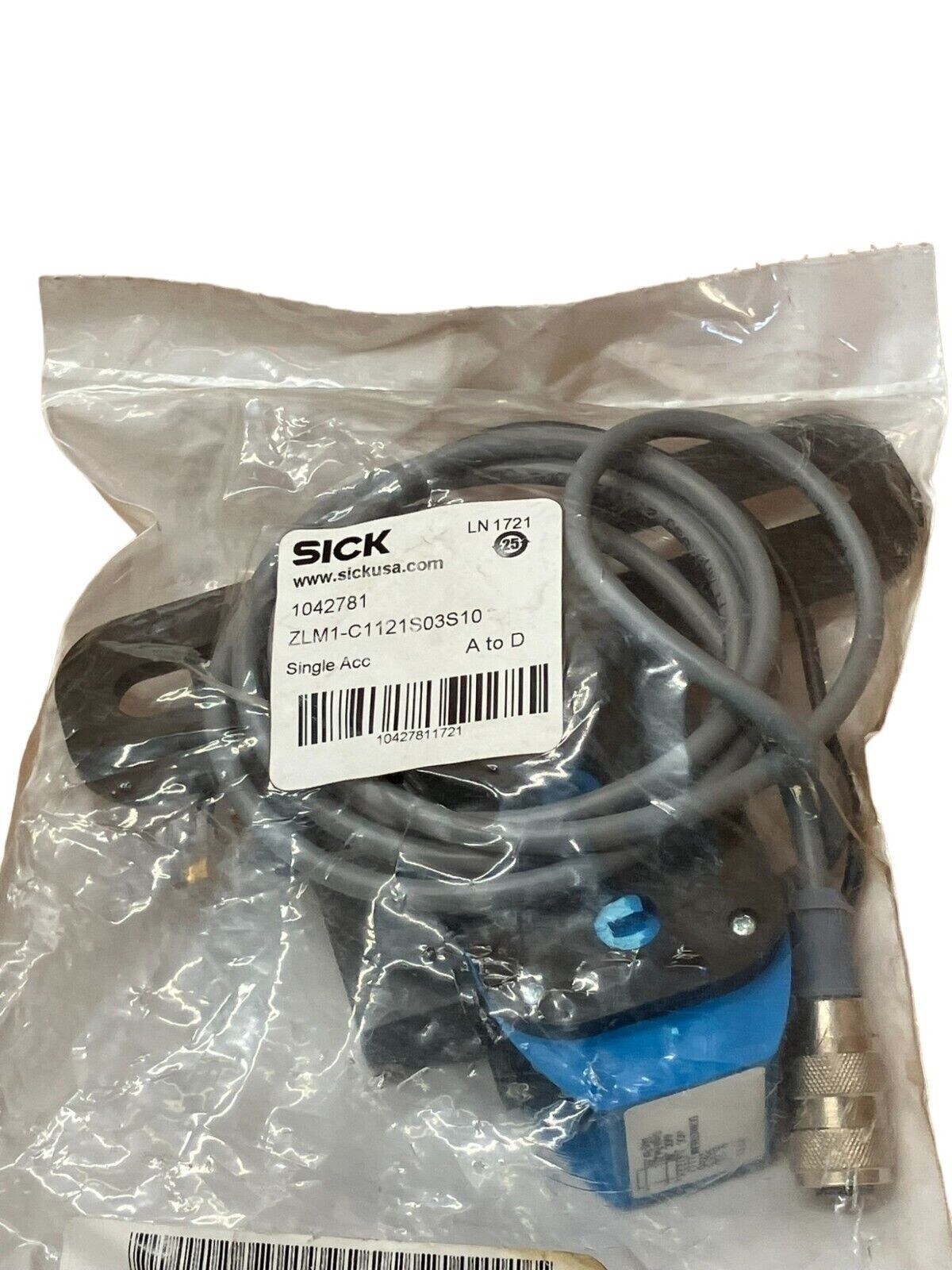

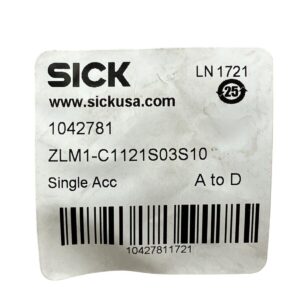

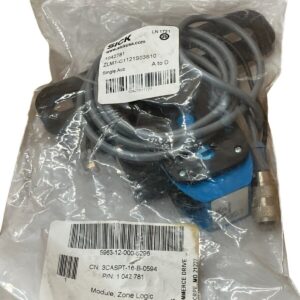

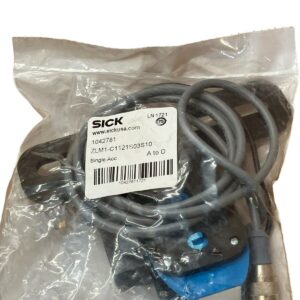

The Sick ZLM1-C1121S03S10 is a ZoneControl photoelectric logic module that combines sensor detection with integrated pneumatic valve control. This unit operates at 24VDC and delivers precise, repeatable switching at 200 HZ, making it ideal for packaging, material handling, and conveyor automation applications where zone-based object detection is critical.
Key Features
- 24VDC supply voltage with 60mA output current rating
- PNP switching output configuration for standard industrial logic control
- 200 HZ switching frequency for fast-response detection
- Integrated pneumatic valve control output (Air-to-Drive NC mode)
- M12 male connector with 4-pin M8 receptacle cable interface
- IP40 enclosure rating for industrial environments
- Operating temperature range: –10 °C to +55 °C
Technical Specifications
- Sensor Type: Photoelectric, Multitask ZoneControl
- Supply Voltage: 24 VDC
- Output Current: 60 mA
- Switching Frequency: 200 HZ
- Output Type: PNP switching
- Pneumatic Valve Output: Air-to-Drive (NC), 0–4.5 bar operating pressure
- Valve Coil Rating: 24 V DC, 1 W
- Response Time: Open 23 ms, Close 21 ms, Partially open 10 ms
- Connector: M12 male on sensor, M8 receptacle on 4-pin cable (1.2 m)
- Housing: Plastic ABS, side-frame mount
- Enclosure Rating: IP40
- Ambient Operating Temperature: –10 °C to +55 °C
- Storage Temperature: –40 °C to +75 °C
Typical Applications
- Accumulation conveyors with pneumatic zone control
- Packaging and palletizing systems requiring object detection in multiple zones
- Material handling equipment with integrated solenoid valve actuation
- Production lines requiring fast switching response and reliable valve control
- Industrial automation systems utilizing Zero Pressure Accumulation (ZPA) logic
Compatibility & Replacements
Compatible With
- Sick ZoneControl photoelectric sensor systems
- Pneumatic solenoid valves with 24VDC coil ratings
- Industrial PLCs and pneumatic control circuits supporting 24VDC logic
- Standard M12 male connector interface equipment
- Accumulation conveyor and material handling systems
Replaces / Drop-In Replacement For
- Verify compatibility with your system integrator before ordering.
Works With
- Sick ZoneControl sensor products
- Pneumatic automation control systems
- 24VDC industrial control platforms
- M12 connector-based distributed I/O networks
