Overview

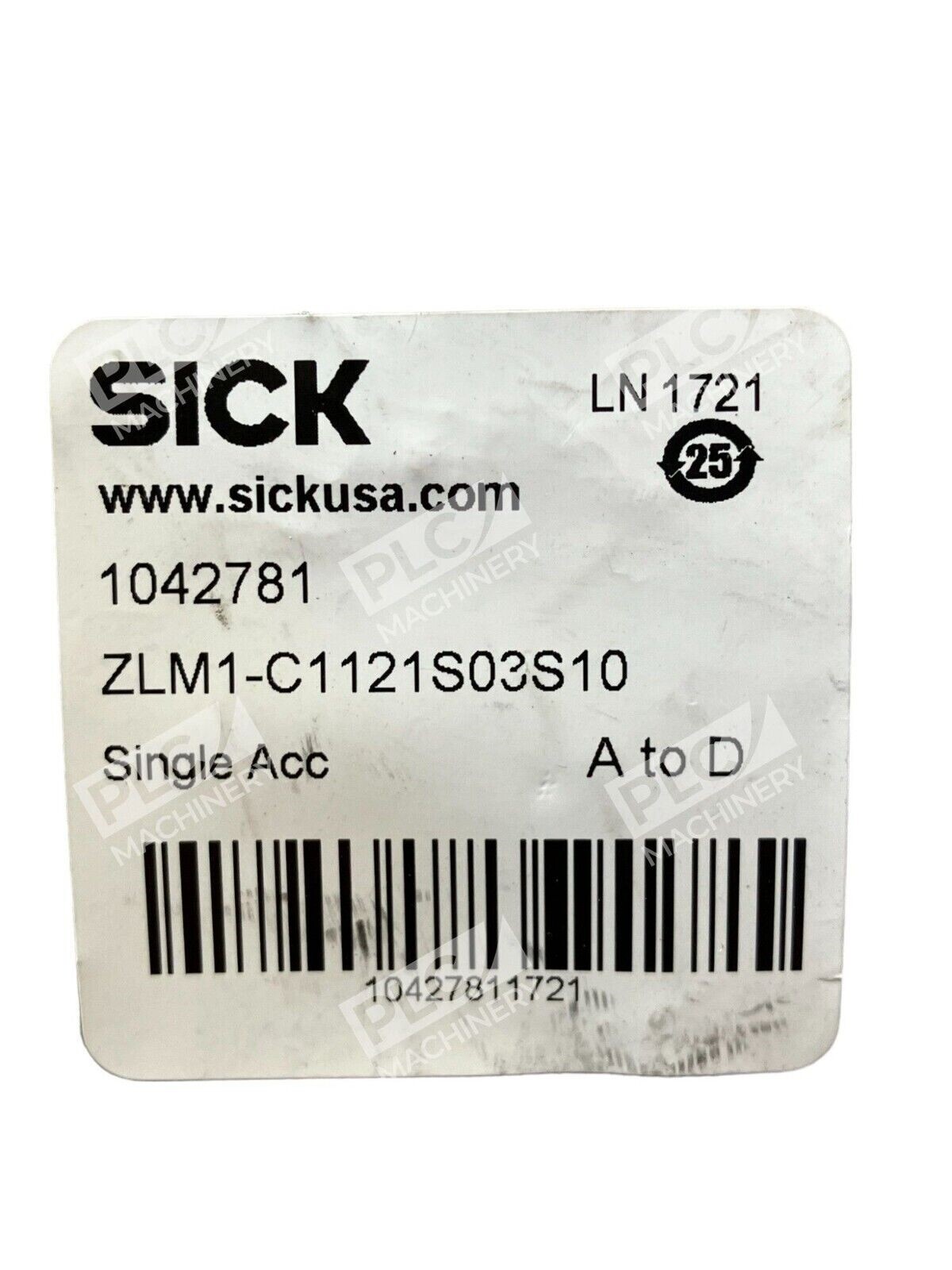

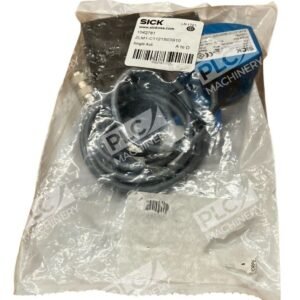

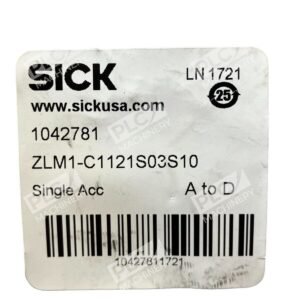

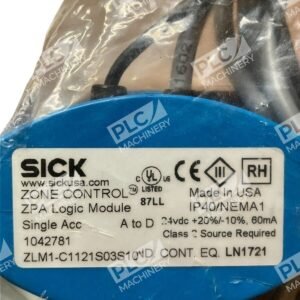

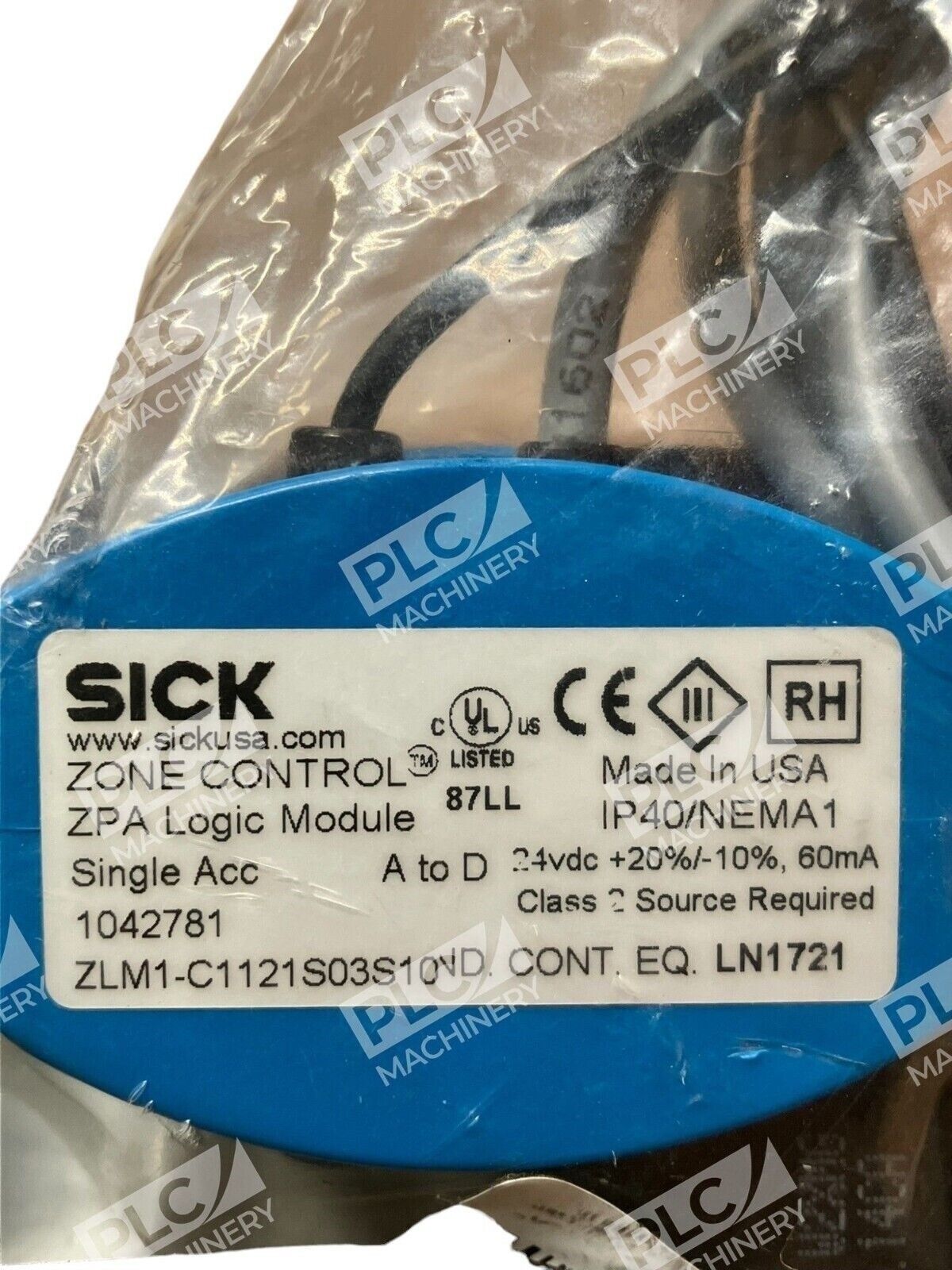

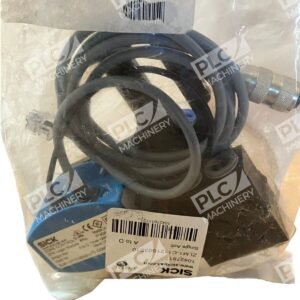

The Sick ZLM1-C1121S03S10 (part 1042781) is a professional-grade ZoneControl photoelectric sensor designed for zone-based detection and control in industrial conveyors, packaging machinery, and material handling systems. This integrated logic module combines photoelectric sensing with pneumatic valve actuation, eliminating the need for separate control electronics and simplifying system design for accumulation and zone control applications.
Key Features
- Built-in pneumatic solenoid valve output—eliminates external control logic
- 24VDC supply with 1W coil rating; 60mA switching output
- 200Hz switching frequency for responsive, real-time zone detection
- PNP switching output for flexible integration with sensors and controls
- M12 male connector with 4-pin M8 receptacle cable (1.2m standard length)
- Side-frame mounting for compact installation on conveyor frames
- IP40 enclosure rating suitable for standard industrial environments
- Operating temperature range: –10°C to +55°C
Technical Specifications
- Supply Voltage: 21.6–24VDC
- Output Current: 60mA maximum
- Switching Frequency: 200Hz
- Solenoid Coil: 24V DC, 1W
- Operating Pressure Range (solenoid): 0–4.5 bar
- Response Times: 10ms partially open, 23ms fully open, 21ms close
- Connection Type: M12 male connector, 4-pin M8 receptacle
- Cable Length: 1.2 meters (standard)
- Housing Material: ABS plastic
- Enclosure Rating: IP40
- Ambient Temperature: –10°C to +55°C operating; –40°C to +75°C storage
- Weight: 0.34 lbs (approximately)
Typical Applications
The Sick ZLM1-C1121S03S10 excels in conveyor accumulation systems requiring zero-pressure-accumulation (ZPA) logic, including:
- Accumulation conveyors for load staging and buffering
- Carton and package sortation lines
- Pallet and tote handling systems
- Pneumatic valve control for compressed-air-driven actuation
- Conveyor zone management where rapid response and integrated control are critical
Compatibility & Replacements
Compatible With
- Standard 24VDC power supplies for industrial sensors and controls
- Compressed air systems operating 0–4.5 bar
- Pneumatic 3/8″ solenoid valves and actuators
- Industrial PLC and discrete control systems with 24VDC logic inputs
- M12 connector-based sensor networks and harnesses
Replaces / Drop-In Replacement For
- Sick ZLM1-C1121S01 (similar ZoneControl logic module variant)
- Verify with system integrator for exact compatibility with your pneumatic valve configuration
Works With
- Sick ZoneControl™ ecosystem and zero-pressure-accumulation (ZPA) conveyor systems
- Pneumatic control circuits using 3/8″ compressed-air connectors
- Standard M12 sensor cabling and connectors
- 24VDC logic and signal acquisition hardware
