Overview

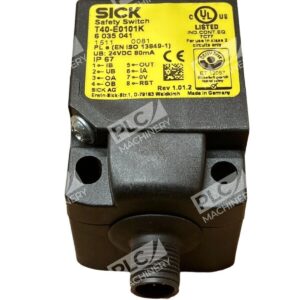

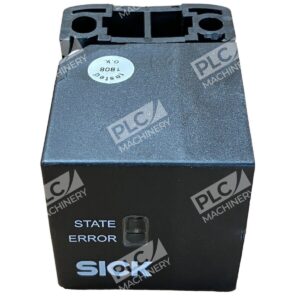

The Sick T40-E0101K is a transponder-based non-contact safety switch from the T4000 Direct product line. Rated PLe Cat4 type 4, this RFID safety interlock switch detects magnet-coded actuators and provides fail-safe control for personnel protection and machine guarding in industrial automation environments. The T40-E0101K is a sensor-only unit; the matching actuator must be ordered separately.
Key Features
- Two digital outputs (semiconductor OSSD safety outputs)
- Supports 5 actuation directions for flexible installation
- IP67-rated plastic PBT housing for durability in harsh environments

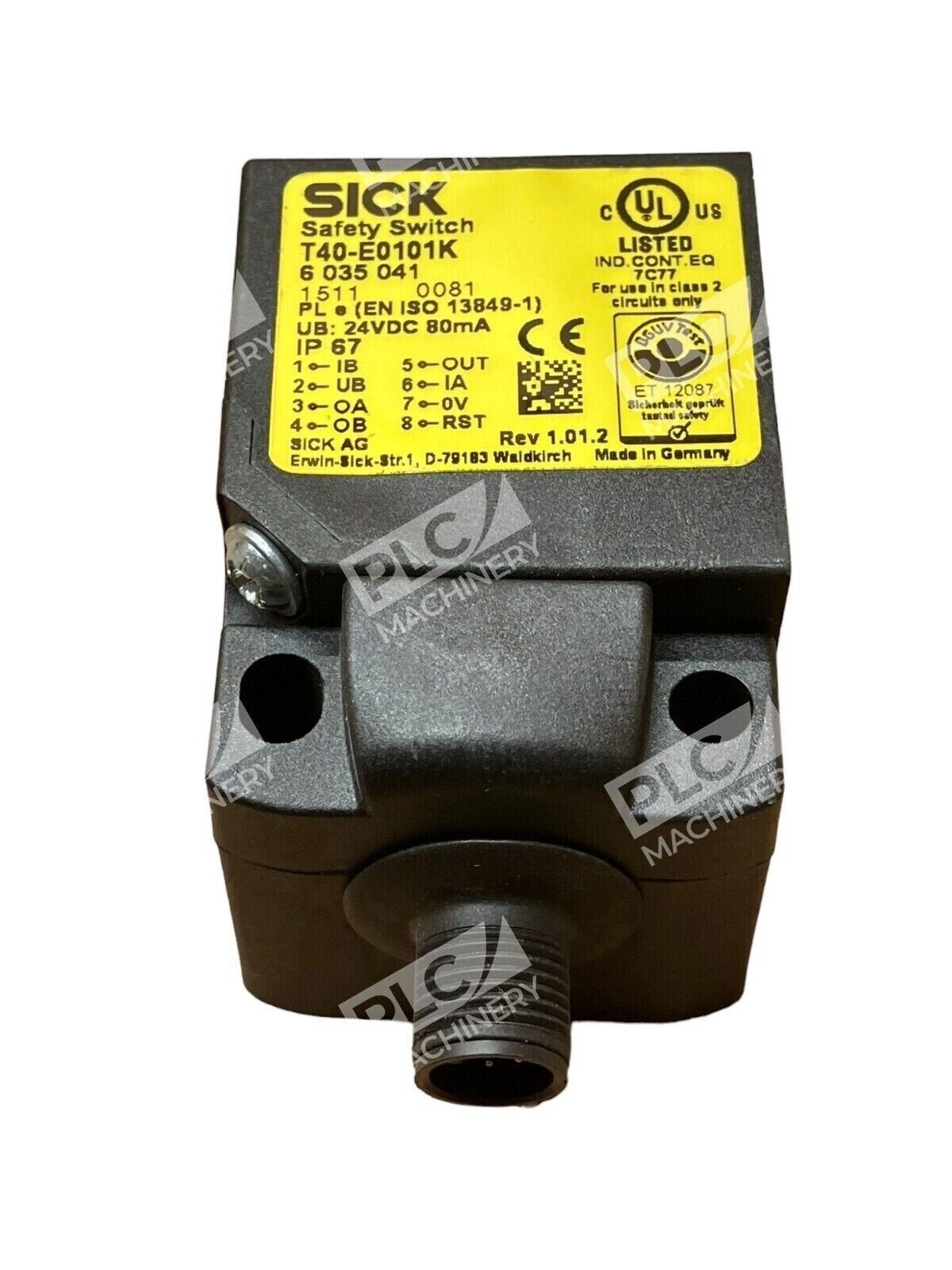

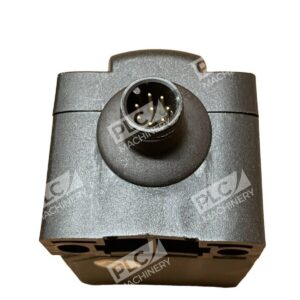

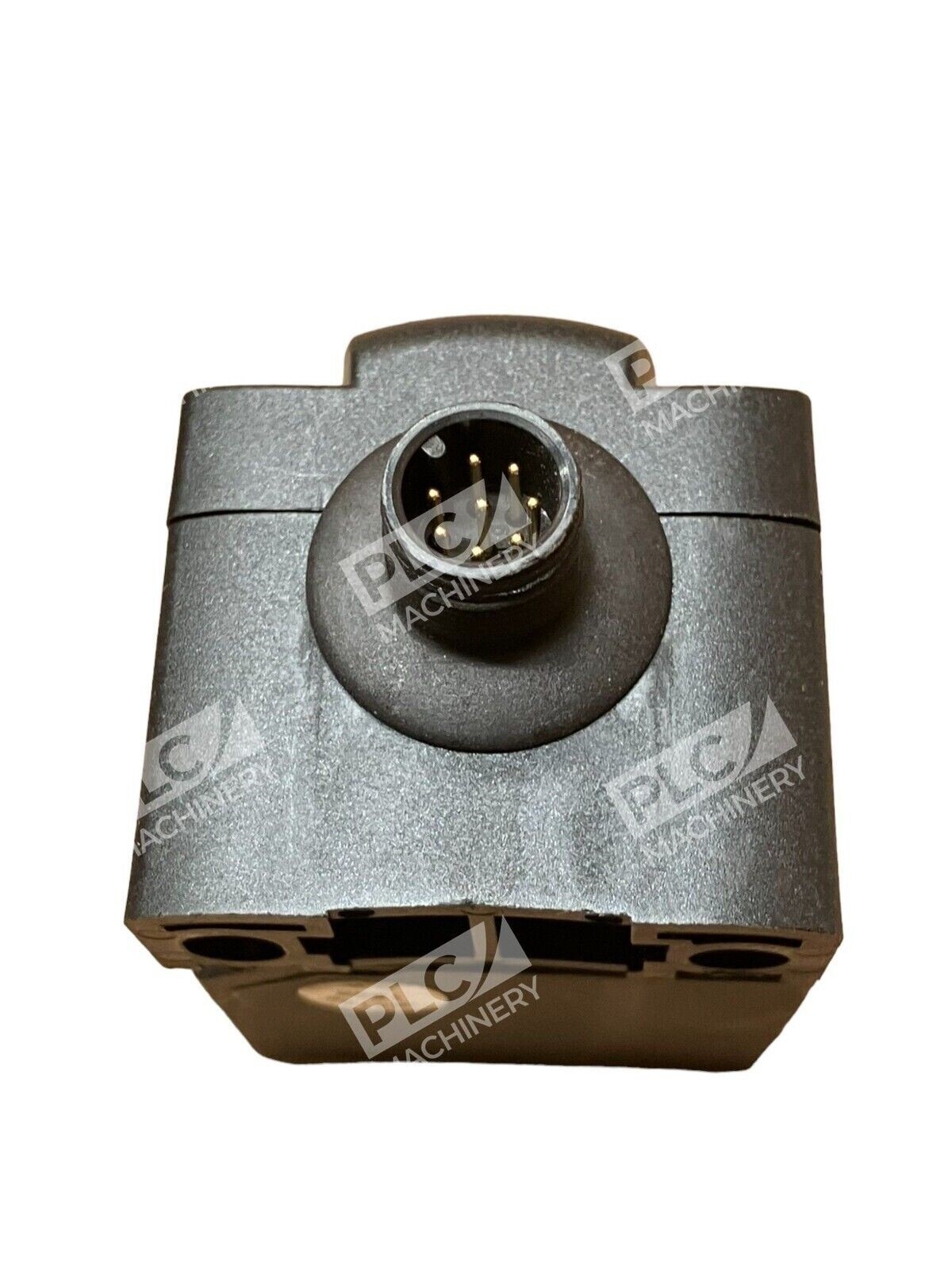

- Pre-equipped with 8-pin M12 plug connector
- Low-actuator-coded, universally coded design per EN ISO 14119
- Non-contact operation eliminates wear and mechanical failure modes
Technical Specifications
- Supply voltage: 20.4–27.6 V DC (24 V DC nominal)
- Rated current: 0.4 A at 24 V DC
- Operating temperature: –20 °C to +55 °C
- Storage temperature: –20 °C to +70 °C
- IP67 protection class
- Sensing range (with T4000-1KBA actuator): 15 mm separation distance (Sao)
- Material: Polybutylene terephthalate (PBT) plastic
- Housing: Rectangular form factor
Typical Applications
The Sick T40-E0101K serves safety-critical applications including:—Machine-guarding interlocks on presses, punch machines, and assembly lines; Access-control systems for hazardous zones; Safety gates and hinged guards in manufacturing; Emergency stop (E-stop) circuits in conveyor systems and industrial robots; Automation lines requiring non-contact, wear-free position sensing in automotive, food & beverage, and heavy machinery industries.
Compatibility & Replacements
Compatible With
- T4000-1KBA actuator (15 mm sensing distance)
- T4000-1KBQ actuator (18 mm sensing distance)
- T4000-1KBR actuator (19 mm sensing distance)
- Any M12 8-pin industrial safety controller
- 24 V DC power supplies rated 0.4 A or higher
- Dual-channel safety relay modules and safety PLCs
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering alternative models from competing manufacturers such as Eaton, Schmersal, or Pilz safety switch lines.
Works With
- EN ISO 13850 (E-stop functionality)
- EN ISO 14119 (Low-actuator-coded safety switches)
- ISO 13849-1 PLe/PLd safety standards
- Dual-channel safety control architectures
- 24 V DC industrial automation control systems
