Overview

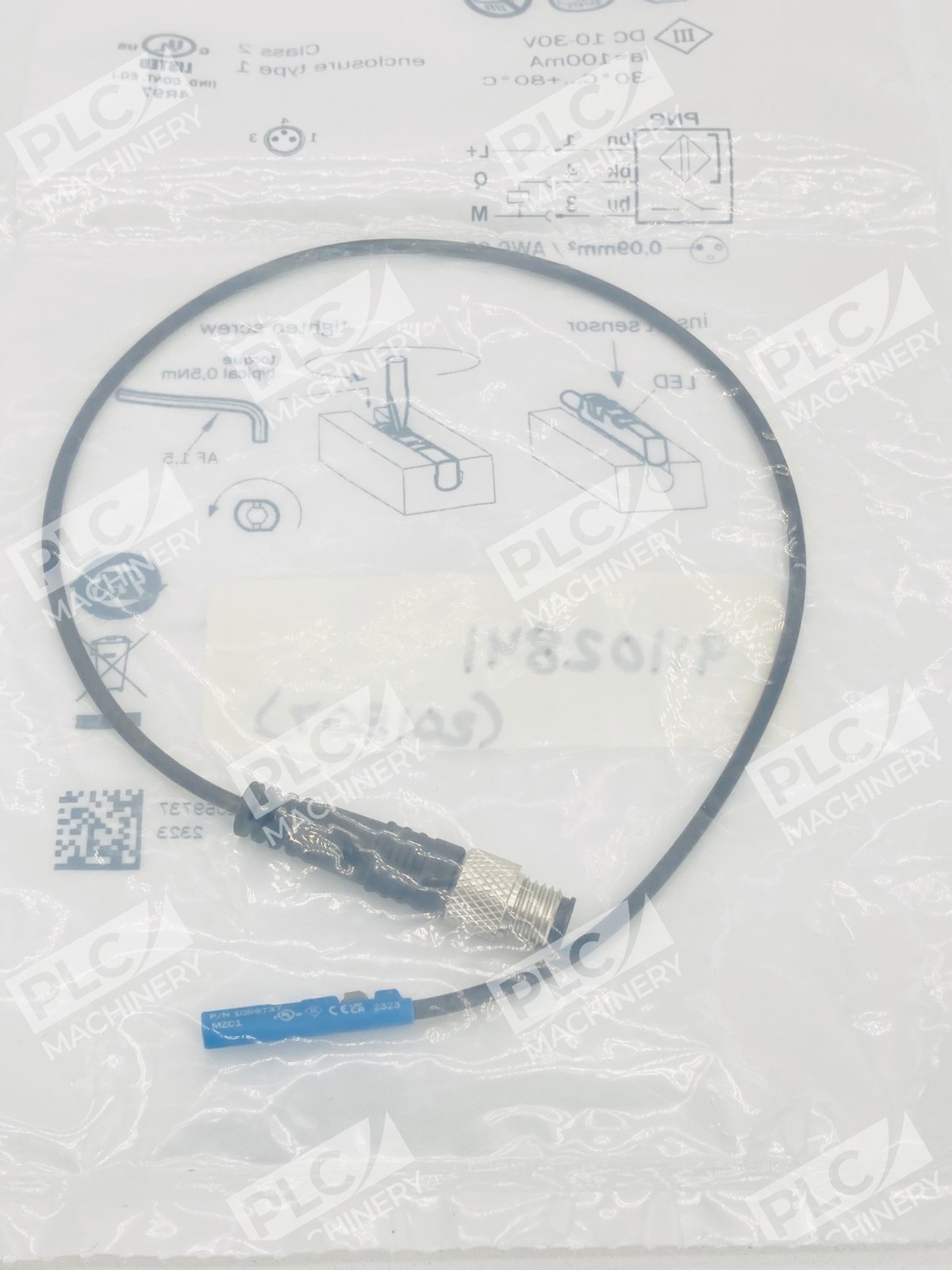

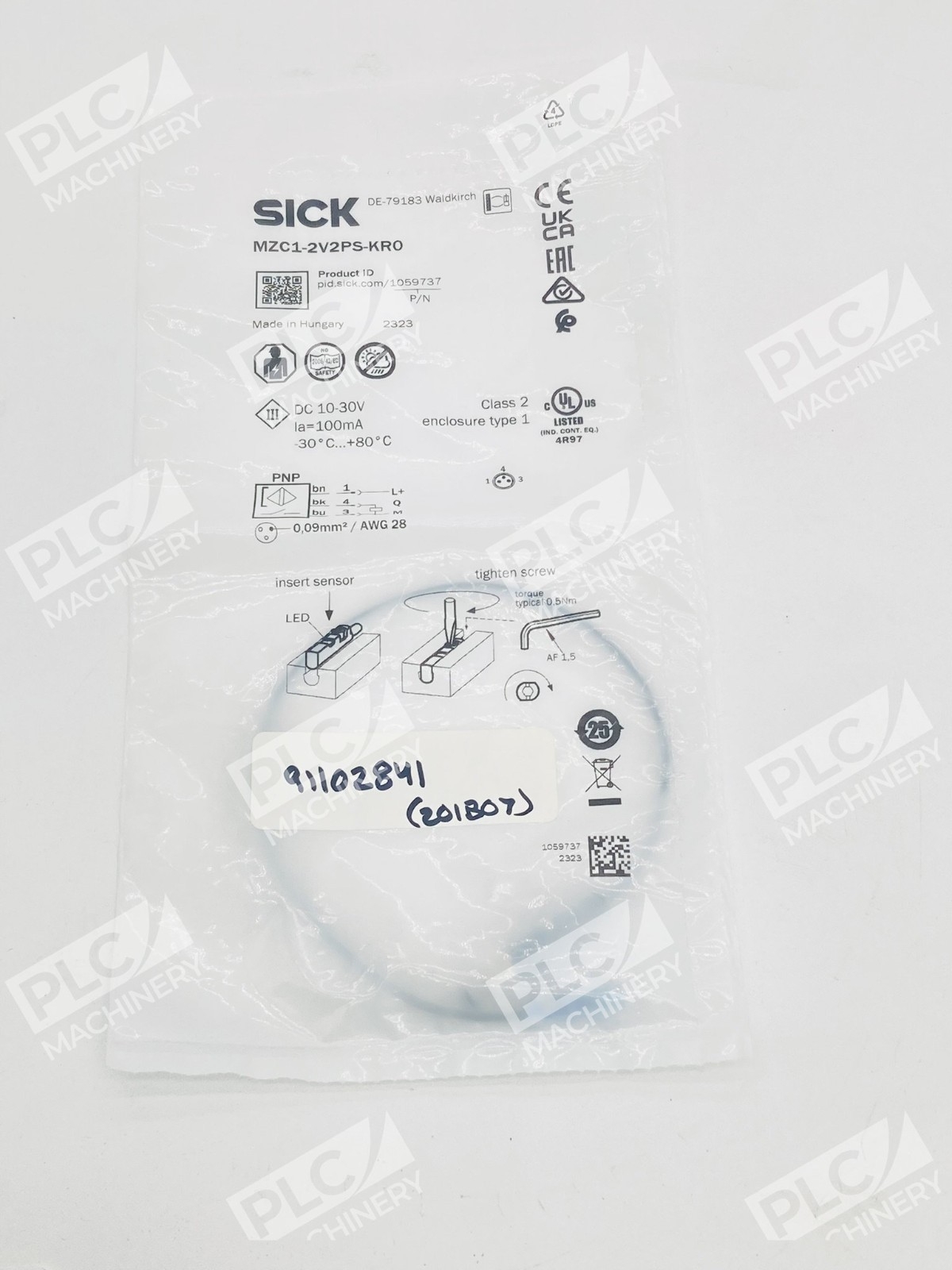

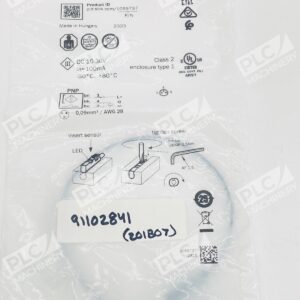

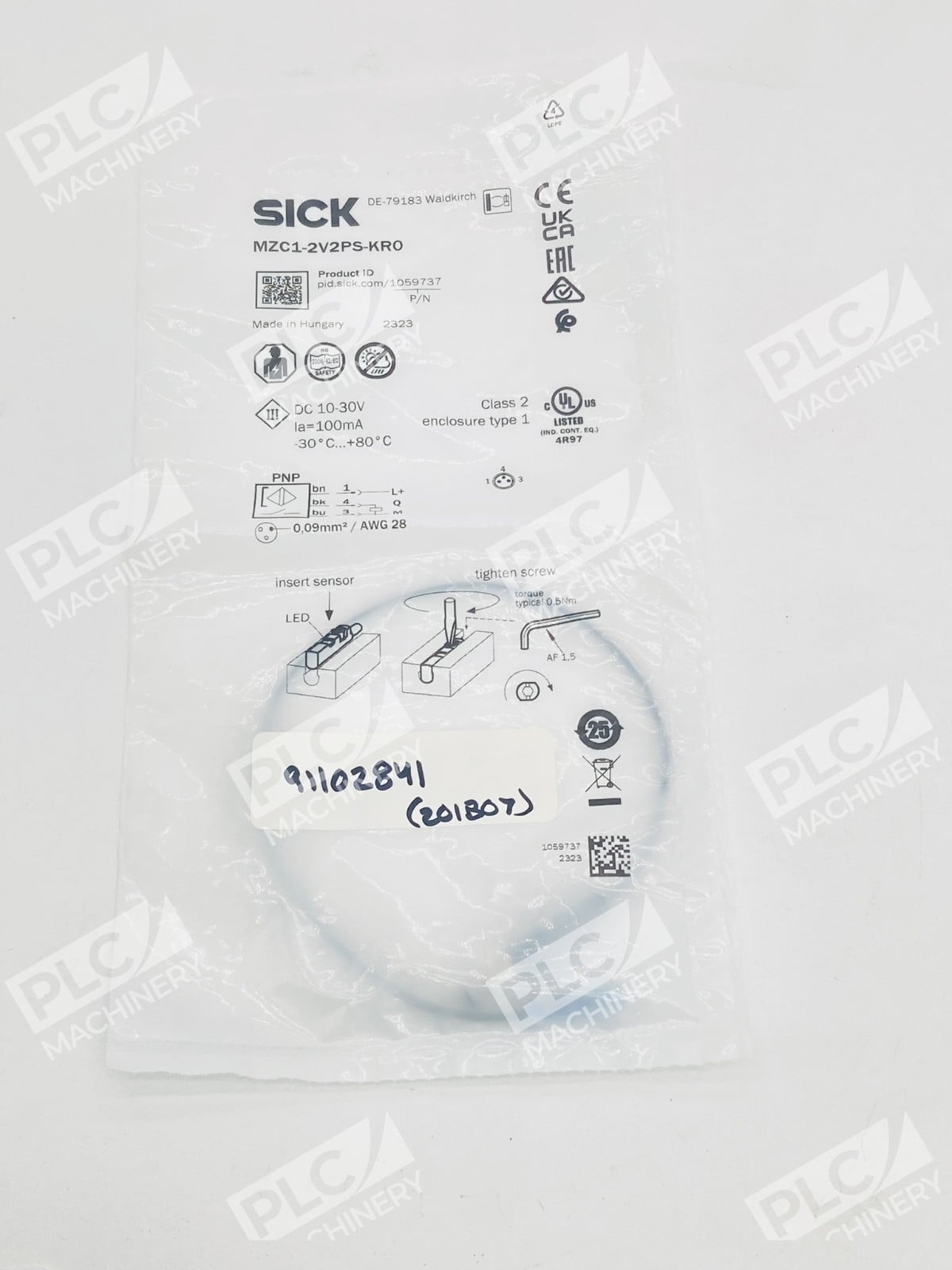

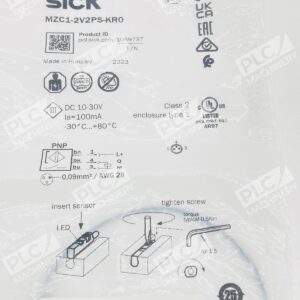

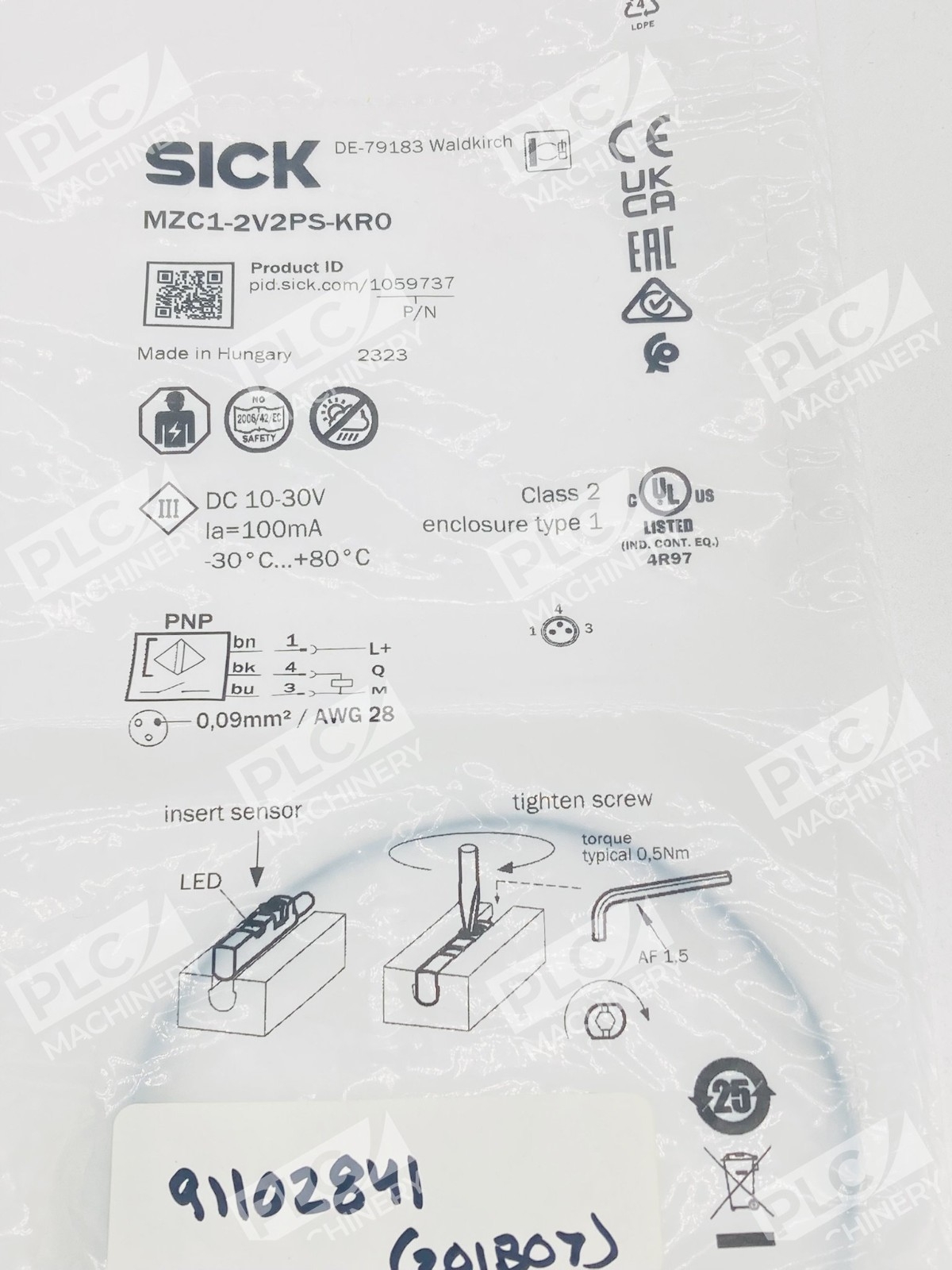

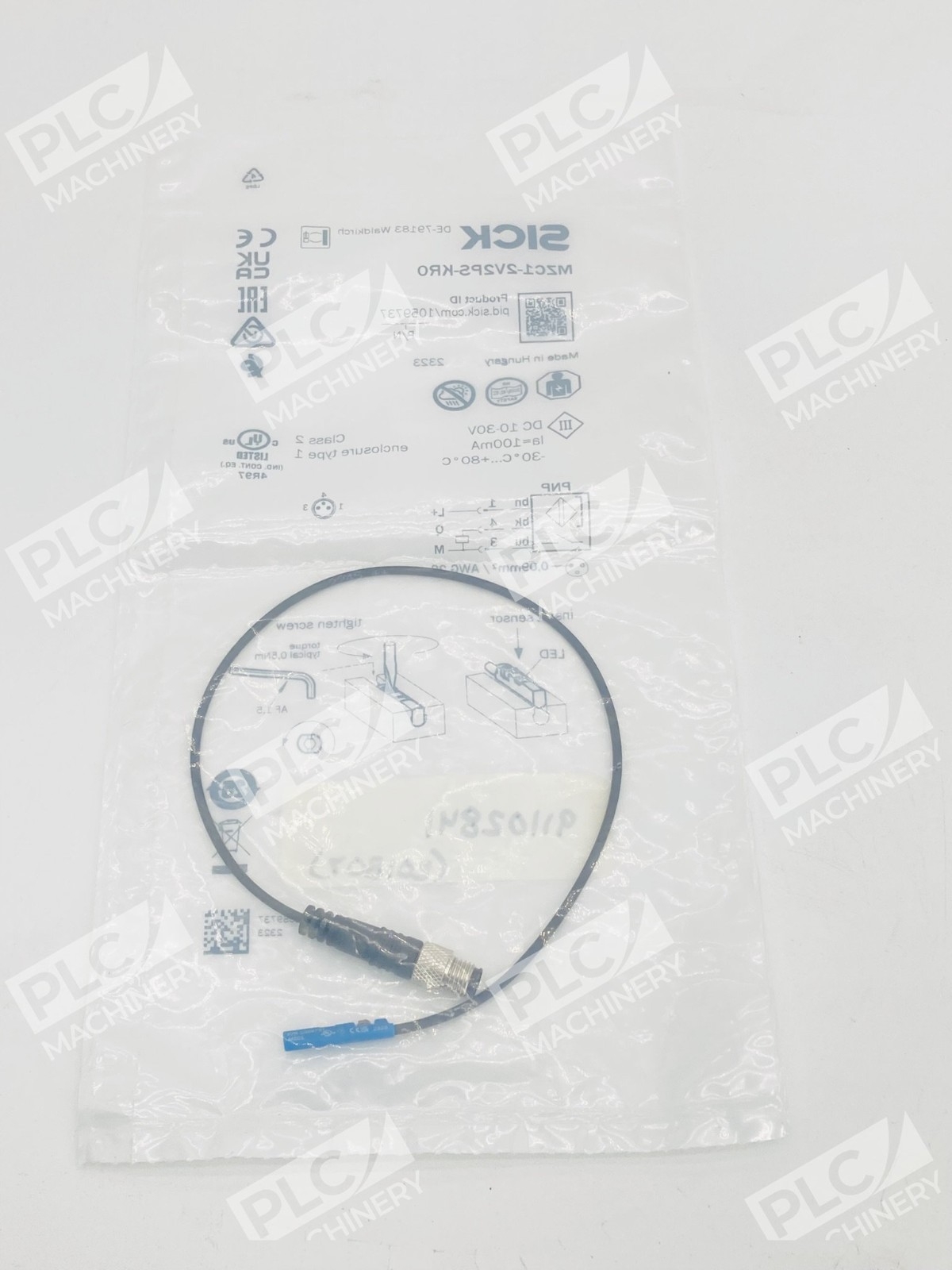

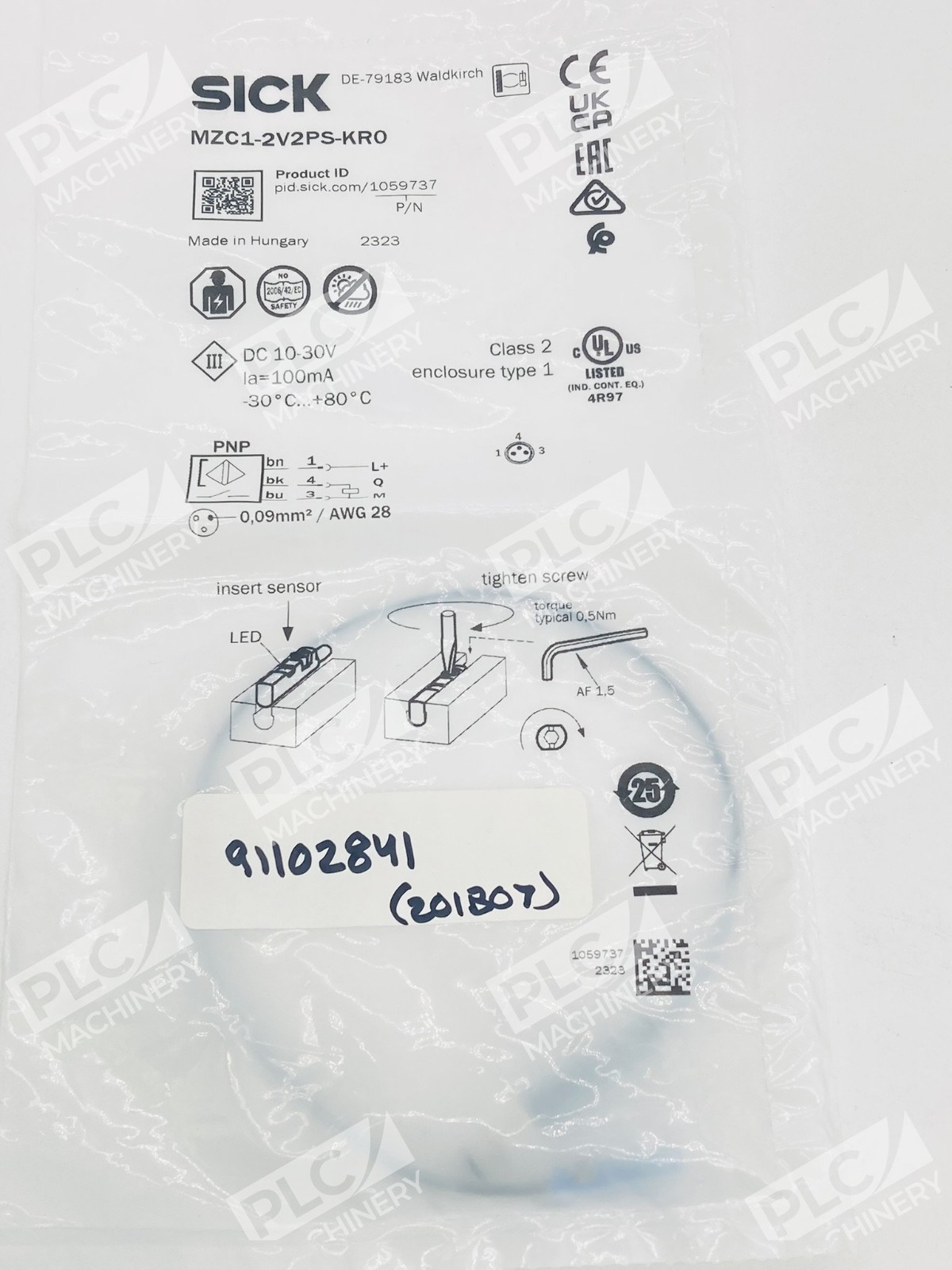

The SICK MZC1-2V2PS-KRO is a precision magnetic cylinder sensor engineered for detecting piston position in C-slot pneumatic cylinders. Featuring a supply voltage of 10 V DC to 30 V DC, PNP switching output, and DC 3-wire configuration, this sensor delivers reliable performance in demanding industrial automation and motion control applications. Part number 1059737.
Key Features
- 1,000 Hz switching frequency for rapid response times
- Ambient operating temperature range of –30 °C to +80 °C
- M8 connector with 0.3 m cable and knurled nut for drag chain applications
- IP68 protection rating ensuring full immersion capability
- Shock and vibration resistance rated at 30 g, 11 ms with 10–55 Hz, 1 mm compliance
- cULus and multiple international certifications including EU and UK declarations of conformity
Technical Specifications
- Switching Output: PNP, NO (normally open)
- Cable Connection: M8 3-pin connector with knurled nut, 0.3 m cable
- Cable Diameter: Ø 2.2 mm
- Power Consumption: 8 mA without load
- Maximum Output Current: 100 mA
- Bending Radius: Greater than 2× cable diameter for fixed installation; greater than 5× for flexible use
- Torsion Force: ±270° per 0.1 m with 300,000 torsion cycles
- EMC Compliance: According to EN 60947-5-2
Typical Applications
The SICK MZC1-2V2PS-KRO is ideal for:
- Pneumatic cylinder position feedback in automated assembly lines
- Industrial press and clamp control systems
- Packaging machinery requiring synchronized motion detection
- Factory automation and material handling equipment
- Machine tool position sensing in CNC and similar applications
Compatibility & Replacements
Compatible With
- Festo C-slot cylinders
- SMC C-slot pneumatic cylinders
- Parker and Bosch Rexroth C-slot cylinder designs
- Industrial control systems using DC 3-wire proximity sensors
- PLCs and motion controllers with 24V DC inputs
Replaces / Drop-In Replacement For
- SICK MZC1-2V2PS-KP0 (PNP variant) with similar specifications
- Legacy magnetic cylinder sensors requiring C-slot mounting
Works With
- 24V DC industrial control systems
- PLC analog and digital input modules
- Pneumatic control valves and solenoid drivers
- Motion control software platforms supporting proximity sensor inputs
- EtherCAT and PROFIBUS gateway modules for networked automation
