Overview

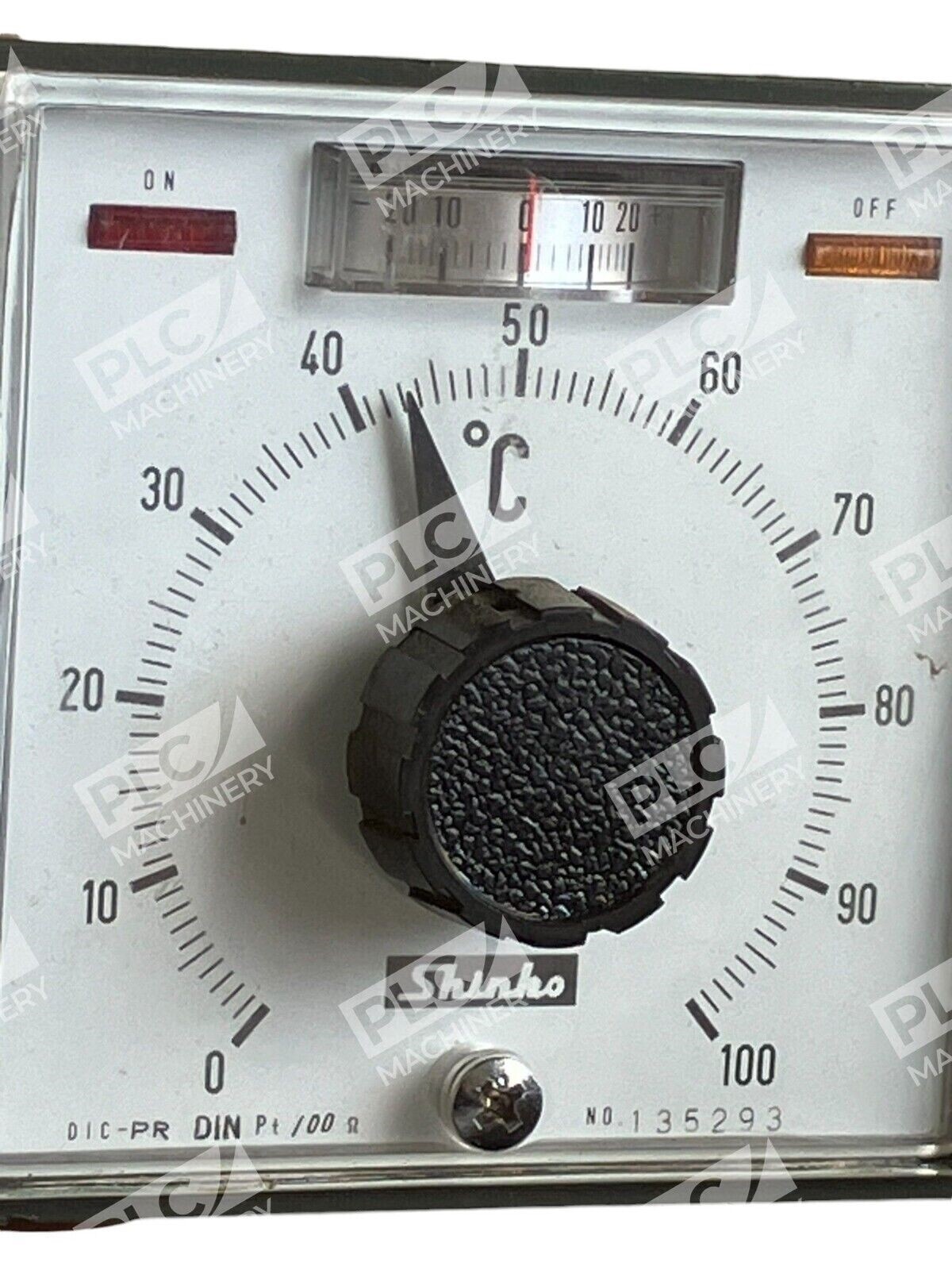

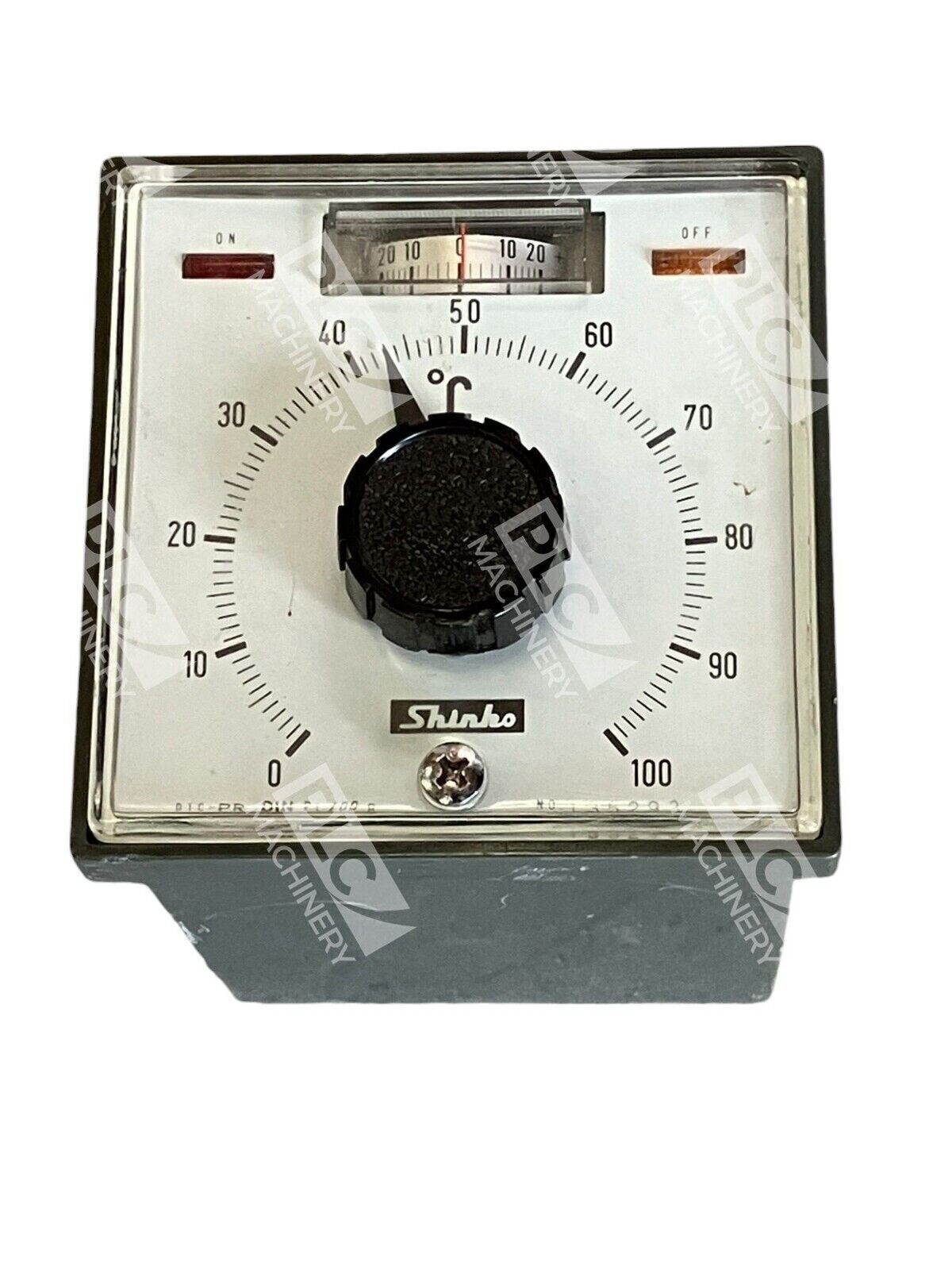

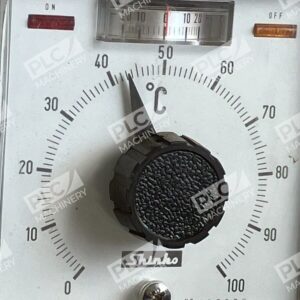

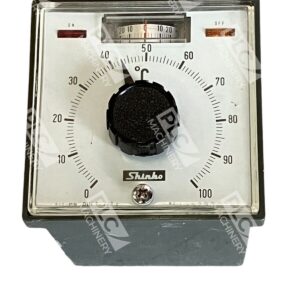

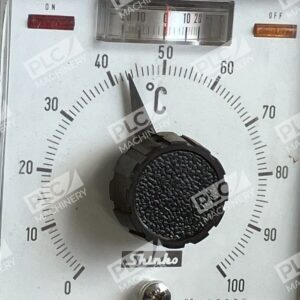

The Shinko DIC-PR 135293 is a compact DIN rail-mounted digital indicating controller designed for industrial temperature measurement and process control. Configured with a Pt/00 (platinum RTD) input sensor module, this unit accepts 0–100°C process signals and outputs control relay or analog signals for heating/cooling systems, furnaces, and temperature-critical manufacturing equipment.
Key Features
- DIN rail mounting — compact 22.5 mm width, fits standard 35 mm rail installations
- Platinum RTD (Pt/00) input — direct connection to 2- or 3-wire platinum resistance temperature detectors
- Measurement range 0–100°C — suitable for low-temperature process control applications
- Dual-function capability — can operate as indicator, controller, or transmitter via menu programming
- High-accuracy digital display — clear LED or LCD readout for real-time process visibility
- Industrial-rated construction — sealed against dust and moisture for harsh factory environments
Technical Specifications
- Model: DIC-PR (Digital Indicating Controller – Process)
- Part Number: 135293
- Input Type: Pt/00 (Platinum RTD, 2- or 3-wire)
- Measurement Range: 0–100°C
- Display: Digital (LED or LCD)
- Mounting: DIN 35 mm rail
- Form Factor: DIN 1/16 or 1/8 (compact)
- Control outputs: Relay or analog (configuration dependent)
- Operating temperature: 0–50°C (typical)
- Supply voltage: 100–240 V AC (standard) or 24 V AC/DC (order code variant)
Typical Applications
- Industrial furnace and oven temperature regulation
- Injection molding machine barrel control
- Heat-treat and annealing process automation
- Refrigeration and chiller setpoint management
- Laboratory and test equipment environmental chambers
- Food processing and beverage pasteurization systems
Compatibility & Replacements
Compatible With
- DIN 35 mm rail standard installations
- Platinum RTD sensors (Pt100, Pt50 configurations)
- Voltage sources: 100–240 V AC or 24 V AC/DC
- Relay or analog control networks
- Industrial machinery with 0–100°C temperature monitoring
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The Shinko DIC-PR 135293 may replace earlier Shinko temperature controller models with similar Pt/00 input and 0–100°C range specifications, but specific model interchangeability must be confirmed by cross-reference with Shinko technical documentation.
Works With
- Shinko industrial control networks and proprietary protocols
- Standard 4–20 mA analog loops (if analog output variant)
- Relay contact closure control circuits
- PLC and distributed control systems via analog or relay interface
- HVAC and thermal management systems
