Overview
The Shimaden SR24-1Y-9090 is a compact, microprocessor-based temperature controller engineered for industrial process control and heating applications. With a measuring range of 0–1200°C, the SR24-1Y-9090 offers accurate PID control and stable temperature regulation in demanding environments. This model is ideal for OEMs, maintenance technicians, and system integrators who require reliable, proven temperature management without unnecessary complexity.
Key Features
- Microprocessor-based PID algorithm — Delivers stable, proportional-integral-derivative temperature control across the full operating range
- 0–1200°C measuring range — Supports high-temperature industrial processes including furnaces and kilns
- Bright LED display — Clear readout and user-friendly programming interface for easy operation and monitoring
- Compact 96 × 96 mm panel format — Fits standard panel cutouts for retrofit and new installations
- Multiple input options — Compatible with thermocouple and RTD (PT100) sensors
Technical Specifications
- Model: SR24-1Y-9090
- Manufacturer: Shimaden Co., Ltd.
- Control Type: PID (Proportional-Integral-Derivative)

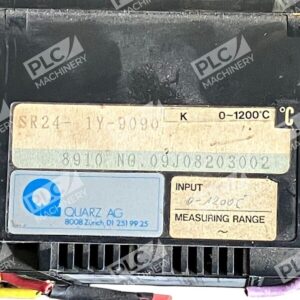

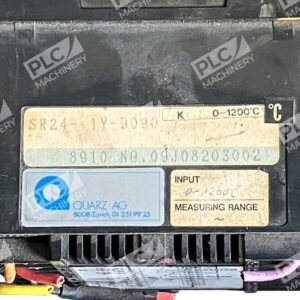

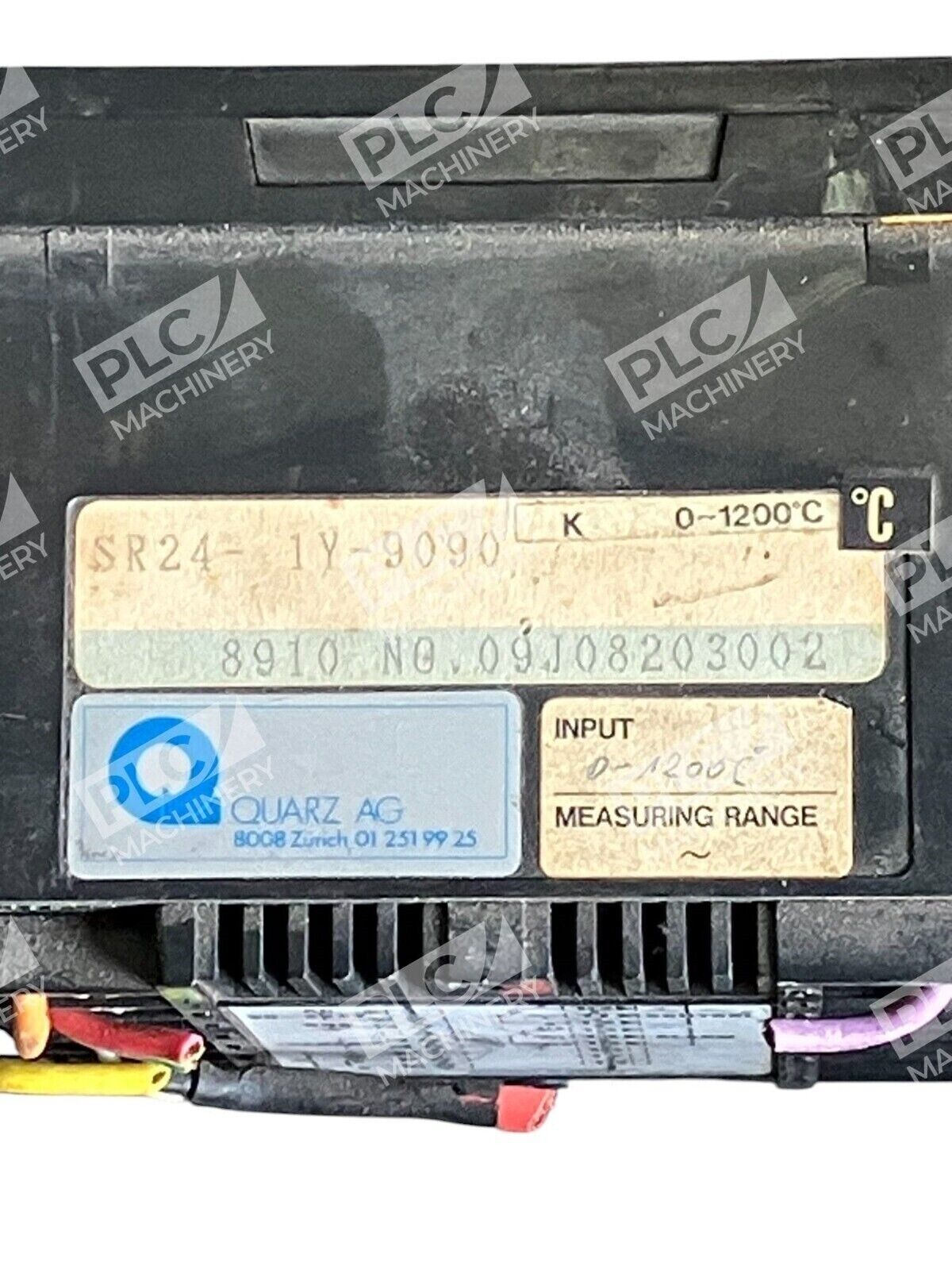

- Measuring Range: 0–1200°C
- Sensor Input: Thermocouple or RTD (selectable)
- Display: Bright LED, 96 × 96 mm panel cutout
- Analog Output: 4–20 mA (standard)
- Communication: Optional RS232C or RS485 serial interface
- Operating Temperature: 0–50°C ambient
- Power Supply: 100–240 VAC (typical for SR24 series)
Typical Applications
- Industrial furnace and kiln temperature control
- Heat treatment and annealing processes
- Injection molding and extrusion equipment
- Laboratory and R&D heating systems
- HVAC and refrigeration equipment (high-temperature monitoring)
Compatibility & Replacements
Compatible With
- Thermocouple (Type K, J, and other standard types) sensor inputs
- RTD (PT100) temperature sensors
- Standard 96 × 96 mm panel mounting systems
- Industrial furnace and kiln control networks
- Systems requiring 4–20 mA analog signal integration
Replaces / Drop-In Replacement For
- Verify compatibility with your system integrator or reference original installation documentation. The SR24-1Y-9090 is part of the Shimaden SR24 series and may replace other SR24 variants in similar high-temperature applications, but model-specific configuration is required.
Works With
- Shimaden SR24 series thermocouple and RTD sensors
- Standard 4–20 mA analog input systems (PLC analog modules, data loggers, SCADA systems)
- RS232C and RS485 serial communication protocols (where equipped)
- Manual temperature monitoring and setpoint adjustment via front panel interface
