Overview

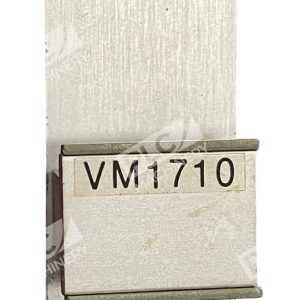

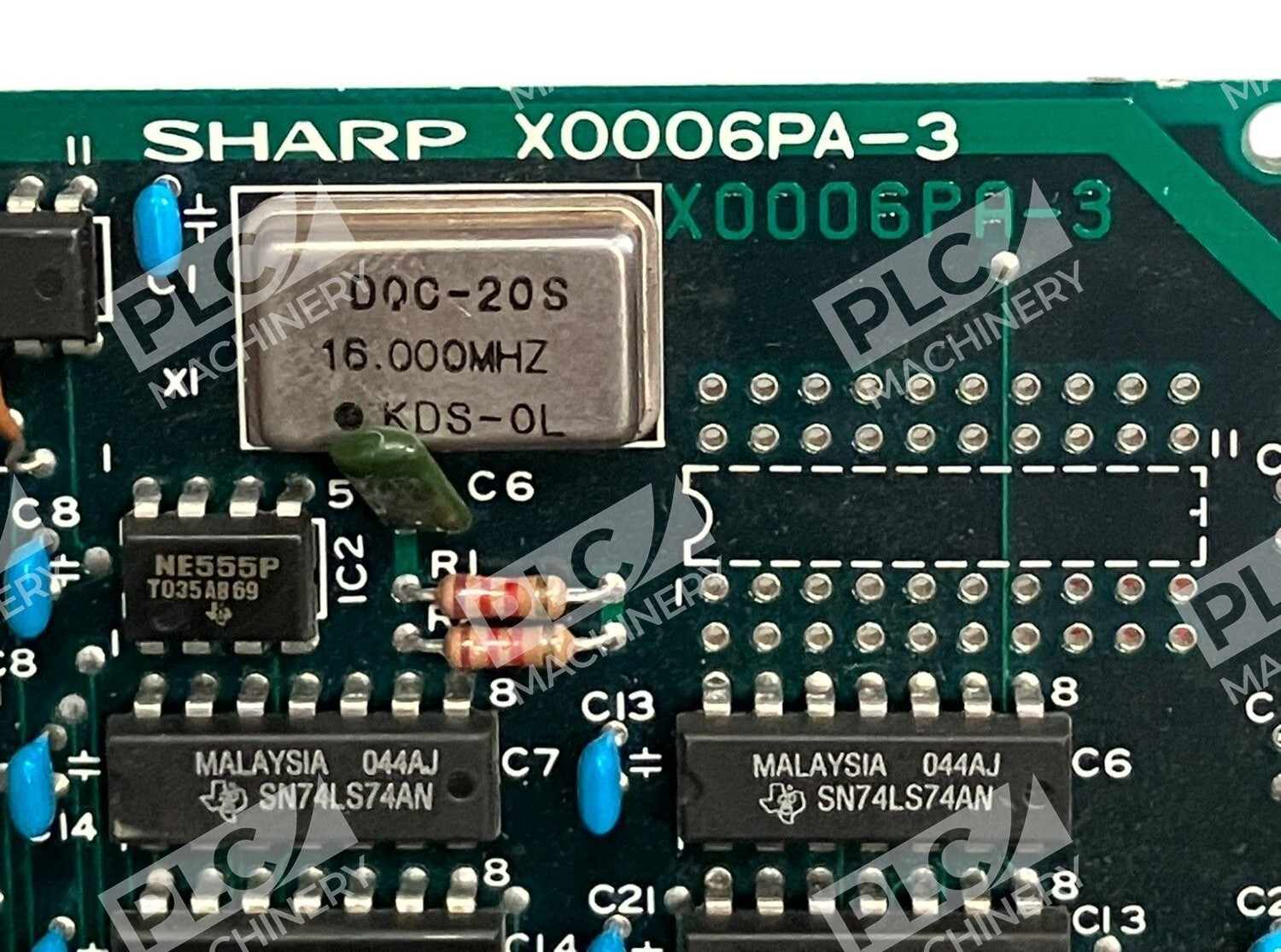

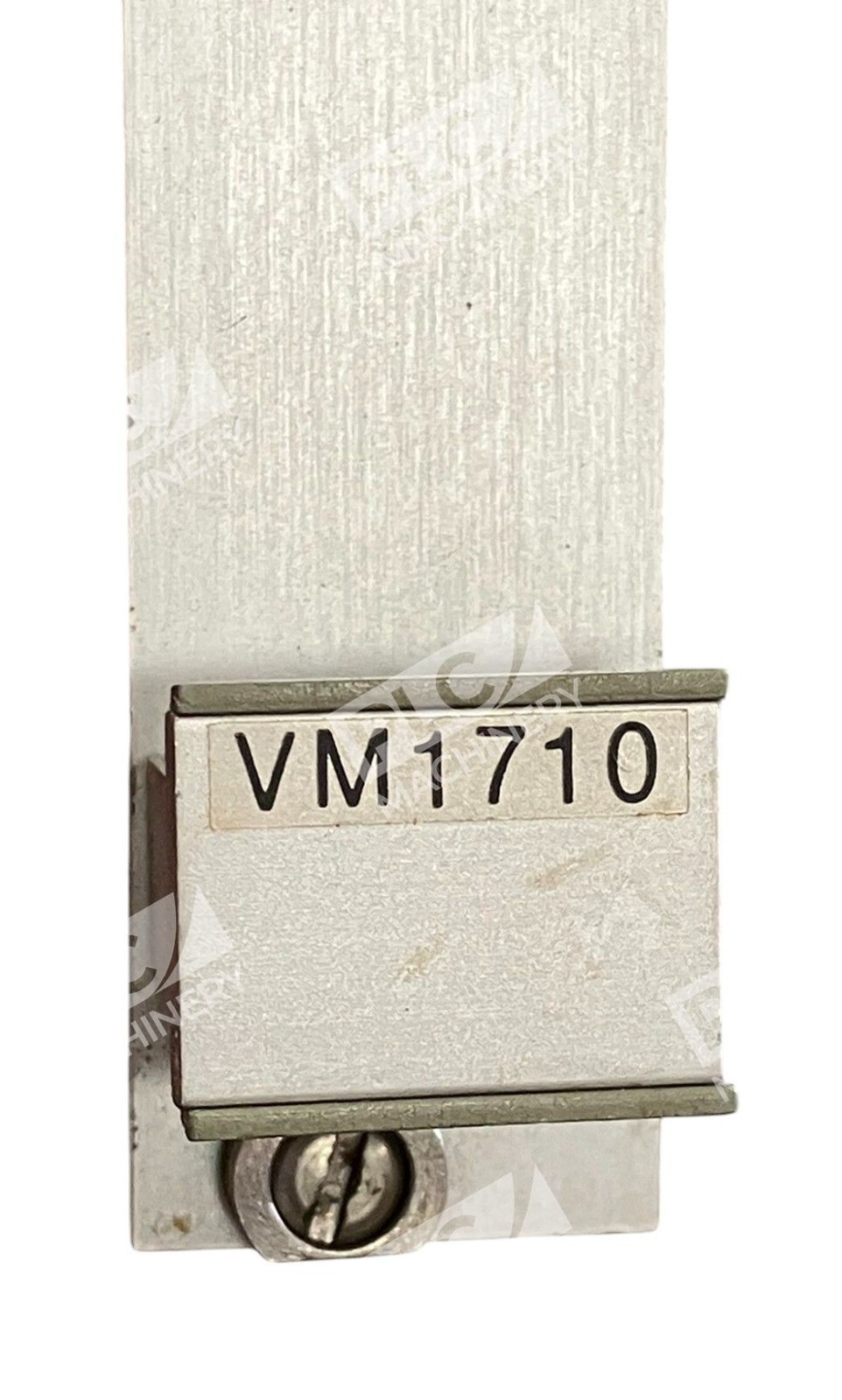

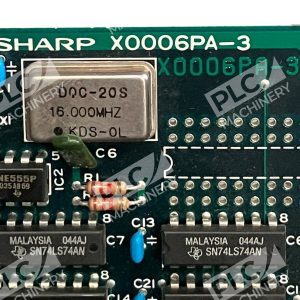

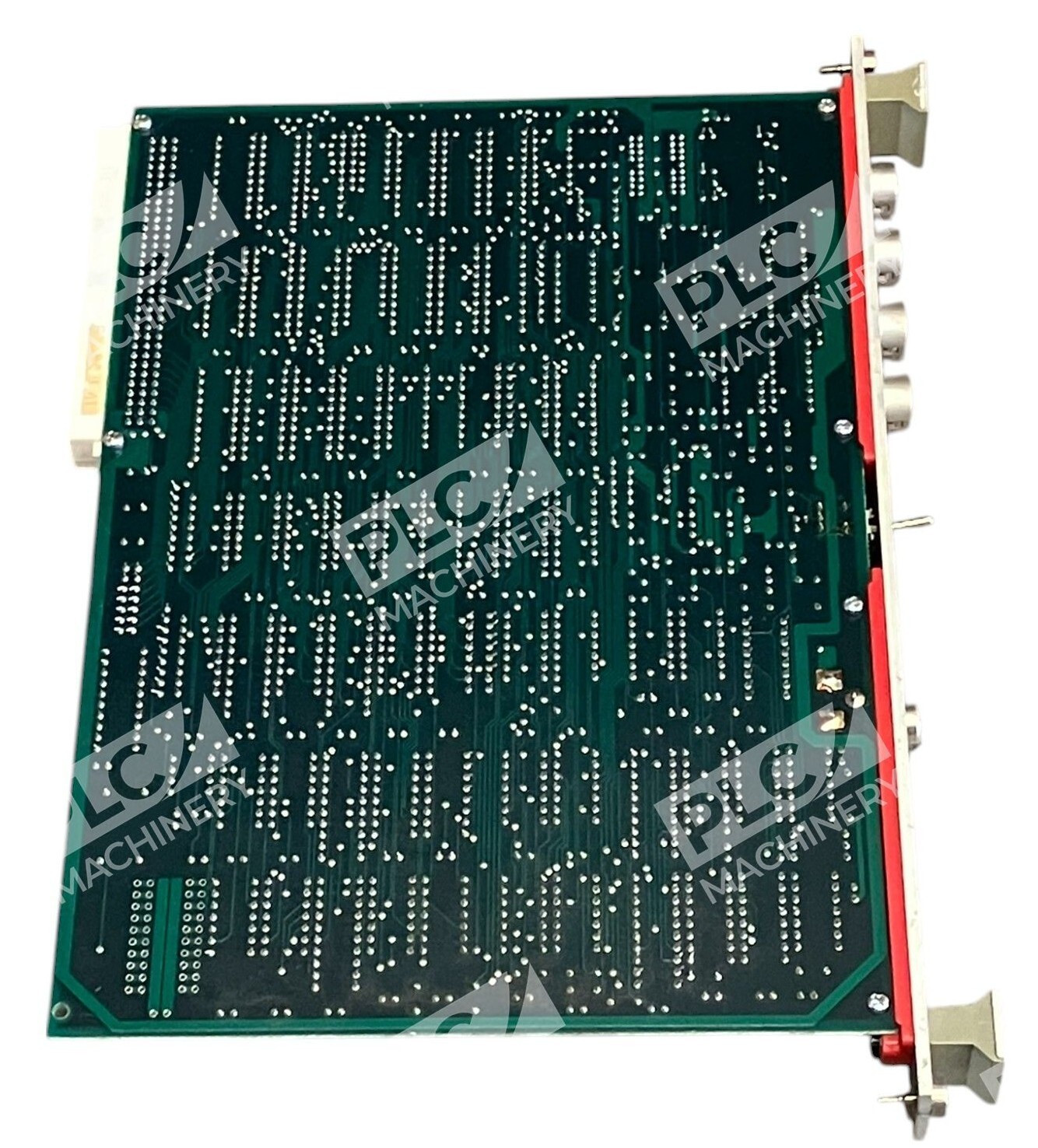

The Sharp X0006PA-3 VM1710 Vision Card is a CCD-based camera board module from Sharp’s legacy vision systems lineup. Originally manufactured for industrial vision inspection, surveillance, and embedded imaging applications, this board-level camera provides analog composite video output and compact form factor suitable for OEM integration. The Sharp X0006PA-3 represents a proven platform for applications requiring cost-effective, reliable analog image acquisition in fixed-installation scenarios.
Key Features
- Sharp CCD image sensor technology for stable analog video output
- Compact board-level design enabling flexible OEM system integration
- Low power consumption suitable for embedded and remote installations
- Analog composite video (CVBS) output for direct integration with legacy systems
- Industrial-grade reliability in static installation environments
Technical Specifications
Detailed specifications for this legacy component are based on Sharp’s CCD camera board architecture from this product series:
- Sensor Type: Sharp CCD (Charge-Coupled Device)
- Output Format: Analog CVBS (composite video)
- Form Factor: Board-level module (VME or embedded mount)
- Power Supply: 12V DC typical for Sharp CCD boards
- Applications: Machine vision, surveillance, industrial imaging inspection
- Condition: Used, fully functional and tested
- Manufacturer: Sharp Electronics (Japan)
Typical Applications
- Industrial machine vision and quality inspection systems
- Legacy surveillance and CCTV system expansion or replacement
- Embedded vision modules for manufacturing automation
- OEM camera board integration in closed-loop control systems
- System upgrades and retrofit projects requiring analog video capture
Compatibility & Replacements
Compatible With
- VME (Versa Module Europa) backplane systems
- Legacy analog video composite (CVBS) systems and monitors
- Industrial PC and embedded Linux vision platforms supporting frame grab cards
- Closed-loop manufacturing and inspection control systems
- 12V DC power supplies with appropriate current rating
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator or maintenance team before ordering. This module may serve as a direct replacement for compatible Sharp vision card models in existing installations; consult your original equipment documentation for confirmation of mechanical and electrical pin compatibility.
Works With
- Analog frame grabber cards (Matrox, Data Translation, National Instruments legacy models)
- NTSC and PAL standard video formats
- Composite video monitoring and recording equipment
- Industrial vision software supporting analog camera input (VisionPro, HALCON, OpenCV)
- Legacy machine vision inspection platforms and quality control systems
