Overview

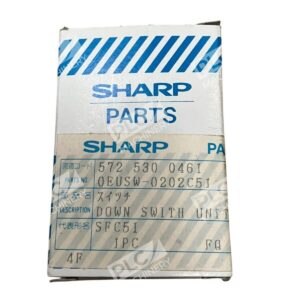

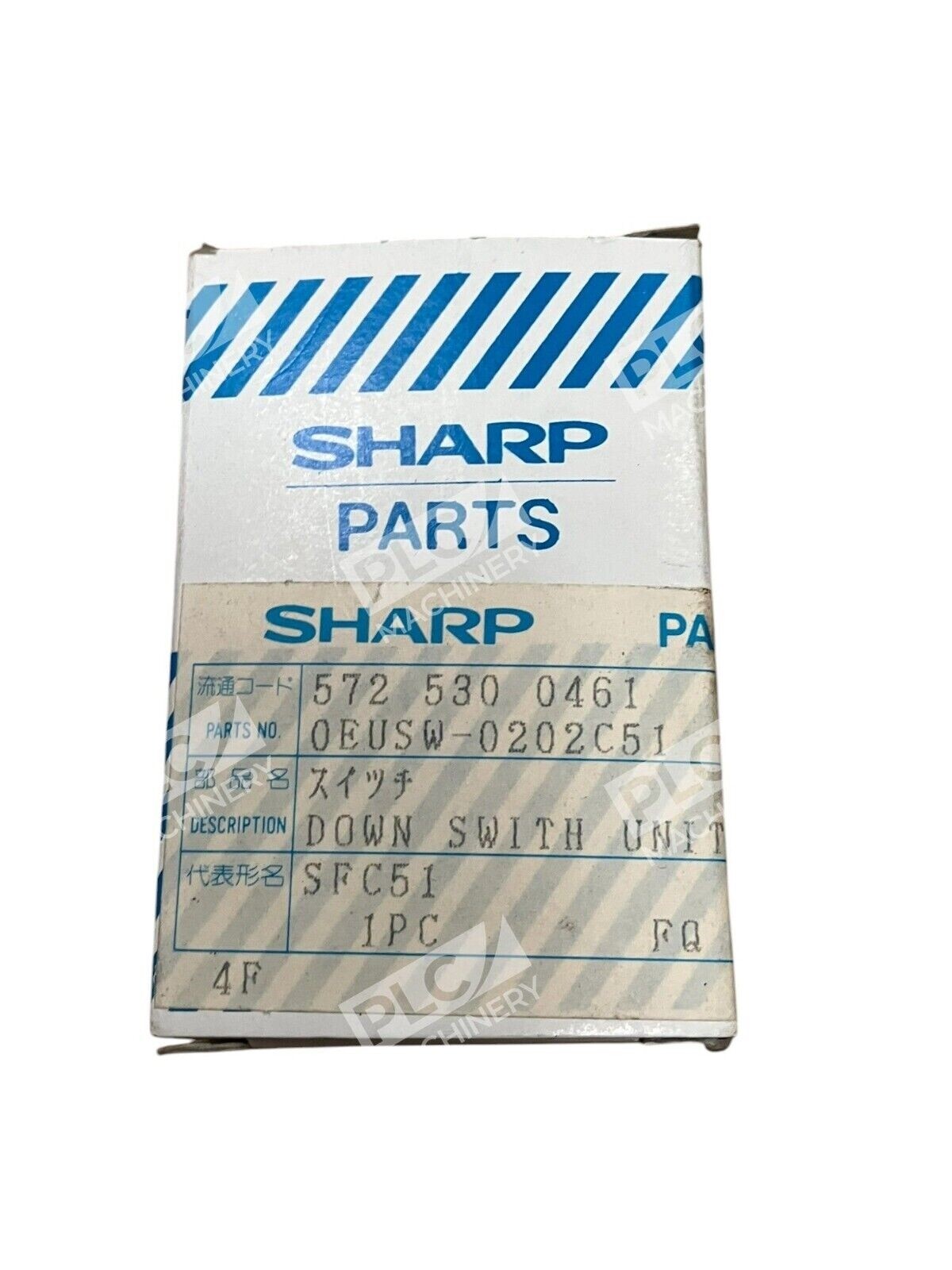

The Sharp OEUSW-0202C51 is a precision down switch unit engineered for Sharp copier and office equipment applications. This component operates on a DC24V 4W power supply and functions as part of the clutch assembly, controlling mechanical switching operations in document feeding and transport systems. Manufactured to OEM specifications in Japan, it delivers reliable performance as a direct replacement part for compatible Sharp equipment.
Key Features
- DC24V 4W operating power specification
- Designed for Sharp copier clutch assemblies
- Original equipment manufacturer (OEM) production standard
- Japan-manufactured component
- Down switch control function for mechanical activation
- Compatible with PCLC-0155FCZZ spring-clutch systems
Technical Specifications
- Part Number: OEUSW-0202C51
- Alternative Identifier: 572 530 0461
- Product Type: Down Switch Unit
- Operating Voltage: DC24V
- Power Rating: 4W
- Manufacturer: Sharp Corporation
- Manufacturing Origin: Japan
- Related Assembly: PCLC-0155FCZZ (Spring-Clutch)
- Function Code: MGSCO-33E-CCW-1461
Typical Applications
The Sharp OEUSW-0202C51 is used in:
- Sharp multifunction copiers and printers
- Document feeding and transport mechanisms
- Clutch engagement and disengagement control systems
- Office equipment with DC24V control circuits
- Paper path switching and registration systems
Compatibility & Replacements
Compatible With
- Sharp copier systems with DC24V power supplies
- PCLC-0155FCZZ spring-clutch assemblies
- Sharp office equipment using MGSCO-33E-CCW-1461 control codes
- Copier document transport modules
Replaces / Drop-In Replacement For
- Original Sharp OEUSW-0202C51 down switch units
- Equivalent clutch switching components in compatible Sharp equipment
Works With
- Sharp DC24V control systems
- Copier clutch and solenoid circuits
- Office equipment mechanical control modules
- Document feed and transport assemblies
