Overview

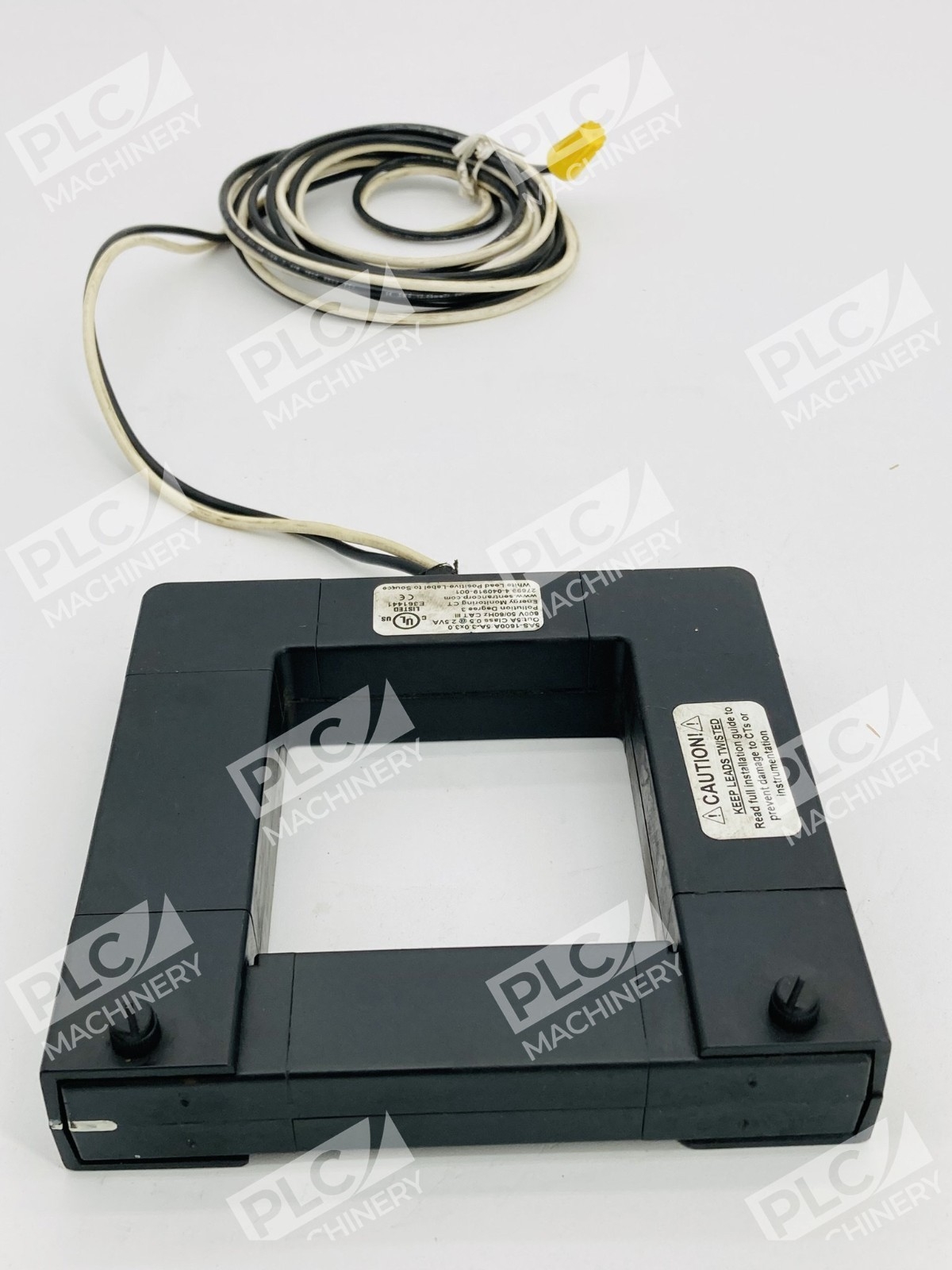

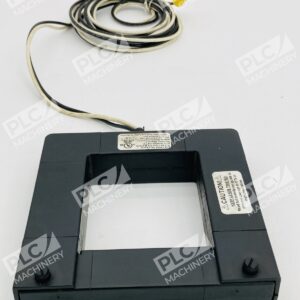

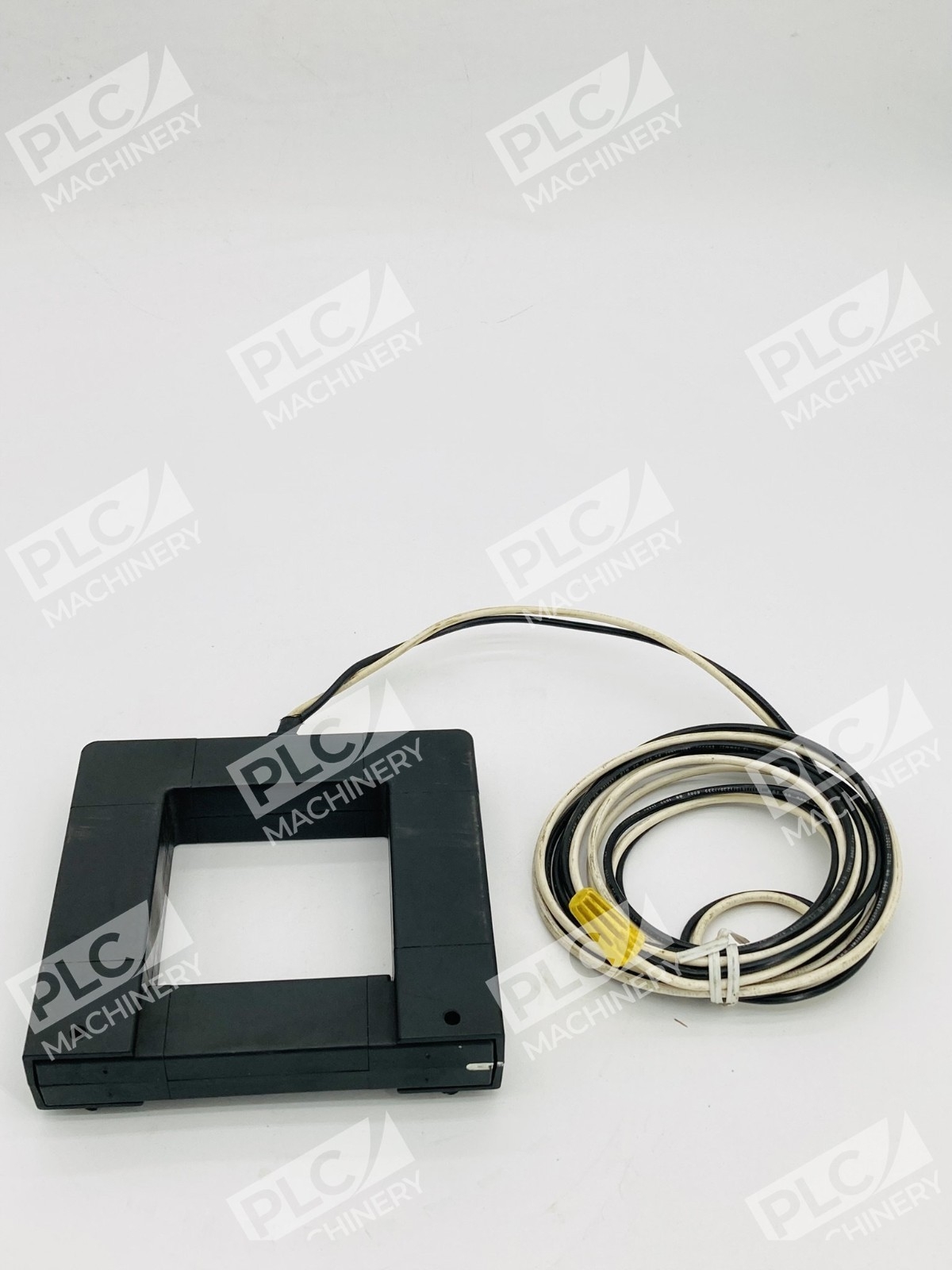

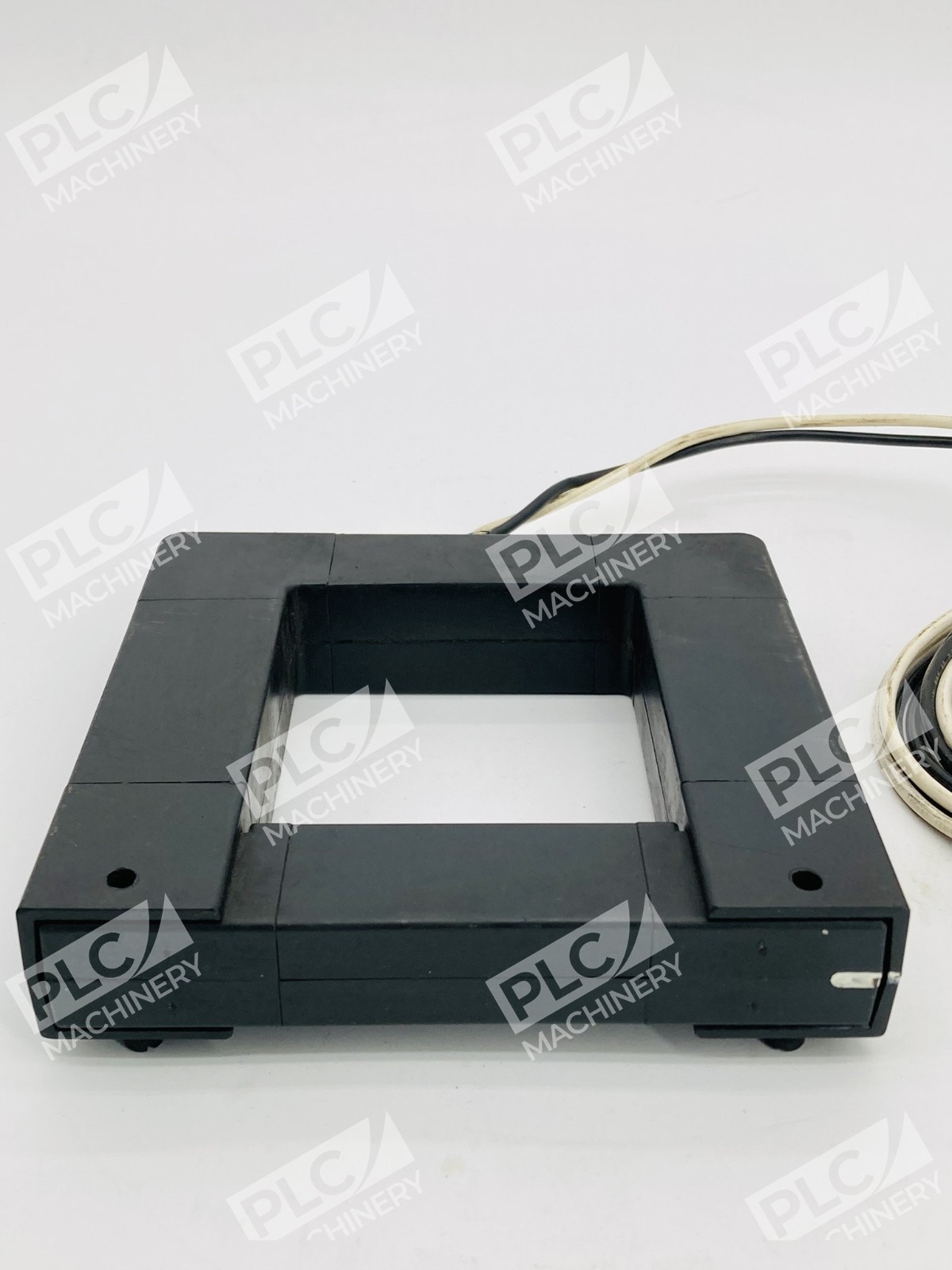

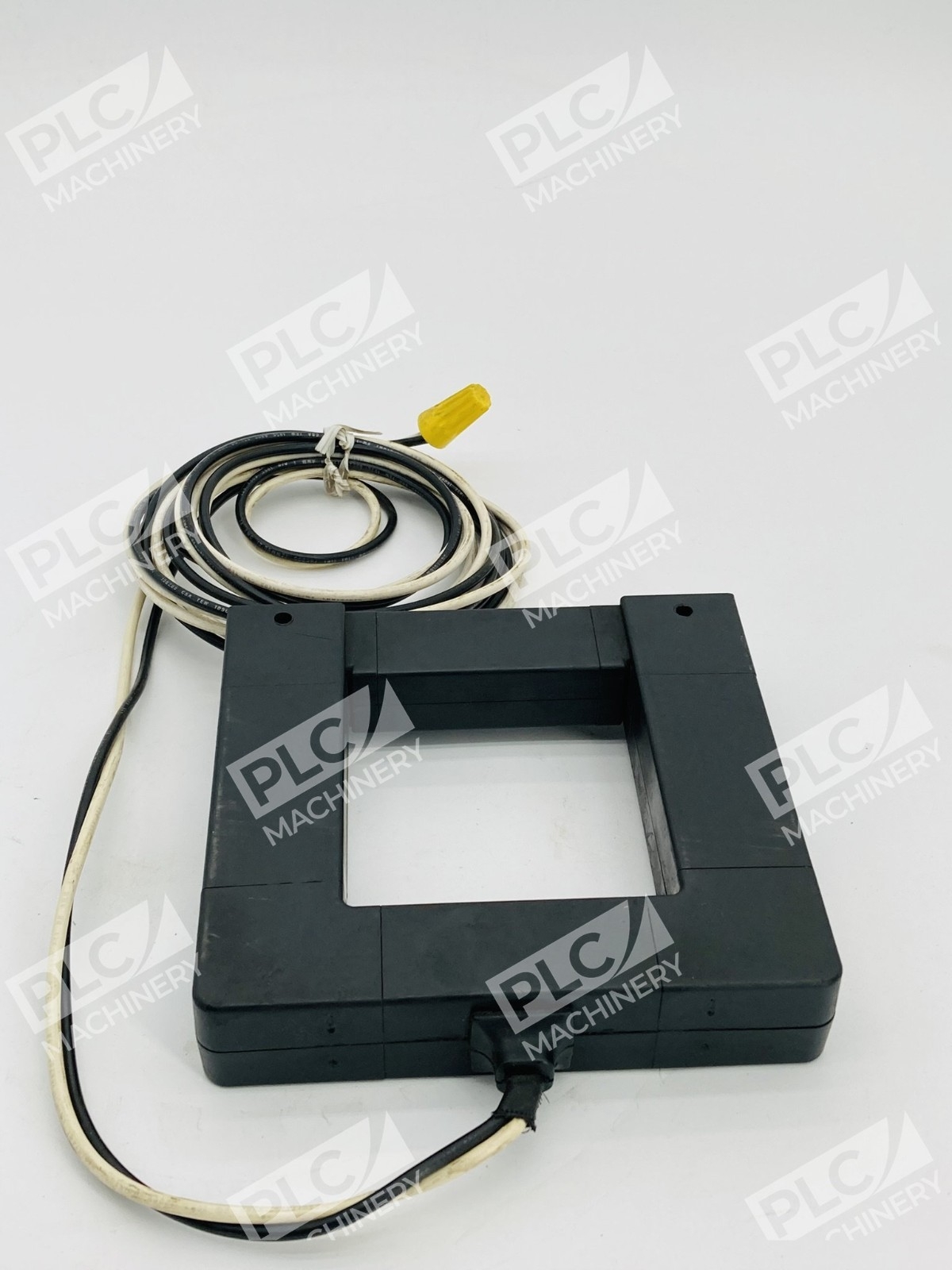

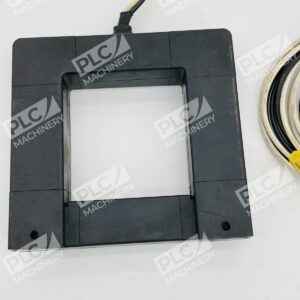

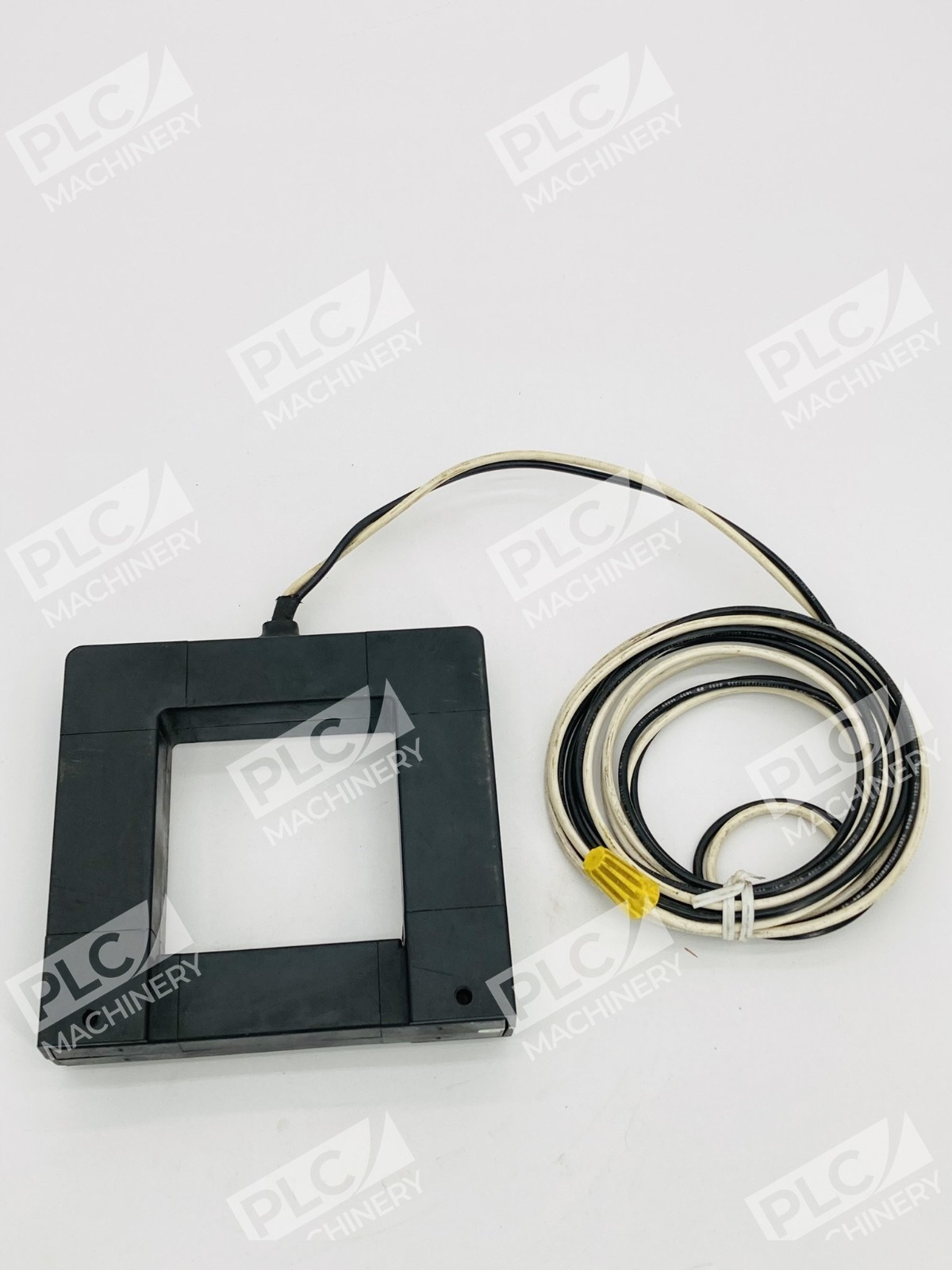

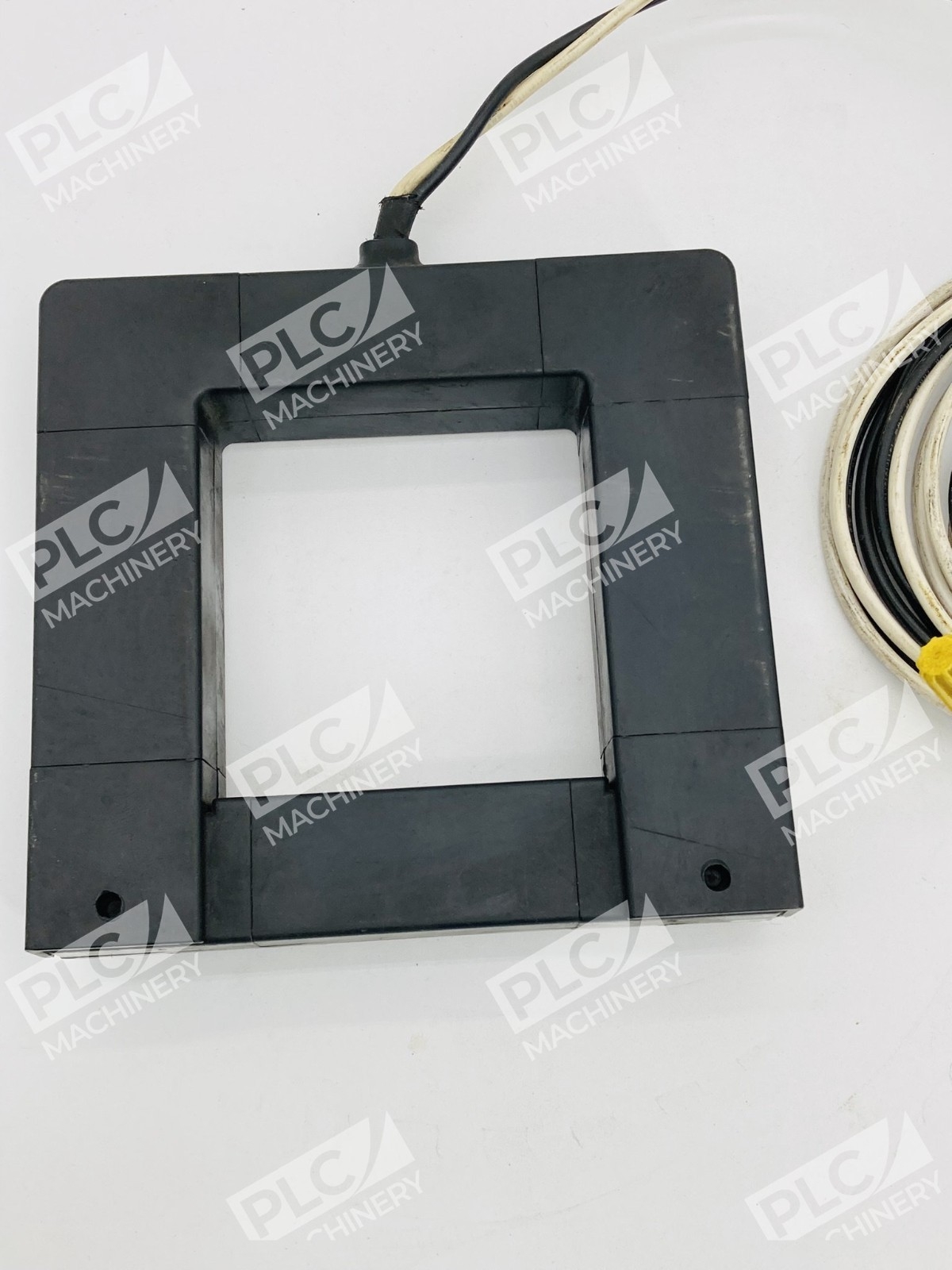

The Sentran 5AS-1600A split-core current transformer is a precision instrument transformer designed for accurate current measurement in high-amperage industrial circuits. This split-core design allows installation around existing conductors without breaking circuit continuity, making it ideal for retrofit applications and maintenance without downtime. The transformer converts 1600A primary current to a standard 5A secondary output, compatible with protective relays, meters, and data acquisition systems.
Key Features
- Split-core construction for safe installation on live circuits
- 1600A input with 5A secondary output at rated current
- Accuracy class 0.5% and 1.0% options for measurement precision
- Multiple window sizes (3″, 4″, 4.5″, 6″) to fit various conductor configurations
- UL Recognized design (E318465) and UL 2808 listed (E361441)
- Meets C57.13-2008 and IEC 61010-1 standards
Technical Specifications
- Primary Input: 1600A
- Secondary Output: 5A at rated current
- Accuracy Class: 0.5%, 1.0%
- Burden: 2.5VA, 5VA, 24VA (depending on configuration)
- Core Material: Grain-oriented magnetic steel
- Standard Window Sizes: 3″ (76 mm), 4″ (102 mm), 4.5″ (114.3 mm), 6″ (152 mm)
- Output Type: 5VAC

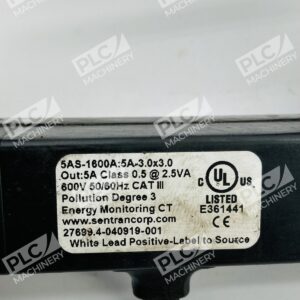

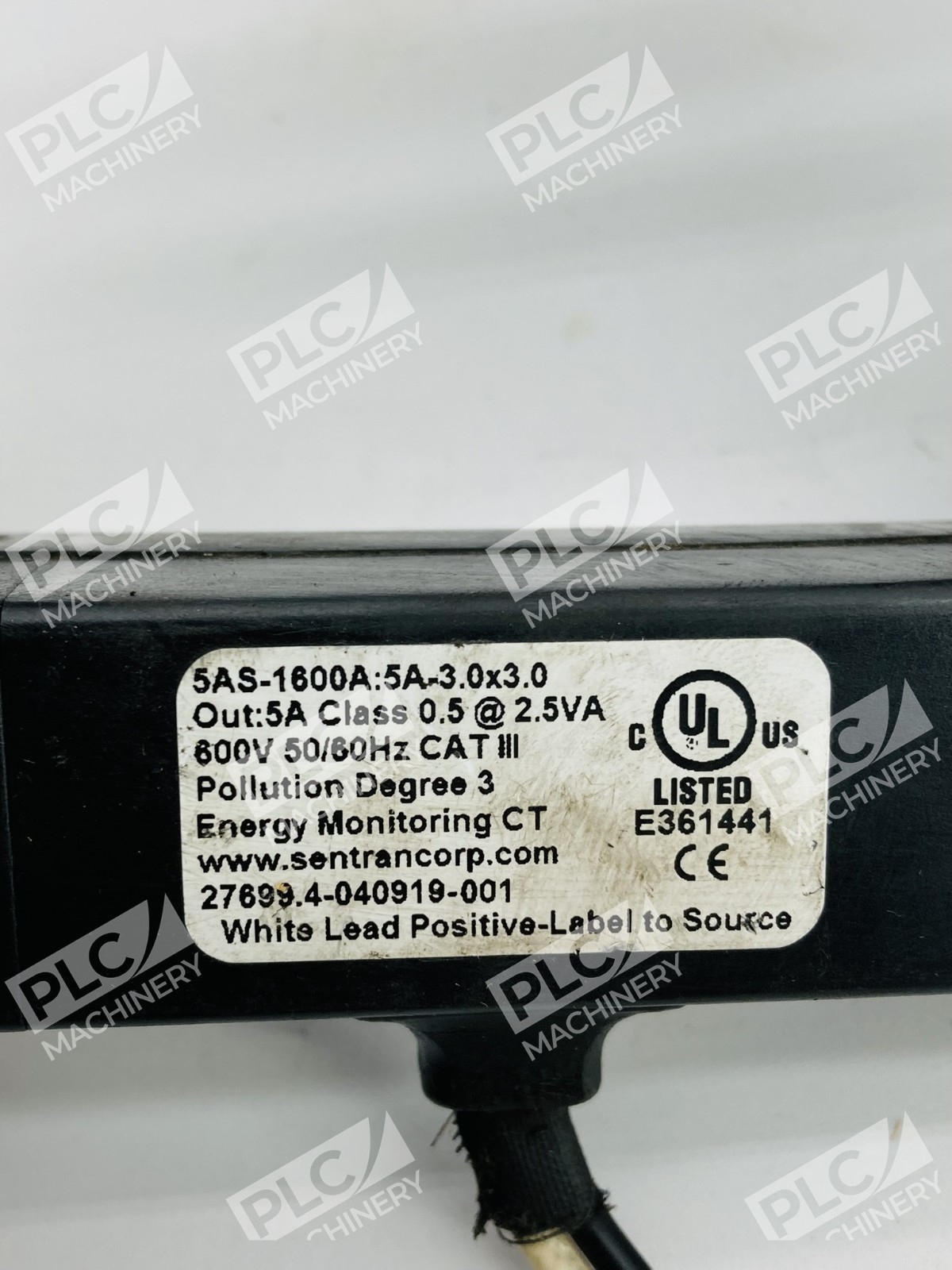

- UL Recognition: E318465
- UL 2808 Listing: E361441
- Design Type: Split-core (clamp-on)
Typical Applications
- Power monitoring in industrial plants and facilities
- Protective relaying in medium-voltage to high-voltage circuits
- Energy metering and demand analysis
- Retrofit installation on existing power systems without circuit interruption
- Motor control and thermal protection circuits
- Load profiling and harmonic analysis
Compatibility & Replacements
Compatible With
- Protective relays designed for 5A CT secondary input
- Power quality meters and energy analyzers
- Industrial control systems and PLCs with analog current inputs
- Metering devices requiring 5A nominal secondary current
- Data acquisition systems and monitoring equipment
Replaces / Drop-In Replacement For
The 5AS-1600A provides direct replacement capability for other 1600A:5A split-core current transformers in standard window configurations. Verify window opening dimensions (3″, 4″, 4.5″, or 6″) and burden rating (2.5VA, 5VA, or 24VA) with your existing installation before ordering to ensure compatibility.
Works With
- Analog protective relays (electromechanical and solid-state)
- Digital power management systems
- IEC 61010-1 compliant measurement equipment
- AC metering infrastructure (standard 5A secondary)
- Legacy and modern power monitoring software
