Overview

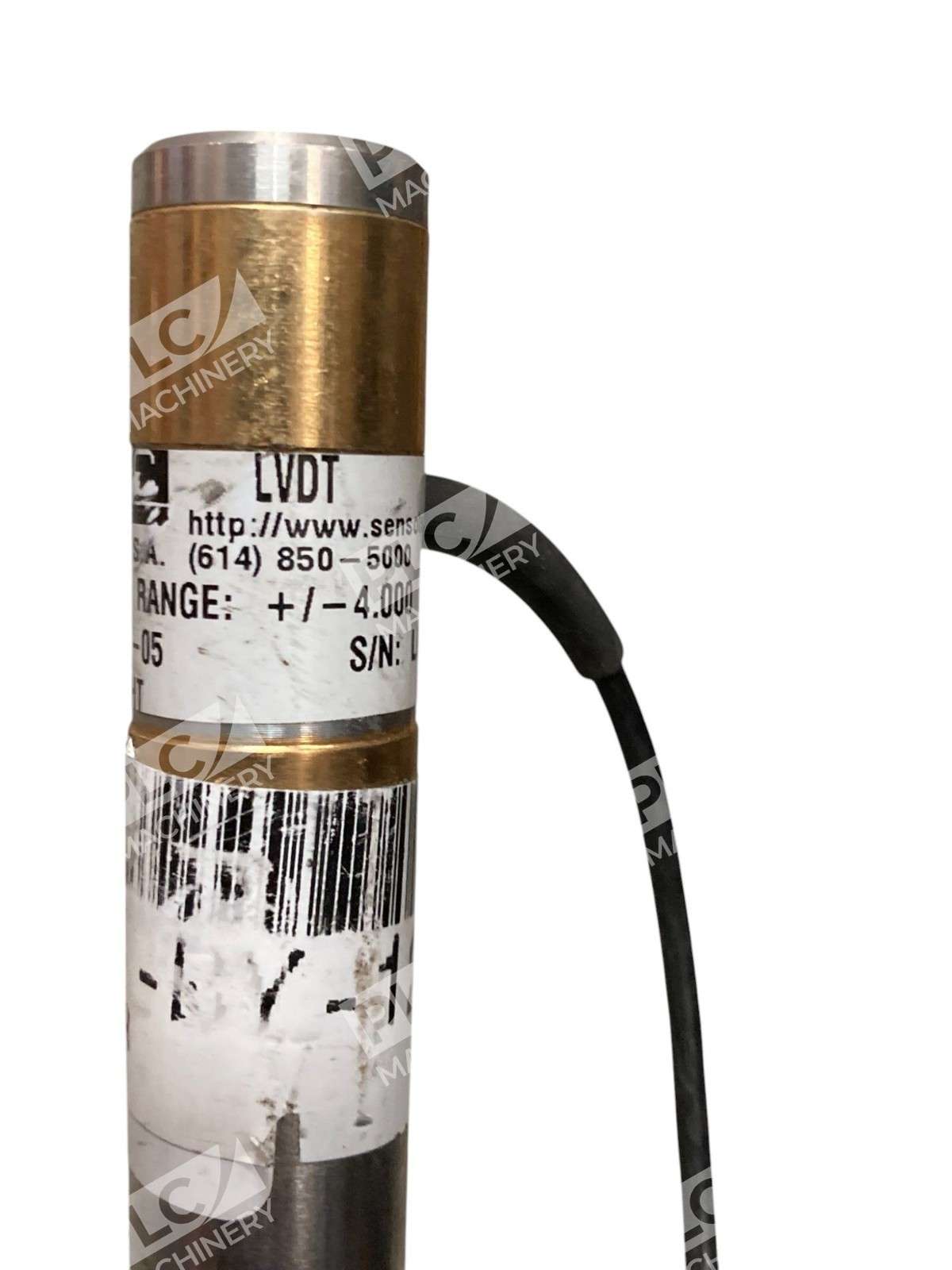

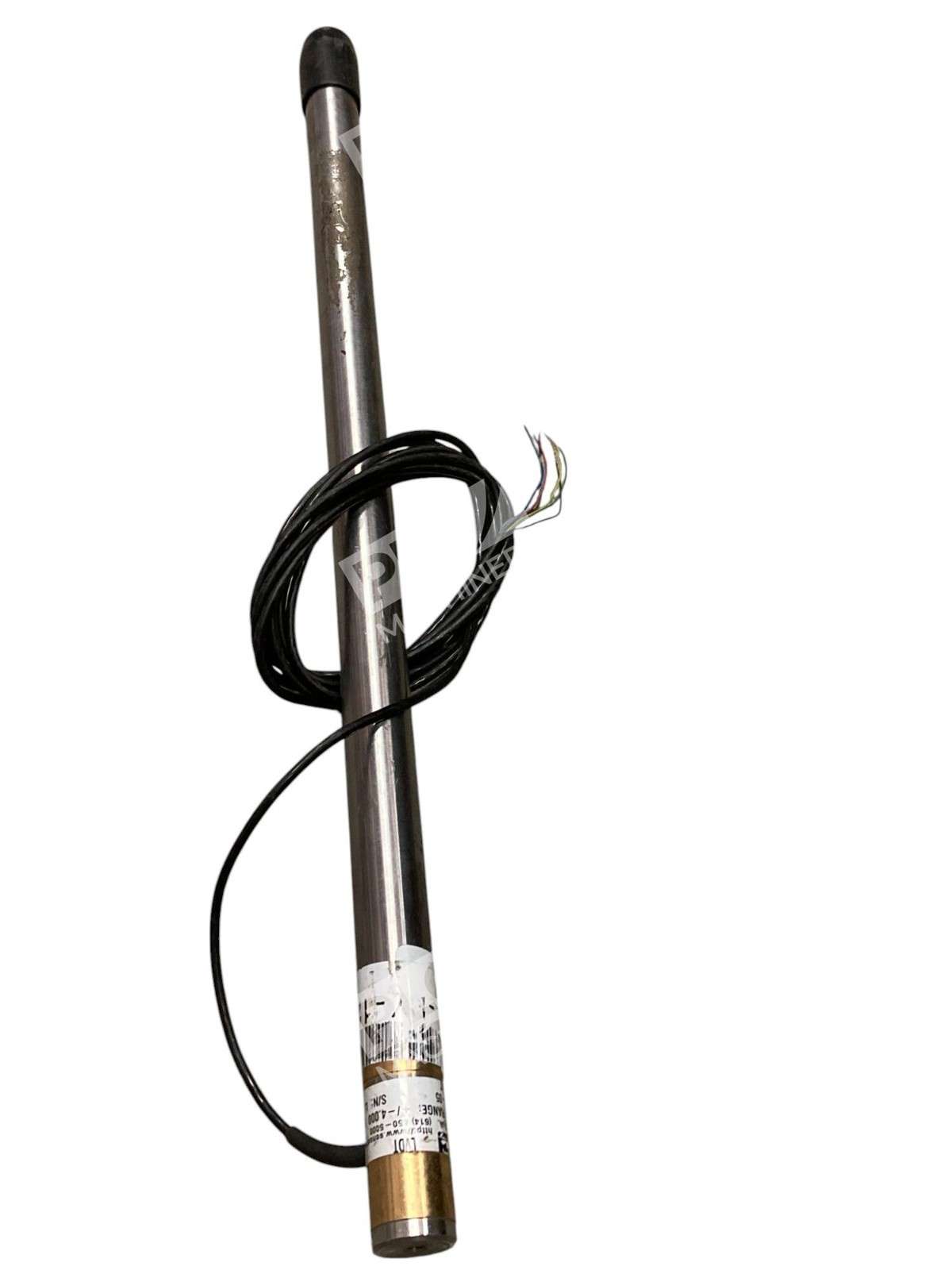

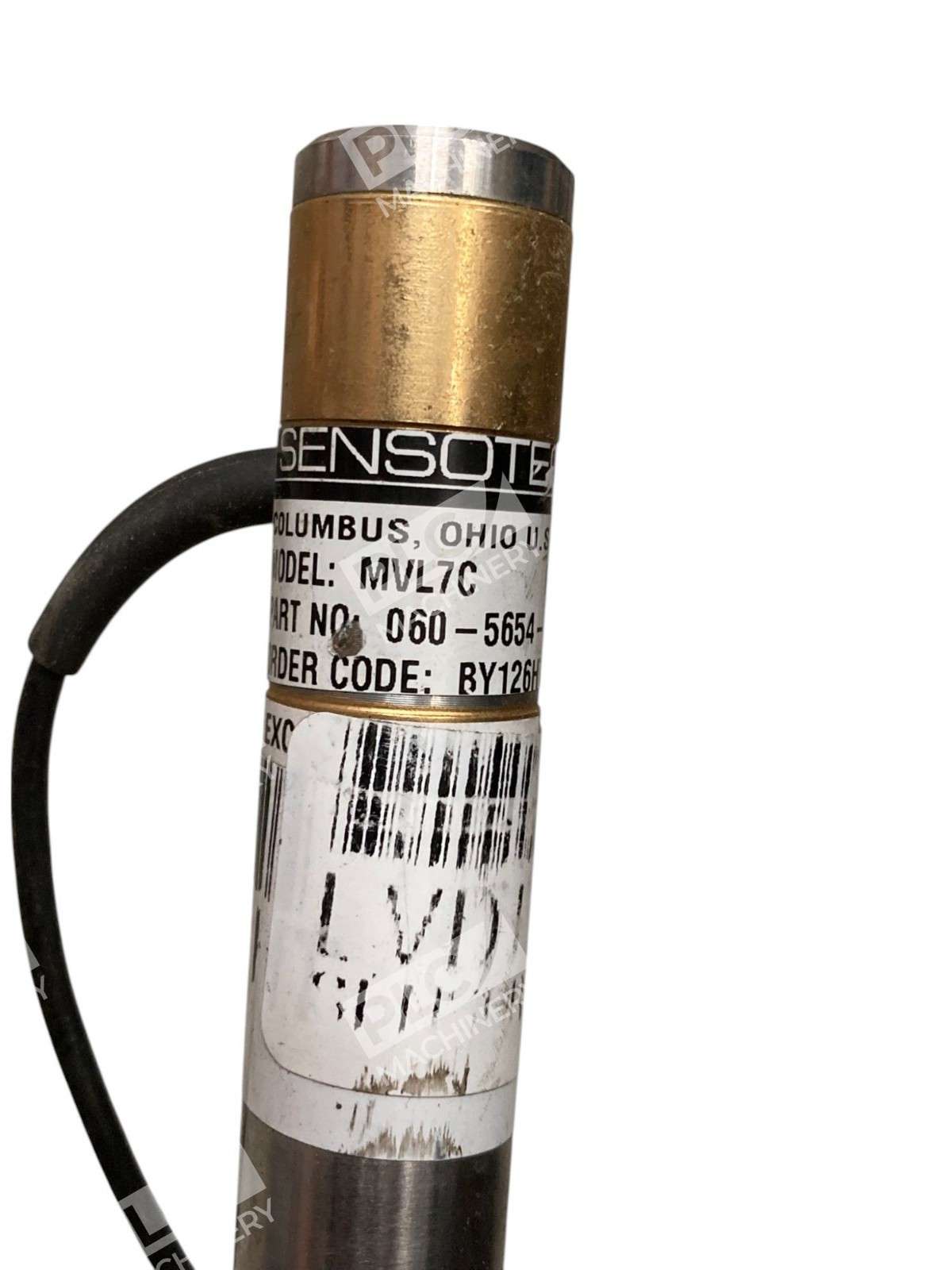

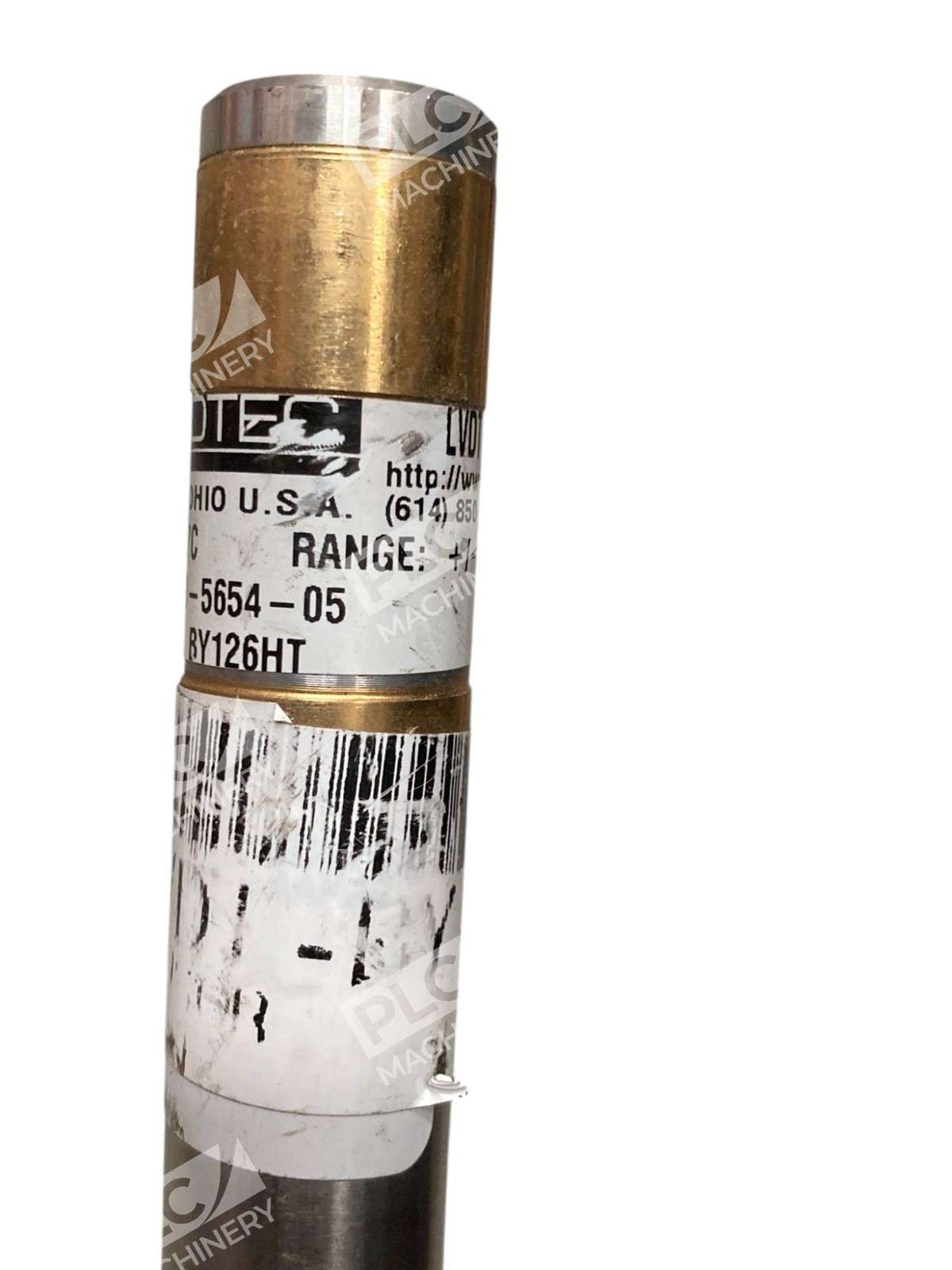

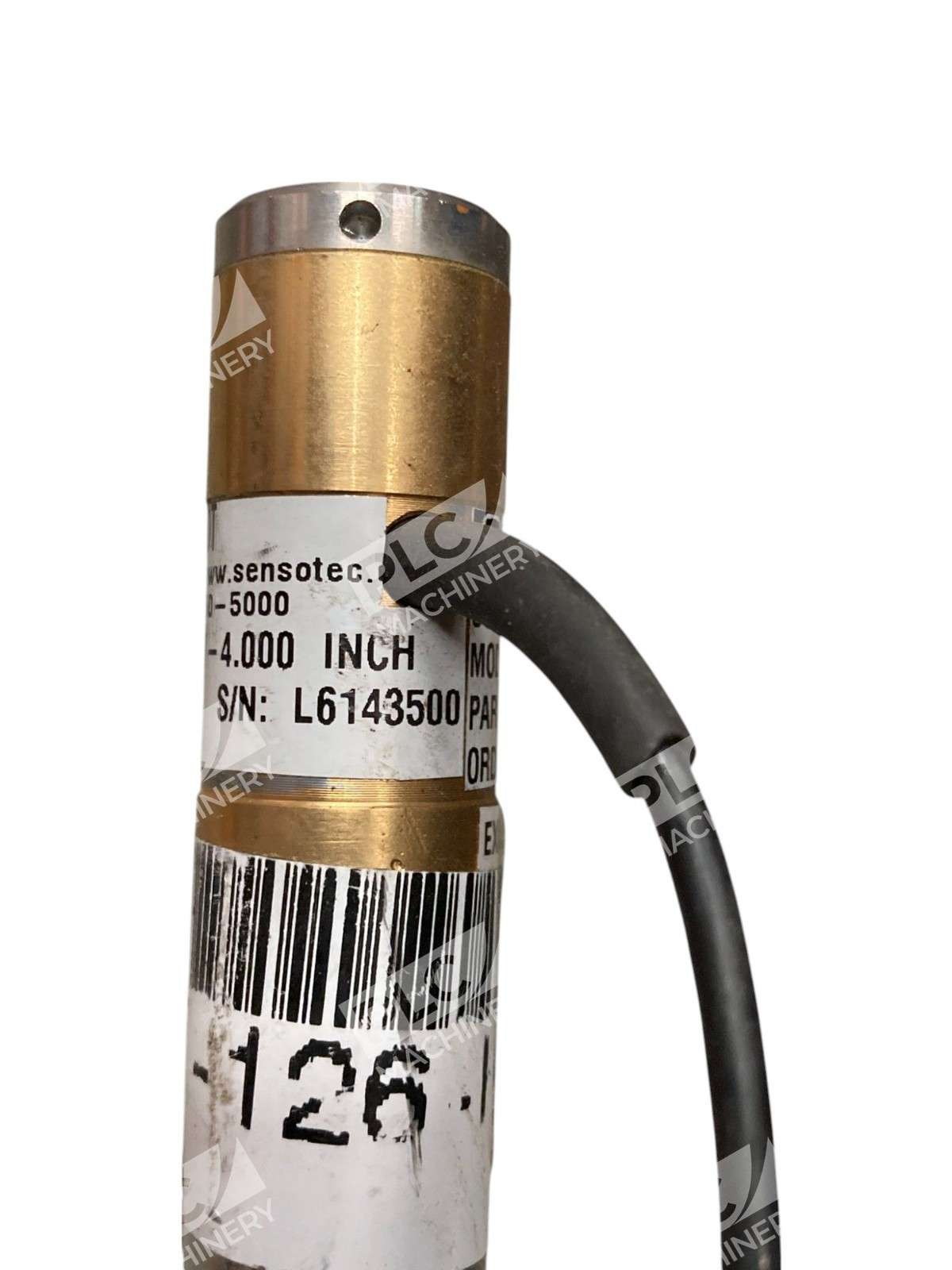

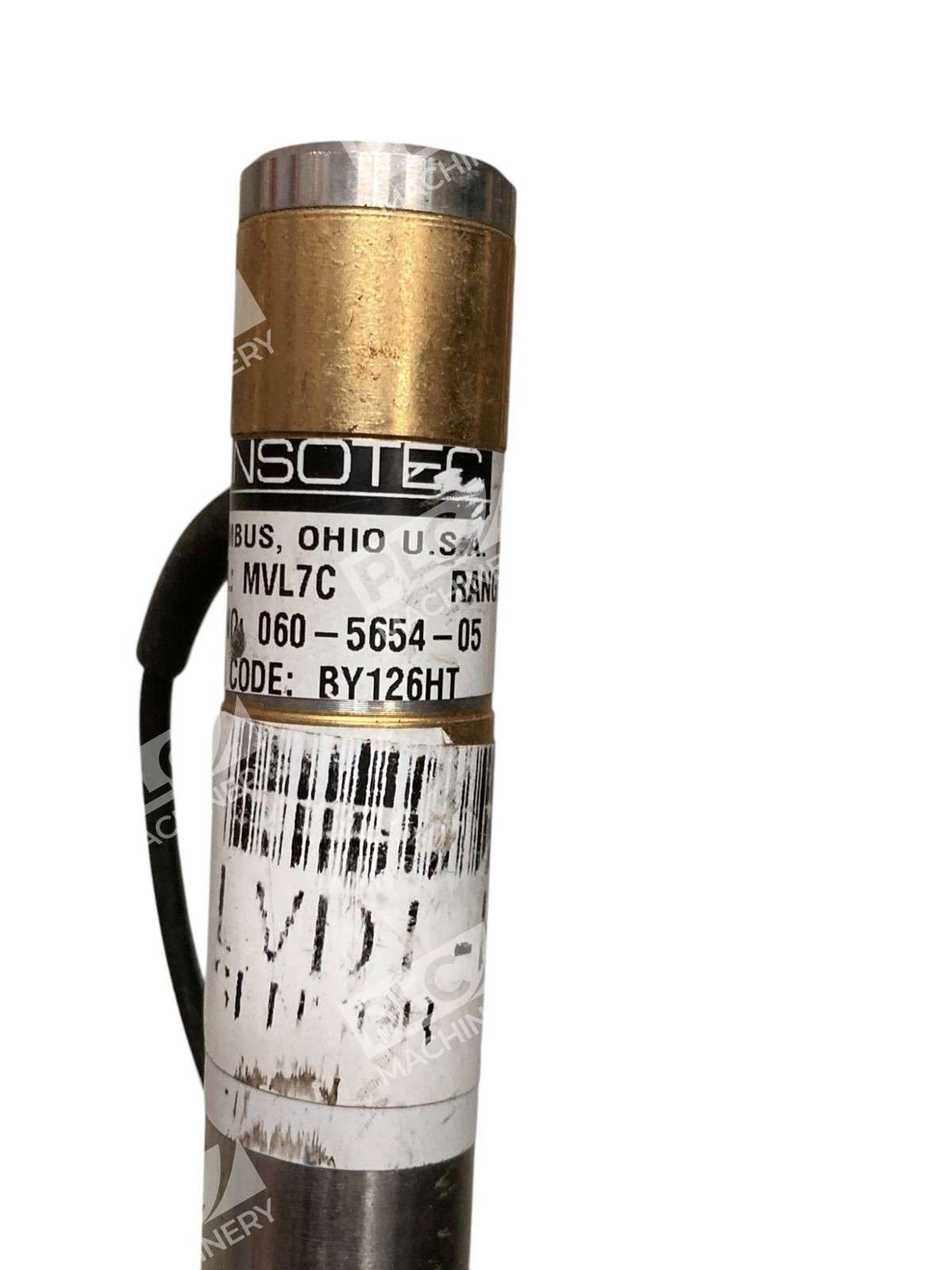

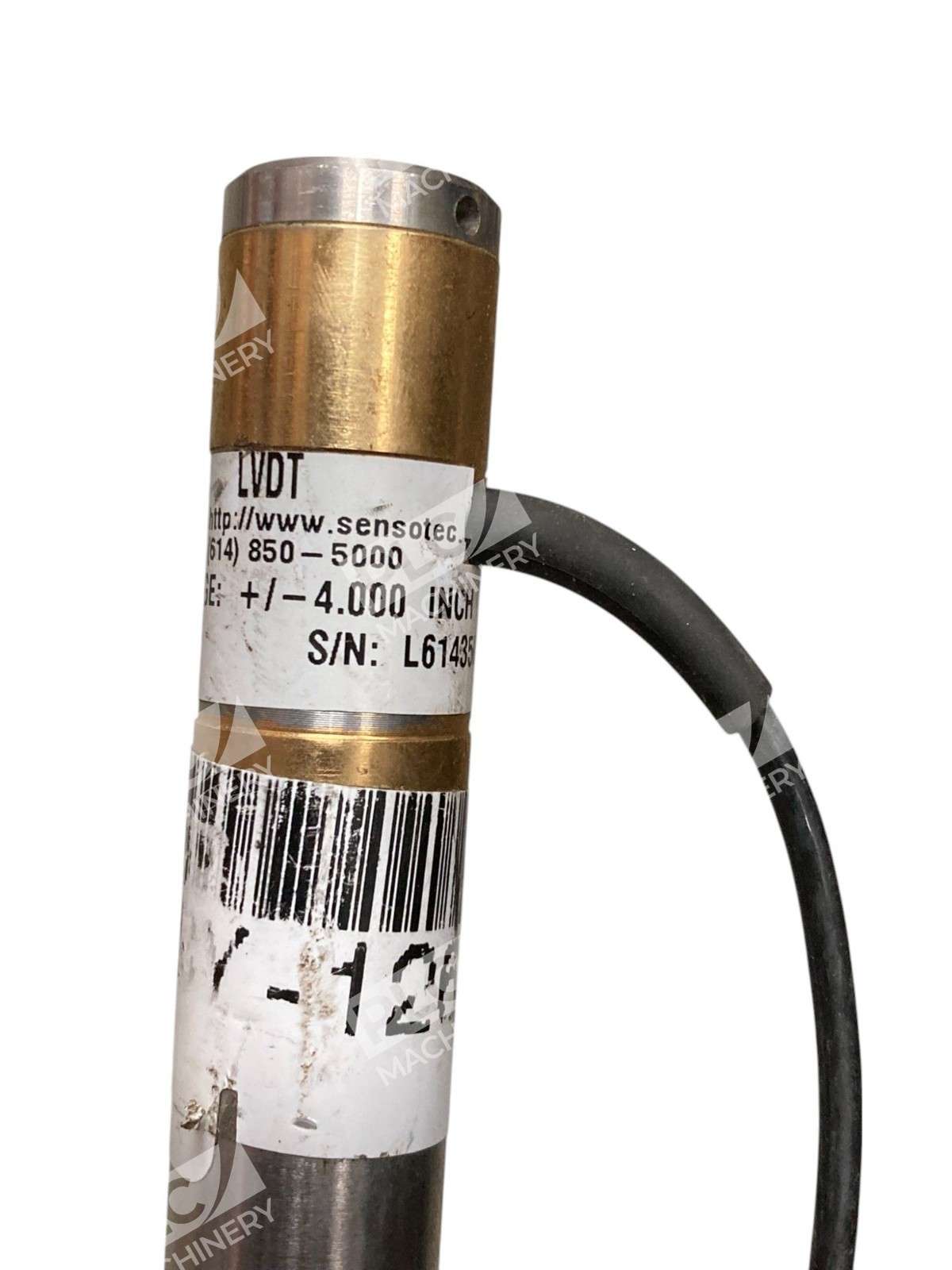

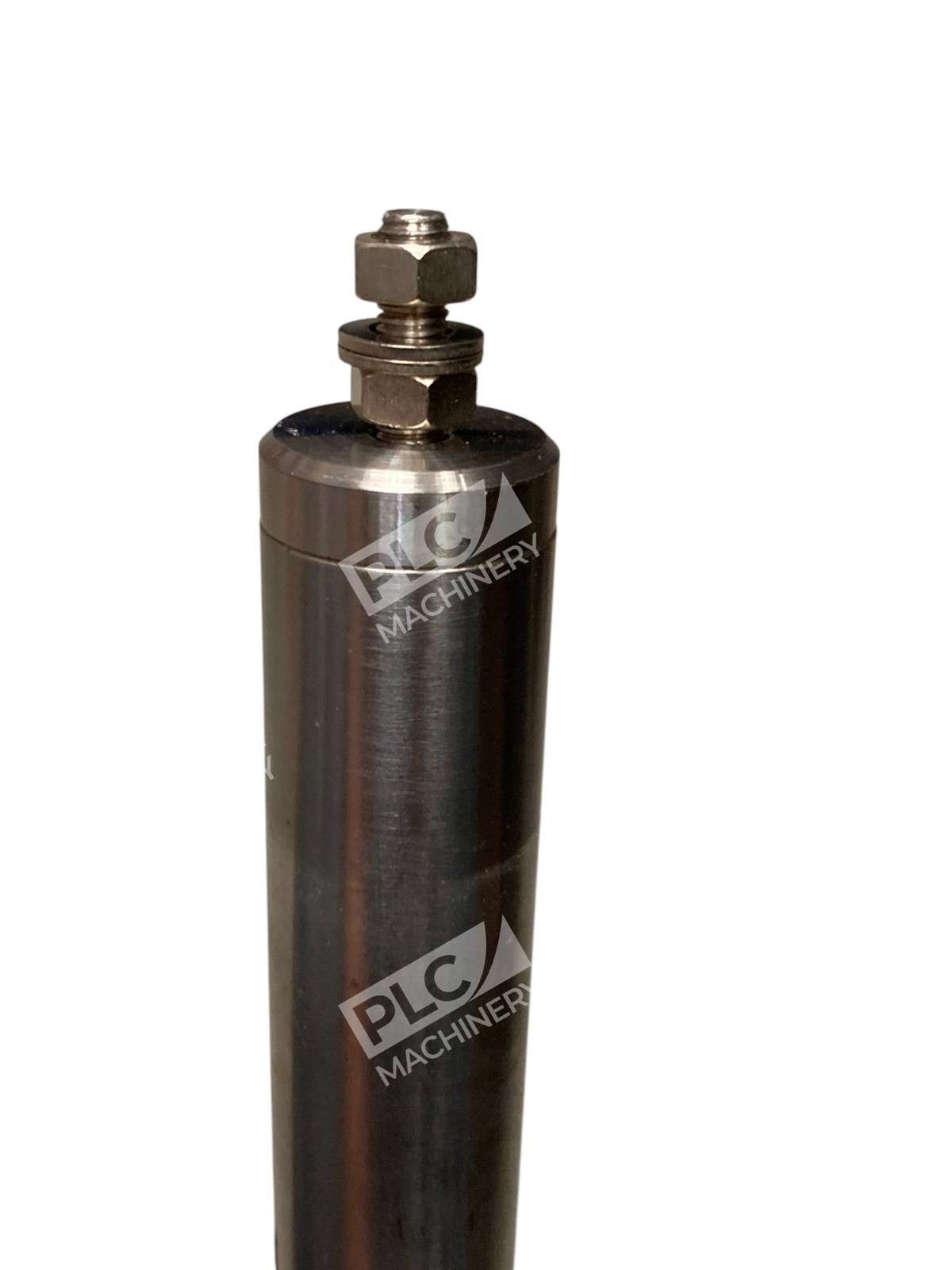

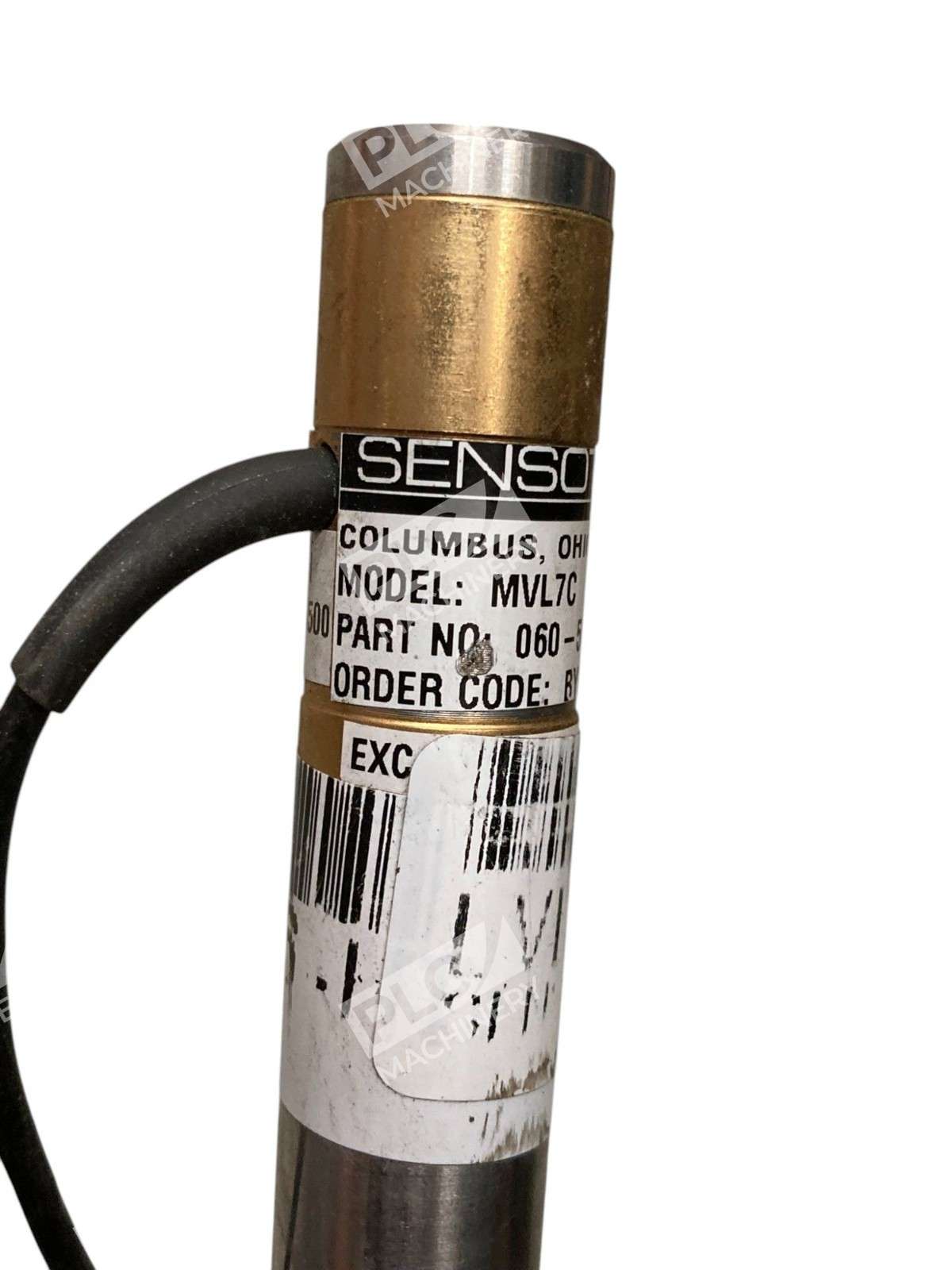

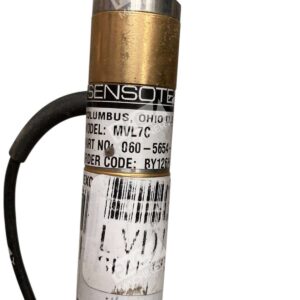

The Sensotec MVL7C 060-5654-05 is an AC-AC long stroke LVDT designed for accurate position and displacement measurement in industrial control and automation systems. Manufactured by Sensotec (now part of Honeywell), this sensor provides non-contact, high-reliability displacement sensing suitable for process control, machinery monitoring, and test instrumentation applications.
Key Features
- AC-AC excitation input for standard industrial signal conditioning
- Long stroke LVDT design for extended measurement ranges
- Non-contact displacement measurement eliminates mechanical wear
- Hermetically sealed construction for harsh industrial environments
- Robust stainless steel housing ensures corrosion resistance
- High repeatability and linearity across full measurement range
Technical Specifications
- Model: MVL7C
- Part Number: 060-5654-05
- Sensor Type: AC-AC Long Stroke LVDT
- Manufacturer: Sensotec (Honeywell)
- Operating Principle: Non-contact linear variable differential transformer
- Application: Industrial displacement and position measurement
- Typical Excitation: AC carrier signal via external signal conditioner
Typical Applications
- Hydraulic and pneumatic cylinder position monitoring
- Mechanical displacement measurement on machinery and equipment
- Quality control and dimensional inspection systems
- Process automation and feedback control systems
- Material testing and load frame instrumentation
- Weld automation and position feedback
Compatibility & Replacements
Compatible With
- AC-AC LVDT signal conditioners (bridge amplifiers, in-line amplifiers)
- Sensotec UV, UV-10, UBP, and U-series signal conditioning instruments
- Industrial PLC and DAQ systems accepting LVDT signal conditioning modules
- Standard test and measurement instrumentation supporting AC displacement sensors
- Honeywell sensor ecosystems and legacy Sensotec product families
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. Related Sensotec MVL7C variants include part numbers 060-5654-03 and 060-5654-04 with different stroke ranges or specifications.
Works With
- Sensotec signal conditioning amplifiers (UV, UV-10, UBP models)
- Bridge-based sensor in-line amplifiers
- Honeywell instrumentation and data acquisition systems
- Standard AC excitation and measurement hardware
- Industrial automation and process control platforms
