Overview

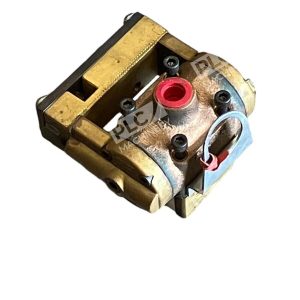

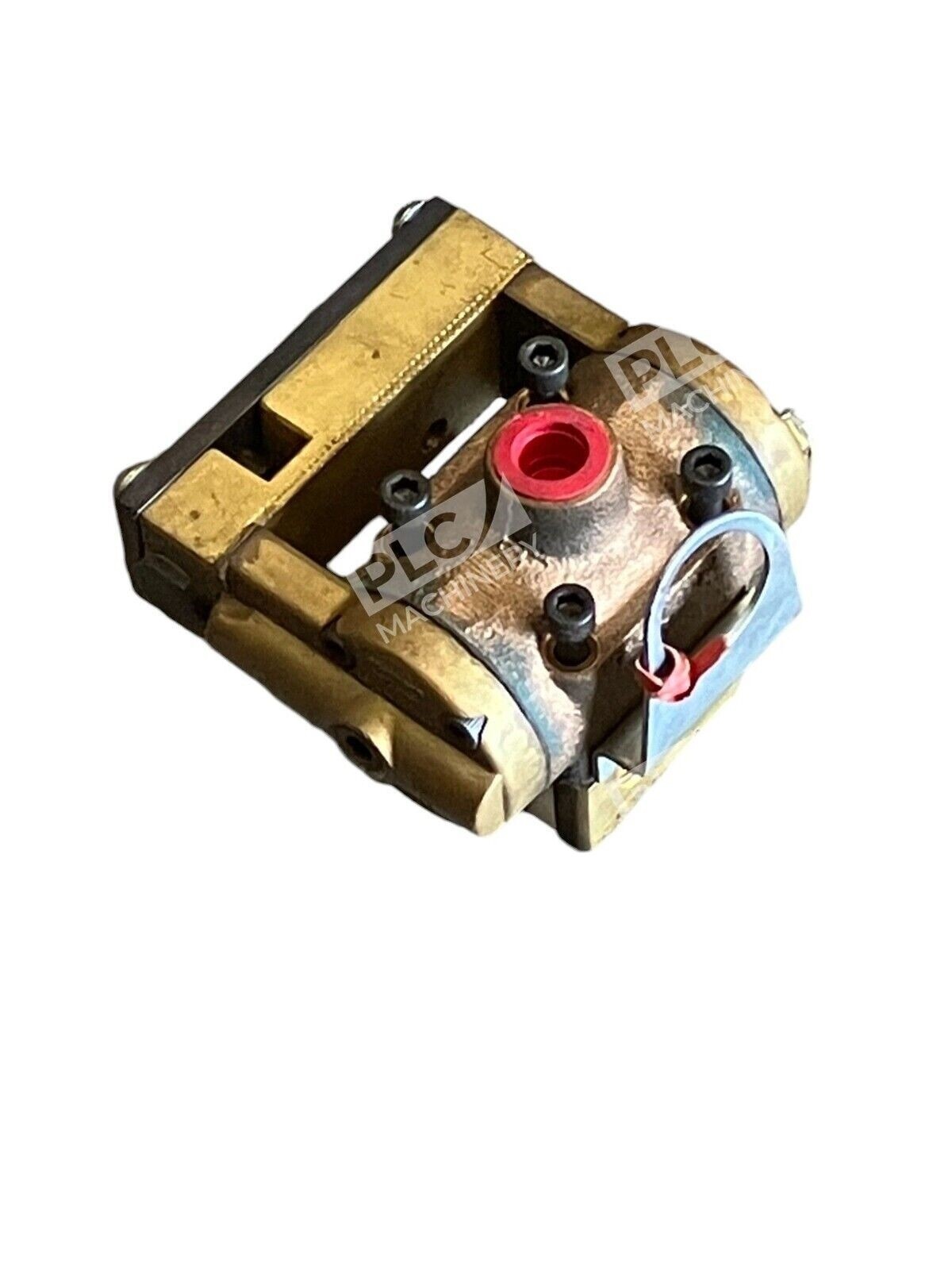

The Schrader Bellows B942200140 is an industrial-grade pneumatic solenoid valve engineered for reliable directional control in compressed air systems. Operating at 12V AC with 60Hz supply, this valve is rated for working pressures up to 150 PSI and is designed for general industrial and automated machinery applications where precision air flow control is required.
Key Features
- 12V AC, 60Hz solenoid coil for North American industrial standards
- 150 PSI rated working pressure for general pneumatic applications
- Solenoid-operated directional control for fast, repeatable valve actuation
- Compact design suitable for manifold mounting and inline valve installation
- Proven Schrader Bellows reliability and durability in industrial environments
- Manual override capability for emergency valve control
Technical Specifications

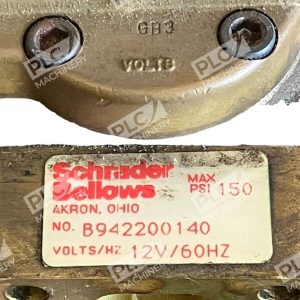

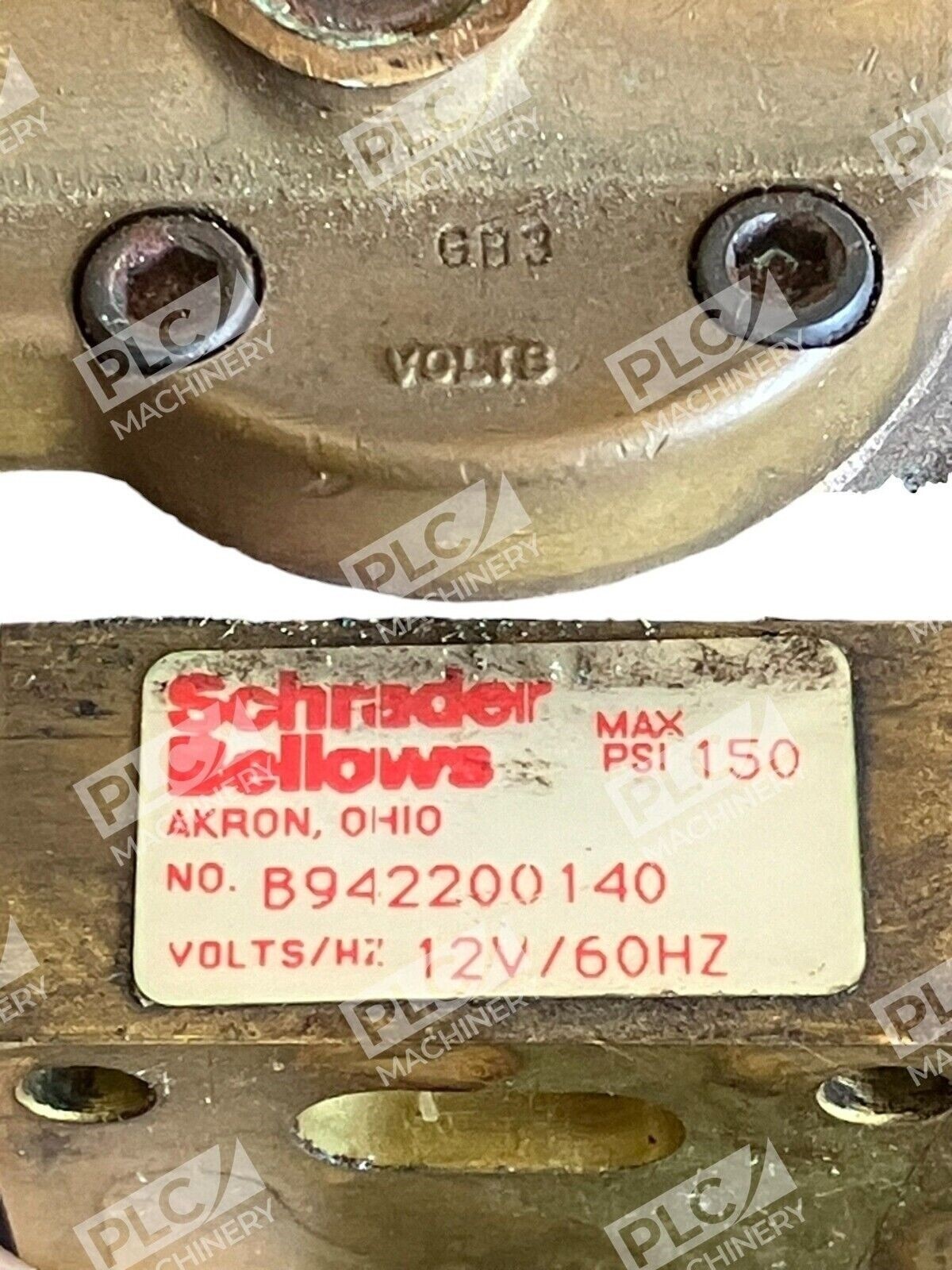

- Part Number: B942200140
- Manufacturer: Schrader Bellows (Parker)
- Solenoid Voltage: 12V AC
- Frequency: 60Hz
- Rated Pressure: 150 PSI maximum
- Valve Type: Solenoid directional control valve
- Port Configuration: NPT thread connections
- Duty Cycle: Continuous rated
- Operating Temperature Range: 32°F to 122°F (0°C to 50°C)
- Coil Type: Enclosed solenoid coil with manual override
Typical Applications
- Pneumatic automation and process control systems
- Manufacturing machinery directional control circuits
- Compressed air distribution and switching applications
- Industrial fluid and gas control systems
- Material handling and conveyor system automation
- Machine tool pneumatic circuits
Compatibility & Replacements
Compatible With
- Parker pneumatic control systems and manifolds
- Industrial pneumatic circuit designs operating at 150 PSI or below
- Standard 12V AC control circuits and PLC outputs
- 3/4″ NPT and 1/2″ NPT port manifold bases
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. Solenoid valve replacement requires pressure testing and flow rate verification to ensure proper system performance.
Works With
- Pneumatic control system relays and solenoid drivers
- Industrial PLC and DCS valve control logic
- Manual and automatic pneumatic circuit configurations
- Standard 12V AC industrial power supplies and control transformers
