Overview

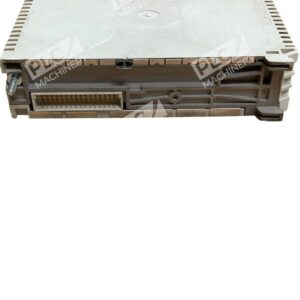

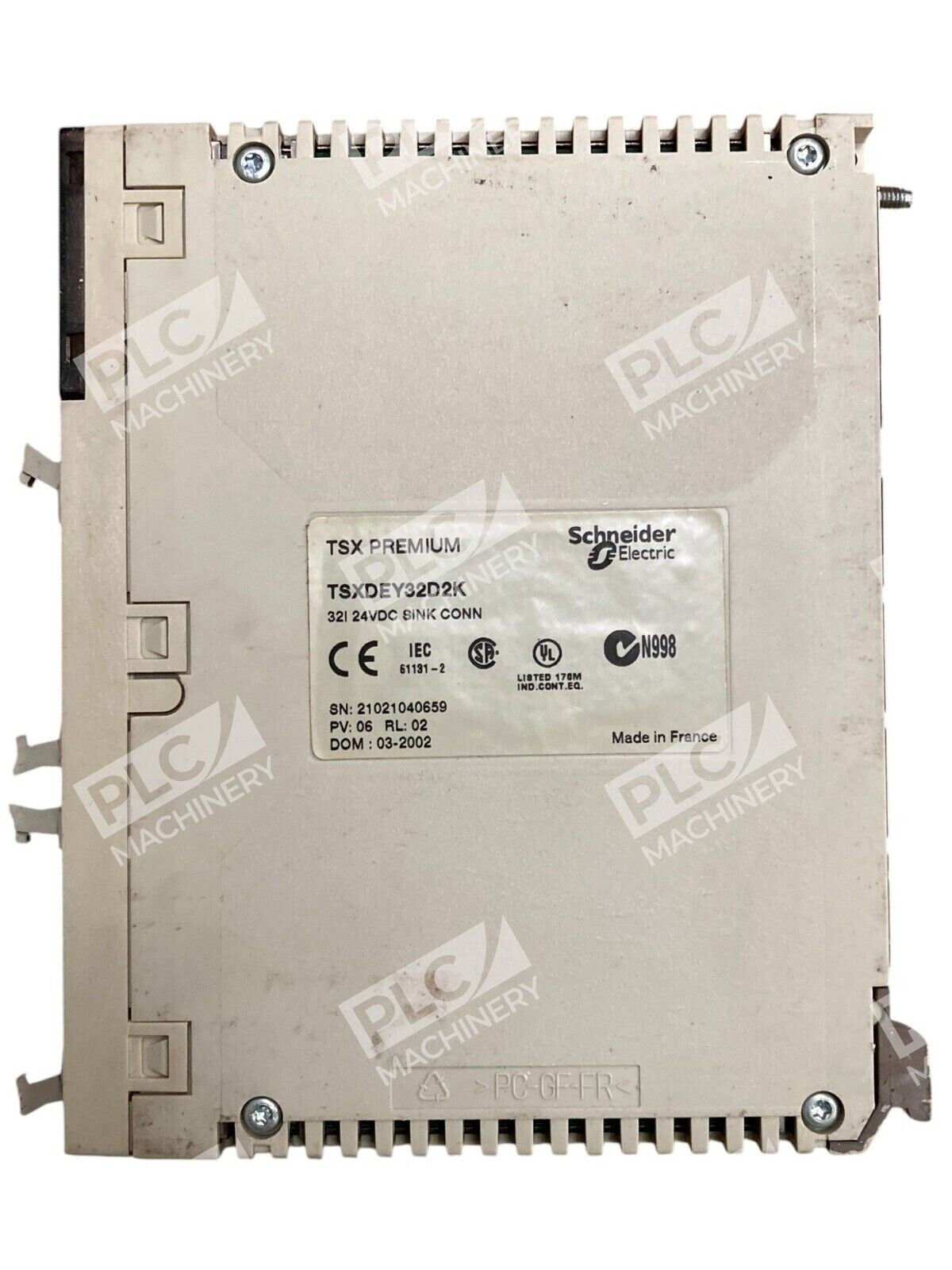

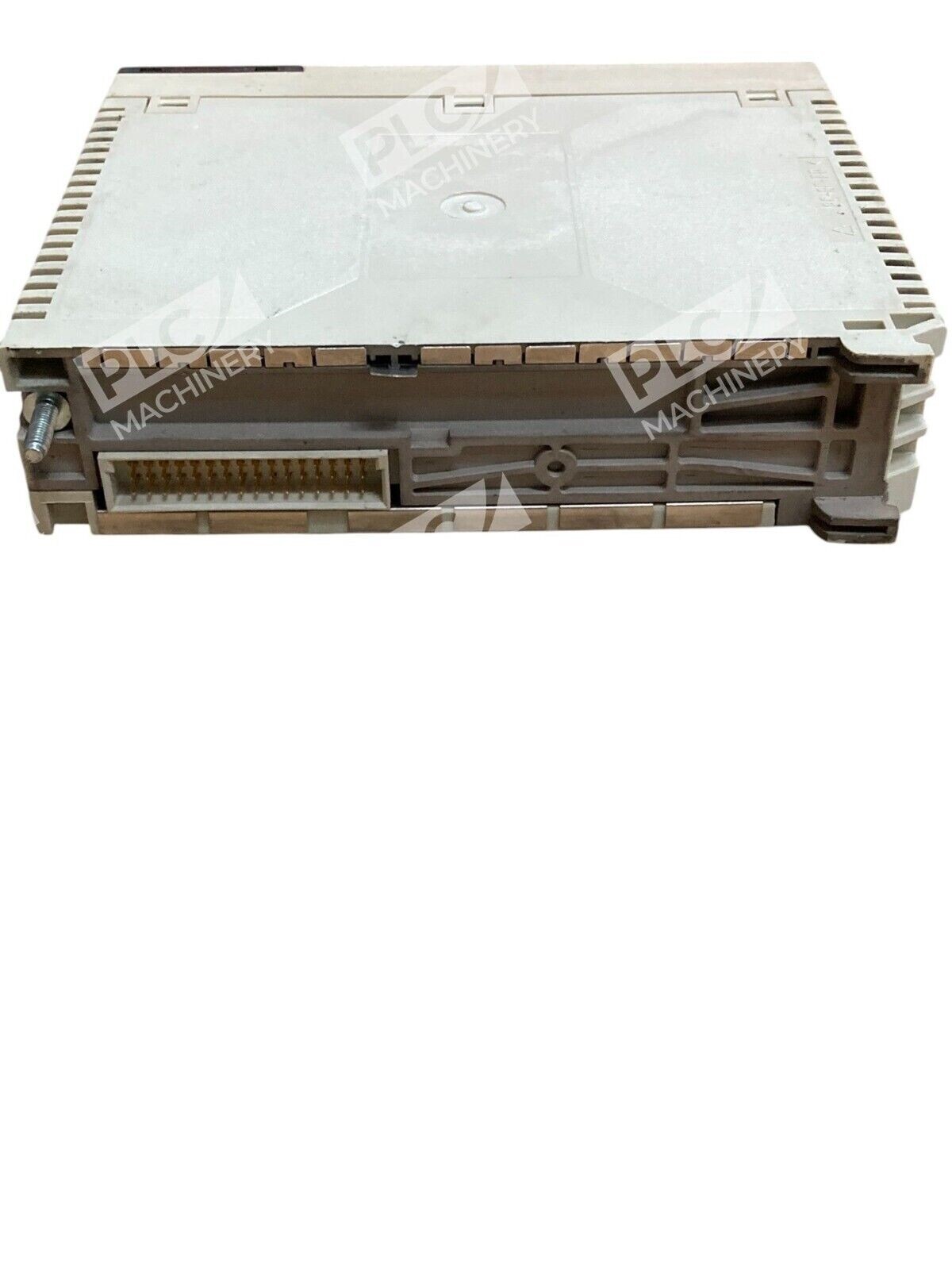

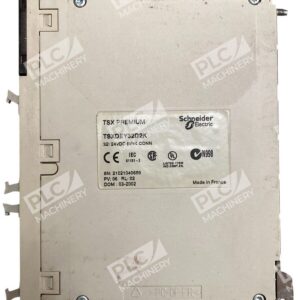

Schneider Electric TSXDEY32D2K is a discrete input module for Modicon Premium with 32 inputs compatible with 2/3 wires proximity sensors. This module provides 32 current sink isolated inputs per EN/IEC 61131-2 type 1 standards with 24 V DC positive input voltage. The module integrates directly into TSX Micro PLC series systems, delivering reliable sensor input acquisition for high-density control applications.
Key Features
- 32 current sink isolated inputs with EN/IEC 61131-2 type 1 compliance
- Fast 4 ms response time for quick and reliable data acquisition

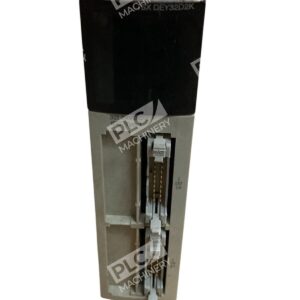

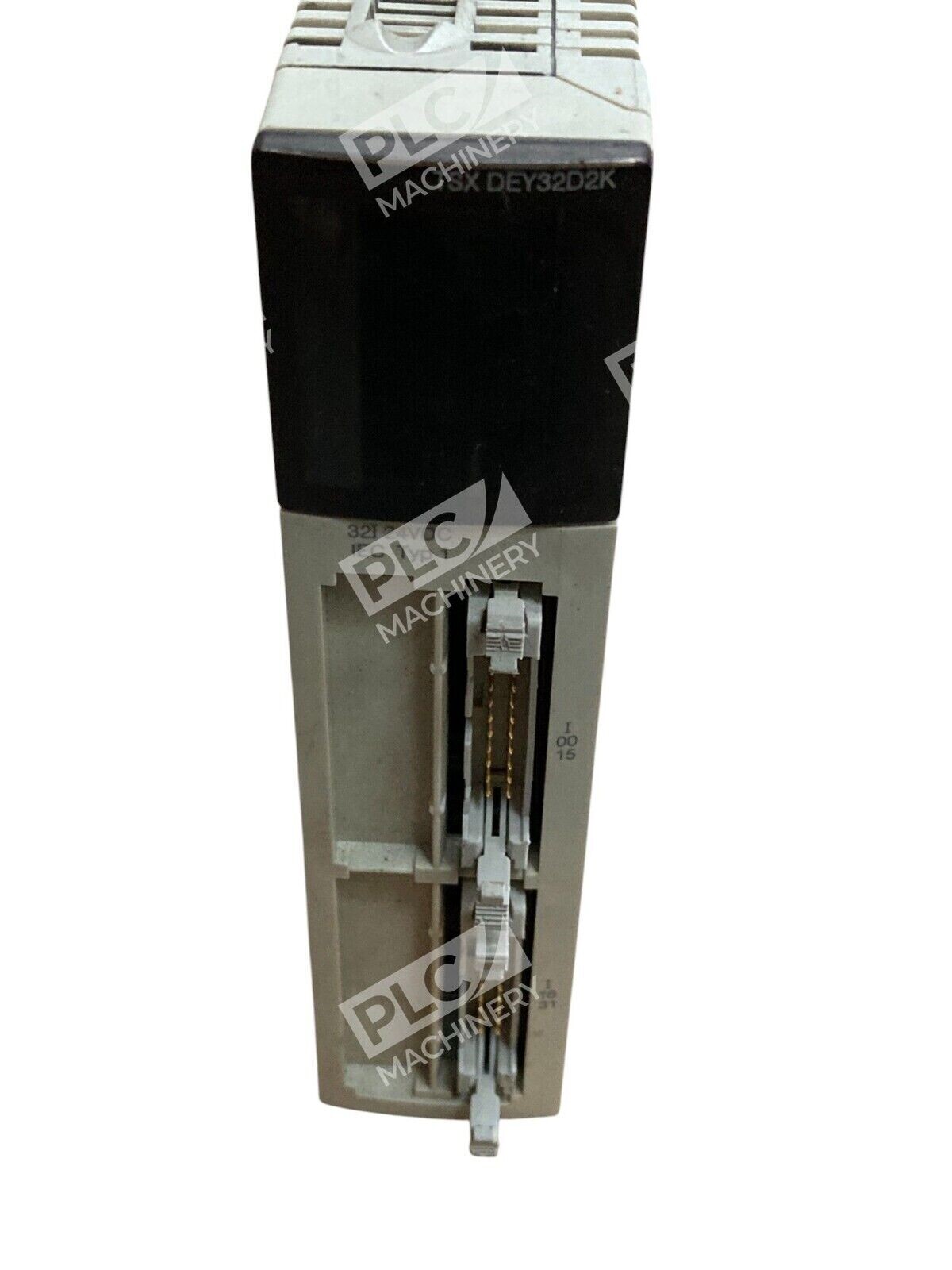

- HE-10 connectors for secure electrical connections
- 500 V AC isolation between channels and logic for enhanced safety in noisy environments
- CE, UL, and CSA certified to meet necessary safety and performance regulations
- Integrated diagnostics and built-in compliance for 24 V DC sensors
Technical Specifications
- Input Voltage: 24 V DC positive
- Discrete Input Current: 3.5 mA
- Sensor Power Supply: 19…30 V DC
- Response Time: 4 ms
- Power Consumption: 135 mA at 5 V DC; 160 mA at 24 V DC
- Dimensions: 125 mm length × 32 mm width × 90 mm height
- Weight: 0.2 kg
- Operating Temperature: -25°C to +70°C; Storage: -40°C to +85°C
- Relative Humidity: 5% to 95% (non-condensing)
- Isolation: 500 V AC between channels and logic
- Certifications: CE, UL, CSA
- Platform: Modicon Premium
- Input Standard: EN/IEC 61131-2 Type 1
Typical Applications
The TSXDEY32D2K is ideal for industrial automation systems requiring extensive digital input monitoring. Common applications include:
- Proximity sensor signal acquisition in multi-axis motion control
- Limit switch and safety device monitoring
- Status and alarm signal collection in production lines
- Process monitoring and data logging in manufacturing environments
- Building automation and HVAC control systems
- Machine tooling and CNC equipment integration
Compatibility & Replacements
Compatible With
- Modicon Premium automation platform
- TSX Micro PLC series controllers
- Schneider Electric Modicon TM7 systems
- 2-wire and 3-wire proximity sensor networks
- 24 V DC sensor ecosystems
- EN/IEC 61131-2 Type 1 standard devices
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering for specific model replacements in legacy systems.
Works With
- Modicon Premium PLC programming software
- Schneider Electric automation engineering tools
- HE-10 connector-based input networks
- Standard 24 V DC industrial sensor protocols
- DIN rail mounting infrastructure
