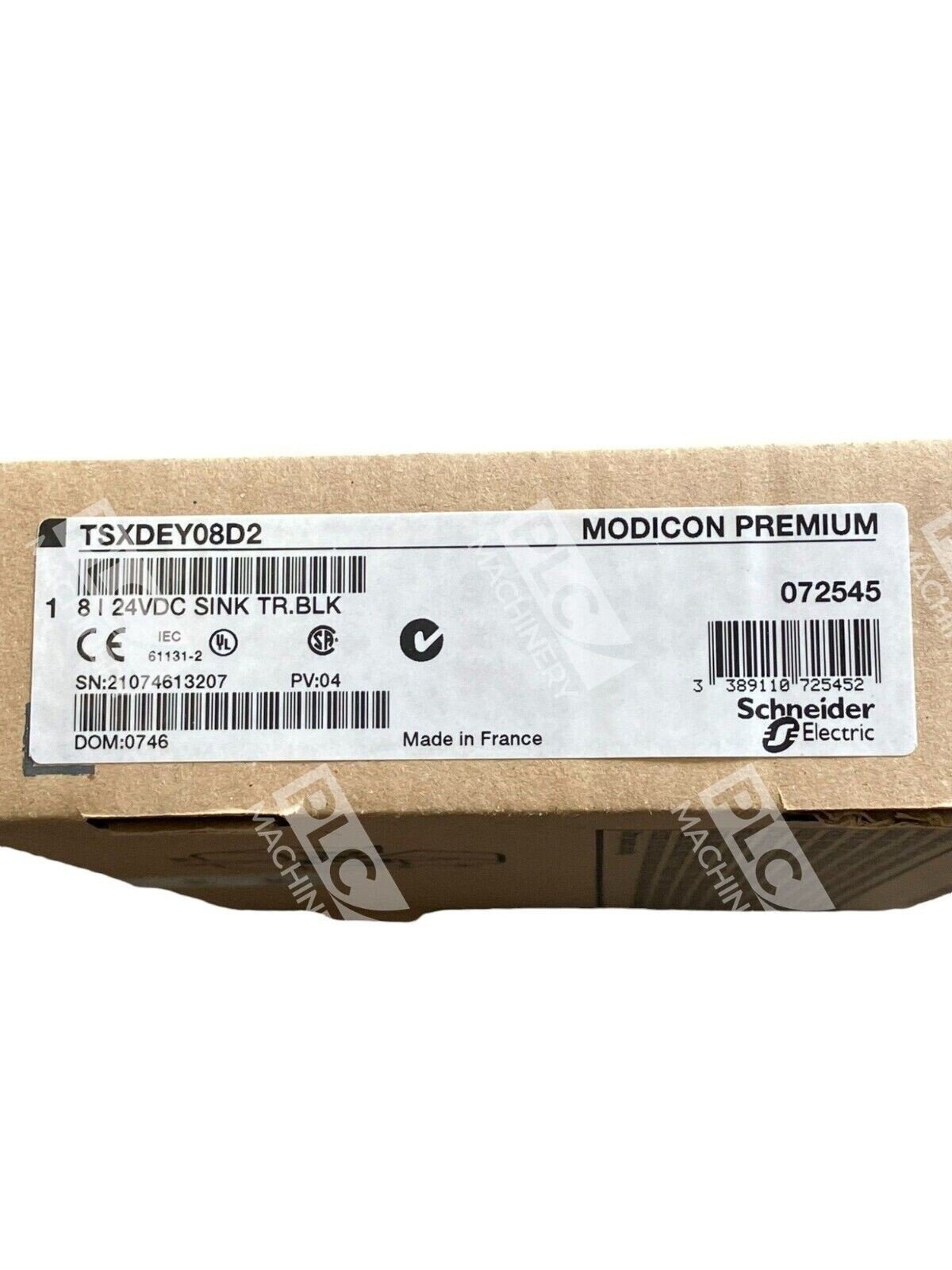

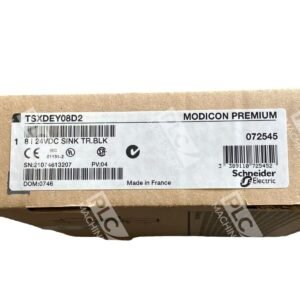

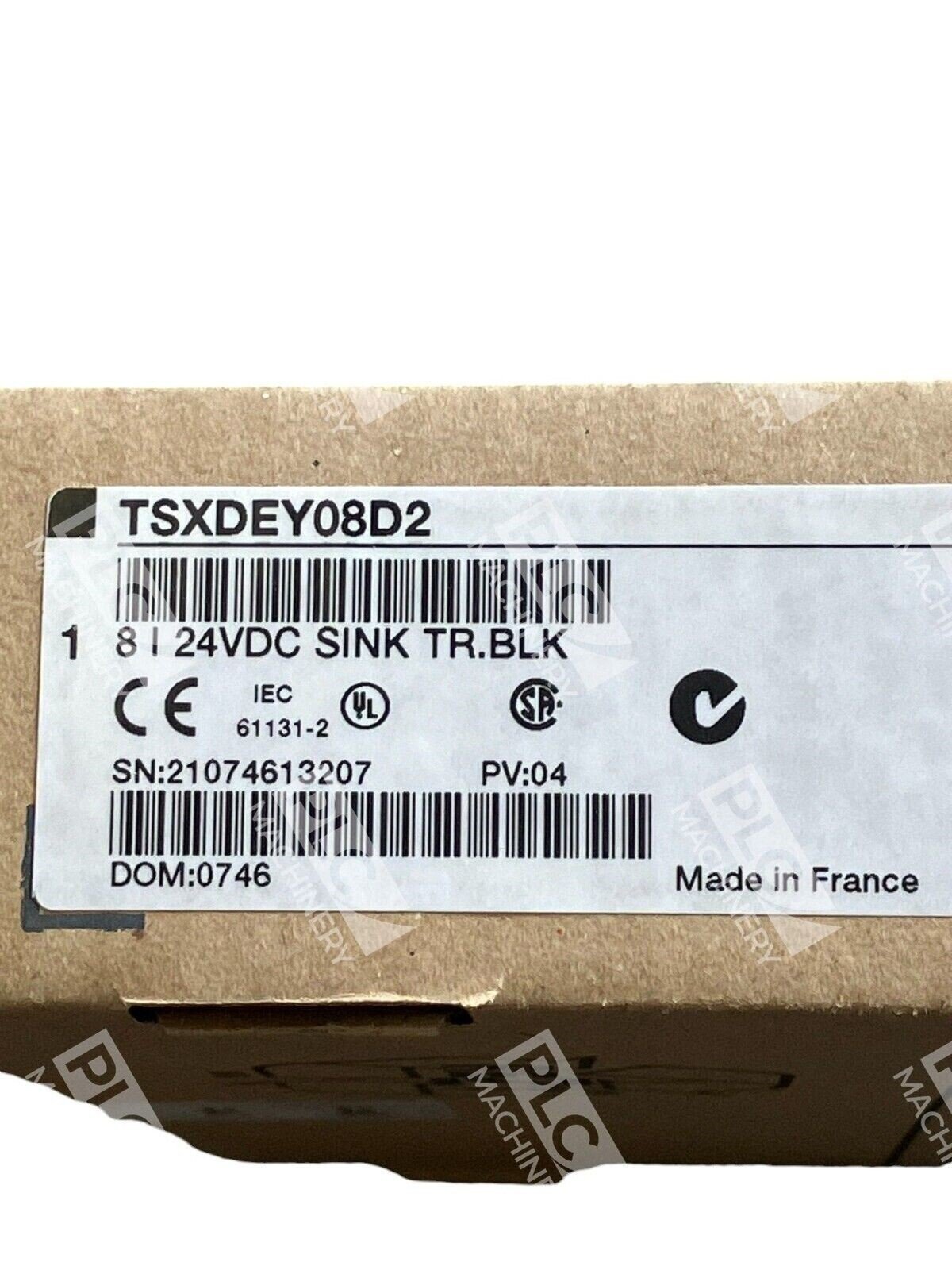

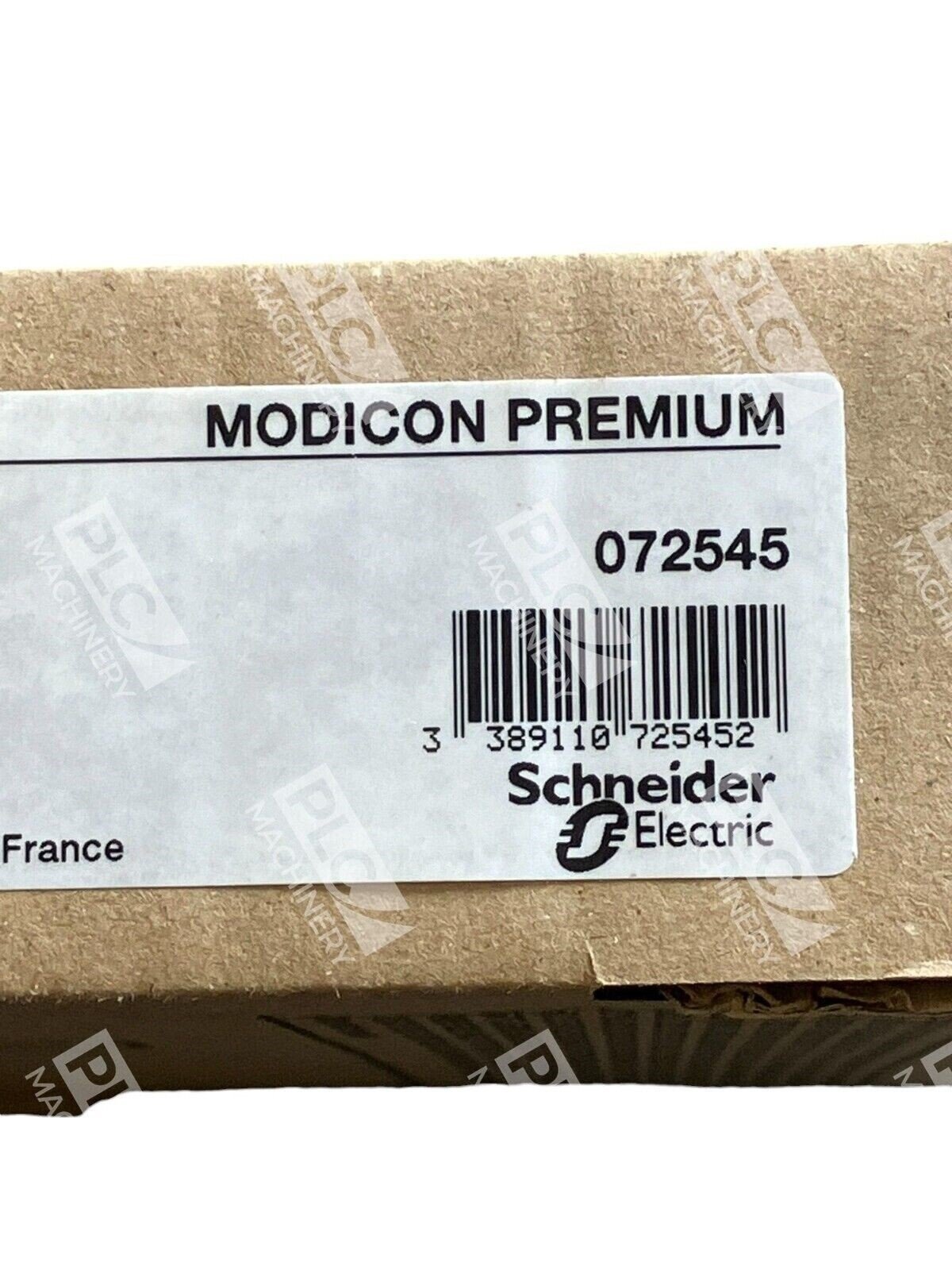

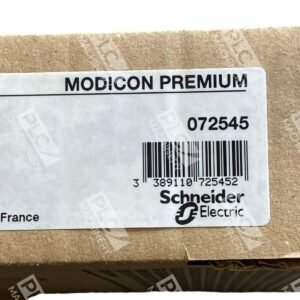

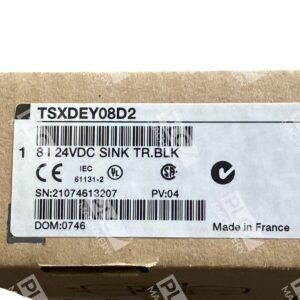

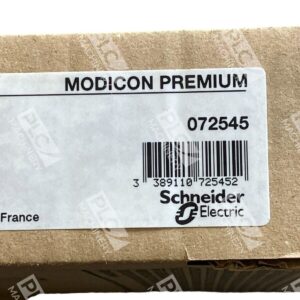

Schneider Electric Modicon Premium 8-Input 24V DC Discrete Input Module (TSXDEY08D2)
The Schneider Electric Modicon Premium TSXDEY08D2 is a discrete input module designed to enhance the functionality of the Modicon Premium Automation platform. This module provides reliable and efficient input processing for industrial automation systems.
Key Features
- Discrete Inputs: Equipped with 8 isolated current sink inputs, conforming to EN/IEC 61131-2 Type 2 standards.
- Input Voltage: Operates at a 24 V DC positive input voltage.
- Sensor Compatibility: Compatible with 2-wire and 3-wire proximity sensors as per EN/IEC 60947-5-2 standards.
- Response Time: Ensures prompt signal processing with a response time of ≤7 ms.
- Electrical Connection: Features screw terminal connections for secure and straightforward wiring.
- Power Consumption: Consumes 55 mA at 5 V DC and 80 mA at 24 V DC.
- Environmental Tolerance: Designed to operate within a temperature range of 0°C to 60°C (32°F to 140°F) and can be stored between -25°C to 70°C (-13°F to 158°F).
- Certifications: Holds CE marking and complies with various international standards, including UL 508 and EN/IEC 61131-2.
Technical Specifications
- Input Current: 7 mA per input.
- Voltage State 1 Guaranteed: ≥11 V.
- Current State 1 Guaranteed: ≥6.5 mA.
- Voltage State 0 Guaranteed: ≤5 V.
- Current State 0 Guaranteed: ≤2 mA.
- Input Impedance: 4000 Ohm at state 1.
- Insulation Resistance: <10 MOhm at 500 V DC.
- Power Dissipation: Calculated as (1 W + 0.15 W x Number of channels used).
The TSXDEY08D2 module is engineered to provide dependable input processing capabilities, making it a valuable component for industrial automation applications requiring precise and efficient input handling.
