Overview

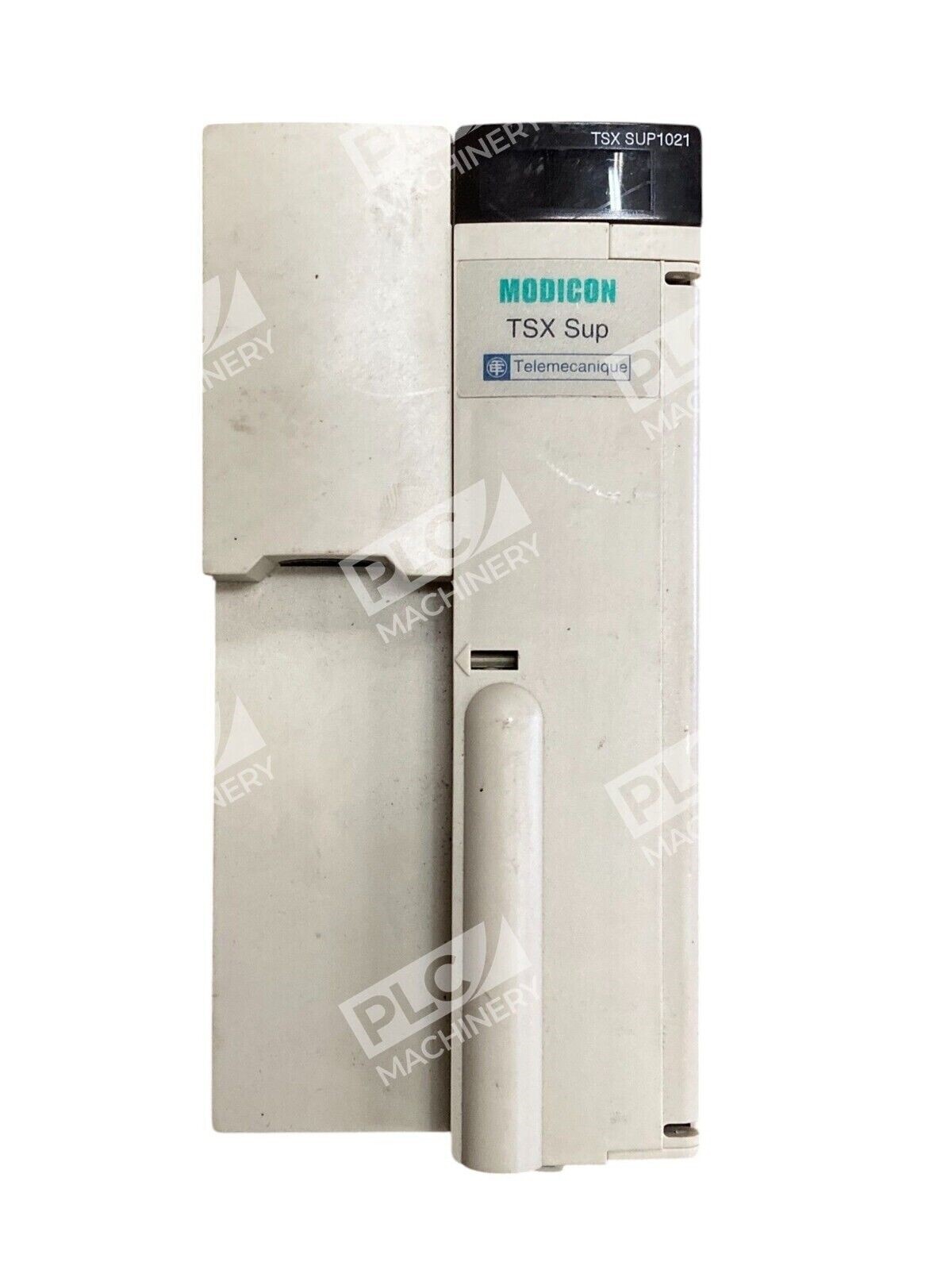

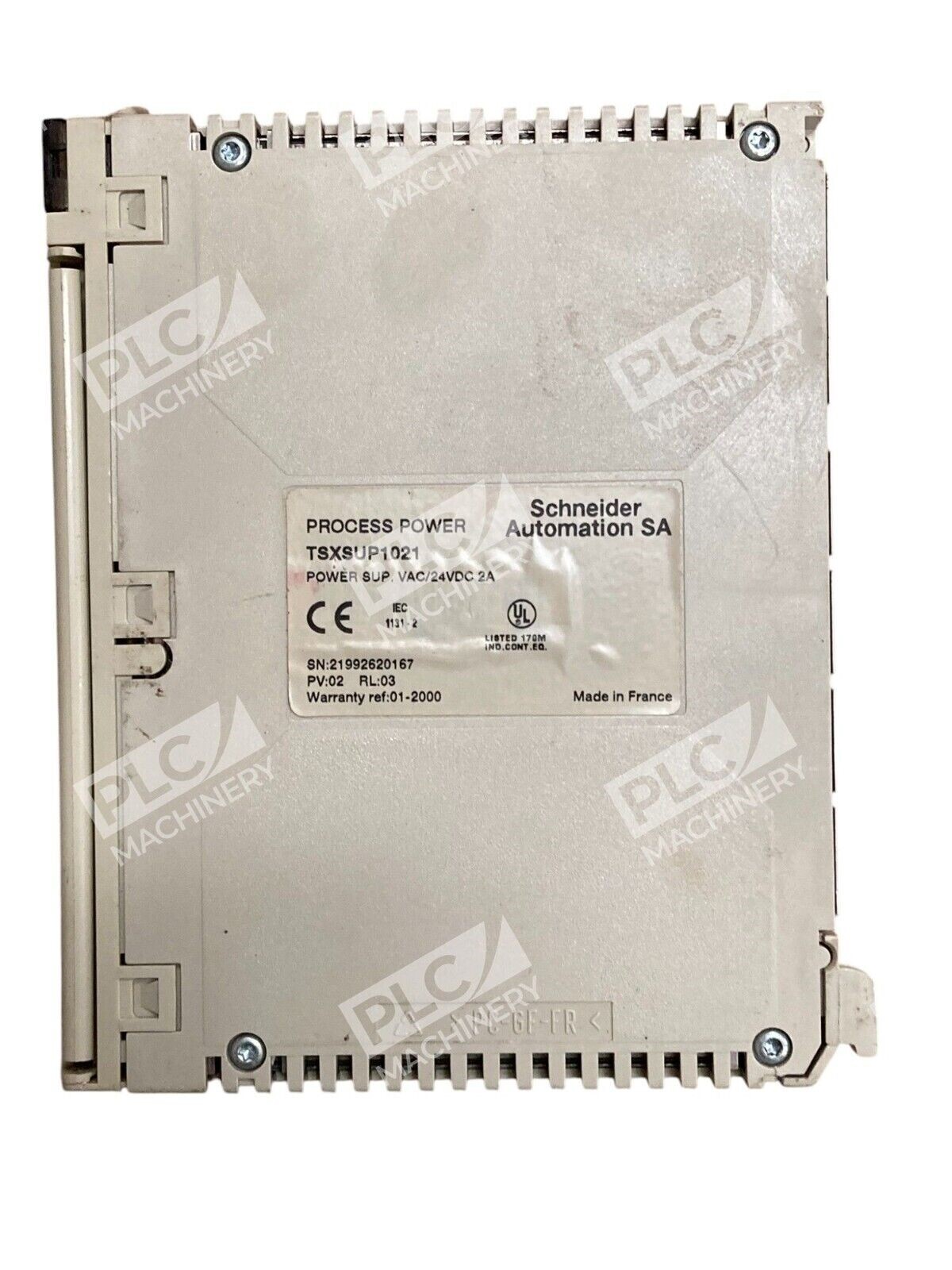

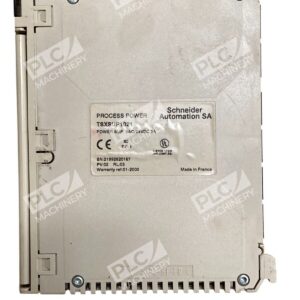

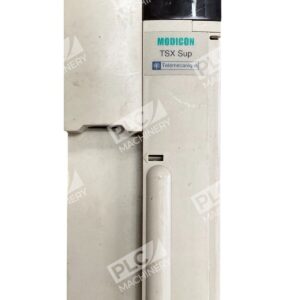

The TSXSUP1021 power supply is Schneider Electric’s industrial-grade 24VDC regulated output module for the Telemecanique Modicon TSX Micro family. Engineered for manufacturing environments including material handling, packaging, and textile machinery, this unit provides stable, filtered 2-amp DC power to controllers and discrete I/O modules on a standard DIN rail. The compact form factor integrates seamlessly into control cabinets and panel-mount configurations.
Key Features
- Regulated 24VDC output at 2-amp capacity for field devices and control modules
- Compact DIN-rail mount design fits standard 35 mm profiles
- Input accepts both VAC (80–240V AC) and operates on standard industrial utility power
- Filtered DC output with overvoltage and short-circuit protection
- Lightweight (2.28 lbs) for easy installation and panel retrofits
Technical Specifications
- Model: TSXSUP1021
- Manufacturer: Schneider Electric / Telemecanique
- Output Voltage: 24 VDC regulated
- Output Current: 2 A maximum
- Input Power: VAC 80–240V (typical range)
- Mounting: DIN rail (35 mm profile)
- Weight: 2.28 lbs (1.03 kg)
- Series: TSX-SUP Micro power supply
- Applications: Material handling, packaging, textile machinery, discrete automation
Typical Applications
The TSXSUP1021 is widely used in:
- Packaging equipment and conveyor control systems
- Textile and fabric processing machinery
- Material handling and logistics automation
- Discrete sensor and solenoid circuits requiring stable 24V DC
- Machine tool retrofit and modernization projects
- Legacy manufacturing system upgrades
Compatibility & Replacements
Compatible With
- Schneider Telemecanique Modicon TSX Micro controller family (TSX3705, TSX3708, TSX3710, TSX3720)
- TSX-DCS discrete I/O modules and analog input/output cards
- Standard 24VDC field sensors and solenoid actuators
- DIN-rail mounted 24VDC load circuits
Replaces / Drop-In Replacement For
This unit is a direct replacement for legacy Telemecanique TSX-SUP 2A power supplies in the Modicon product line. Compatible as a retrofit for existing installations requiring 2-amp 24V regulated output.
Works With
- Modicon Micro processors and I/O baseplates
- PL7 and PL7-2 programming software environments
- Telemecanique terminal blocks and connector systems
- 24VDC industrial field-device networks
