Overview

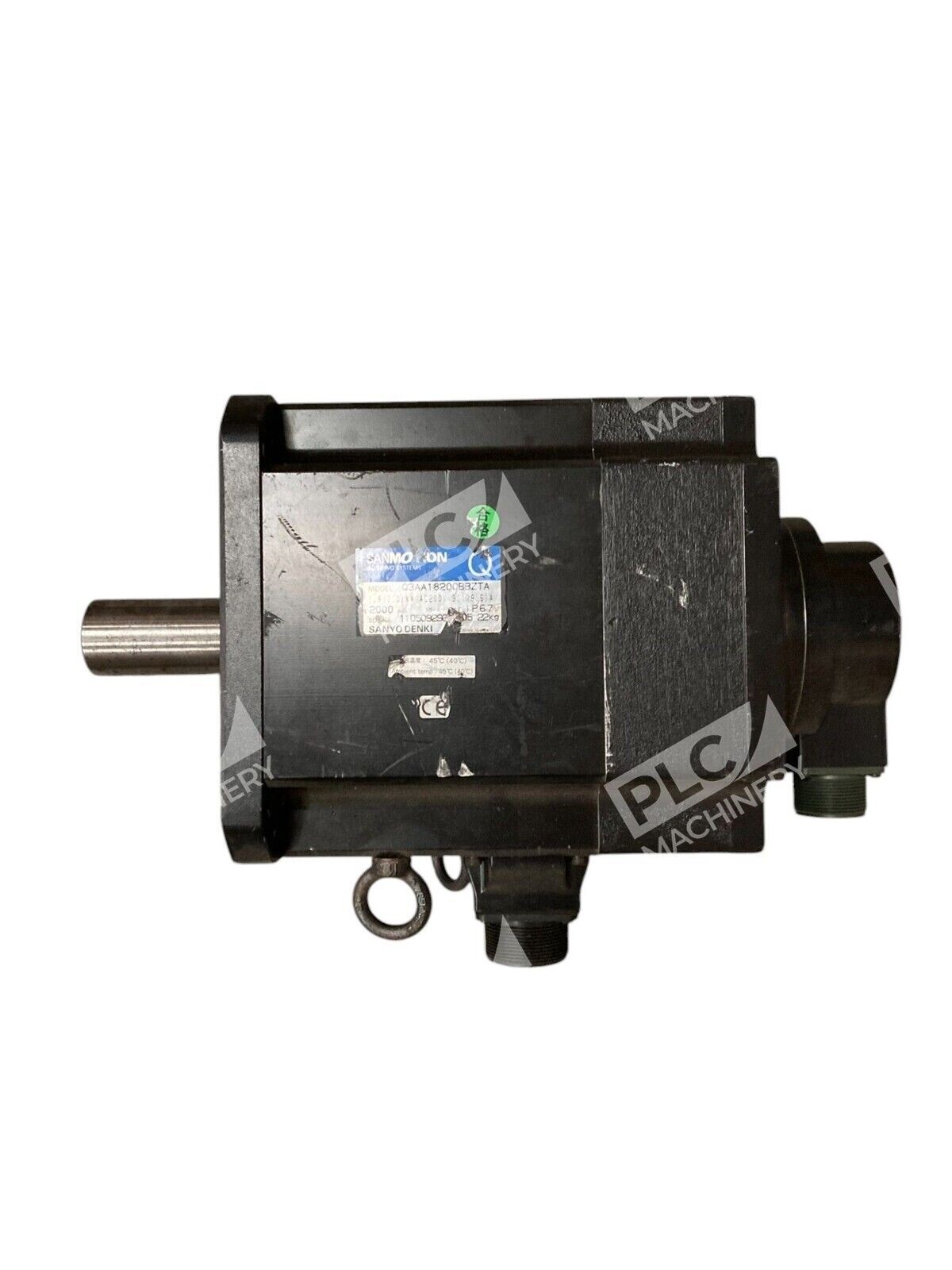

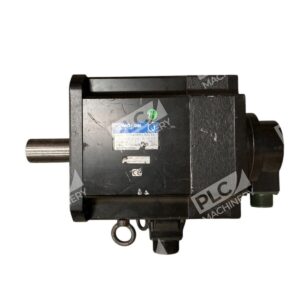

The Sanyo Denki Q3AA18200BBZTA is a professional-grade AC servo motor from the SANMOTION line, engineered for industrial motion control applications. Rated at 1.8 kW with 200 VAC three-phase input, this unit is designed to deliver consistent performance in synchronous multi-axis automation systems. Built with IP67 enclosure protection, it withstands harsh shop-floor environments and is suitable for applications demanding precision and reliability.
Key Features
- 1.8 kW power output with 2000 RPM nominal speed for smooth motion control
- 200 VAC three-phase input, 9.1 A rated current for efficient electrical integration
- IP67 sealed enclosure protects against dust, moisture, and industrial contaminants
- 1-3/8″ shaft diameter standard for direct coupling to gear boxes, couplings, and load drives
- Manufactured by Sanyo Denki—trusted name in servo motion control
- Compatible with SANMOTION servo amplifiers and motion control systems
Technical Specifications
- Manufacturer: Sanyo Denki (SANMOTION)

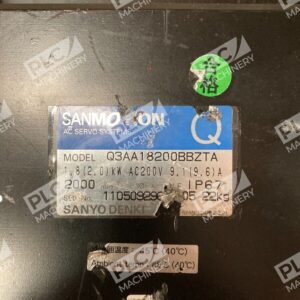

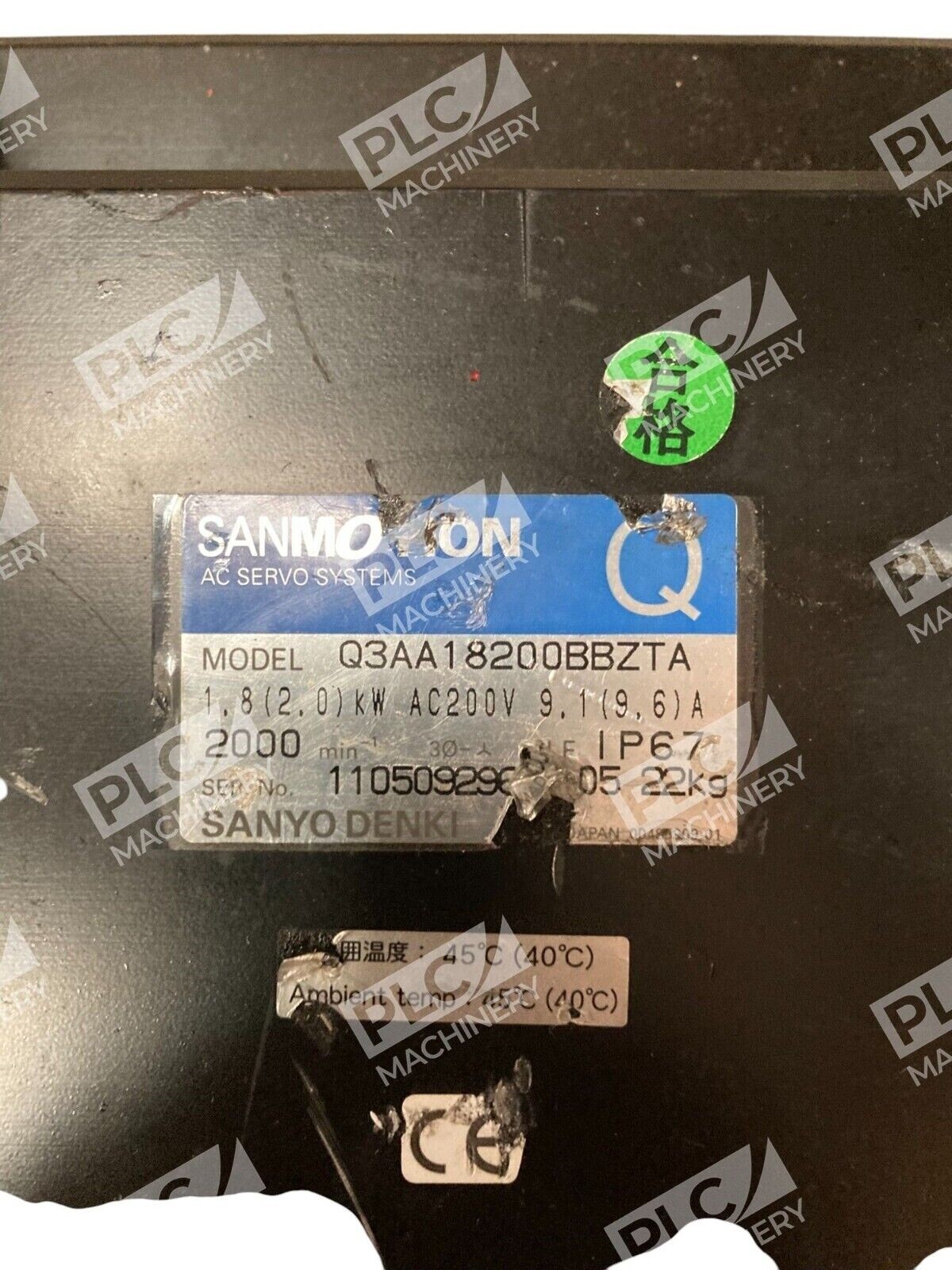

- Model Number: Q3AA18200BBZTA
- Motor Type: AC Servo Motor, 3-Phase
- Power Rating: 1.8 kW
- Input Voltage: 200 VAC
- Input Current: 9.1 A (3-phase)
- Rated Speed: 2000 RPM
- Shaft Diameter: 1-3/8 inch (34.9 mm)
- Enclosure Rating: IP67 (dust-tight, jet-proof)
- Application: Industrial servo motion control, multi-axis synchronous systems
Typical Applications
- CNC machine tool spindle drives and feed axis control
- Textile machinery and precision weaving systems
- Packaging and labeling equipment
- Robot arm and articulated motion systems
- Conveyor and material handling synchronized motion
- Assembly line automation requiring repeatable positioning
Compatibility & Replacements
Compatible With
- SANMOTION AC servo amplifiers (Type G, R, S series)
- Sanyo Denki motion controllers (C-series)
- Industrial PLC systems with analog or digital servo command outputs
- Standard NEMA coupling interfaces
- Integrated EtherCAT and PROFINET servo networks
Replaces / Drop-In Replacement For
- Direct replacement for OEM applications originally equipped with Q3AA18200BBZTA
- Verify motor specifications and coupling geometry with your system integrator before substitution of similar models
Works With
- Sanyo Denki Q-SETUP configuration software
- Standard AC three-phase industrial power supplies (200 VAC, 50/60 Hz)
- EtherCAT and real-time fieldbus networks for synchronized multi-axis control
- PLC and motion controller systems supporting analog velocity or digital position commands
