Overview

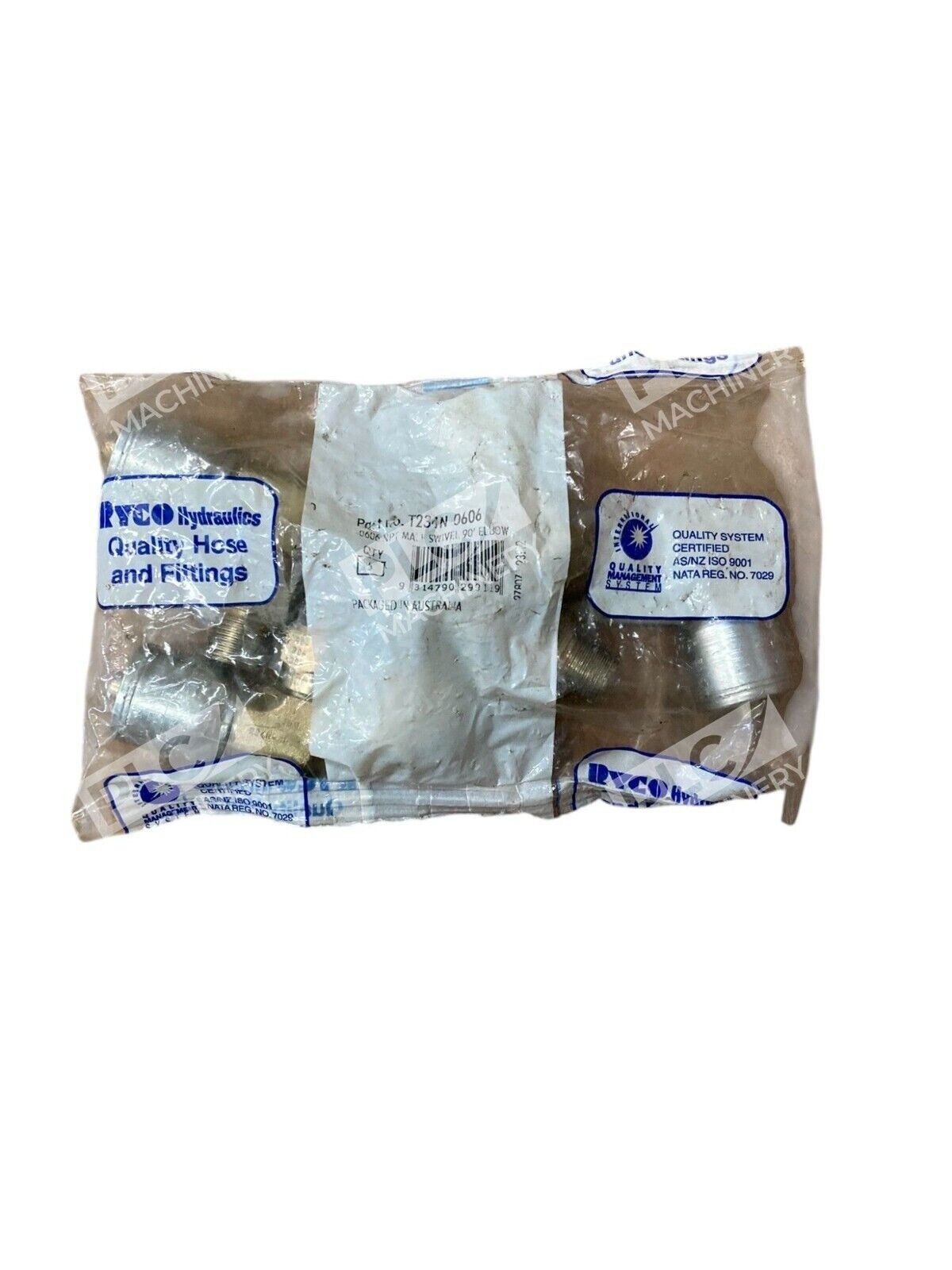

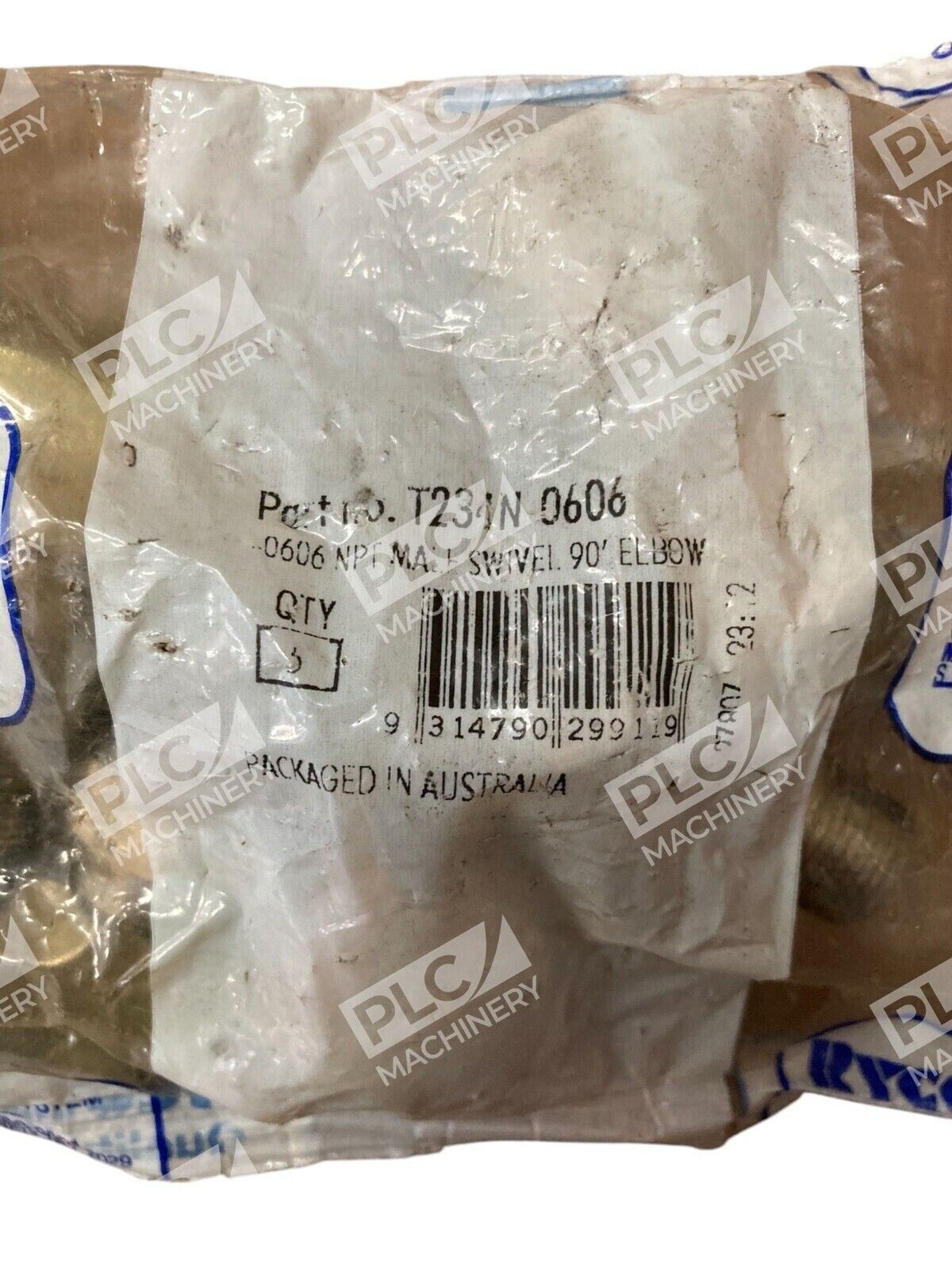

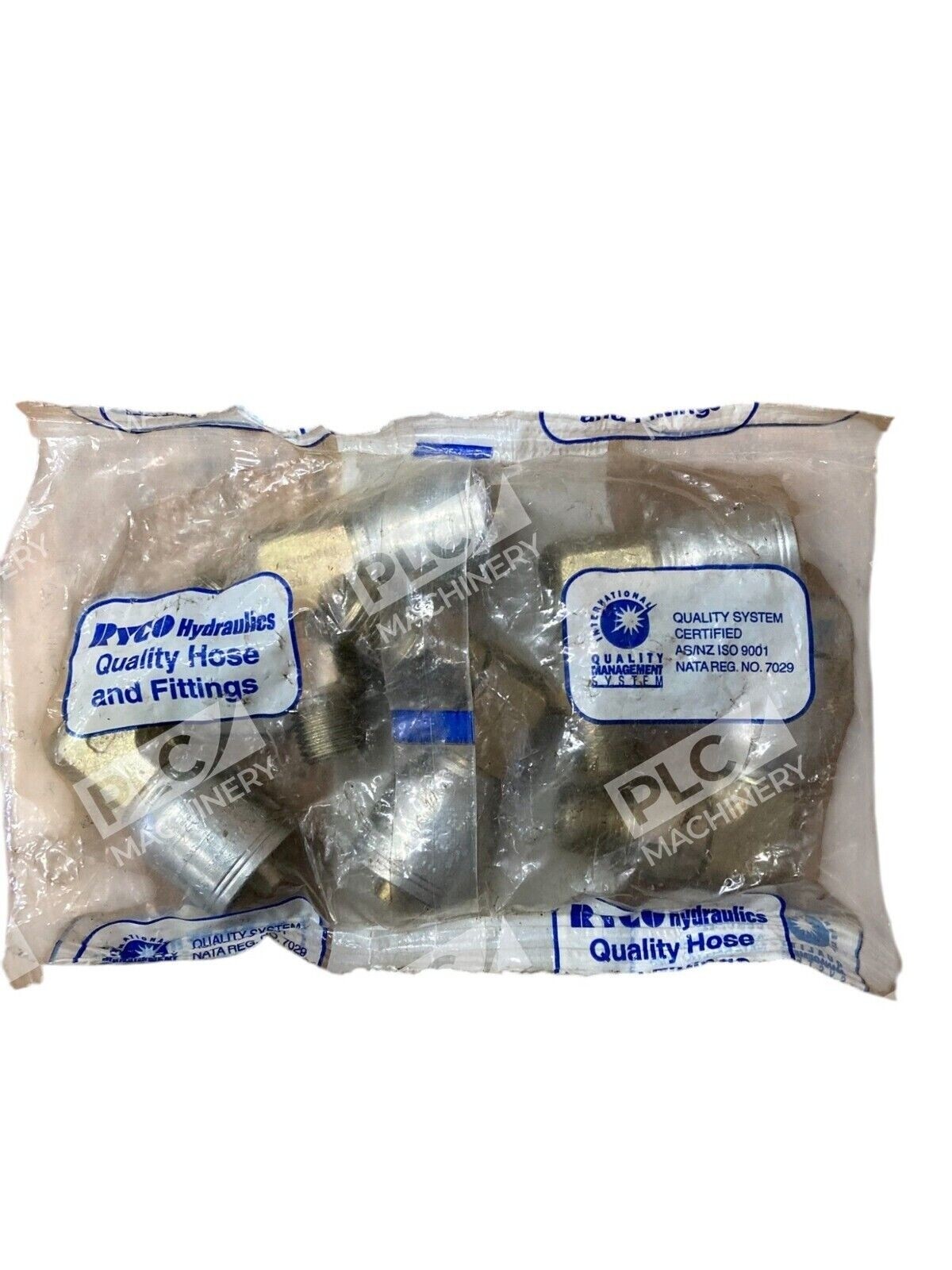

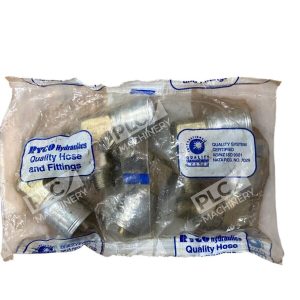

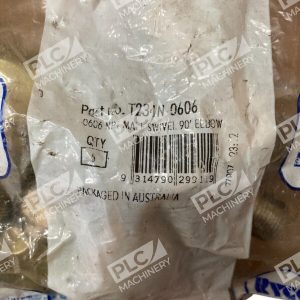

The Ryco Hydraulics T234N-0606 is a 90-degree NPT male swivel elbow fitting engineered for hydraulic, pneumatic, and fluid power systems. This BITELOK one-piece crimp coupling is part of RYCO’s trusted T200 series and delivers reliable, leak-free connections in industrial applications. The swivel design allows flexible hose orientation during installation while maintaining directional routing through the 90-degree elbow geometry.
Key Features
- 90-degree swivel elbow design for flexible installation and hose routing
- BITELOK one-piece crimp coupling construction for secure, leak-free sealing
- NPT male thread compatible with standard hydraulic and pneumatic systems
- Rated for 3/8″ hose size with 3/8″ NPT thread connection
- Swivel capability avoids twisting and kinking of hose during assembly
- Supplied in convenient bag of 5 units
Technical Specifications
| Hose Size | 3/8″ (DN 10) |
| Thread Type | NPT (National Pipe Thread) |
| Thread Size | 3/8″ NPT |
| Connection Style | Male swivel elbow |
| Configuration | 90-degree elbow |
| Series | T200 BITELOK crimp coupling |
| Coupling Type | T234N (NPT male swivel 90° elbow) |
| Design Pressure | 420 bar (6,100 psi) – standard for -06 size |
| Quantity Per Package | 5 pieces |
| Suitable For | Hydraulic hose assembly and crimp applications |
Typical Applications
The T234N-0606 swivel elbow is widely used in:
- Mobile hydraulic equipment (construction, mining, agriculture)
- Industrial fluid power systems requiring flexible hose routing
- Pneumatic applications in manufacturing and automation
- Hose assemblies where space constraints demand 90-degree directional changes
- Pump and motor connections in hydraulic circuits
- General plumbing and fluid distribution in industrial equipment
Compatibility & Replacements
Compatible With
- RYCO hydraulic and pneumatic hose assemblies with 3/8″ hose diameter
- Systems using NPT male thread connections (standard industrial hydraulics)
- Equipment designed for 60° seat cone fittings
- Fluid power systems rated for 420 bar (6,100 psi) operating pressure
Replaces / Drop-In Replacement For
The T234N-0606 is a standard NPT male swivel 90° elbow fitting. Verify compatibility with your system integrator before ordering to ensure thread type (NPT vs. BSPT vs. BSPP) and pressure rating match your application requirements.
Works With
- RYCO hose series: T240A and compatible hydraulic hose assemblies
- Standard NPT male threads on pumps, motors, valves, and manifolds
- Crimp-on assembly methods using appropriate hose crimping equipment
- Industrial hydraulic and pneumatic system components
