Overview

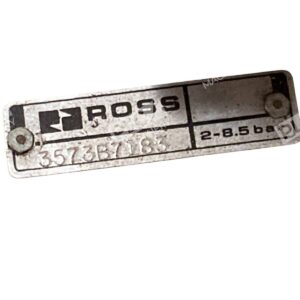

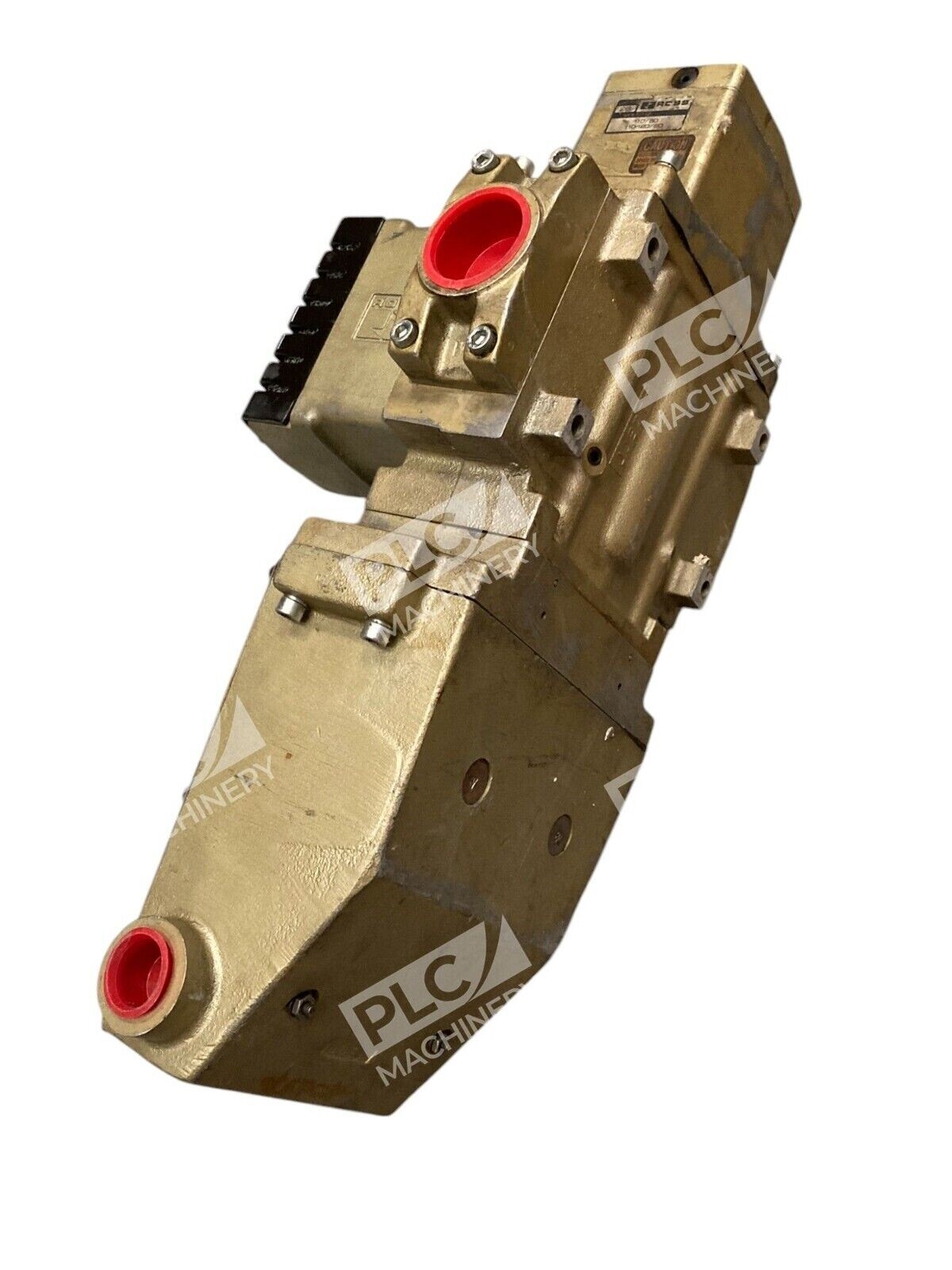

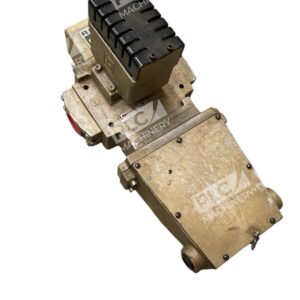

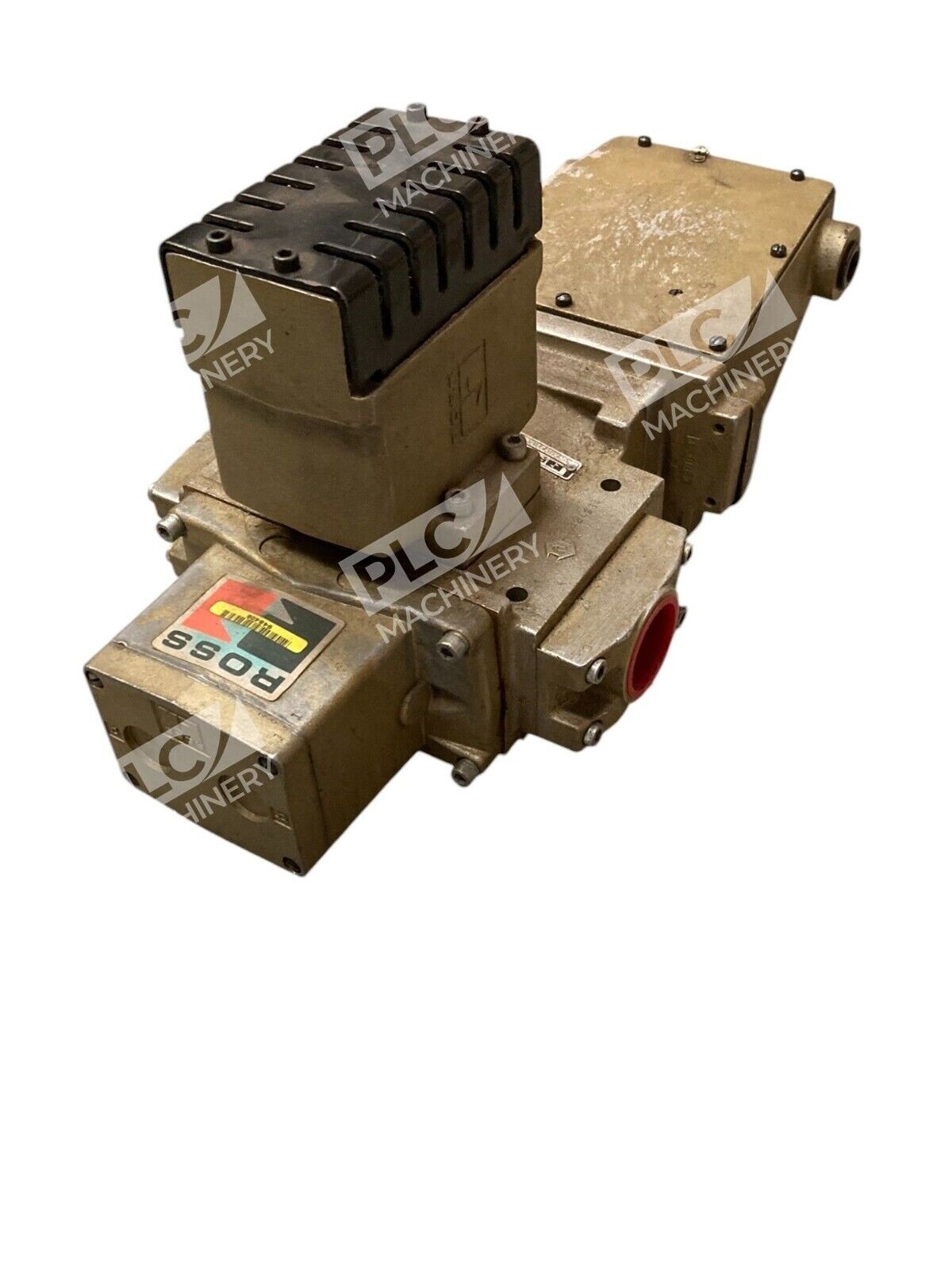

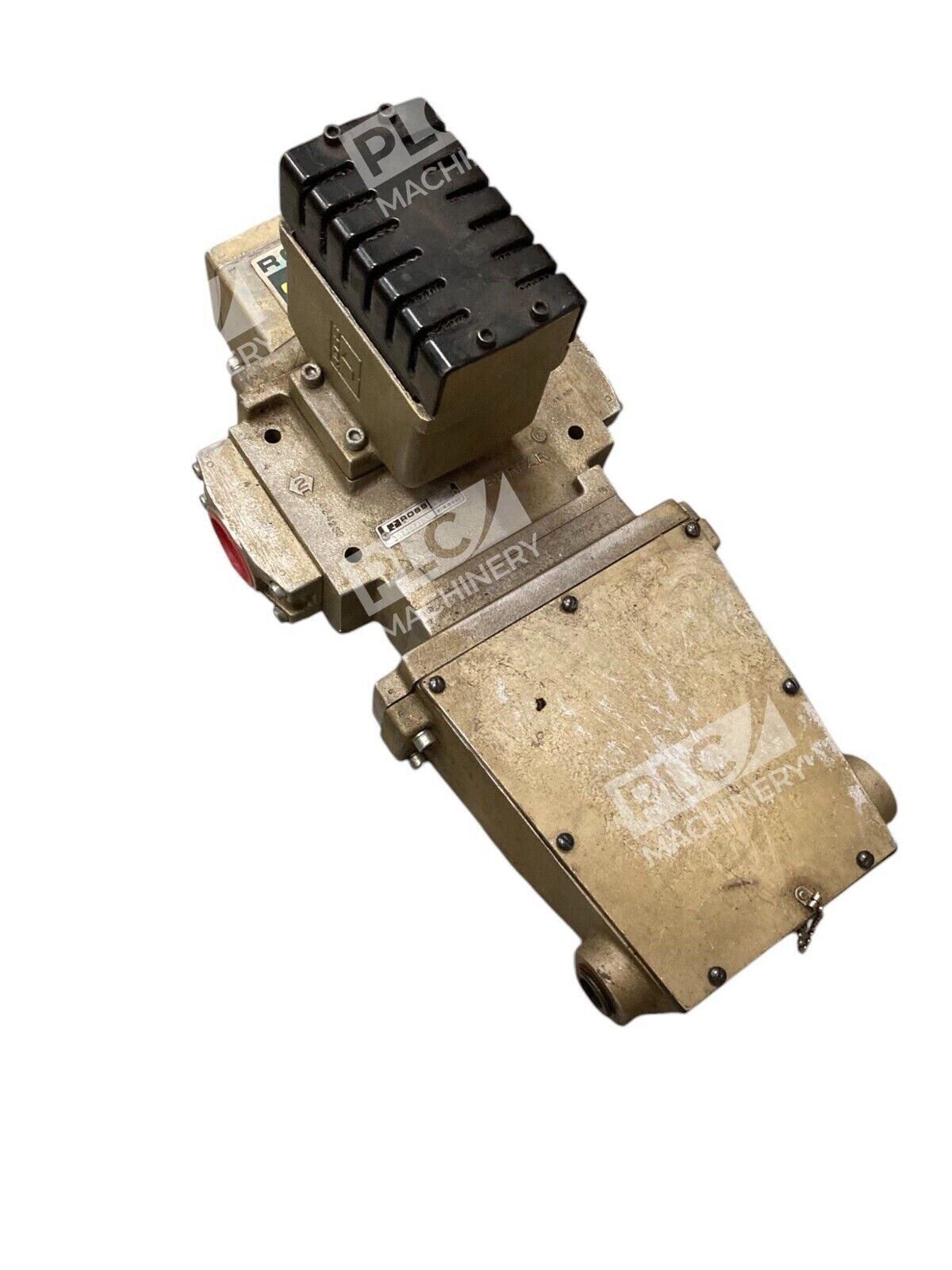

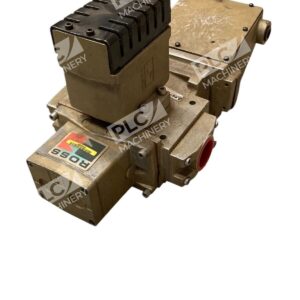

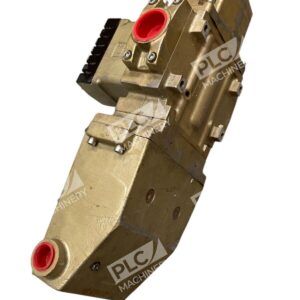

The Ross 3573B7183 is a 35 Series SERPAR® double solenoid valve engineered for clutch and brake control in mechanical press operations. ROSS Controls pioneered internally monitored double valve technology in 1954, and the 35 Series continues this legacy with advanced electro-pneumatic (E-P) and pneumatic (L-G) monitoring systems. This model combines dual poppet construction with dual solenoid pilot control to ensure safe, repeatable actuation in critical industrial fluid power circuits.
Key Features
- Dual poppet construction for reliable sealing and rapid response
- Two pilot solenoids rated for continuous duty
- Inline mounting type for space-efficient installation
- Engineered to meet or exceed stringent safety standards including OSHA 1910.217, ANSI B11.1, ISO 13849-1 Category 4, and Performance Level e (PLe) requirements
- Internally monitored operation for fail-safe press control applications
Technical Specifications
Electrical & Operating Parameters:

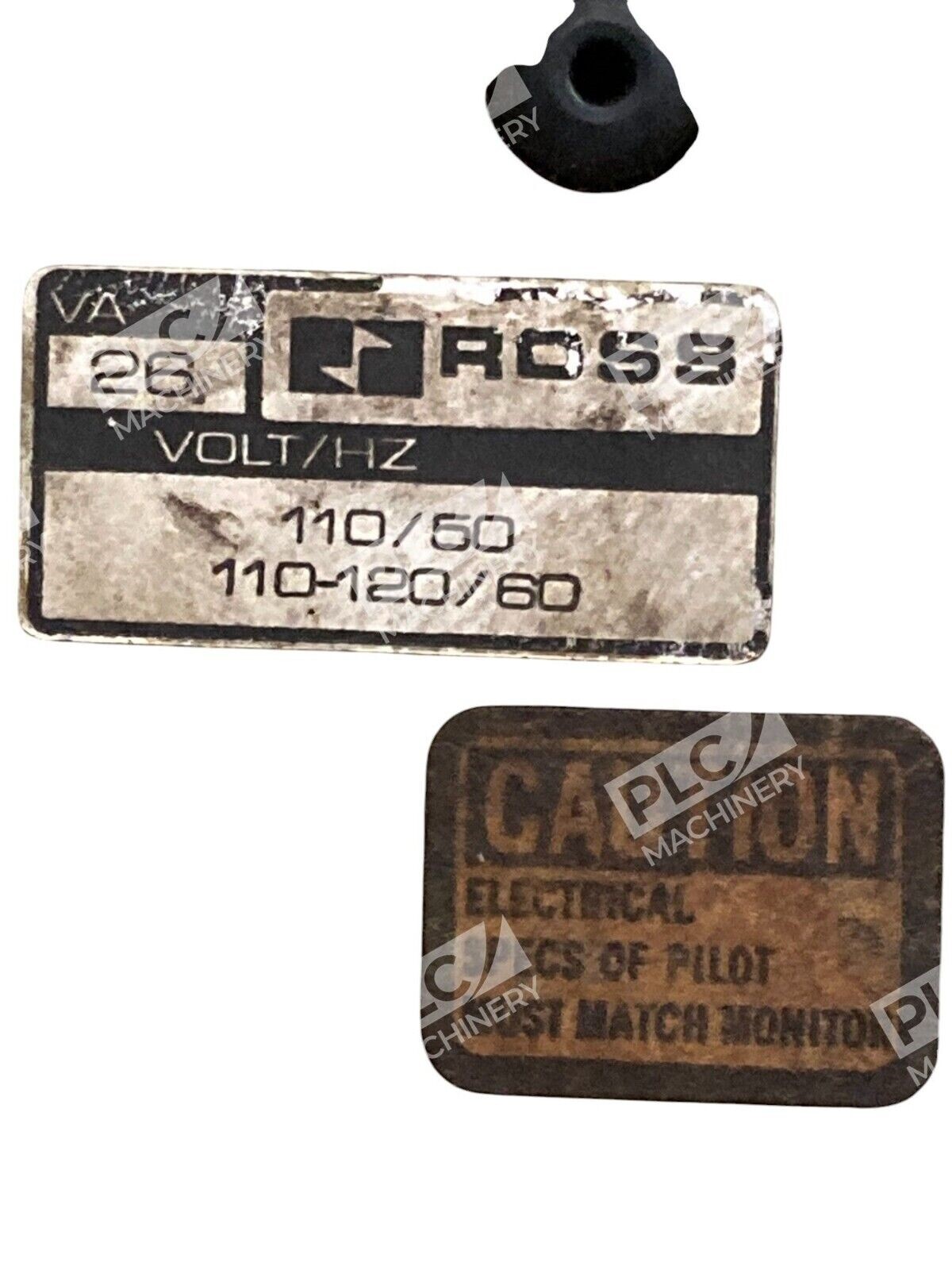

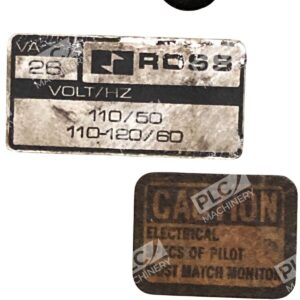

- Standard voltages: 24 volts DC; 110-120 volts AC, 50/60 Hz
- Power consumption (each solenoid): 30 VA inrush, 16 VA holding
- Ambient temperature: 40° to 120°F (4° to 50°C)
- Media temperature: 40° to 175°F (4° to 80°C)
Pneumatic Operating Range:

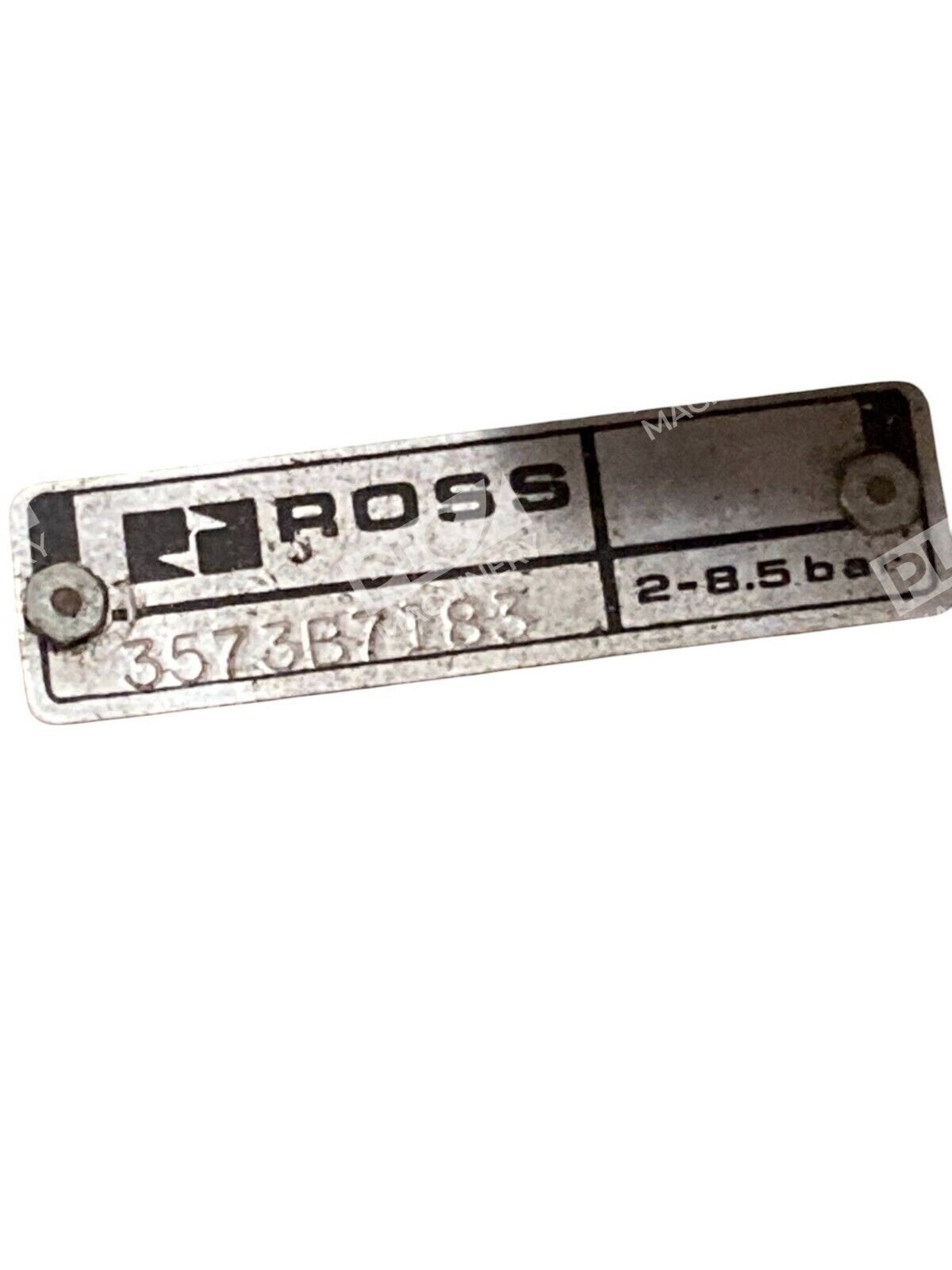

- Inlet pressure: 30 to 125 psig (2 to 8.5 bar)
- Filtered air media
- Terminal strip electrical connections
Typical Applications
The Ross 3573B7183 is commonly used in:
- Mechanical power press clutch and brake control systems
- Stamping and metal-forming equipment requiring monitored safety circuits
- Energy isolation and lockout systems for Category 3/4 safety circuits
- Air cylinder press load-holding systems
- Industrial fluid power circuits demanding internally monitored dual valve technology
Compatibility & Replacements
Compatible With
- Ross SERPAR® 35 Series pneumatic control systems
- Mechanical press clutch and brake control circuits
- Monitored pilot air supply networks (24 VDC or 110-120 VAC solenoid piloting)
- Standard industrial pneumatic fluid power systems (filtered air)
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. Ross double valve model variants are application-specific, and direct replacement compatibility depends on exact port configuration, solenoid voltage, and mounting requirements.
Works With
- Industrial pneumatic monitoring and safety control systems
- Dual solenoid pilot control logic (both solenoids energized to shift valve)
- Manual reset and lockout mechanisms on presses
- Pressure switch monitoring and feedback devices
