Overview

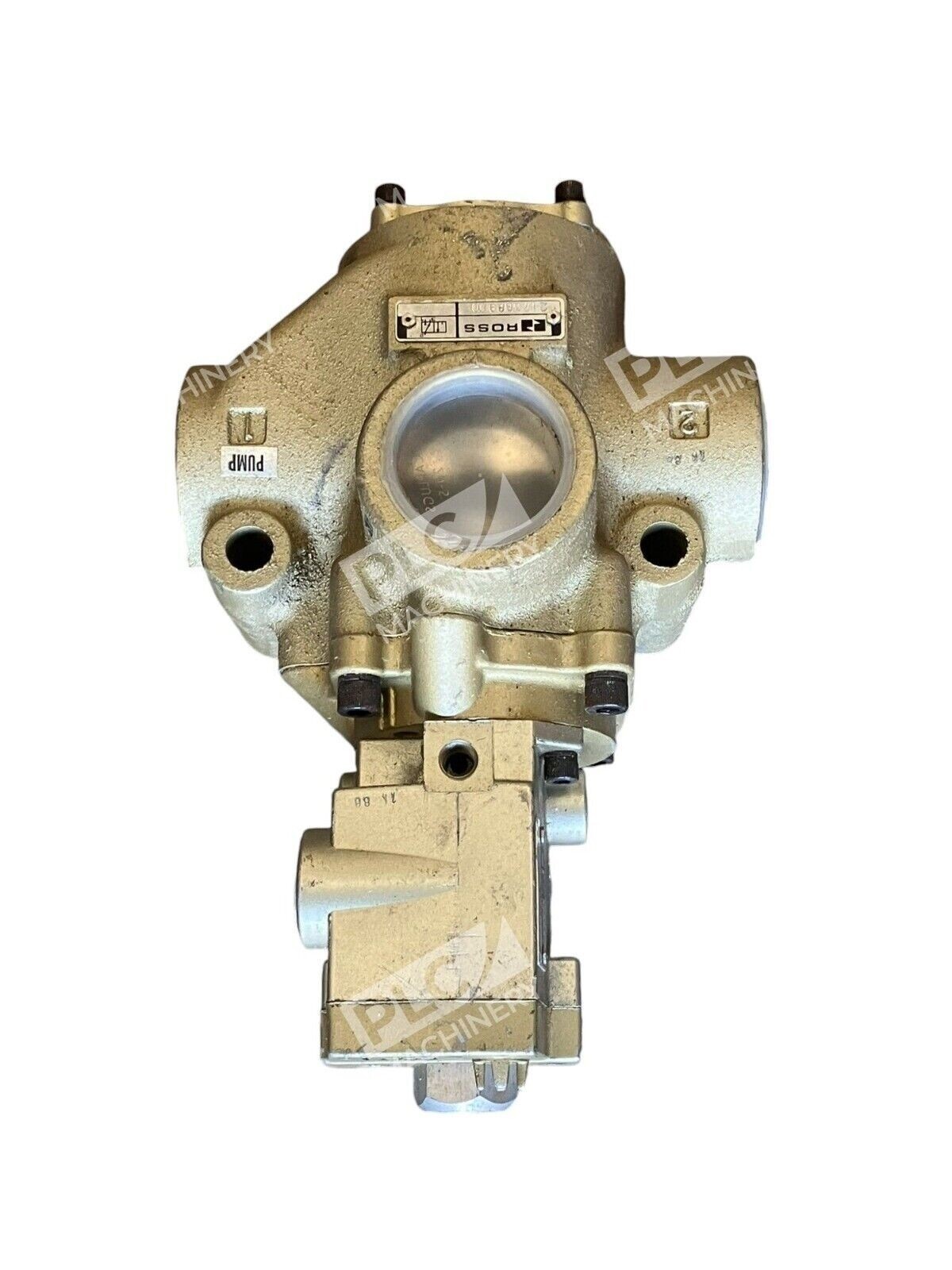

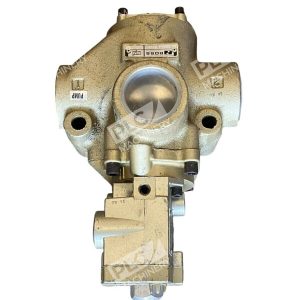

The Ross 2173B8900 is a solenoid-operated poppet valve designed for precise air and pneumatic control. Built on Ross Controls’ proven poppet valve technology, this model features a 1-3/4 in NPT threaded connection and solenoid actuation for fast, repeatable operation. The valve is ideal for pneumatic manifold systems, industrial automation, and fluid power applications requiring reliable directional or flow control.
Key Features
- Solenoid-operated poppet construction for instant opening and closing
- 1-3/4 in NPT threaded inlet and outlet ports
- High-speed, repeatable valve action with strong sealing forces
- Available in AC or DC solenoid options with standard voltage configurations
- Designed for filtered compressed air and pneumatic media
- Compact design integrates easily into manifolds and control systems
Technical Specifications
- Port Size: 1-3/4 in NPT
- Valve Type: Solenoid-operated poppet valve
- Thread Style: NPT (National Pipe Thread)

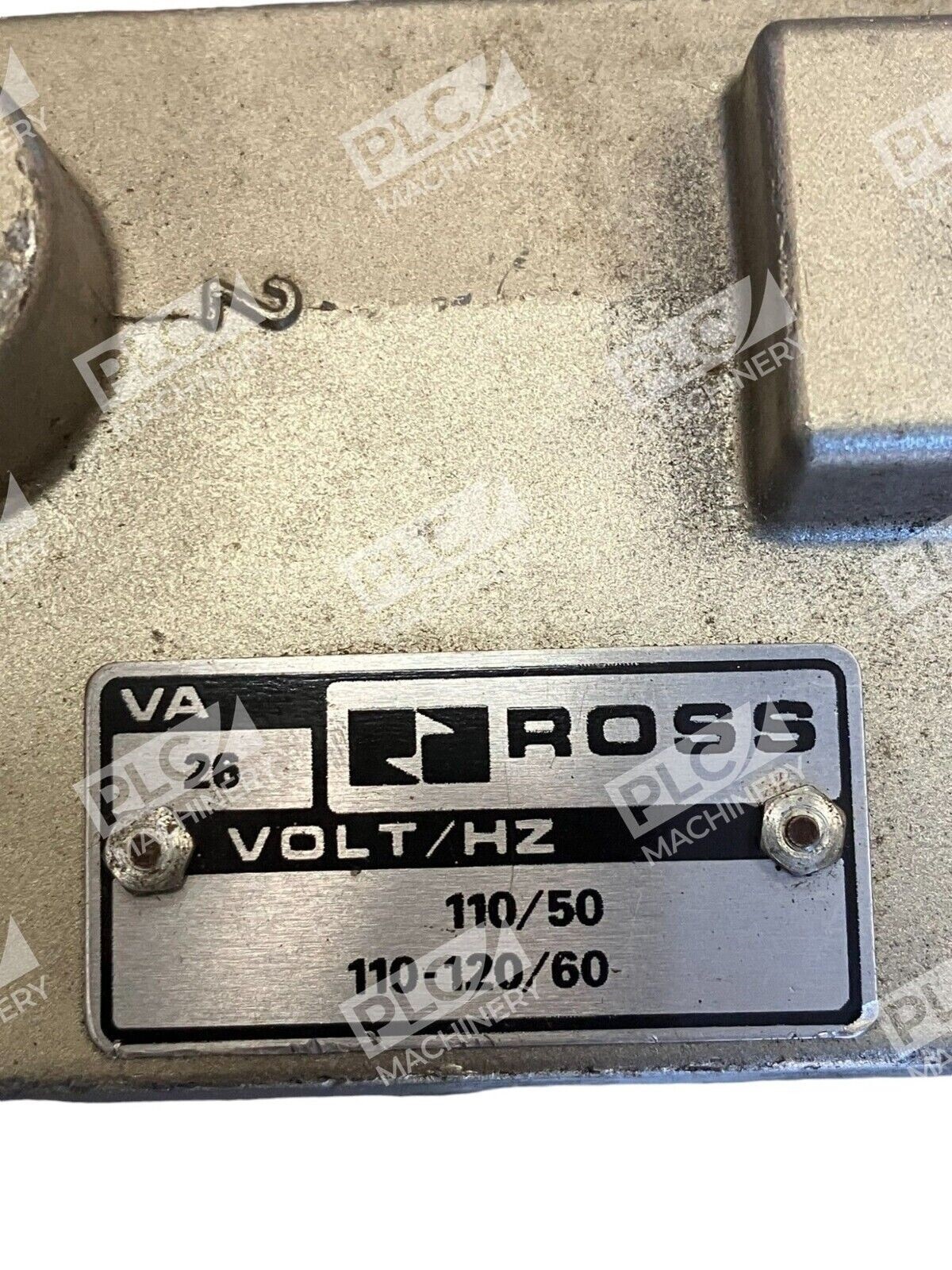

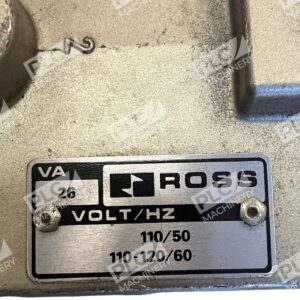

- Solenoid Options: AC or DC power
- Standard AC Voltages: 100-110V 60 Hz, 200-240V 50/60 Hz
- Standard DC Voltages: 24V DC, 110V DC
- Ambient Operating Temperature: 40° to 120°F (4° to 50°C)
- Media Temperature: 40° to 175°F (4° to 80°C)
- Inlet Pressure Range: 15 to 150 psig (1.0 to 10.3 bar) for 1-3/4 in ports
- Maximum Design Proof Pressure: 150 psig (10.3 bar)
- Flow Media: Filtered air, 5 micron recommended
Typical Applications
- Pneumatic directional control and switching in automated manufacturing lines
- Fluid power control systems and manifold integration
- Industrial automation and machine tool applications
- Compressed air supply and exhaust regulation
- Hydraulic pilot and control circuits
- Safety and energy isolation systems in industrial settings
Compatibility & Replacements
Compatible With
- Pneumatic control manifolds and cavity blocks
- Industrial compressed air systems (5 micron filtered minimum)
- Multi-solenoid stacked valve configurations
- Standard pneumatic tool and equipment control circuits
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. Ross poppet valve designs are generally interchangeable within the same port size and solenoid configuration, but model-specific substitutions require confirmation of pressure ratings, flow paths, and cavity dimensions.
Works With
- AC and DC power supplies (standard industrial voltages)
- Compressed air systems at 15–150 psig working pressure
- Pneumatic control electronics and PLC-based automation
- Manifold cavity blocks and subplate mounting
- Standard pneumatic hoses and NPT-threaded fittings
