Overview

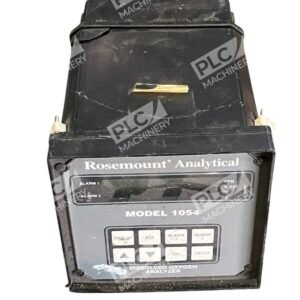

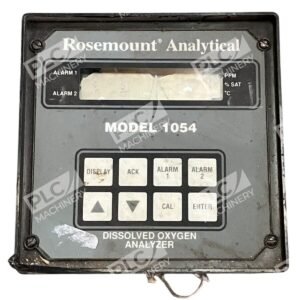

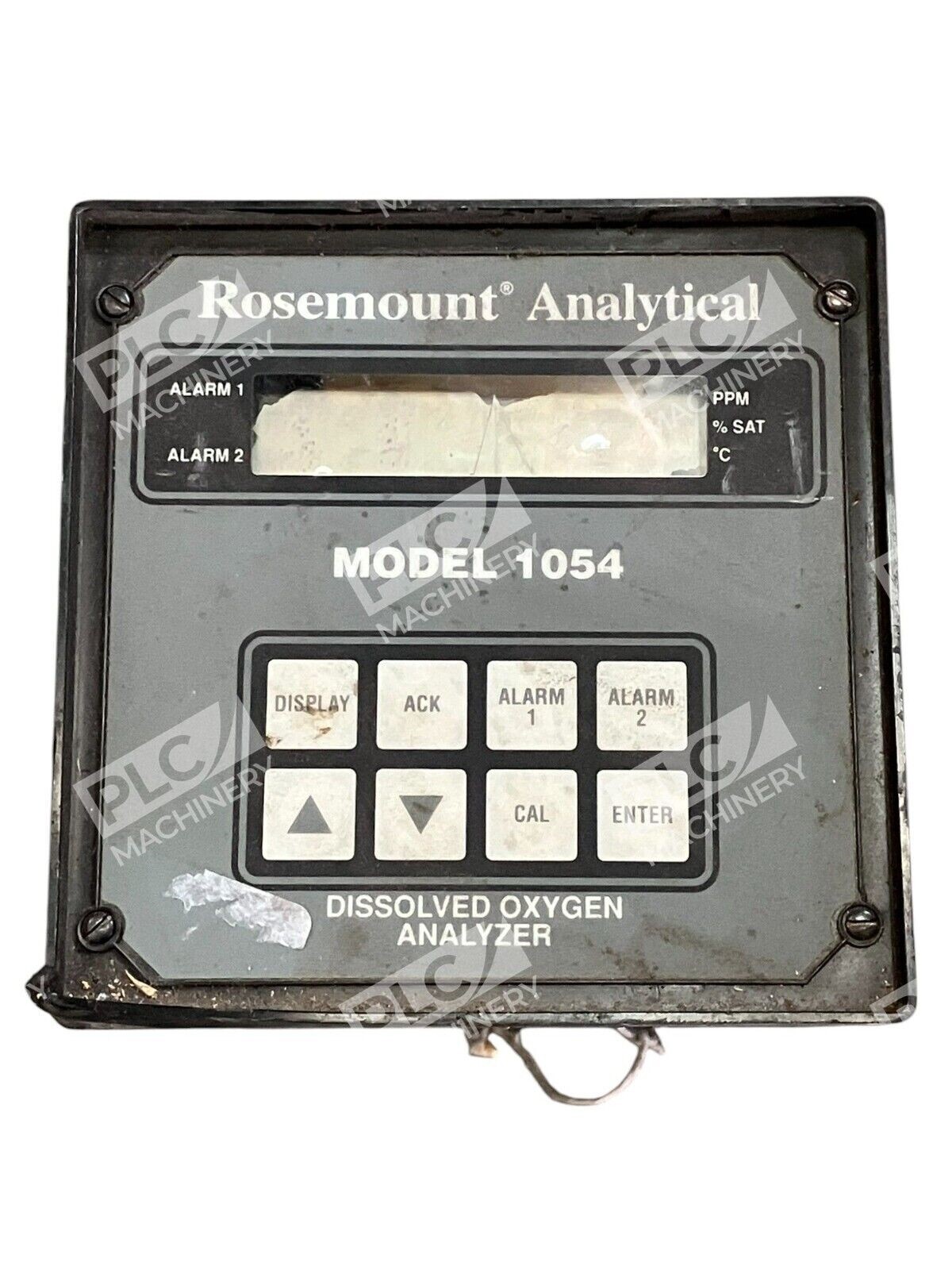

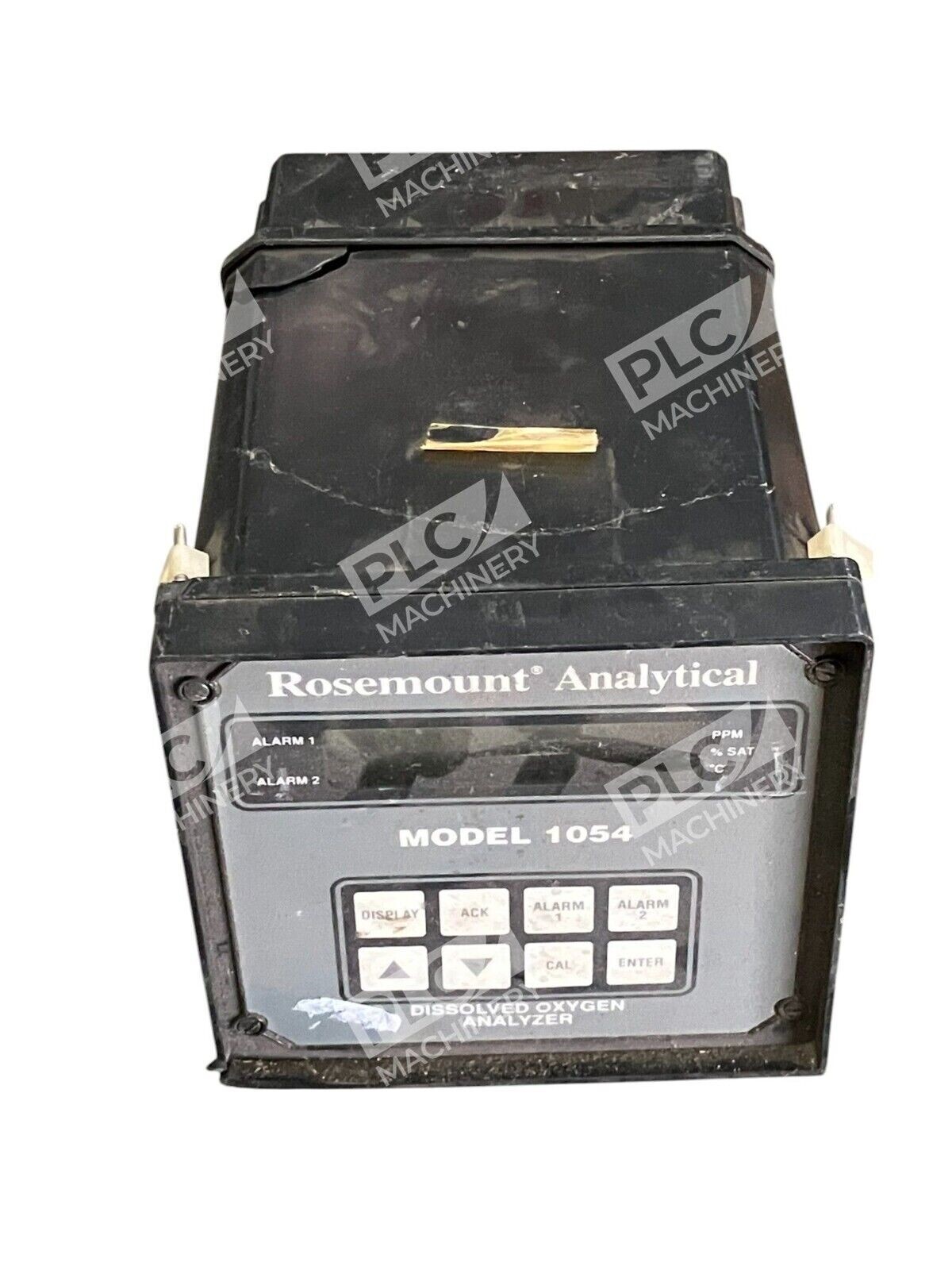

The Rosemount 1054 dissolved oxygen analyzer is a microprocessor-based measurement and control instrument engineered for continuous monitoring of critical process parameters in water treatment, wastewater, power generation, and industrial applications. When equipped with the appropriate sensor modules, this analyzer measures dissolved oxygen, pH, ORP (oxidation-reduction potential), conductivity, percent concentration, and total free chlorine. The unit delivers real-time data and isolated 4-20mA current output for direct integration into process control systems.
Key Features
- NEMA 4X (IP65) weatherproof enclosure — corrosion-resistant, flame-retardant construction for harsh indoor and outdoor environments
- Front panel membrane keyboard with tactile feedback for intuitive operator access and configuration
- Multi-parameter measurement capability — supports dissolved oxygen, pH, ORP, conductivity, chlorine, and concentration monitoring
- Real-time display shows measured value in engineering units, temperature, alarm status, hold output, and fault conditions
- Isolated current output continuously expandable over the measurement range for direct or reverse action control
- User-configurable security — selectable security code protects settings against accidental or unauthorized changes
Technical Specifications
- Enclosure Rating: NEMA 4X (IP65) weatherproof, corrosion-resistant, flame-retardant
- Mounting Options: Panel, pipe, or wall mount
- Display: Digital readout with engineering units, temperature, alarm status, and fault indication
- Current Output: Isolated 4-20mA, expandable and configurable for direct or reverse action
- Input Options: Compatible with standard dissolved oxygen, pH, ORP, conductivity, and chlorine sensor boards
- Measurement Parameters: pH, ORP, conductivity, resistivity, dissolved oxygen, chlorine, percent concentration
- Security Features: User-selectable security code protection for configuration settings
Typical Applications
- Municipal and industrial water treatment facilities
- Wastewater monitoring and process control
- Power generation and cooling water systems
- Food and beverage processing
- Chemical manufacturing and batch control
- Aquaculture and fish farming operations
- Swimming pool and spa water quality management
Compatibility & Replacements
Compatible With
- Rosemount dissolved oxygen, pH, ORP, and conductivity sensor modules
- Standard 4-20mA current input systems and SCADA platforms
- Industrial and municipal process control networks
- Panel-mount control architectures for water quality monitoring
Replaces / Drop-In Replacement For
- Verify with your system integrator for exact model compatibility and replacement specifications
Works With
- Rosemount analytical sensor boards (dissolved oxygen, pH, ORP, conductivity, chlorine)
- 4-20mA current output for DCS/SCADA integration
- Alarm relay outputs for process control logic
- Standard industrial process monitoring systems
