Overview
The Rosemount 0400-13 Endurance Conductivity Sensor is a ruggedized contacting conductivity instrument designed for accurate, real-time measurement of electrolytic conductivity in clean, non-corrosive liquids. The sensor measures electrolytic conductivity in applications from high purity water to clean cooling water. This model is capable of withstanding a maximum temperature of 221°F/105°C and a maximum pressure of 250 PSIG/1825 kPa.
Key Features
- Factory Pre-Calibrated: Factory-measured cell constant ensures out-of-the-box accuracy and no initial calibration requirements.
- Durable Construction: Electrodes are titanium; body is 316 stainless steel; insulator is PEEK; O-rings are EPDM.
- Pt1000 Thermocompensation: Designed with an RTD Pt1000 sensor for precise and repeatable conductivity measurements.
- Ideal Range: Ideal for use in clean, non-corrosive liquid having conductivity less than 20,000 µS/cm.
- Compact & Lightweight: Weighing only 480 grams, the sensor is lightweight and easy to install.
Technical Specifications

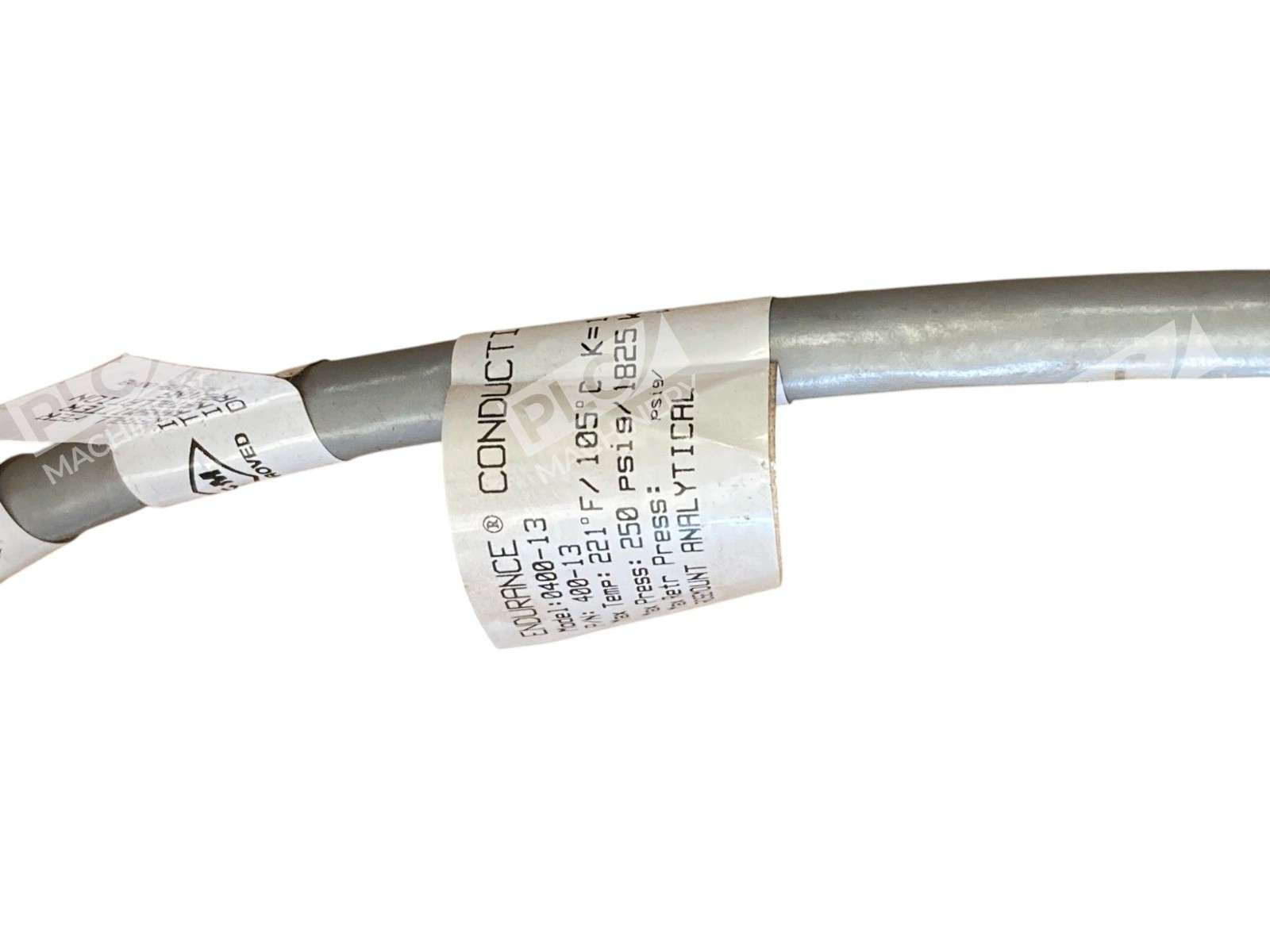

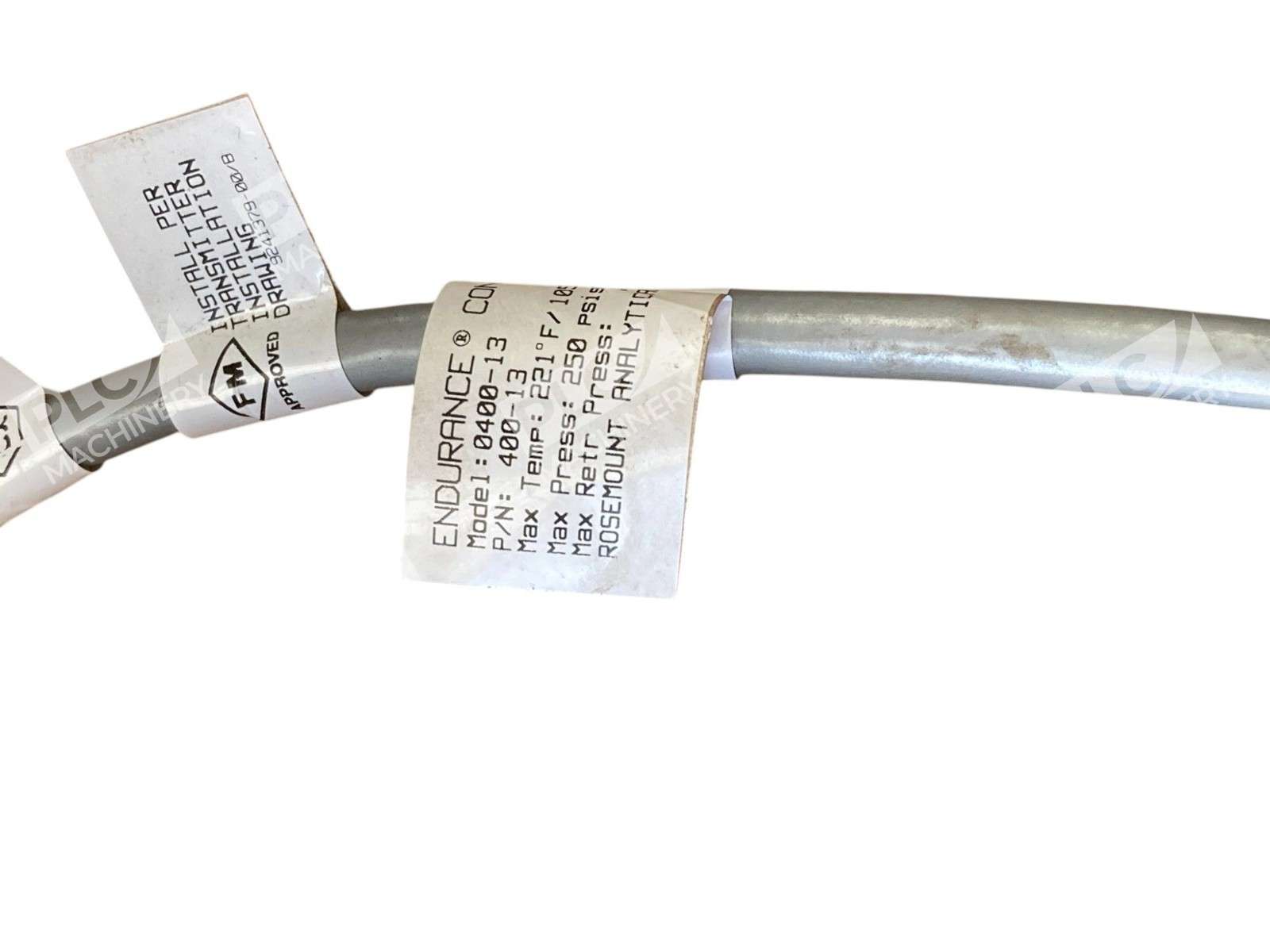

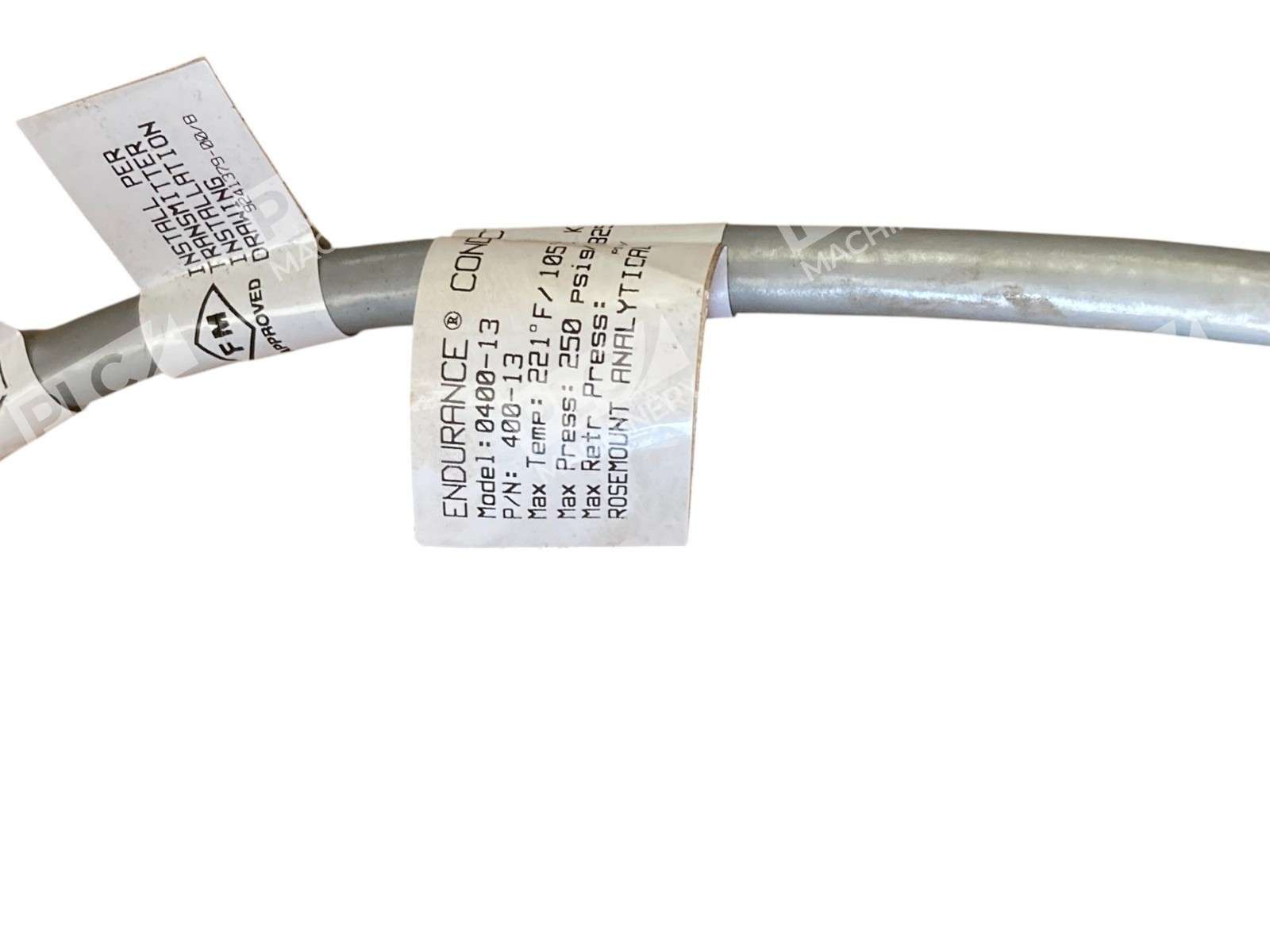

- Model: Rosemount 0400-13
- Part Number: 400-13
- Maximum Temperature: 221°F (105°C)
- Maximum Pressure: 250 PSIG (1825 kPa)

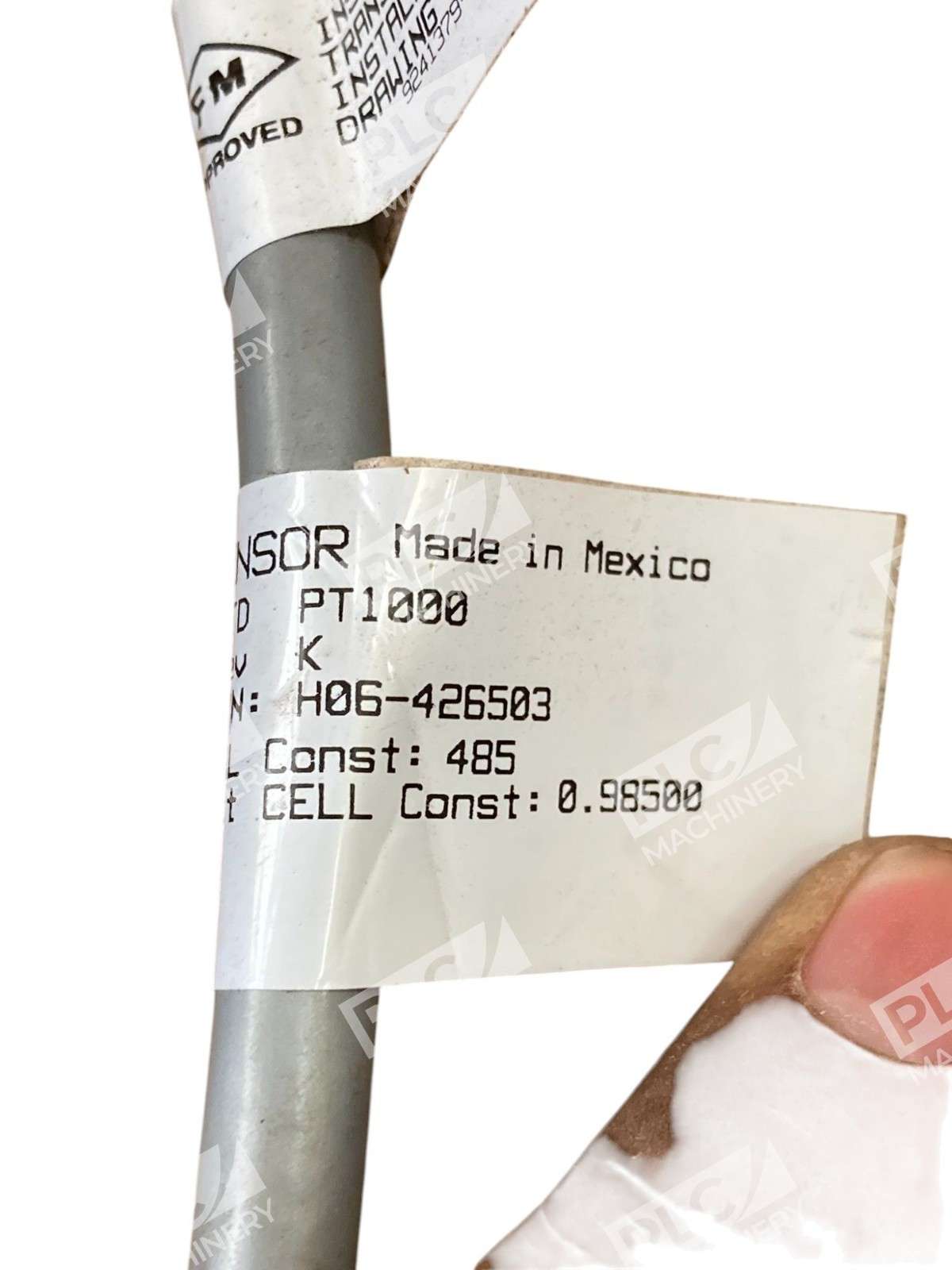

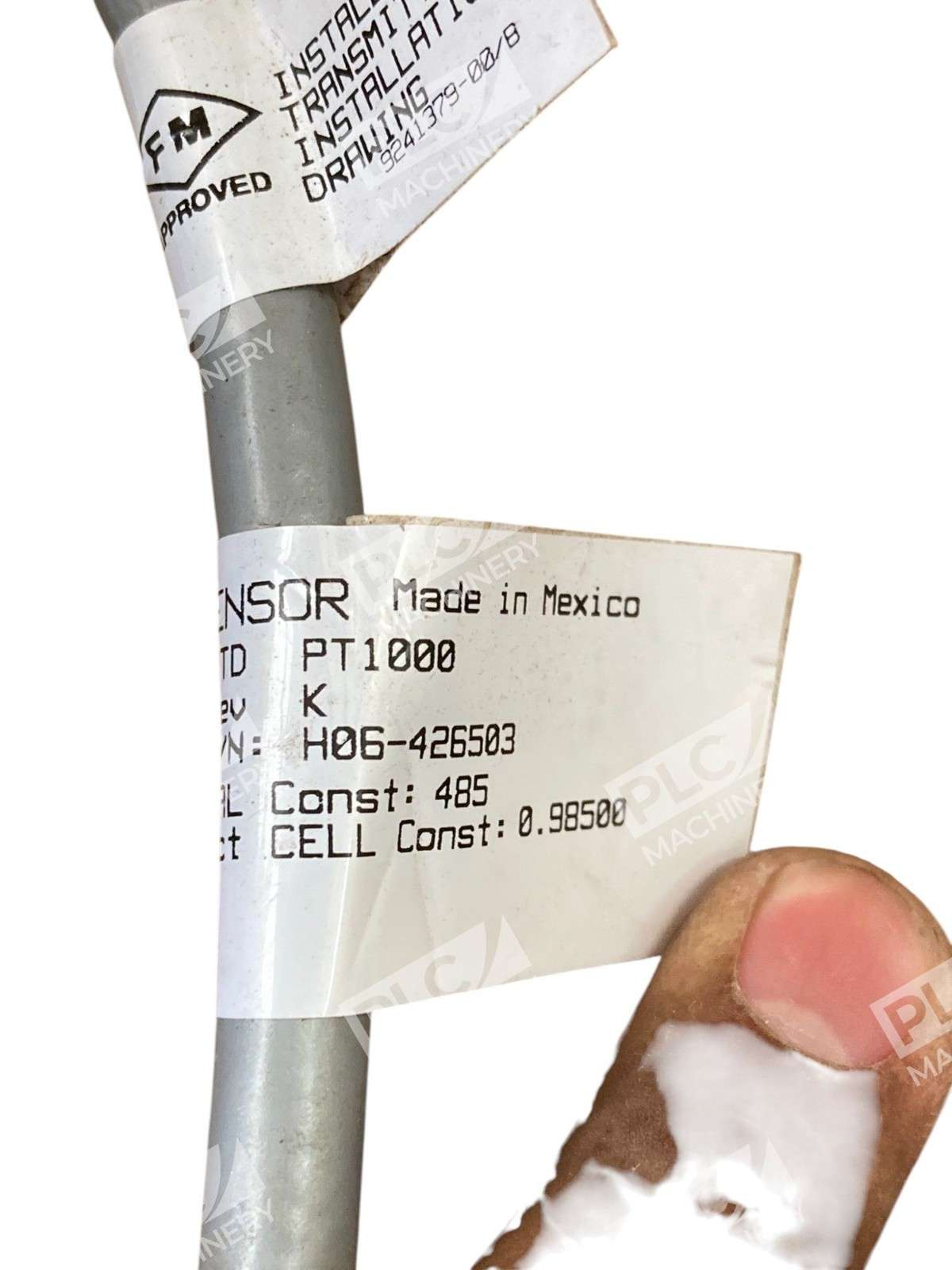

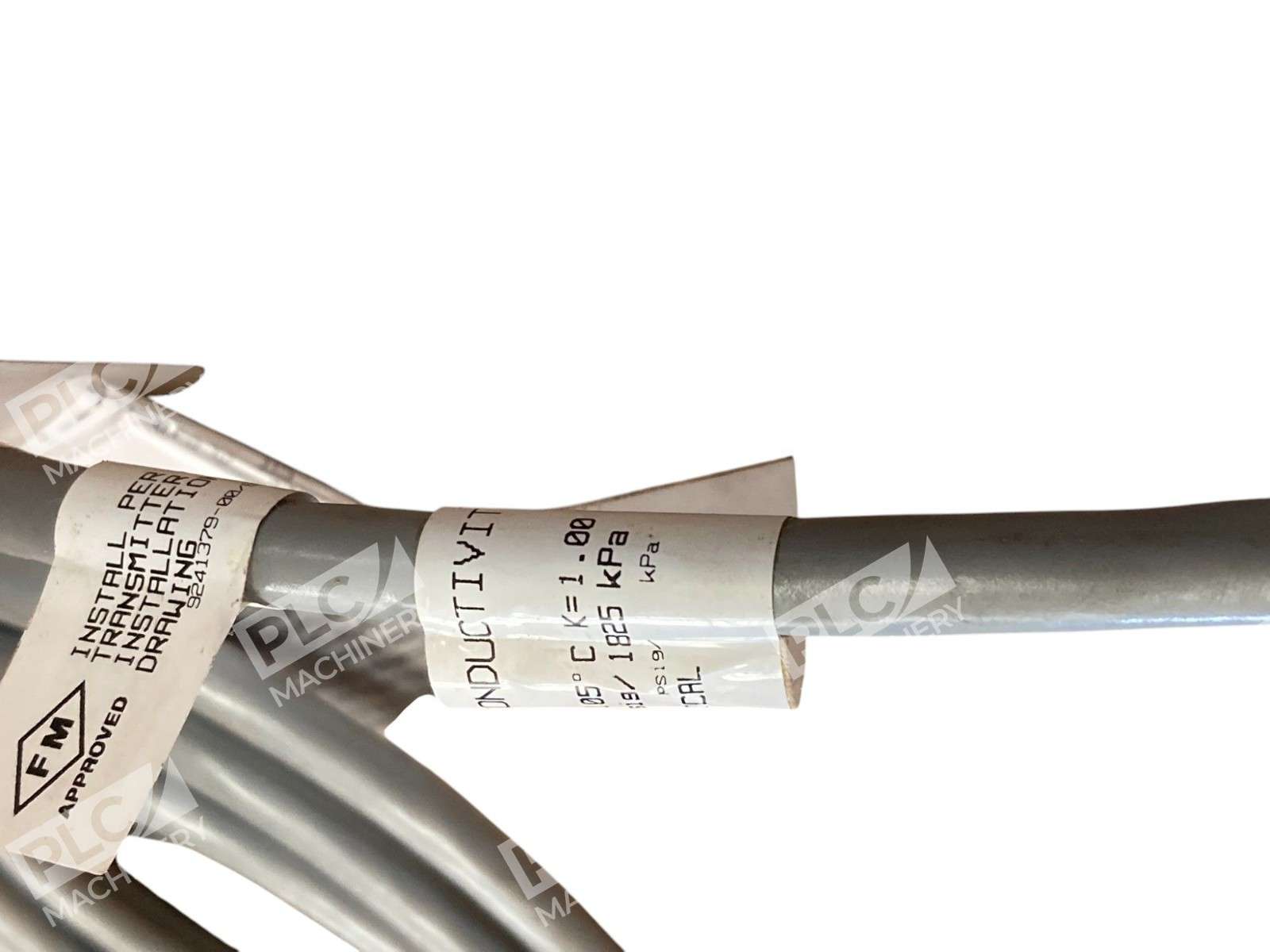

- Cell Constant: 1.0/cm
- Temperature Compensation: Pt1000 RTD (standard)
- Electrodes: Titanium
- Body Material: 316 Stainless Steel

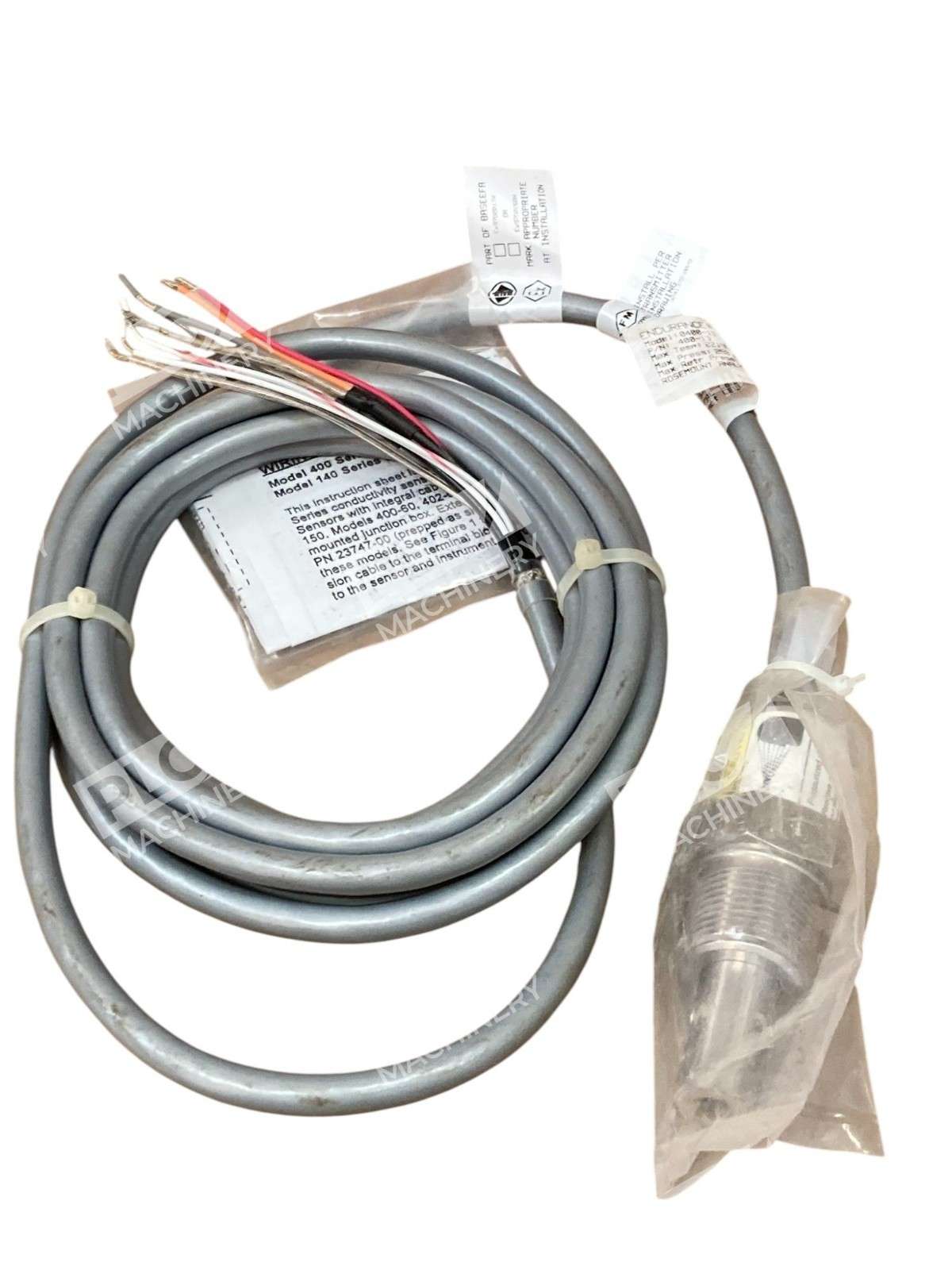

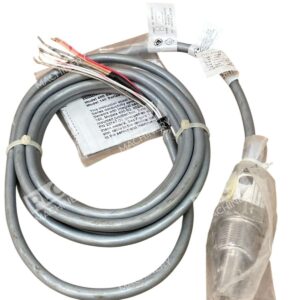

- Integral Cable: 10 ft (3 m) standard; optional lengths available
- Wetted Insulator: PEEK
- O-Ring Material: EPDM
- Weight: 480 grams
- Manufacturer: Rosemount Analytical (Emerson)
- Origin: Mexico
- Conductivity Range: Up to 20,000 µS/cm
Typical Applications
The Rosemount 0400-13 is widely deployed in:
- Ultrapure water and deionized water systems
- Boiler feedwater and steam generation control
- Cooling water conditioning and monitoring
- High-purity process streams and pharmaceutical manufacturing
- Laboratory and analytical instrumentation
- Water quality and environmental monitoring
- Process validation and control in food & beverage operations
Compatibility & Replacements
Compatible With
- Rosemount Transmitter Models: 56, 1056, 1057, 1066, 5081, 5081-C
- Legacy Transmitters: 1055, 54C, 54eC, 4081C, 6081-C
- Direct screw-in installation via 3/4 inch MNPT fitting into process piping
- Pipe tee or flow cell installations for sidestream applications
Replaces / Drop-In Replacement For
- Earlier Rosemount 0400 series conductivity sensors (when same cell constant and RTD type are specified)
- Verify specific model compatibility with your control system or transmitter before ordering
Works With
- All Rosemount Analytical conductivity transmitters and instrumentation platforms
- Third-party process transmitters and PLCs equipped with analog input (4–20 mA) interfaces
- Standard industrial control and SCADA systems
- Emerson DeltaV and other distributed control systems
