Overview

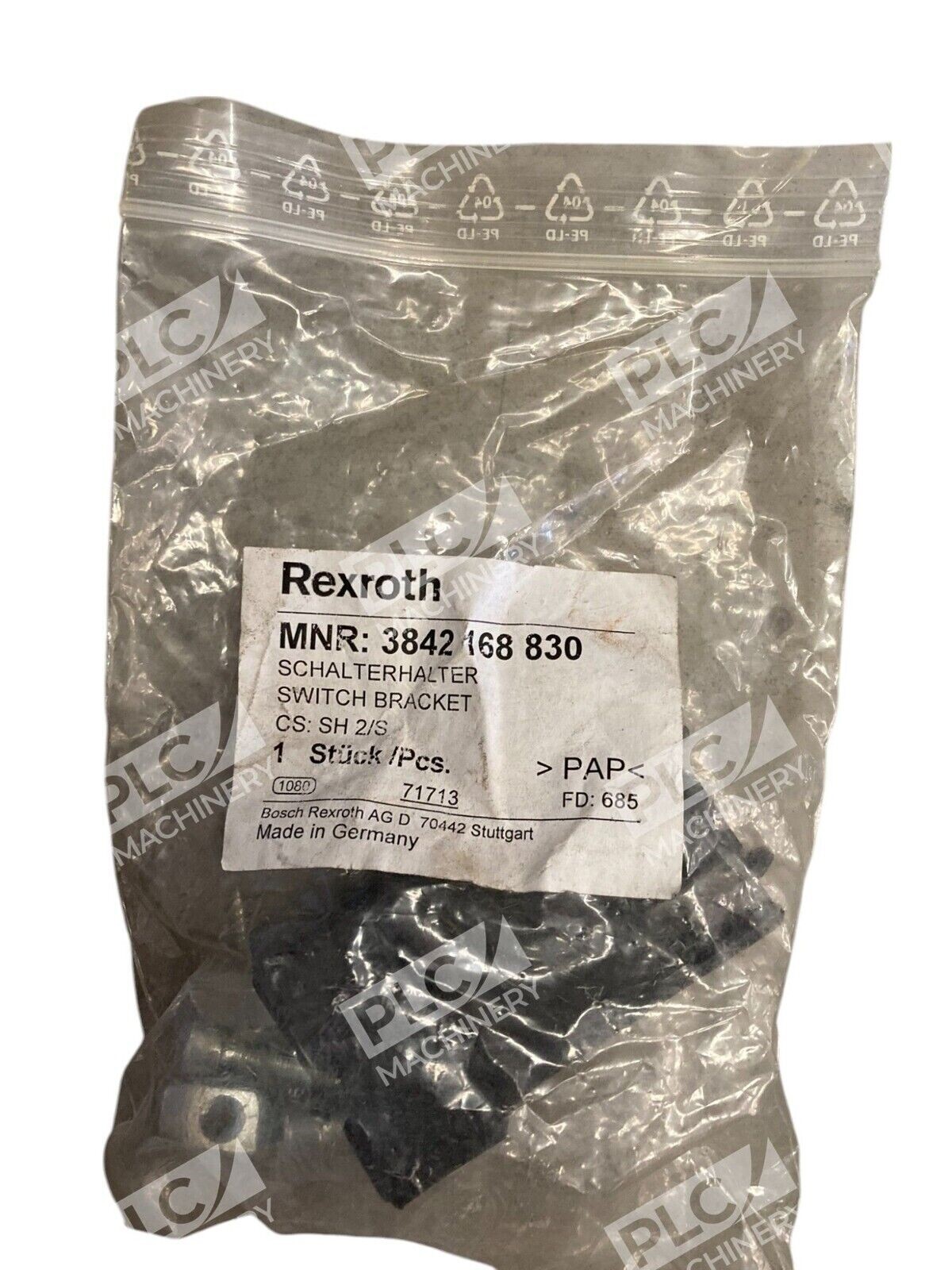

The Rexroth 3842168830 is a CS: SH 2/S switch bracket—a precision sensor-mounting accessory from Bosch Rexroth’s transfer systems family. This bracket is engineered to hold and position switches or sensors within the TS 2-Plus modular transfer system, enabling reliable workpiece pallet detection and position sensing. This is a used, fully functional unit suitable for retrofit, maintenance, or spare-parts applications.
Key Features
- SH 2/S designation for TS 2-Plus transfer system compatibility
- Designed for flush sensor mounting with defined sensing range
- Quick-change capability—sensor removal without bracket adjustment
- Compact black housing for clean integration
- Reliable sensing of workpiece pallet position
Technical Specifications
| Manufacturer | Bosch Rexroth AG |
| Part Number | 3842168830 |
| Model/Series | CS: SH 2/S Switch Bracket |
| Product Category | Switch Bracket / Sensor Mount |
| Color | Black |
| Condition | Used – Fully Functional |
| Compatible System | Bosch Rexroth TS 2-Plus Transfer System |
| Installation Type | VE 2 stop gate / transfer system mounting |
Typical Applications
- Workpiece pallet position sensing from below
- Transfer system control and automation
- TS 2-Plus modular assembly equipment
- Sensor bracket replacement and maintenance
- Industrial conveyor and parts-handling systems
Compatibility & Replacements
Compatible With
- Bosch Rexroth TS 2-Plus Transfer System
- VE 2 stop gate assembly
- Rexroth modular transfer system components
- Standard industrial control switches and proximity sensors
Replaces / Drop-In Replacement For
The Rexroth 3842168830 is a direct replacement for other SH 2/S-designated switch brackets in TS 2-Plus systems. Verify compatibility with your system integrator before ordering to confirm mounting location and sensor type.
Works With
- Rexroth TS 2-Plus control logic and sensor networks
- Standard industrial proximity sensors
- Bosch Rexroth modular automation platforms
- PLC-based machine control systems using TS 2-Plus
