Overview

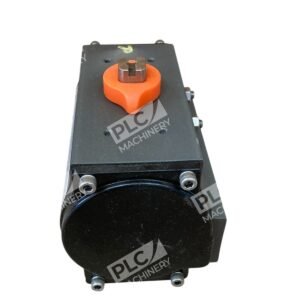

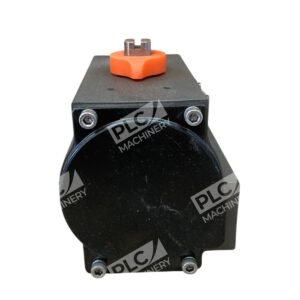

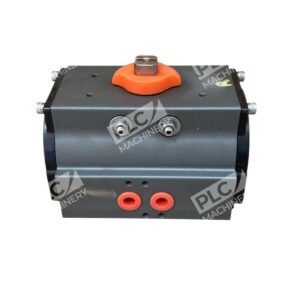

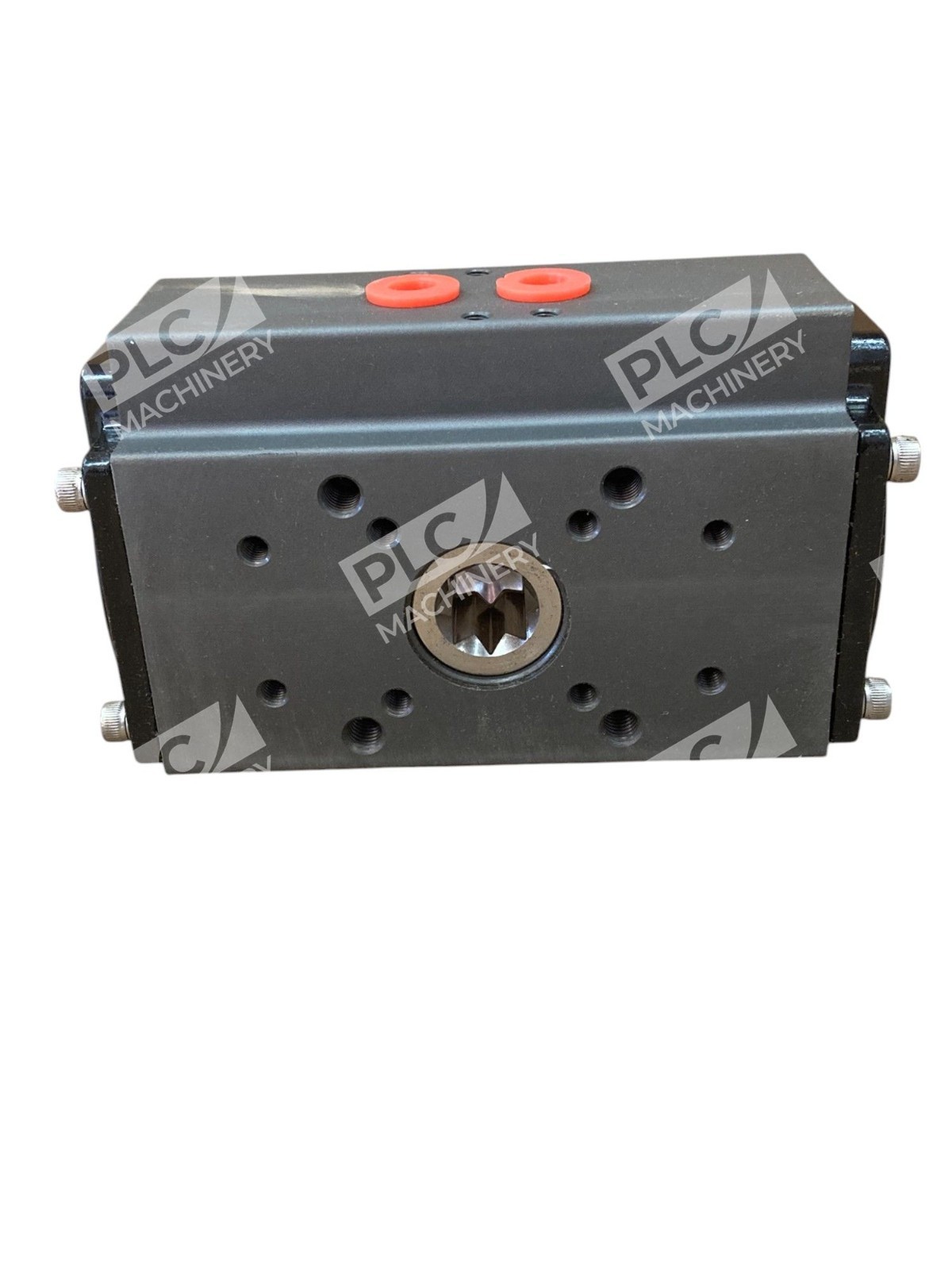

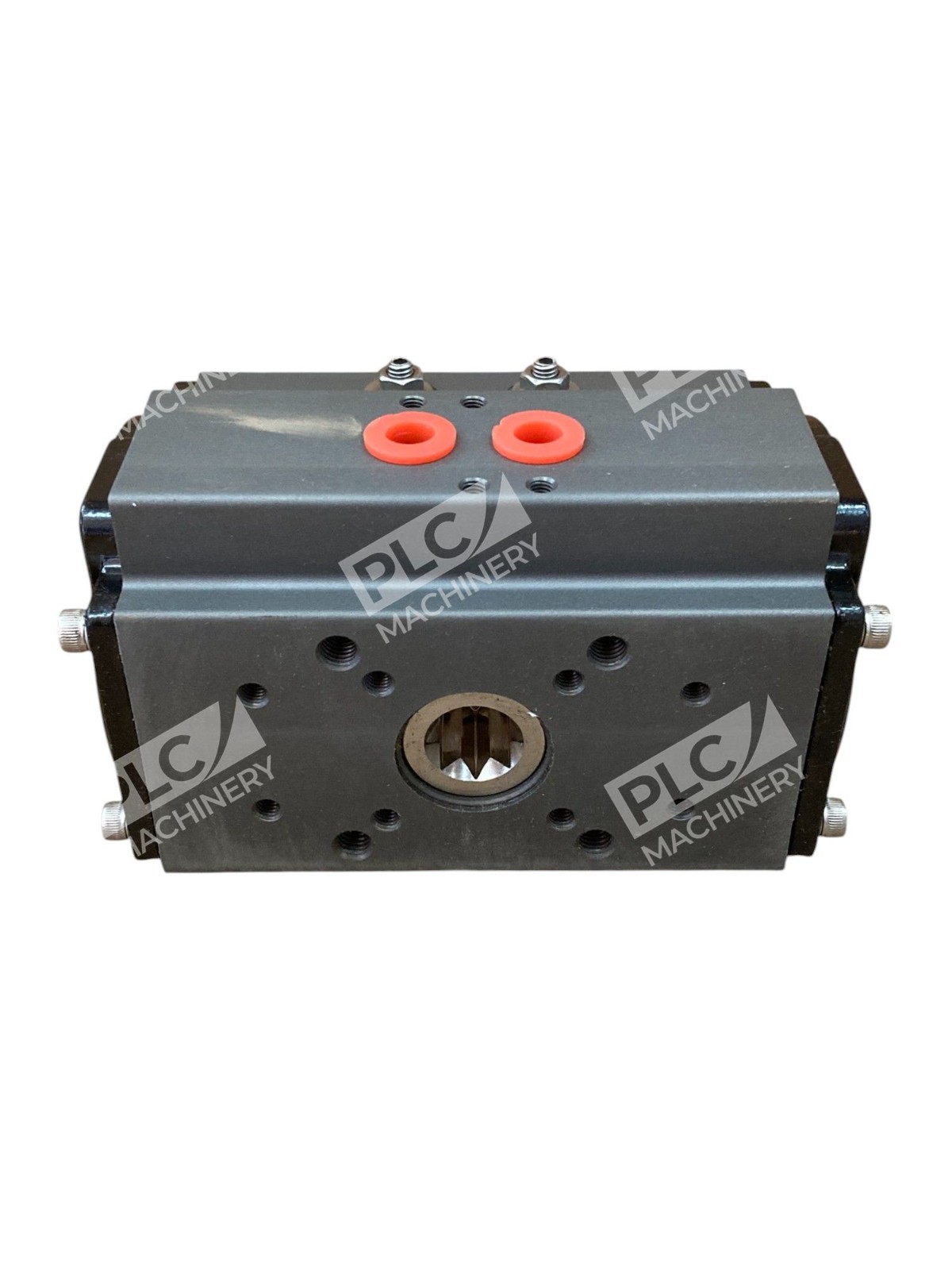

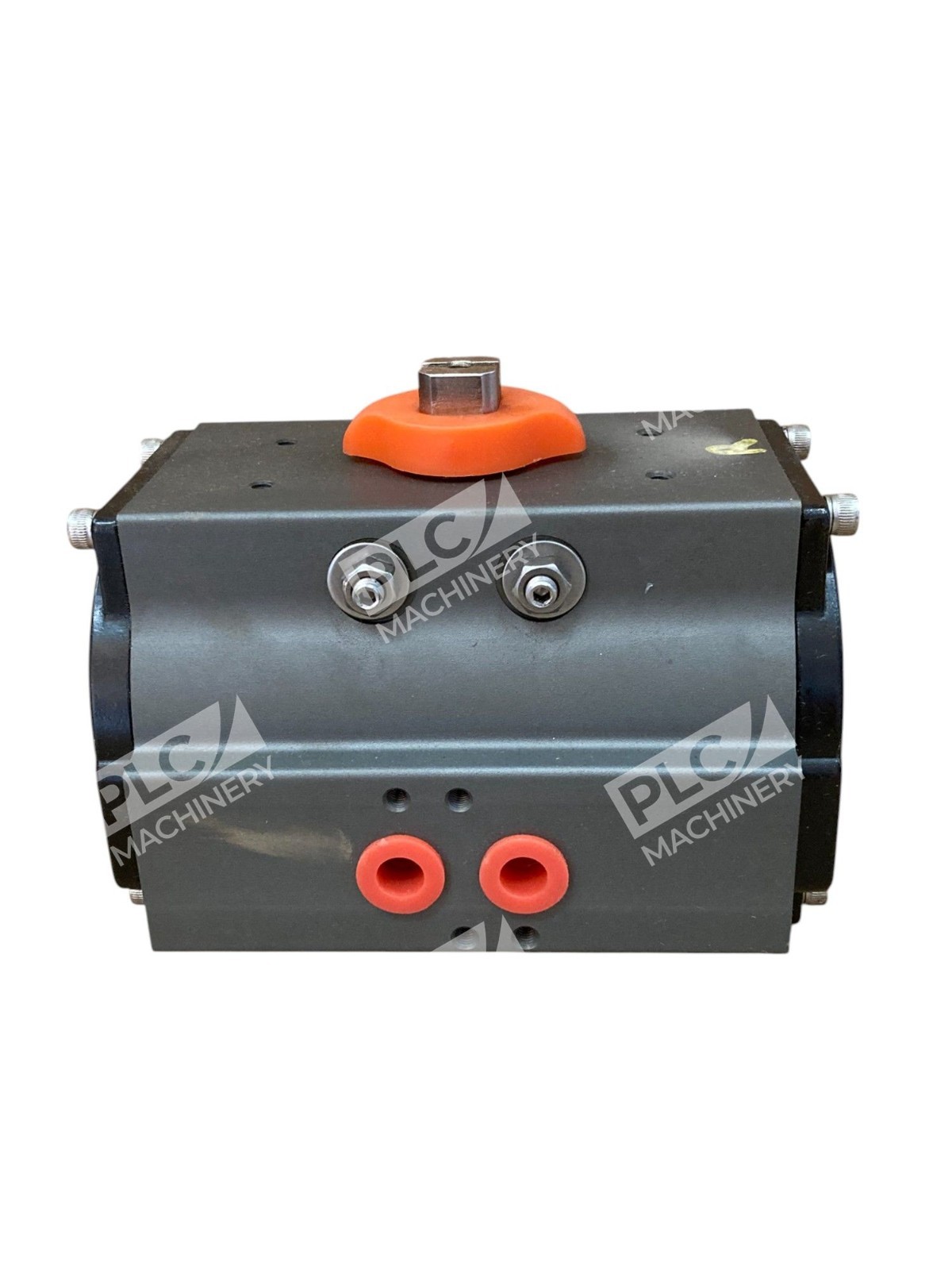

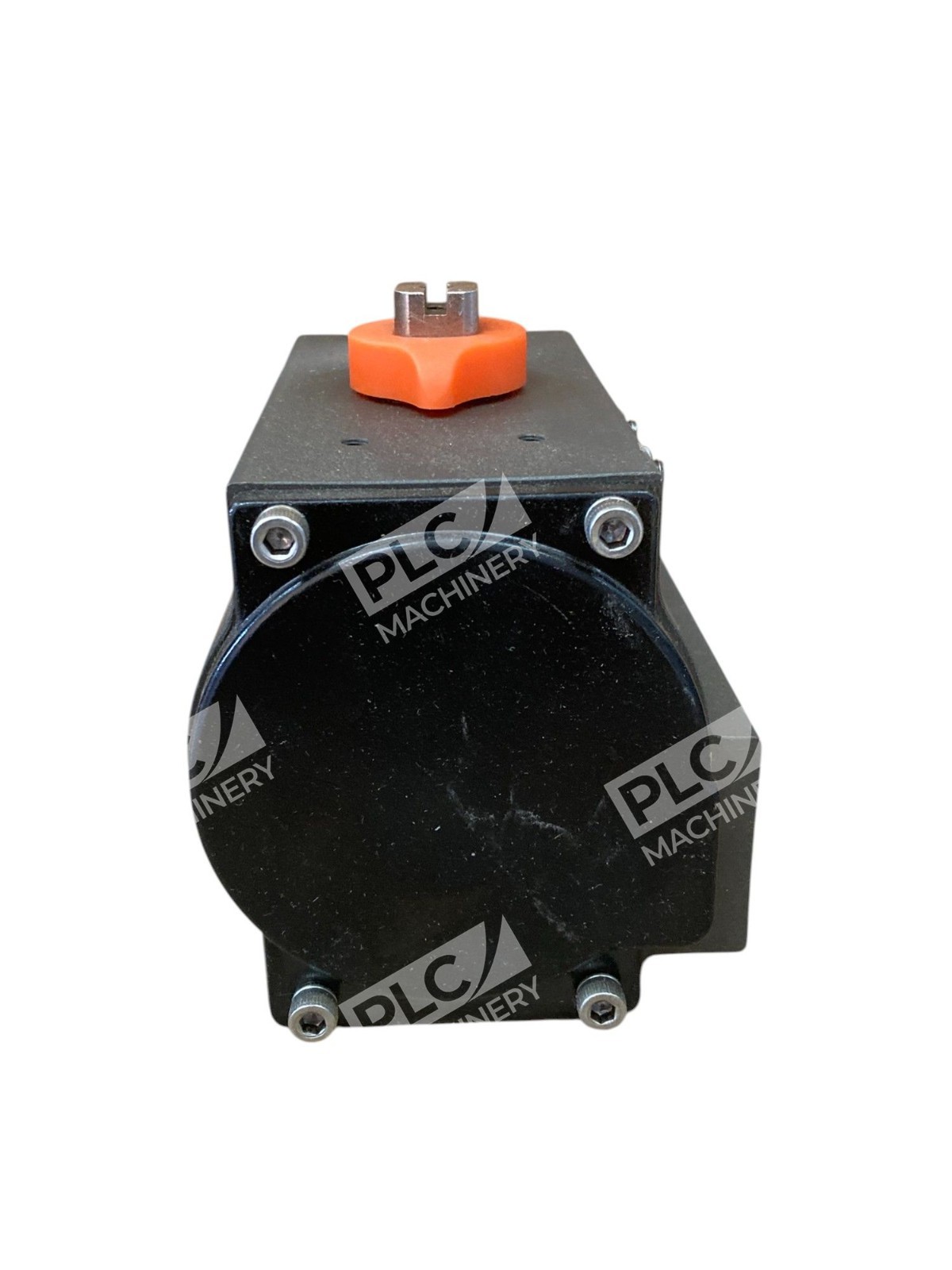

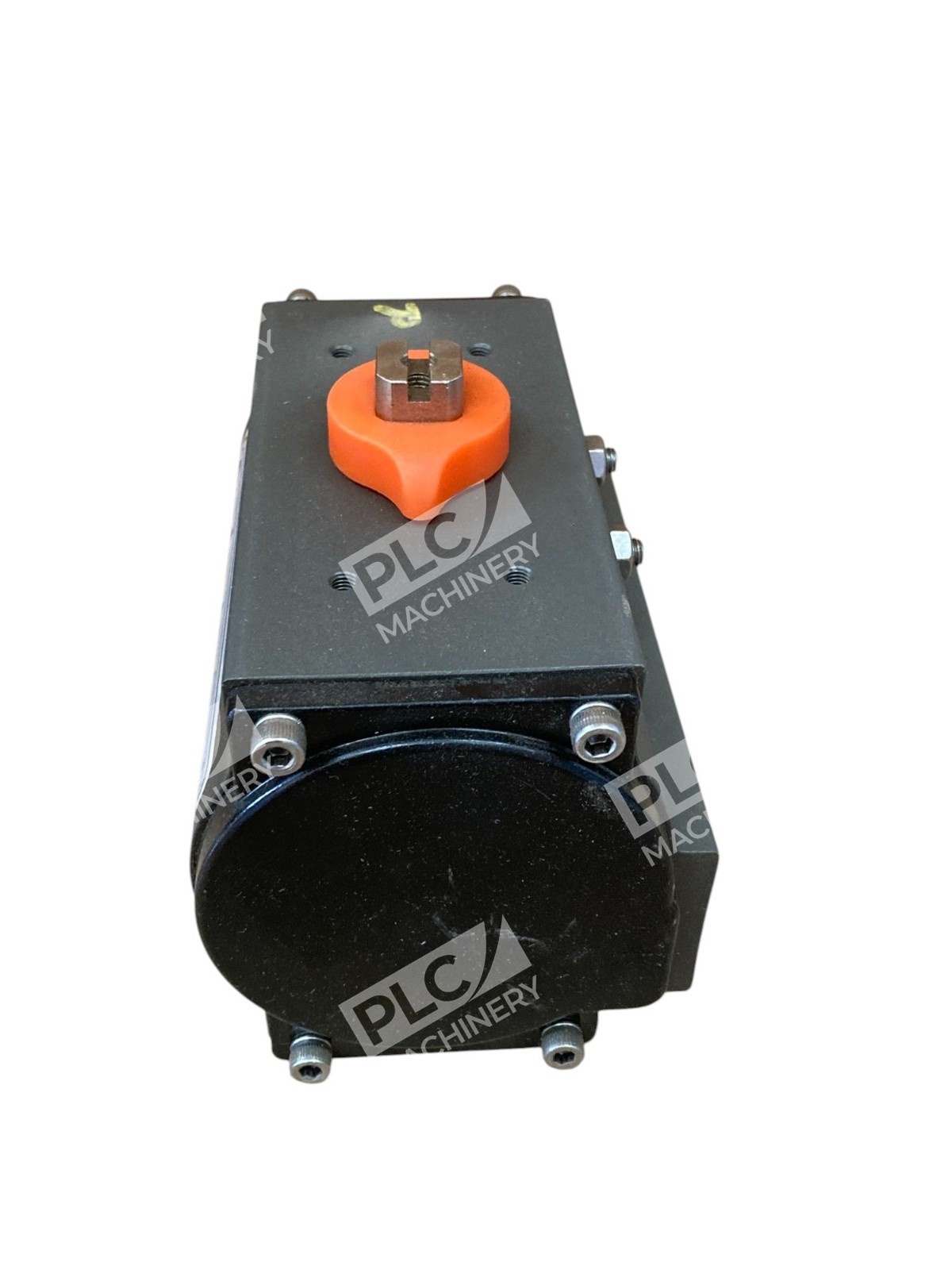

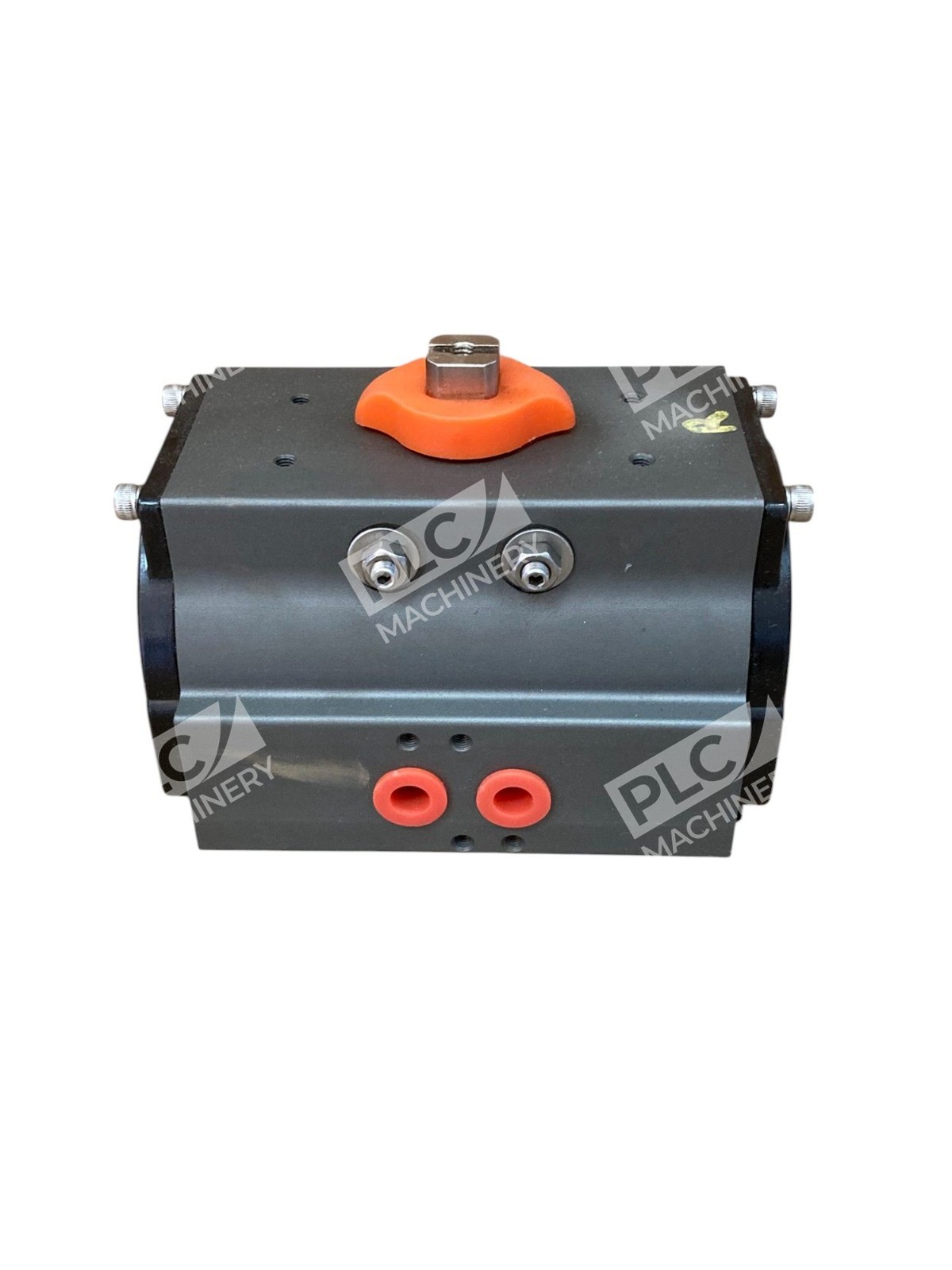

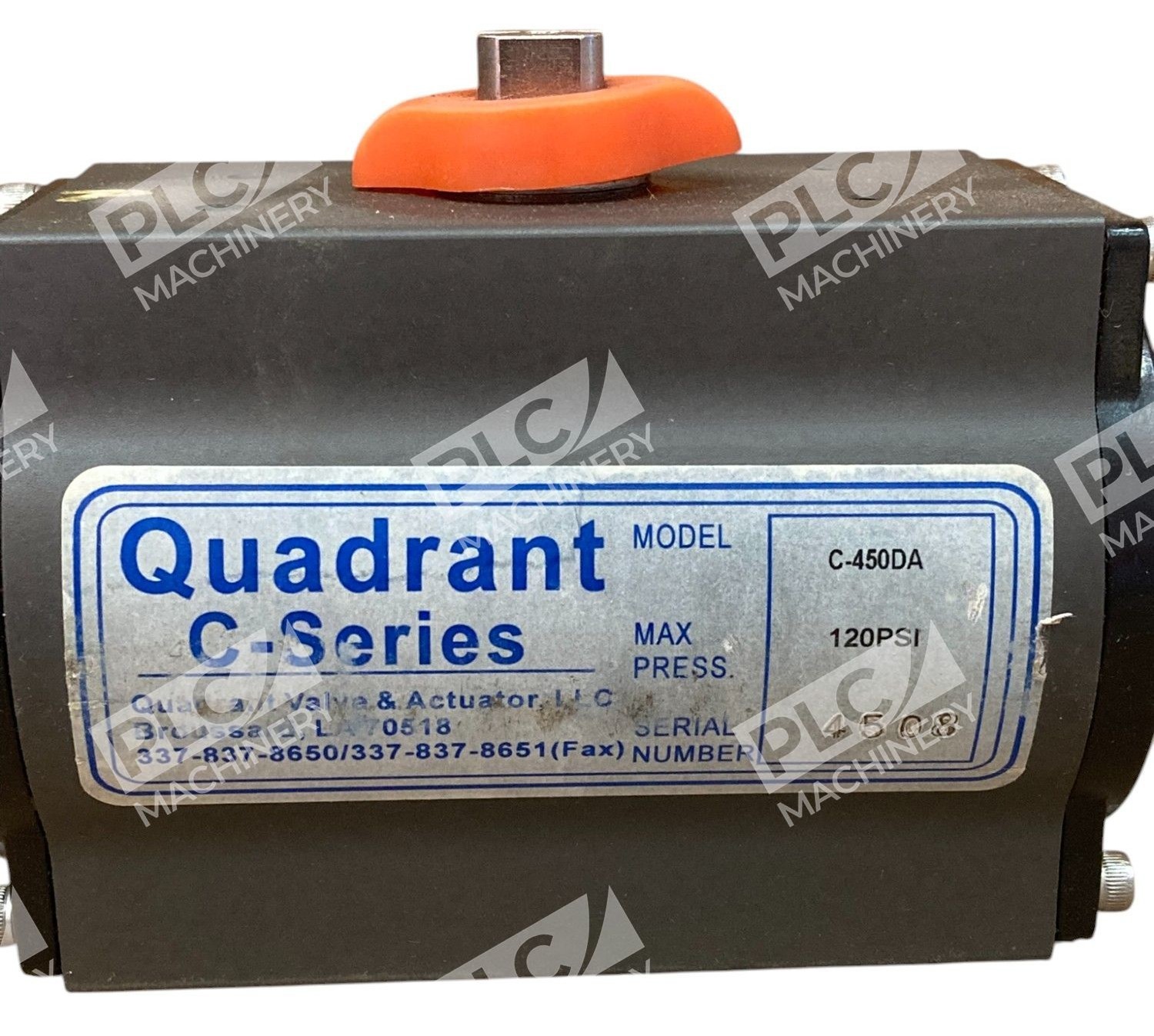

The Quadrant C-450DA pneumatic actuator is a robust, double-acting solution for automating quarter-turn valves in industrial process control and fluid handling systems. Designed for demanding industrial applications, this actuator delivers reliable performance and durability for automating quarter-turn valves, including ball, plug, and butterfly valves. With actuator input supply pressure up to 120 psi (8 bar), the C-450DA operates in a temperature range from -40 °F to +200 °F (-40 °C to +93 °C), featuring a hard anodized aluminum alloy body.
Key Features
- Double-Acting Operation: Utilizes air pressure to control both opening and closing actions, ensuring precise valve positioning.
- High Torque Output: Provides 450 in-lbs of torque, suitable for operating a wide range of valve sizes and types.
- Durable Materials: Features an aluminum body with stainless steel components, offering corrosion resistance and longevity in harsh environments.
- Standards Compliance: Complies with ISO 5211 and NAMUR standards, facilitating easy integration with various valves and accessories.
- Adjustable Travel Stops: Allows fine-tuning of valve open and close positions for optimal performance.
- External Position Indicator: Provides clear visual feedback on the valve’s status, aiding in monitoring and maintenance.
Technical Specifications
The C-450DA is engineered for high-cycle industrial valve automation with consistent performance and minimal maintenance downtime.
Typical Applications
- Ball valve automation in water treatment and fluid systems
- Butterfly valve control in HVAC and process piping
- Plug valve operation in oil, gas, and chemical processing
- Automated on/off switching in pneumatic circuits
- Industrial process control and sequencing applications
- Remote or emergency valve operation in confined spaces
Compatibility & Replacements
Compatible With
- ISO 5211 mounting pattern valve flanges
- NAMUR-standard actuator connections and accessories
- Ball, butterfly, and plug quarter-turn valves
- Standard pneumatic supply systems up to 120 PSI
- External limit switches and solenoid valve controls
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The C-450DA is a member of the Quadrant C-Series family; other torque ratings in the series include C-125DA, C-250DA, C-1000DA, C-2250DA, C-3650DA, C-5000DA, and C-11000DA models.
Works With
- Pneumatic solenoid valve kits and control panels
- Limit switch position feedback systems
- Air pressure regulators and supply manifolds
- ISO 5211 mechanical couplers and shaft extensions
- Industrial PLC and automation control systems
