Overview

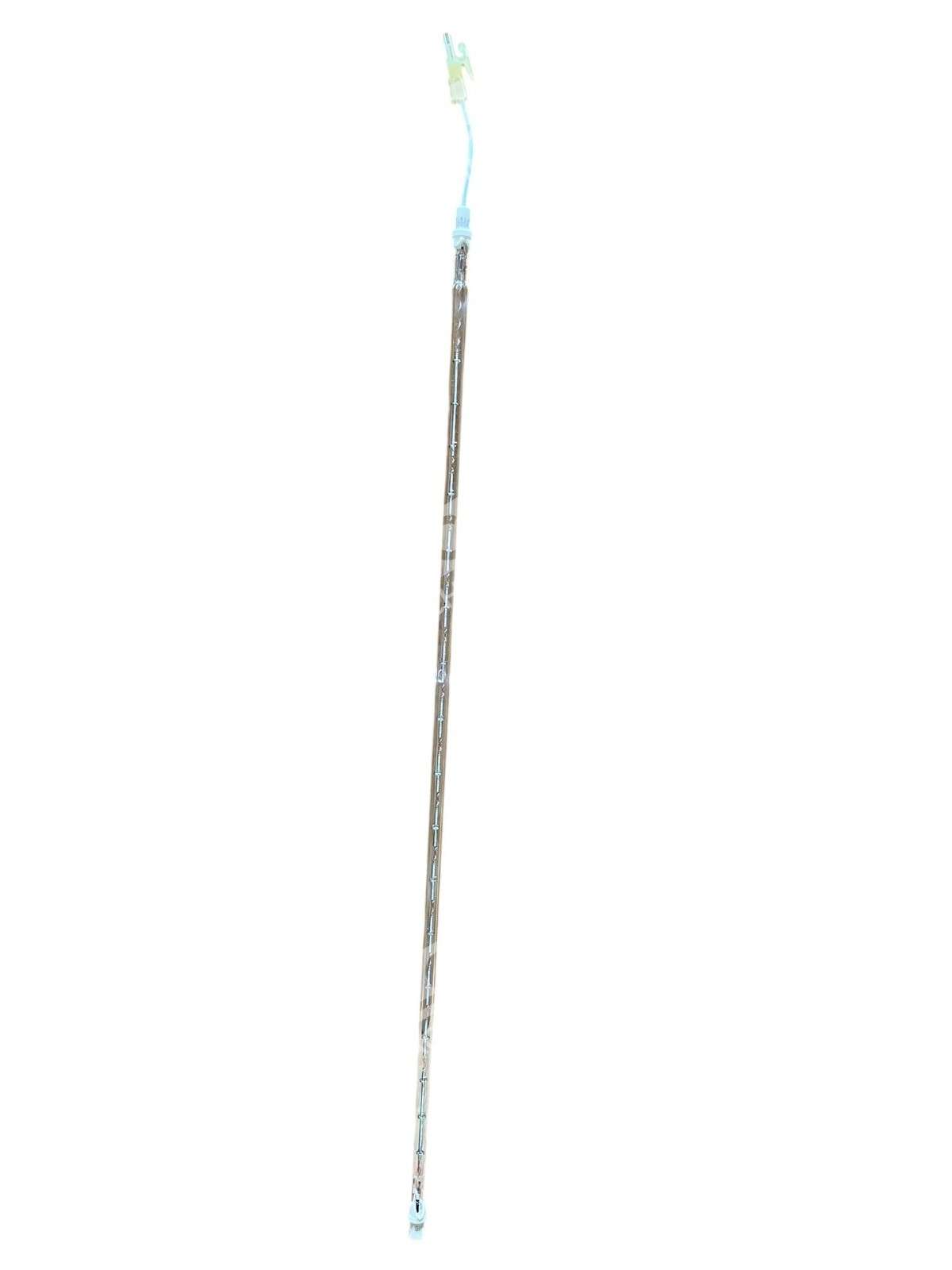

The QIR120-800SK infrared halogen heating lamp is a specialized heat source designed for applications requiring efficient, controlled infrared heating. Most of the output from this light source falls in the infrared region, and it is proven to be an extremely efficient heat energy source. This lamp operates at 120V and delivers 800W of consistent heat output, making it suitable for food warming, industrial drying, curing, dehydrating, and baking applications.
Key Features
- Efficient Infrared Output: Over 85% of the input energy is converted into infrared energy.
- Halogen Cycle Technology: Designed up to 5000 hrs with almost no loss in infrared output.
- Precise Temperature Control: Clean, instantaneous heat delivery for accurate process control.
- Compact Design: Creates clean, safe heat source which can be flexibly controlled and minimizes footprint.
- Low Maintenance: Consistent performance with minimal degradation over lamp lifetime.
Technical Specifications
- Power Rating: 800W
- Voltage: 120V
- Lamp Type: Quartz Infrared Halogen
- Typical Operating Life: 5000 hours
- Heat Output: Over 85% infrared conversion
- Base Type: Halogen lamp configuration
Typical Applications
Typical applications include baking, drying, curing, dehydrating, space heating and warming of food. The QIR120-800SK is also used in food service equipment, commercial warming displays, and light industrial heating processes where controlled infrared heat is required. Its fast warm-up time and precise output make it ideal for processes where consistent temperature management is critical.
Compatibility & Replacements
Compatible With
- Standard 120V electrical supply circuits
- Infrared heating assemblies and reflector arrays
- Food service and commercial kitchen equipment
- Industrial process heating systems
- Laboratory and testing equipment requiring controlled heat sources
Replaces / Drop-In Replacement For
- Verify compatibility with your equipment manufacturer before ordering. The QIR120-800SK may be compatible with other 800W, 120V infrared halogen lamp models, but exact cross-references should be confirmed with your system integrator.
Works With
- Standard 120V AC electrical systems
- Halogen lamp sockets rated for quartz infrared lamps
- Infrared reflector and heating element assemblies
- Temperature controllers and thermal management systems
- Industrial heating equipment from major OEM suppliers
