Overview

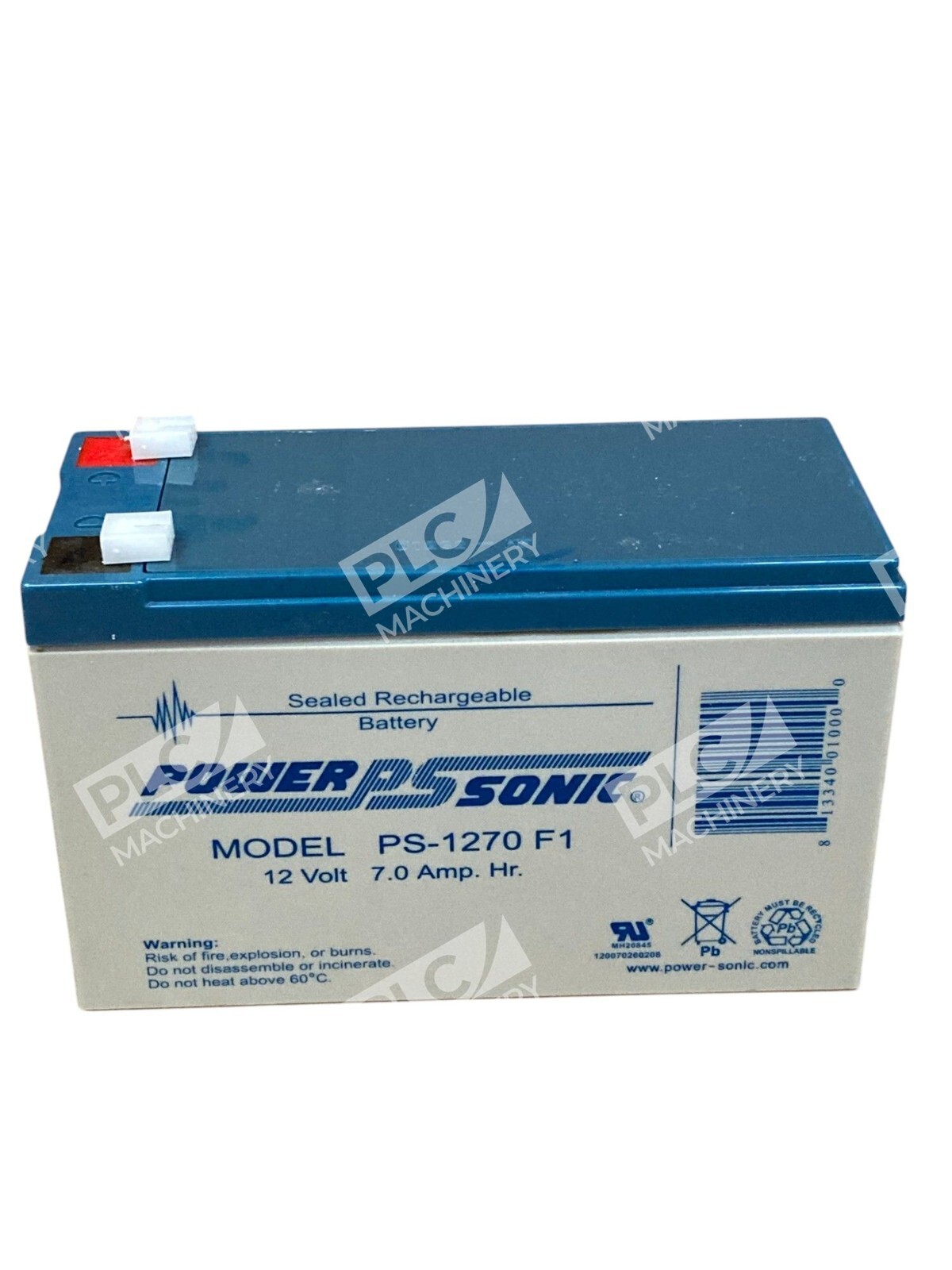

The Power Sonic PS-1270 F1 is a compact 12V 7Ah sealed lead acid battery engineered for general purpose and standby power applications. AGM (Absorbent Glass Mat) technology delivers maintenance-free, spill-proof operation in any position. With a valve-regulated design and impact-resistant ABS case, this battery provides reliable backup power for security systems, emergency lighting, UPS units, medical devices, and telecommunications equipment.
Key Features
- Sealed, maintenance-free lead acid chemistry with AGM technology
- Valve-regulated, spill-proof construction for safe operation in any orientation
- F1 terminal connectors (0.187″ spade terminals)
- UL recognized and CE certified for transport and safety
- Compact dimensions: 5.95 × 2.56 × 3.86 inches (L × W × H)
- Lightweight at 4.8 lbs with ABS impact-resistant casing
Technical Specifications
Electrical: Nominal voltage 12V DC, capacity 7.0Ah (20-hour rate to 10.5V). Charging temperature range −15°C to +50°C; discharging range −20°C to +60°C.
Charging (Cycle Mode): Limit initial current to 2.1A. Charge to 14.4–14.7V at 68°F (20°C) until current drops below 70mA. For float service, apply 13.5–13.8V (2.25–2.30V per cell).
Physical: Dimensions 5.95 × 2.56 × 3.86 inches; weight 4.8 lbs; ABS case material.
Certifications: UL recognized, CE certified, approved for air transport.
Warranty: 2.5 years from Power-Sonic.
Typical Applications
- Emergency lighting and fire security systems
- UPS (uninterruptible power supply) backup
- Medical mobility devices and equipment
- Alarm systems and signaling devices (air, rail, sea)
- Solar and telecom backup systems
- Ride-on toys, scooters, and personal mobility devices
- Industrial instrumentation and computer systems
Compatibility & Replacements
Compatible With
- Standard 12V DC power systems requiring 7Ah or equivalent capacity
- Universal SLA battery chargers (constant voltage, 14.4–14.7V bulk charge)
- F1 terminal connector systems and spade terminal applications
- Float service applications in backup and standby installations
- Light cyclic applications (charge/discharge cycles for emergency or seasonal use)
Replaces / Drop-In Replacement For
- Power Sonic PS-1270 (earlier production runs)
- Direct replacement for emergency lighting batteries and UPS backup units rated 12V 7Ah
- Yuntong YT-670 and similar 12V 7Ah emergency light batteries with F1 connectors
Works With
- Power-Sonic chargers: PSC-12800A, 12800A-C series
- Standard industrial battery chargers with 14.4–14.7V constant-voltage capability
- F1 terminal quick-disconnect connectors and spade receptacles
- Float-mode power supplies and automated charging systems
- Any system designed for 12V SLA/AGM battery backup
