Overview

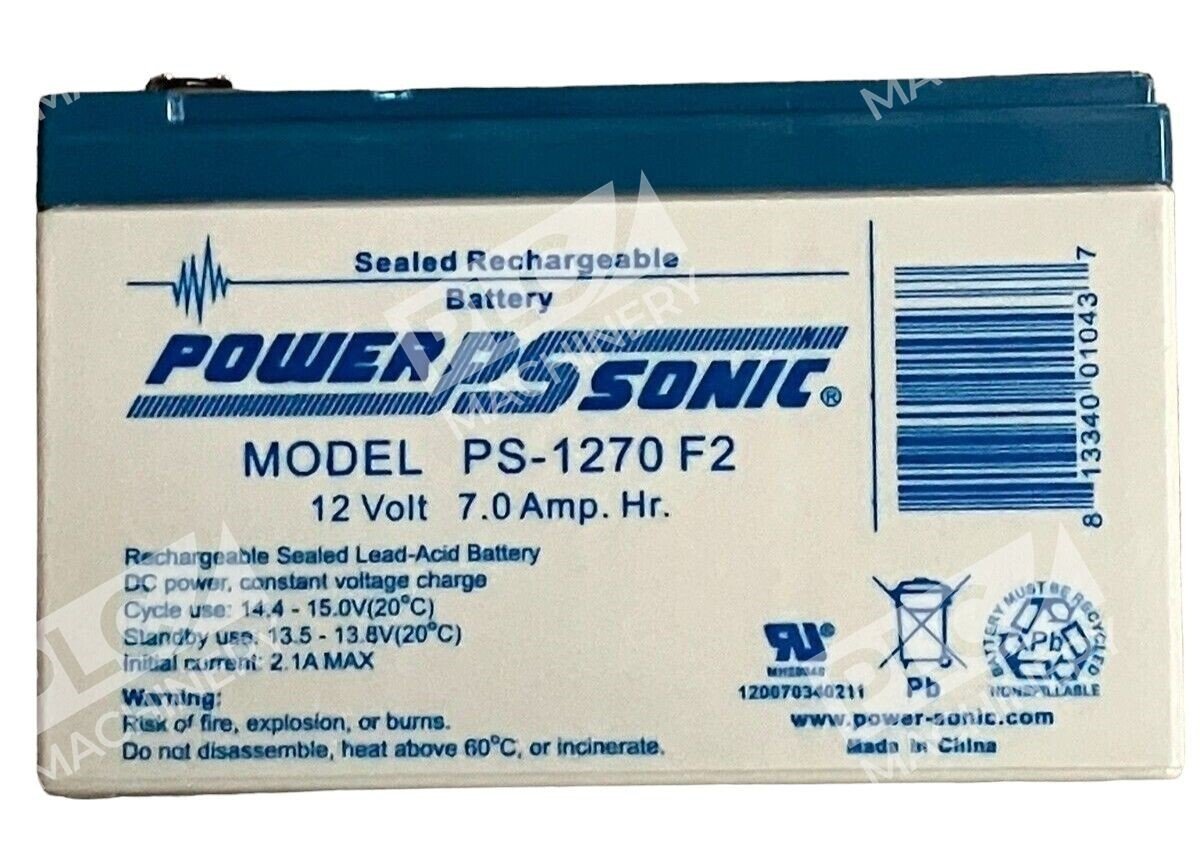

The Power-Sonic PS-1270 F2 is a general-purpose sealed lead acid (SLA) battery engineered for dependable backup power in stationary and light-cyclic applications. This 12VDC battery features 7Ah capacity with F2 quick-disconnect terminals, making it suitable for fire and security systems, emergency lighting, UPS units, and medical devices. The rugged ABS case is impact-resistant and operates from −4°F to 122°F, supporting harsh environment requirements.
Key Features
- AGM Technology: Absorbent glass mat (AGM) technology delivers superior performance with sealed, maintenance-free operation
- Valve-Regulated Design: Valve regulated, spill-proof construction allows safe operation in any position
- High Discharge Rate: Maximum discharge current of 21.0 amperes (7 min) and 70.0 amperes (10 sec short-duration)
- Wide Temperature Range: Operates safely across demanding thermal environments
- F2 Terminal Configuration: Standard 0.250″ quick-disconnect connectors for universal compatibility
- Deep Discharge Recovery: Designed for repeated deep-cycle capability
Technical Specifications
Electrical Performance:
- Nominal Voltage: 12 volts
- Capacity (20-hr Rate): 7.0 AH at 20-hour rate
- Internal Resistance: 23 milliohms at full charge
- Max Discharge Current (7 Min): 21.0 amperes
- Max Short-Duration Discharge (10 Sec): 70.0 amperes
- Energy Density (20-hr): 1.49 W-h/in³ (90.95 W-h/L)
Physical & Environmental:
- Dimensions (L × W × H): 5.95 × 2.56 × 3.70 inches (151 × 65 × 94 mm)
- Weight: 4.8 lbs (2.2 kg)
- Charge Operating Range: −4°F to 122°F (−20°C to 50°C)
- Discharge Operating Range: −40°F to 140°F (−40°C to 60°C)
- Case Material: ABS plastic (UL94-HB rated)

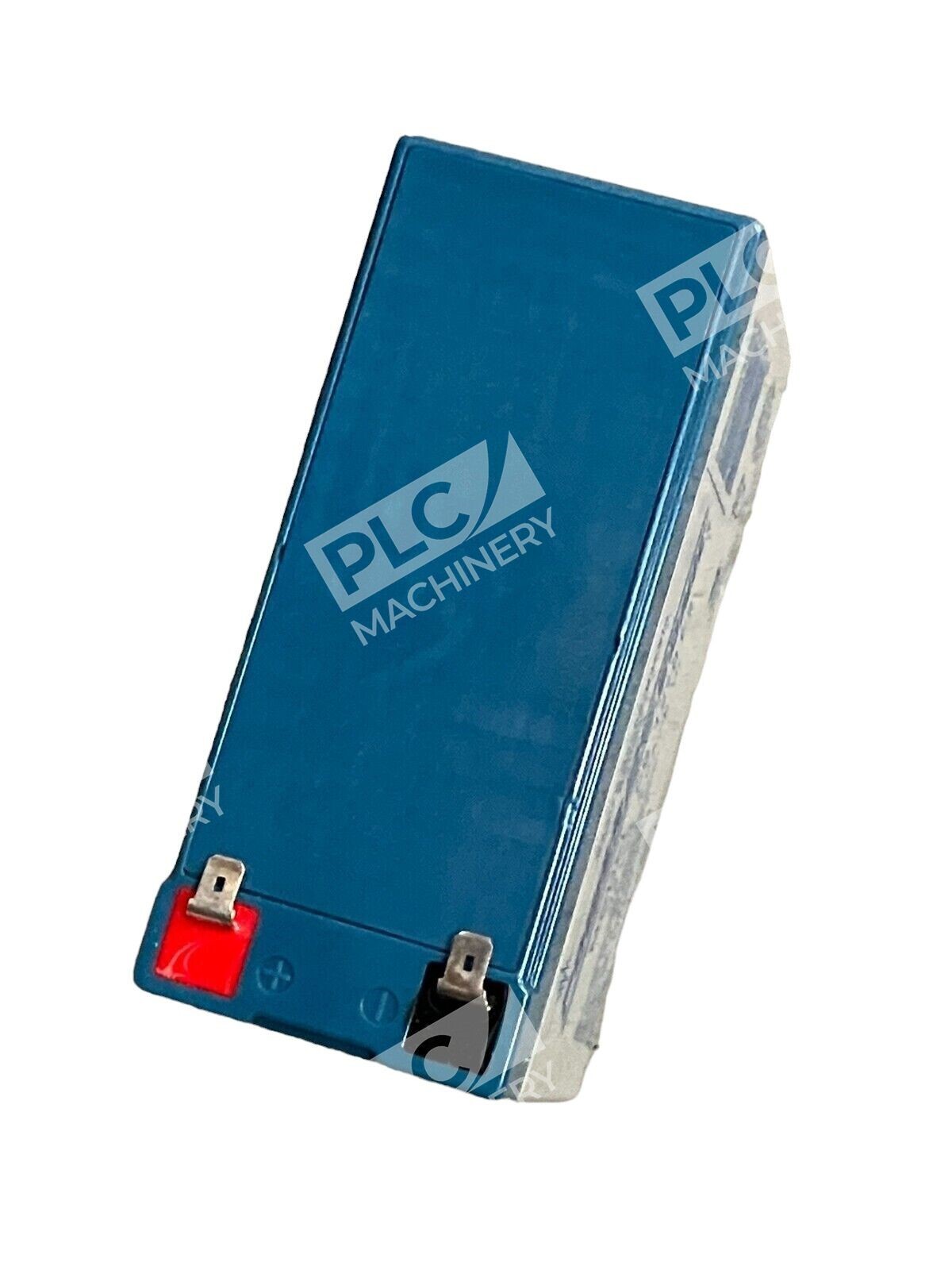

- Terminal Type: F2 Quick Disconnect (0.250″ Faston connectors)
Typical Applications
This battery is ideal for use in emergency lighting, medical equipment, fire and security systems, and other general purpose applications where a reliable and durable power source is needed. Common uses include:
- UPS and backup power systems
- Fire and security alarm panels
- Emergency lighting and exit signs
- Medical monitoring equipment
- Telecommunications standby power
- Solar backup storage systems
Compatibility & Replacements
Compatible With
- Fire and security system panels with 12V backup inputs
- UPS systems rated for 12V 7Ah or similar-capacity batteries
- Emergency lighting systems requiring 12V nominal input
- Medical device chargers and power supplies with 12V inputs
- Any application requiring universal F2 terminal connectivity
Replaces / Drop-In Replacement For
The PS-1270 F2 serves as a direct replacement for other 12V 7Ah AGM batteries with matching F2 terminals and identical physical envelope (5.95″ × 2.56″ × 3.70″). Verify existing battery dimensions and terminal type before ordering. Consult your system integrator or equipment manual for specific model cross-references.
Works With
- Recommended Charger: PSC-121000ACX Charger by Power-Sonic for 12V batteries from 5-12AH
- Any standard lead-acid battery charger rated for 12V 7−10Ah AGM batteries
- Float and cyclic charging management systems
- Standard Faston 0.250″ connector harnesses and wire terminals
