Overview

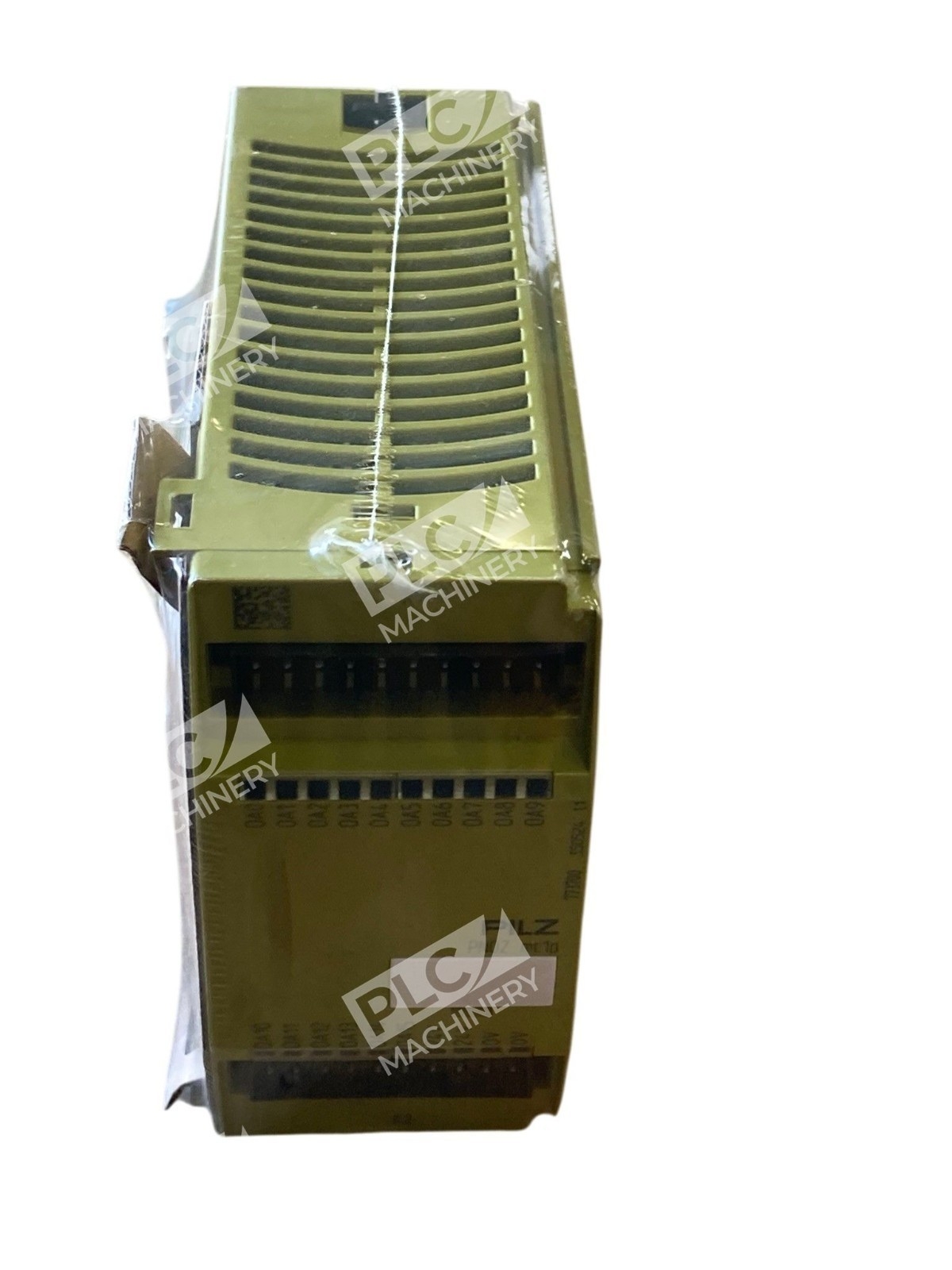

The Pilz 773700 PNOZ mc1p is a standard digital output expansion module for the PNOZmulti Classic configurable safety system. This expansion module is used to extend the functionality of the system and connect additional secure devices. The module provides 0 digital inputs and 16 digital outputs with transistor-type switching. It is designed for DIN rail installation and integrates seamlessly into existing Pilz safety architectures.
Key Features
- 16 digital outputs (standard semiconductor output; 24Vdc; 0.5A; 12W total)
- Screw terminal and spring-loaded terminal connections
- DIN rail mounting (W27mm) and IP20 rated
- Maximum output current 0.5A per output; output activation and reset time max. 5 ms
- CE, cULus Listed, EAC (Eurasian), TÜV, BG, KOSHA, CCC approvals
- LED indicators for status monitoring
Technical Specifications
- Supply voltage: 20.4–28.8 Vdc (24 Vdc nominal)
- Digital outputs: 16 transistor outputs at 24VDC, 0.5A maximum per output
- Maximum module current consumption: 1.2 A
- Voltage drop at output: max. 2.5 V
- Terminal compatibility: 0.25–1.5 mm² (24–16 AWG) for screw connections; 0.25–0.75 mm² for crimp connectors
- Operating temperature: 0–60 °C
- Dimensions: Width 45 mm, Height 94 mm, Depth 121 mm
- Net weight: 164 g; Gross weight: 182 g
- Mounting: DIN rail (35 mm)
- Certifications: EN 60068-2-6, EN 60068-2-27, EN 60529, EN 61131-2, EMC, CE, cULus, EAC
Typical Applications
The Pilz 773700 is commonly used in:
- Machine safety control systems requiring configurable logic
- Emergency stop (E-stop) and safety relay architectures
- Industrial control applications where additional output capacity is needed
- Safety-critical process control requiring certified safety modules
- Multi-machine coordination with centralized safety management
Compatibility & Replacements
Compatible With
- PNOZmulti Classic safety controller systems
- Pilz modular safety relay platforms
- DIN rail automation cabinets
- Screw and spring-loaded terminal blocks
- 24 VDC safety control architectures
Replaces / Drop-In Replacement For
The Pilz 773700 is the primary model for this specification. Verify direct replacement compatibility with your system integrator before ordering, as substitute models may require reconfiguration or reprogramming.
Works With
- Pilz PNOZmulti Classic base units and configuration software
- Standard 24 VDC safety supply systems
- Industrial automation platforms supporting DIN rail modules
- Pilz HMI and safety relay communication interfaces
