Overview

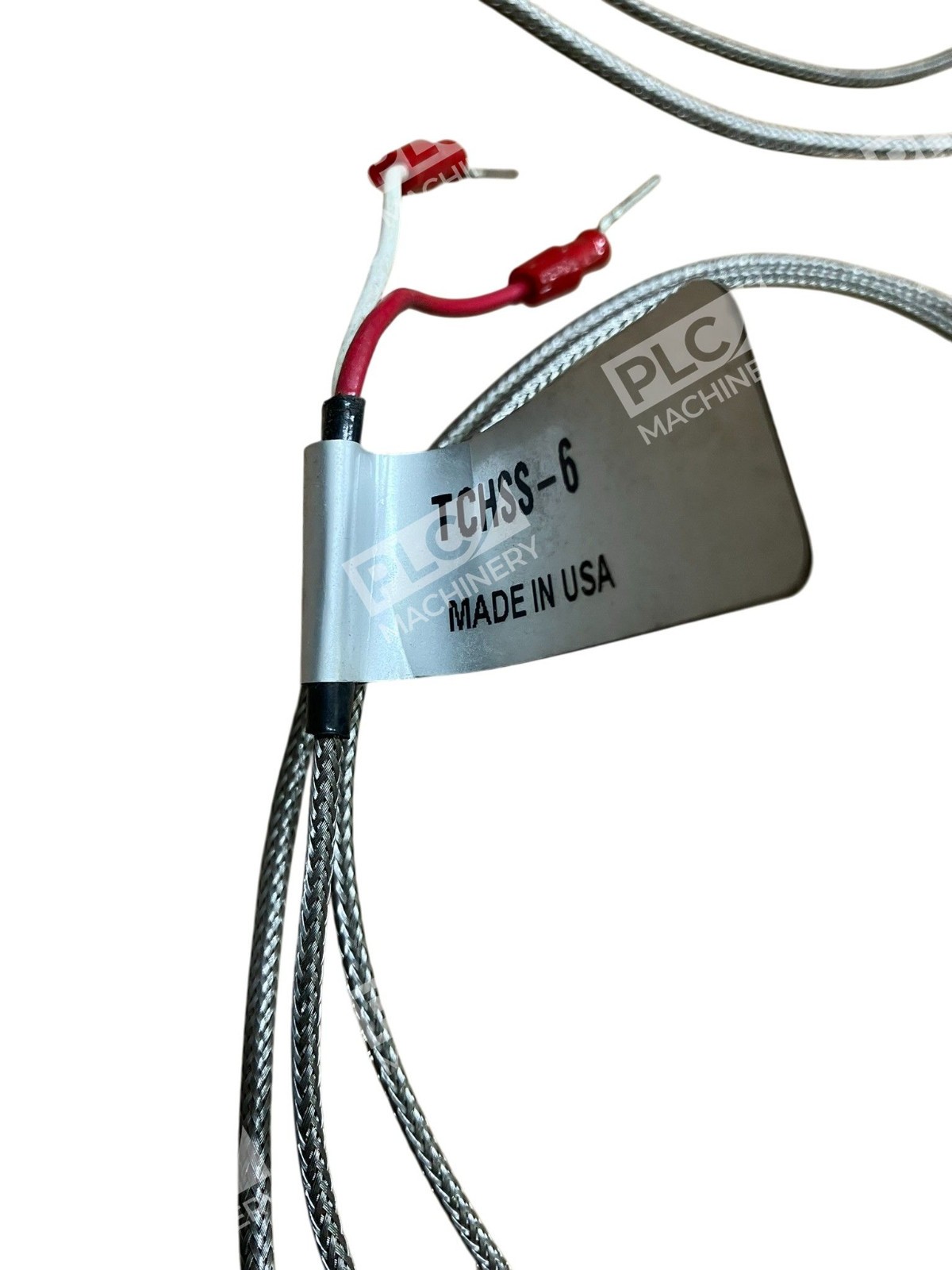

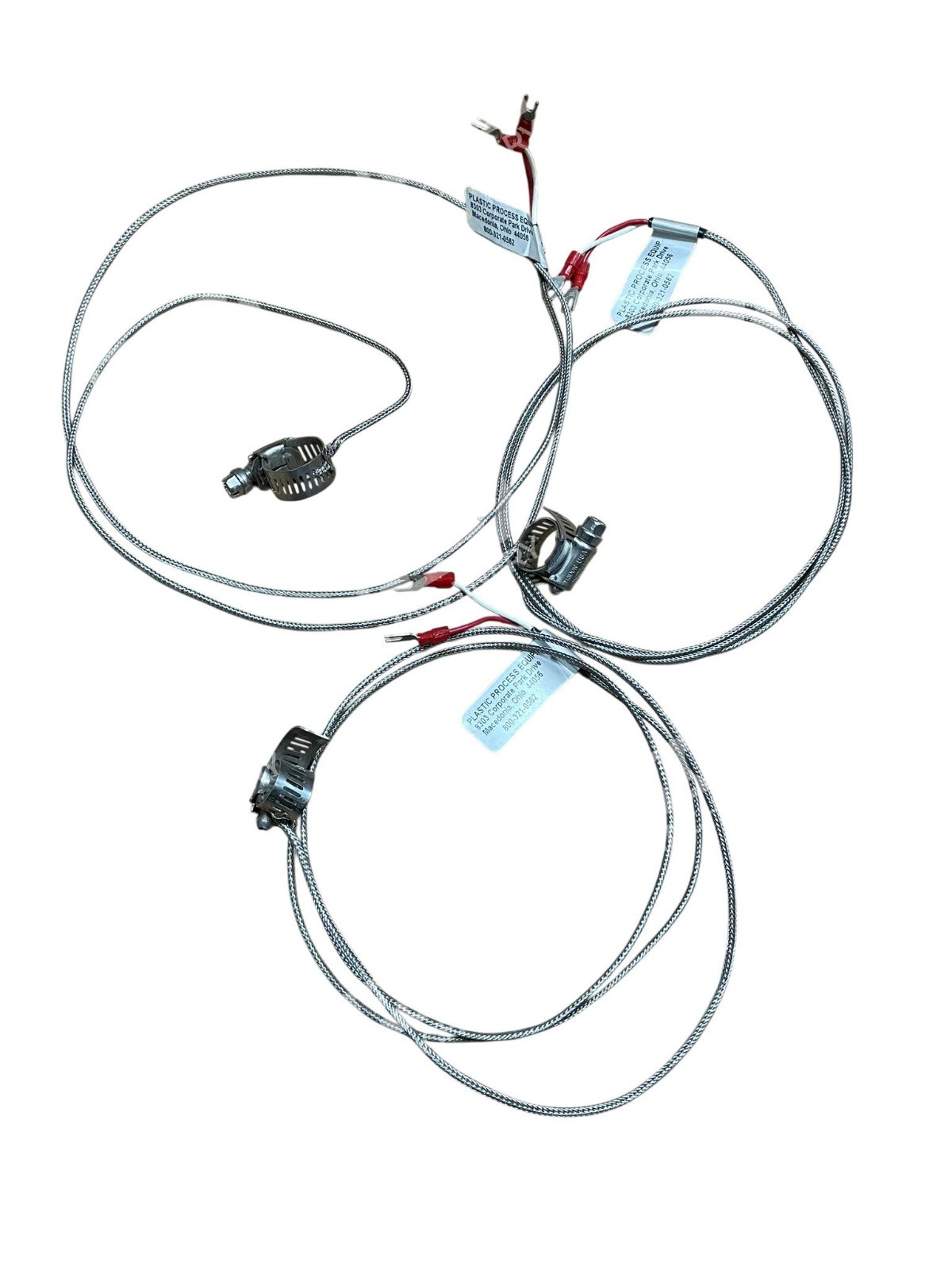

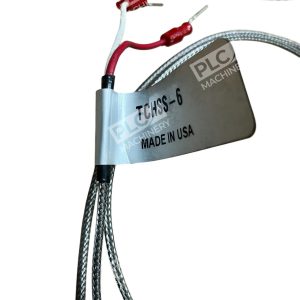

The Plastic Process TCHSS-6 Type J hose clamp thermocouple is a surface-mount temperature measurement adapter designed for quick installation on pipes, hoses, and cylinders without drilling. Each unit features a secure worm-gear hose clamp mechanism that holds the thermocouple probe in contact with the measured surface, delivering reliable temperature data for process monitoring and control.
Key Features
- Type J Thermocouple Compatibility: Operates across industrial temperature ranges from 212°F to 932°F (100–500°C)
- Worm-Gear Hose Clamp Design: Provides consistent clamping force and secure probe positioning
- No-Drill Installation: Designed for surface applications where drilling thermocouples holes is impractical
- Wide Clamp Width: 9/16″ wide clamp with 7/16″ hexagon and screw drive slot for manual tightening
- Durable Construction: Built for industrial processing environments and repeated use
Technical Specifications
The TCHSS-6 hose clamp adapter accommodates a specific range of pipe/hose diameters while maintaining compatibility with standard Type J thermocouple probes. The worm-gear mechanism allows easy tool-free adjustment to fit various hose sizes, and the silver-finished clamp resists corrosion in process environments.
Typical Applications
- Plastic processing and injection molding barrel temperature monitoring
- Industrial cooling system pipe temperature measurement
- Hydronic and steam line surface temperature sensing
- Process control feedback on fluid lines and heat exchangers
- Machine tool coolant temperature monitoring
- Maintenance and troubleshooting thermal inspections
Compatibility & Replacements
Compatible With
- Type J thermocouple probes (bayonet or universal adaptor types)
- Standard industrial temperature controllers and data acquisition systems
- Measurement instruments accepting standard Type J thermocouple signals
Replaces / Drop-In Replacement For

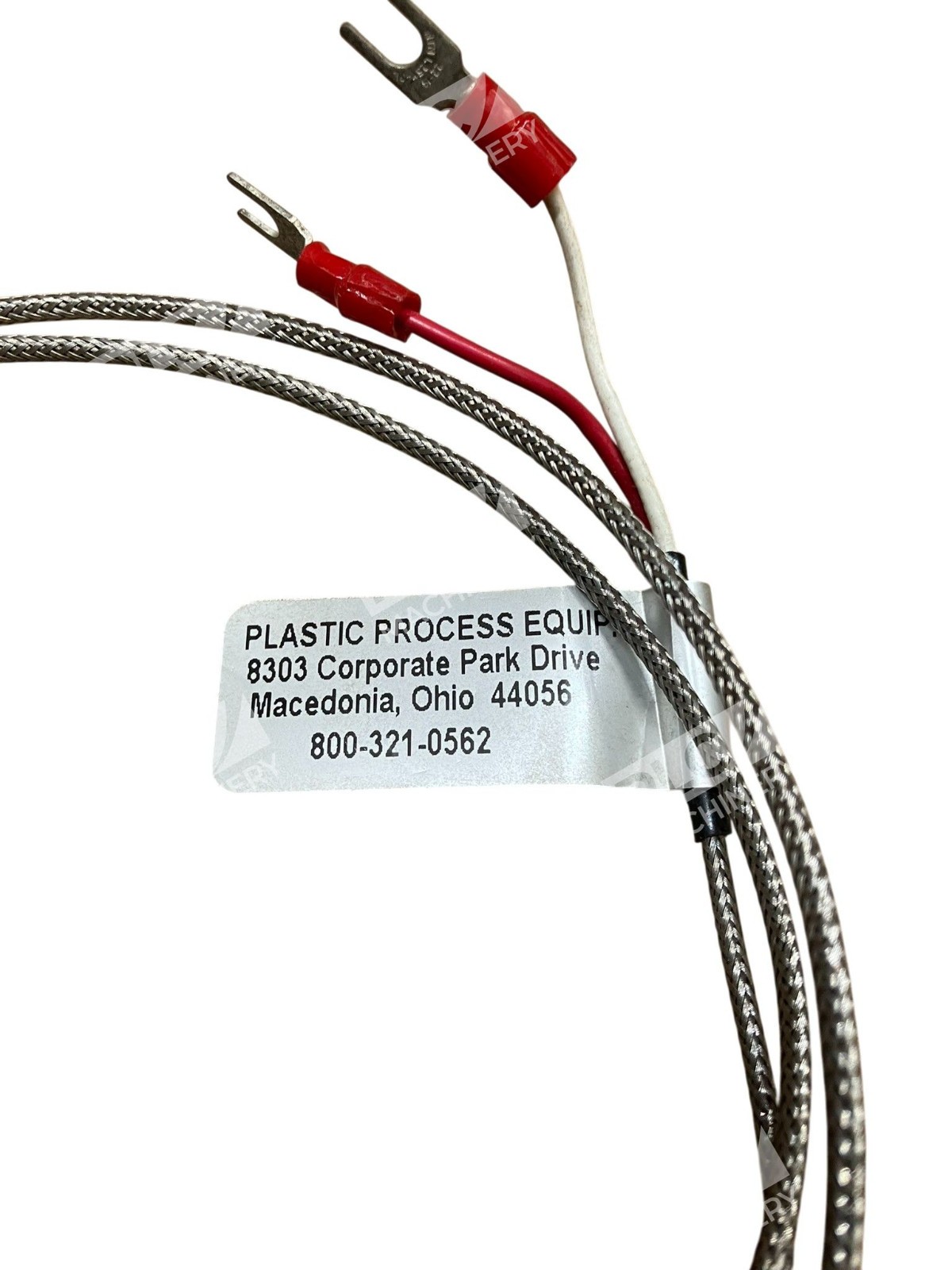

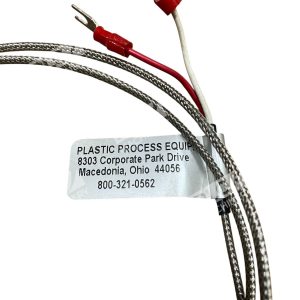

The TCHSS-6 is part of Plastic Process Equipment’s TCHSS series of hose clamp adapters. Direct model equivalents are not available; however, similar hose clamp thermocouple adapters may be found under alternative PPE part numbers within the TCHSS line (e.g., TCHSS-101, TCHSS-241, TCHSS-361). Verify pipe/hose diameter range and clamp sizing with your system integrator before substitution.
Works With
- Type J thermocouple sensors (iron-constantan)
- Standard thermocouple connectors and extension wire
- Industrial PLCs and temperature data loggers
- Process control systems with analog thermocouple inputs
