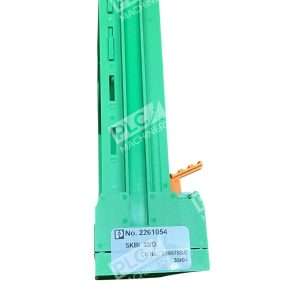

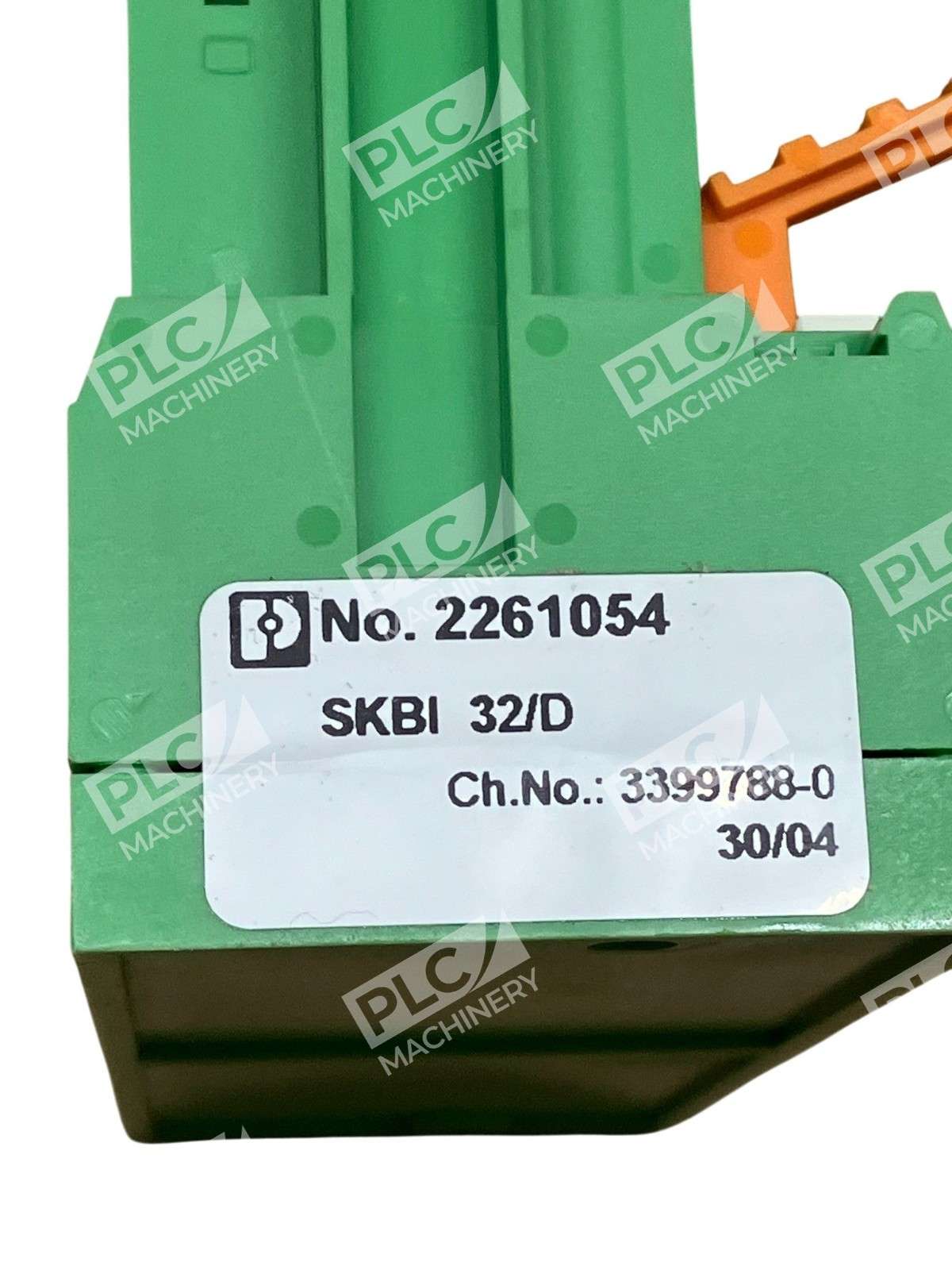

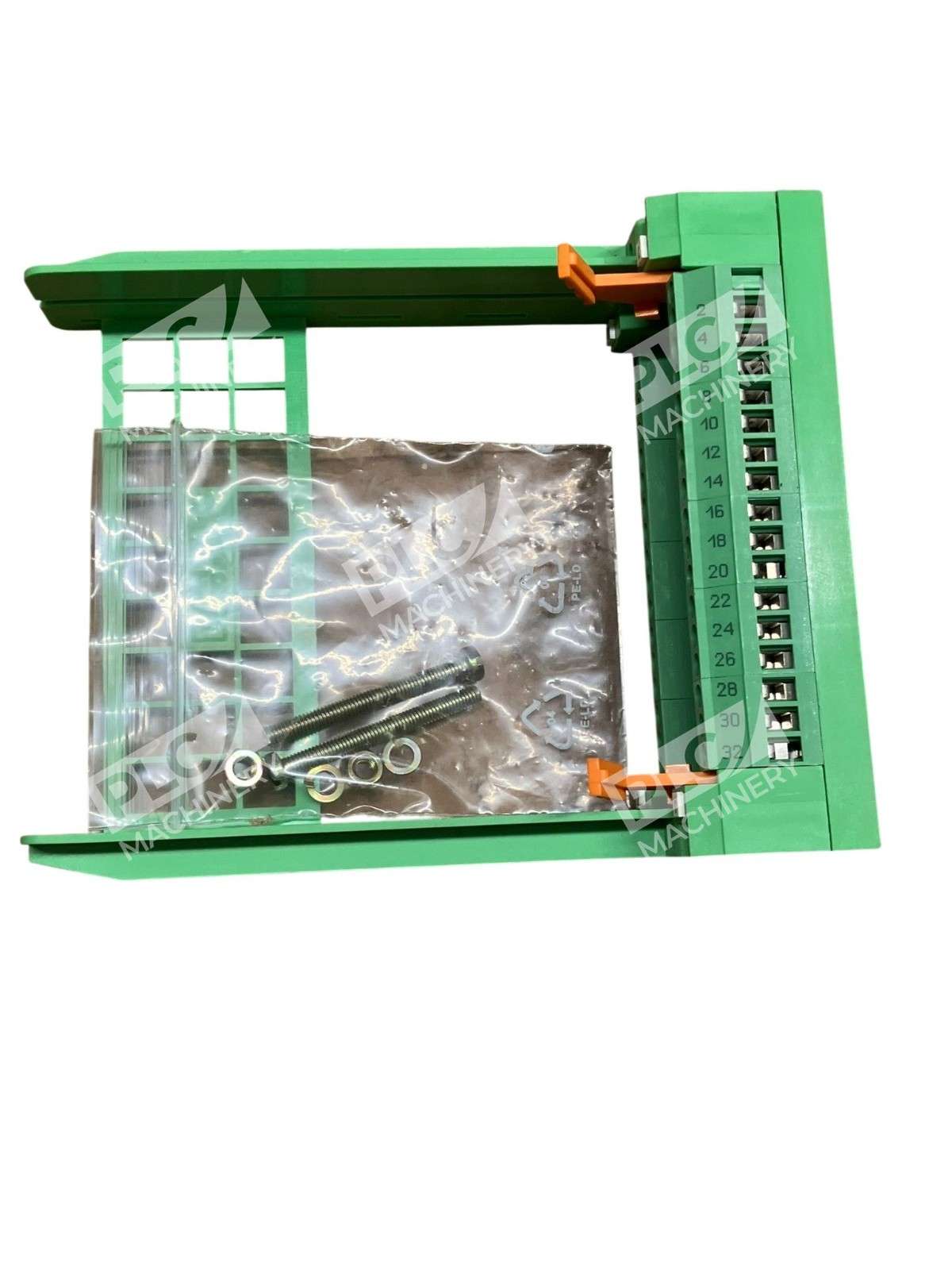

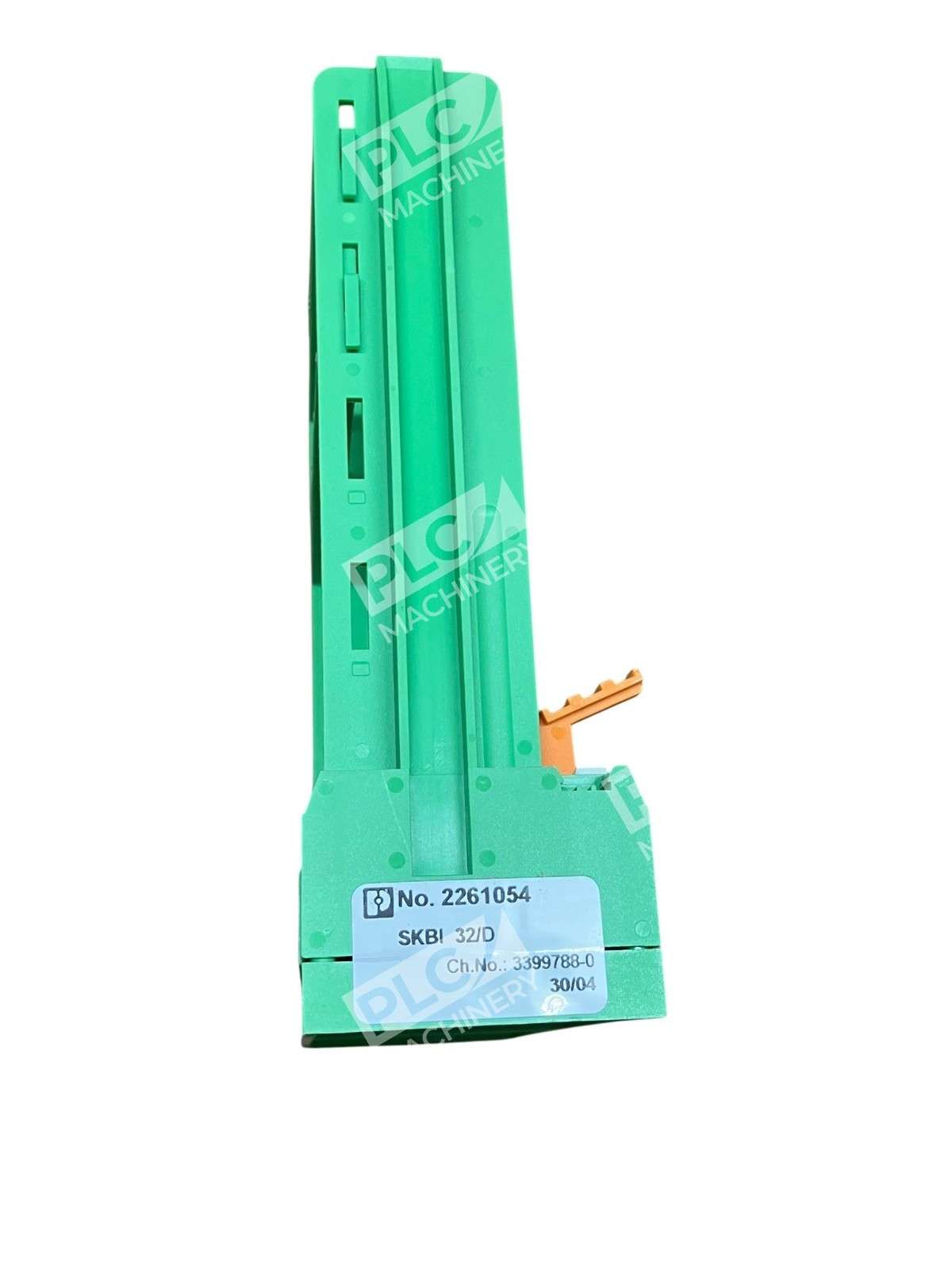

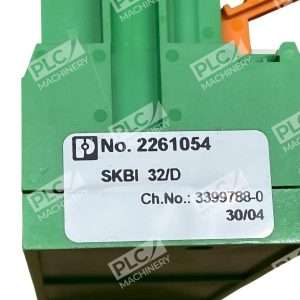

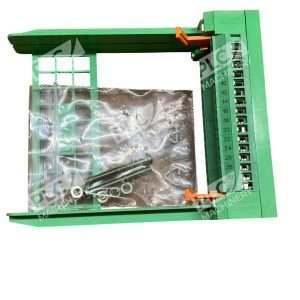

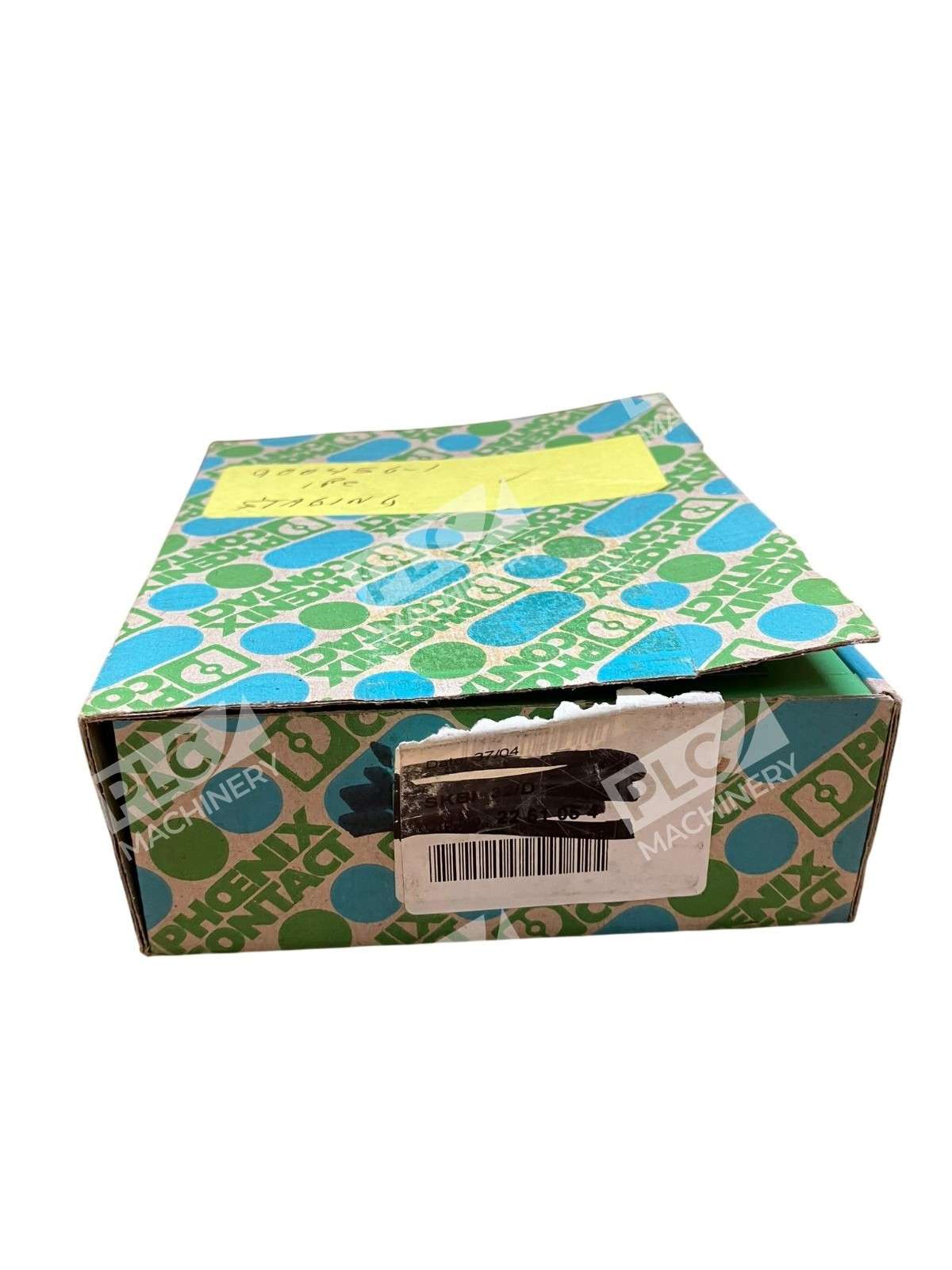

Phoenix Contact SKBI 32/D Plug-In Card Block
The Phoenix Contact SKBI 32/D is a 19-inch plug-in card block designed for efficient and reliable PCB connections. This component is ideal for applications requiring multiple connections in a compact and organized manner.
Key Features
- Number of Positions: 32
- Pitch: 5.08 mm
- Connection Method: Screw connection
- Nominal Current: 4 A
- Nominal Voltage: 250 V
- Color: Green
Dimensions
- Length: 43 mm
- Width: 112 mm
- Height: 138 mm
- Hole Diameter: 4.2 mm
Conductor Specifications
- Solid Conductor Cross Section: 0.2 mm² to 4 mm²
- Flexible Conductor Cross Section: 0.2 mm² to 2.5 mm²
- AWG Range: 24 to 12
Additional Information
The SKBI 32/D features a screw thread size of M3 and requires a stripping length of 8 mm for proper installation. The recommended tightening torque ranges from 0.5 Nm to 0.6 Nm, ensuring secure and stable connections.
For mounting flexibility, the SF-SKBI 31/32 foot element allows for horizontal or vertical installation on the NS 35/7.5 DIN rail, enhancing adaptability in various setups.
With its robust design and versatile features, the Phoenix Contact SKBI 32/D plug-in card block is a reliable choice for complex PCB connection requirements.
