Overview

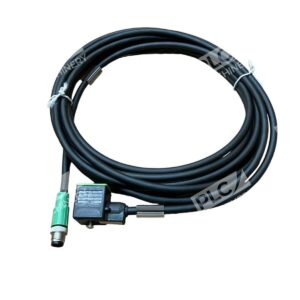

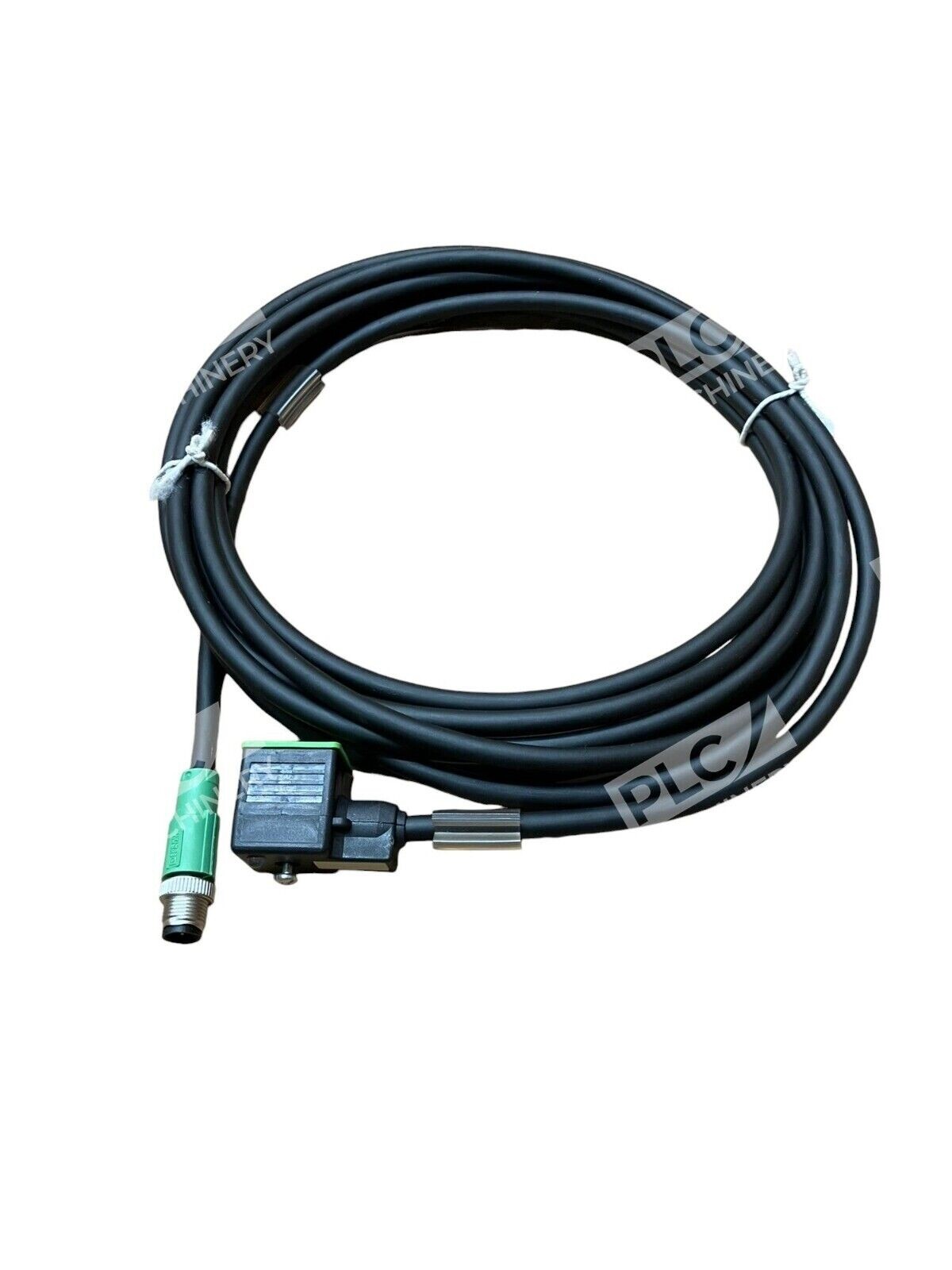

The Phoenix Contact SAC-5P-M12MS/5.0-PUR/AD-2L is a robust sensor/actuator cable engineered for industrial automation and sensor integration. This 5-meter cable features a straight M12 plug (A-coded) on one end and a 5-position valve connector (AD) on the other, making it ideal for pressure switch and solenoid valve applications. The PUR halogen-free jacket provides superior flexibility and environmental compliance for demanding machine and plant control environments.
Key Features
- 5-Position M12 A-Coding: Standard connectivity for industrial sensors and actuators
- PUR Halogen-Free Material: Meets environmental regulations and improves fire safety
- Integrated 2 LED Indicators: Built-in status monitoring at both connector ends
- 5-Meter Length: Optimal reach for distributed sensor placement without additional connectors
- Valve Connector AD Interface: Direct connection to pressure switches and solenoid valves

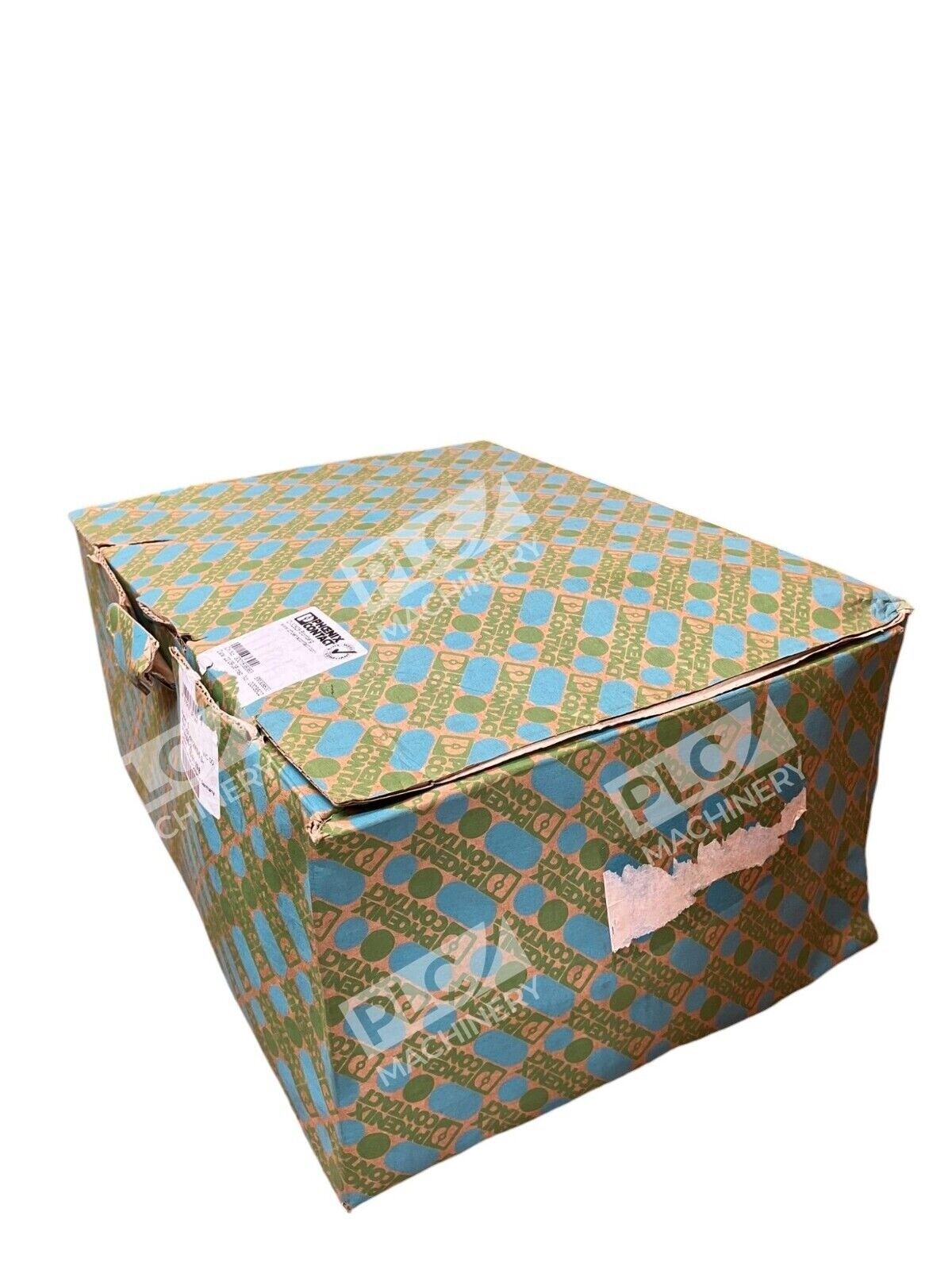

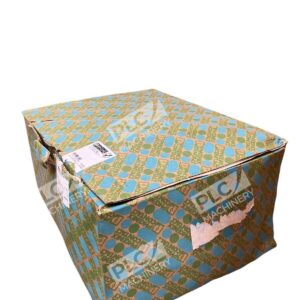

- Box of 5 Units: Cost-efficient bulk packaging for multi-axis automation projects
Technical Specifications
- Connector Type: M12 straight plug (male) to Valve Connector AD
- Pin Configuration: 5-position A-coded
- Cable Material: PUR (polyurethane), halogen-free
- Cable Length: 5.0 meters
- Cable Jacket Color: Black-gray (RAL 7021)
- Status Indicators: 2 integrated LEDs at connector and valve interface
- Certification: RoHS compliant, CE marked
Typical Applications
- Hydraulic and pneumatic pressure monitoring systems
- Solenoid valve control circuits in industrial machinery
- Sensor networks for multi-axis assembly lines
- Plant-wide automation and process control
- Machine tool and manufacturing equipment connectivity
Compatibility & Replacements
Compatible With
- Phoenix Contact PLCM-5/2×2-G-7.62 and standard M12 A-coded controllers
- IEC 61076-2-109 compliant M12 socket interfaces
- Pressure switches and solenoid valves with 5-pin AD connector sockets
- Industrial PLC and DCS systems supporting M12 sensor integration
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. Other Phoenix Contact SAC-5P-M12MS series cables of varying lengths (0.3 m, 0.6 m, 1.5 m, 2.0 m, 3.0 m) can be substituted based on cable run requirements; however, 5.0 m is the standard for medium-distance sensor routing.
Works With
- Phoenix Contact PLUGZ connectors and IEC 61076 M12 standard systems
- Any IEC 60529 IP67-rated valve and sensor with 5-pin AD interface
- Integrated industrial automation protocols (CANopen, DeviceNet, PROFINET-compatible ecosystems)
