Overview

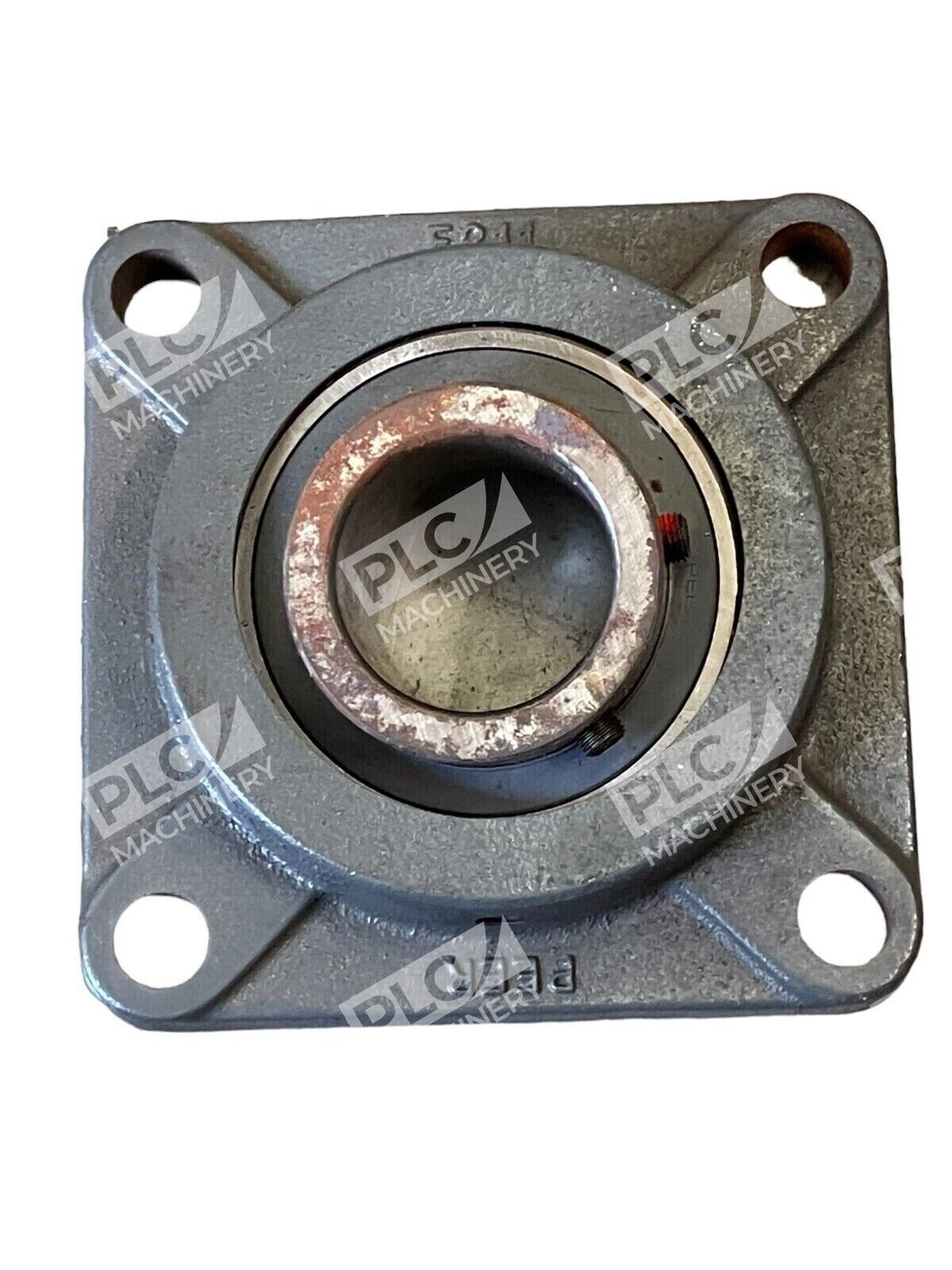

The Peer UCF211-32 is a precision flange-mounted bearing unit engineered for industrial, agricultural, and power transmission applications. This 2″ bore bearing features a rugged cast iron housing with a pre-mounted insert bearing, delivering reliable performance in heavy-duty rotating equipment. The four-bolt flange mounting provides secure alignment and stability in demanding environments.
Key Features
- 2-inch bore diameter with 5/8″ bolt holes for standard mounting compatibility
- Set screw locking collar delivers strong shaft grip and easy on-the-job adjustment
- Cast iron housing with wide inner-ring bearing ensures durability and load capacity
- Relubricable design with anti-rotation pin extends service life in continuous-duty applications
- Single-lip R-seal standard protects against contaminants in industrial environments
- C3 precision insert bearing handles vibration and heavy radial loads
Technical Specifications
- Bore Diameter: 2 inches (50.8 mm)
- Mounting Style: 4-bolt square flange
- Flange Pattern: 5-1/8″ bolt center distance
- Bolt Size: 5/8″ diameter
- Locking Type: Set screw
- Housing Material: Cast iron

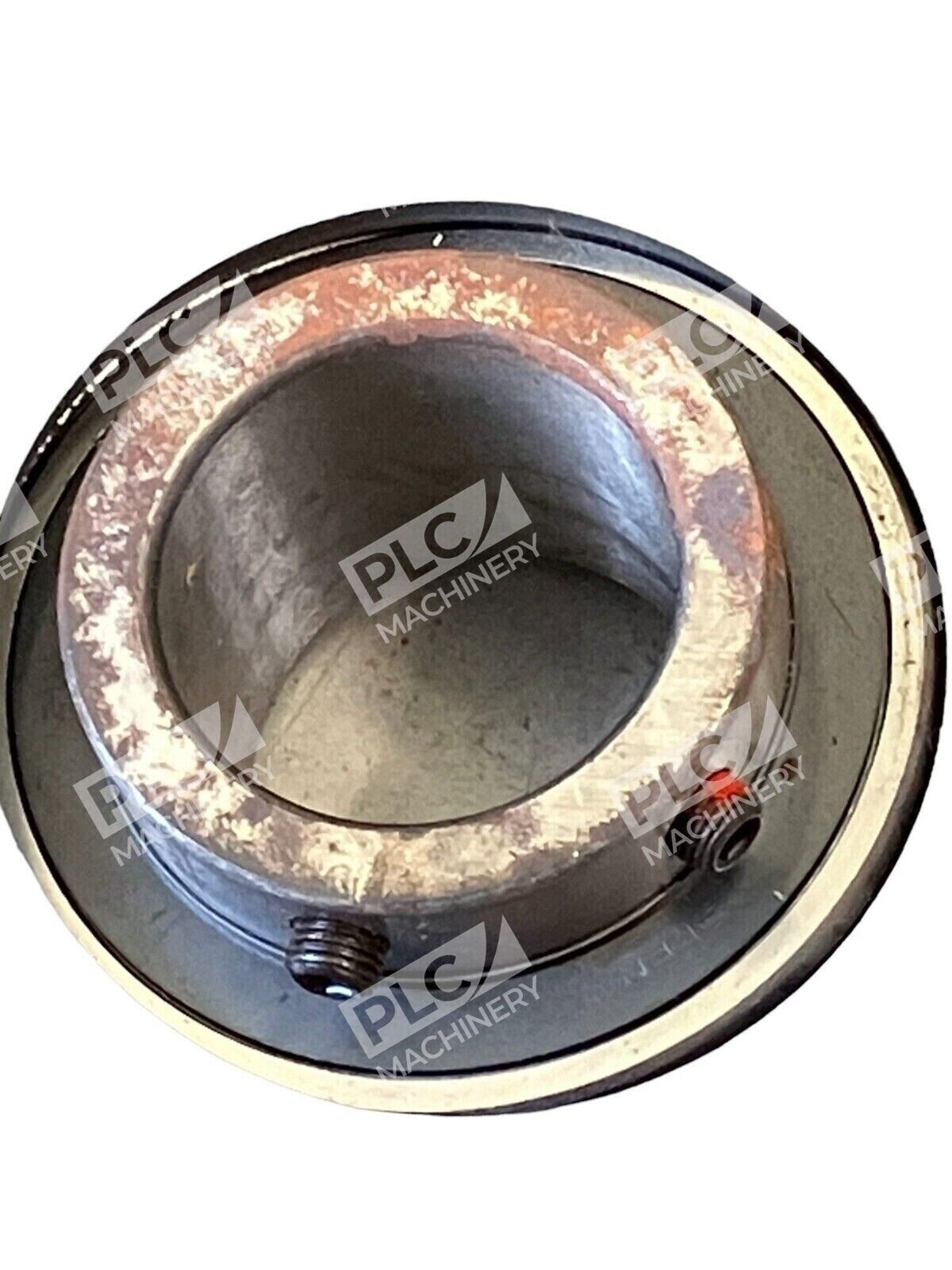

- Insert Bearing: UC211-32 with wide inner ring
- Dynamic Load Rating (Cr): 43,400 N
- Static Load Rating (Cor): 29,400 N
- Seal Type: Single-lip R-seal
- Lubrication: Relubricable with grease fitting
- Anti-Rotation: Pin-type anti-rotation device
Typical Applications
The UCF211-32 is widely used in conveyors, construction equipment, agricultural machinery, forestry equipment, aggregate processing, fans, and other industrial rotating assemblies. Its four-bolt flange design ensures stable mounting to surfaces perpendicular to shaft axis, making it suitable for horizontal and vertical orientations.
Compatibility & Replacements
Compatible With
- Standard 2″ diameter shafts
- 4-bolt square flange mounting patterns per industry standards
- Conveyor drive systems and industrial gearboxes
- Agricultural and construction equipment manufacturers
- Standard bearing greases and lubricants
Replaces / Drop-In Replacement For

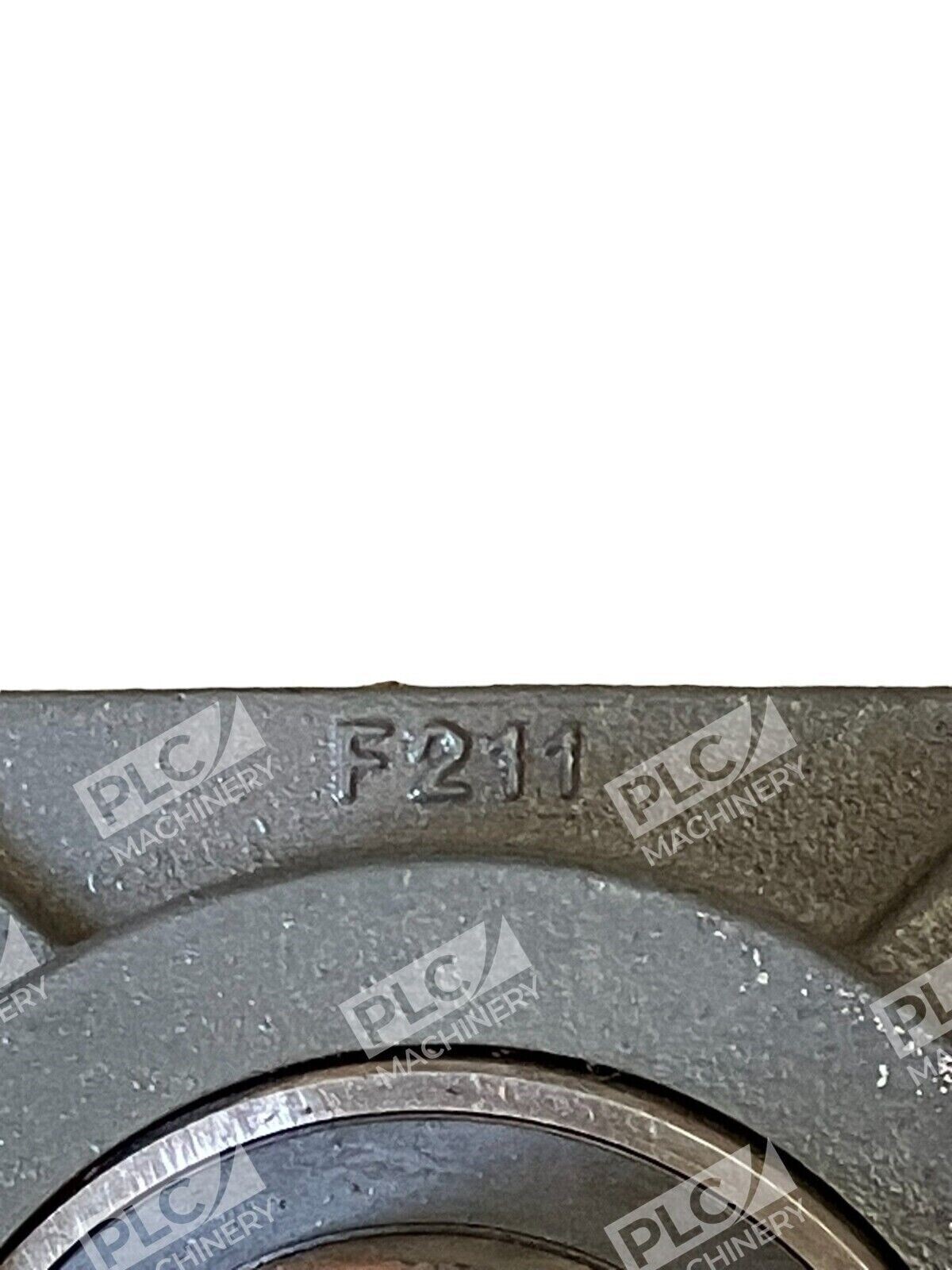

The Peer UCF211-32 is dimensionally interchangeable with industry-standard UCF211-32 bearings from most bearing manufacturers, making it a reliable drop-in replacement. Verify bearing number (UC211-32) and housing number (F211) match your specification before ordering.
Works With
- Any equipment designed for UC211-32 or F211 housings
- Standard 2″ shaft applications in power transmission
- Industrial 4-bolt flange mounting systems
- Relubricable bearing applications with standard grease fittings
