<h2>Overview</h2>

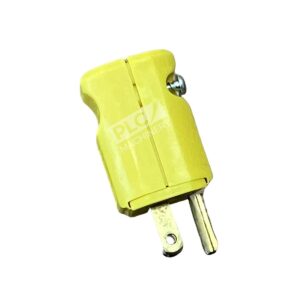

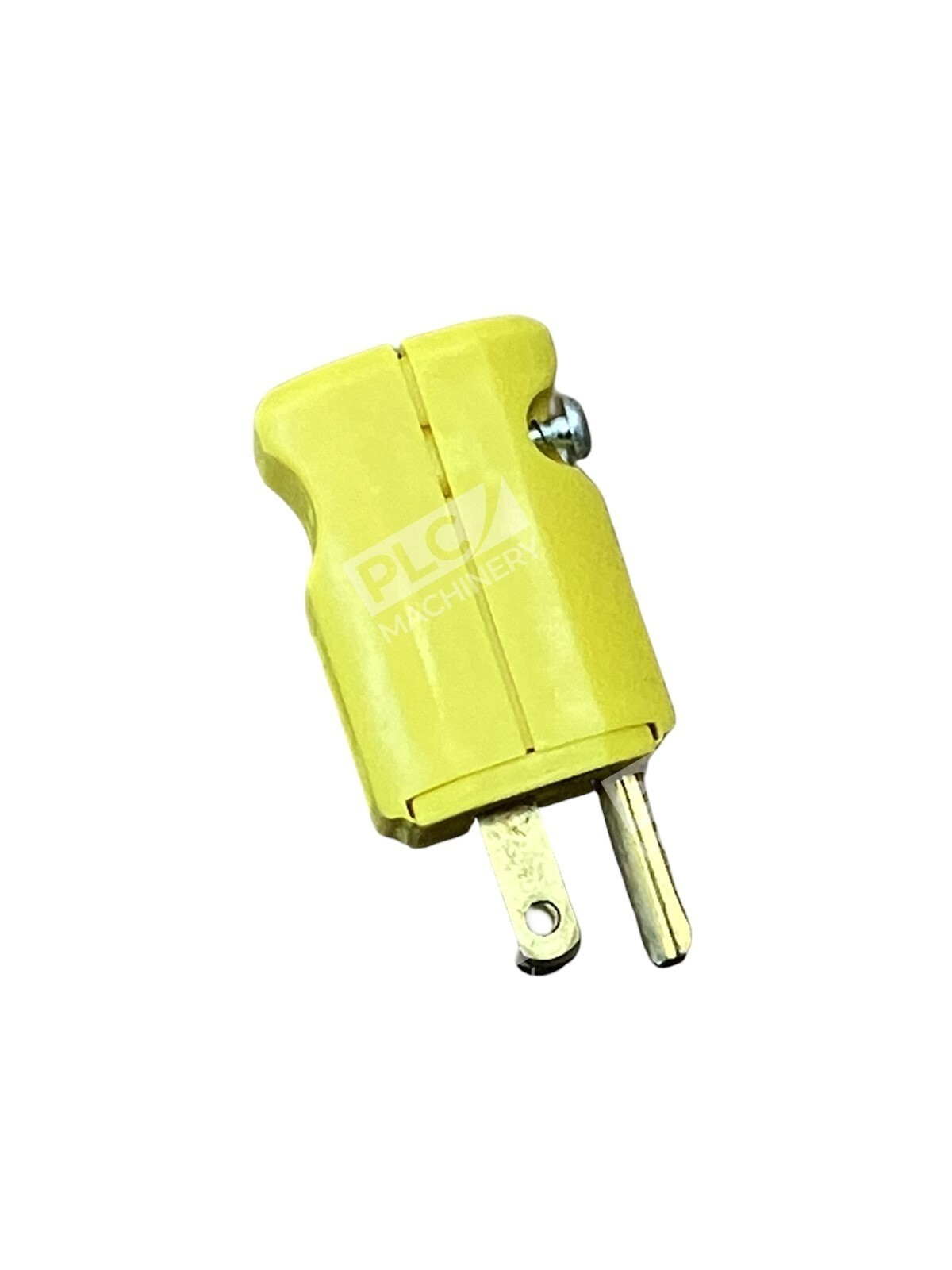

<p>The <strong>Pass & Seymour PS5965-Y</strong> is a MaxGrip M3 straight blade plug engineered for demanding electrical connections in industrial and commercial applications. This 2-pole 3-wire connector operates at 15A, 125V and meets NEMA 5-15P specifications. Its molded yellow housing and industrial-grade construction make it suitable for equipment, machinery, and facility maintenance applications where reliability and safety are paramount.</p>
<h2>Key Features</h2>
<ul>
<li><strong>Tough Nylon Construction:</strong> Crush and impact resistance exceeds hospital grade and Federal Specification requirements; arc resistance exceeds UL standards.</li>
<li><strong>High-Retention Cord Grips:</strong> Secure wire accommodation prevents loosening under vibration and constant use.</li>
<li><strong>Self-Hinge Design:</strong> Wide-opening hinged body simplifies quick, clean terminal connections without external tools.</li>
<li><strong>Enclosed Terminals:</strong> Internally-clamped connections with tri-drive assembly for solid electrical contact.</li>
<li><strong>Molded Finger Grips:</strong> Integrated handling features promote safe, sure installation and removal.</li>
<li><strong>High-Visibility Yellow Color:</strong> Industry-standard yellow for easy identification and safety compliance.</li>
</ul>
<h2>Technical Specifications</h2>
<ul>

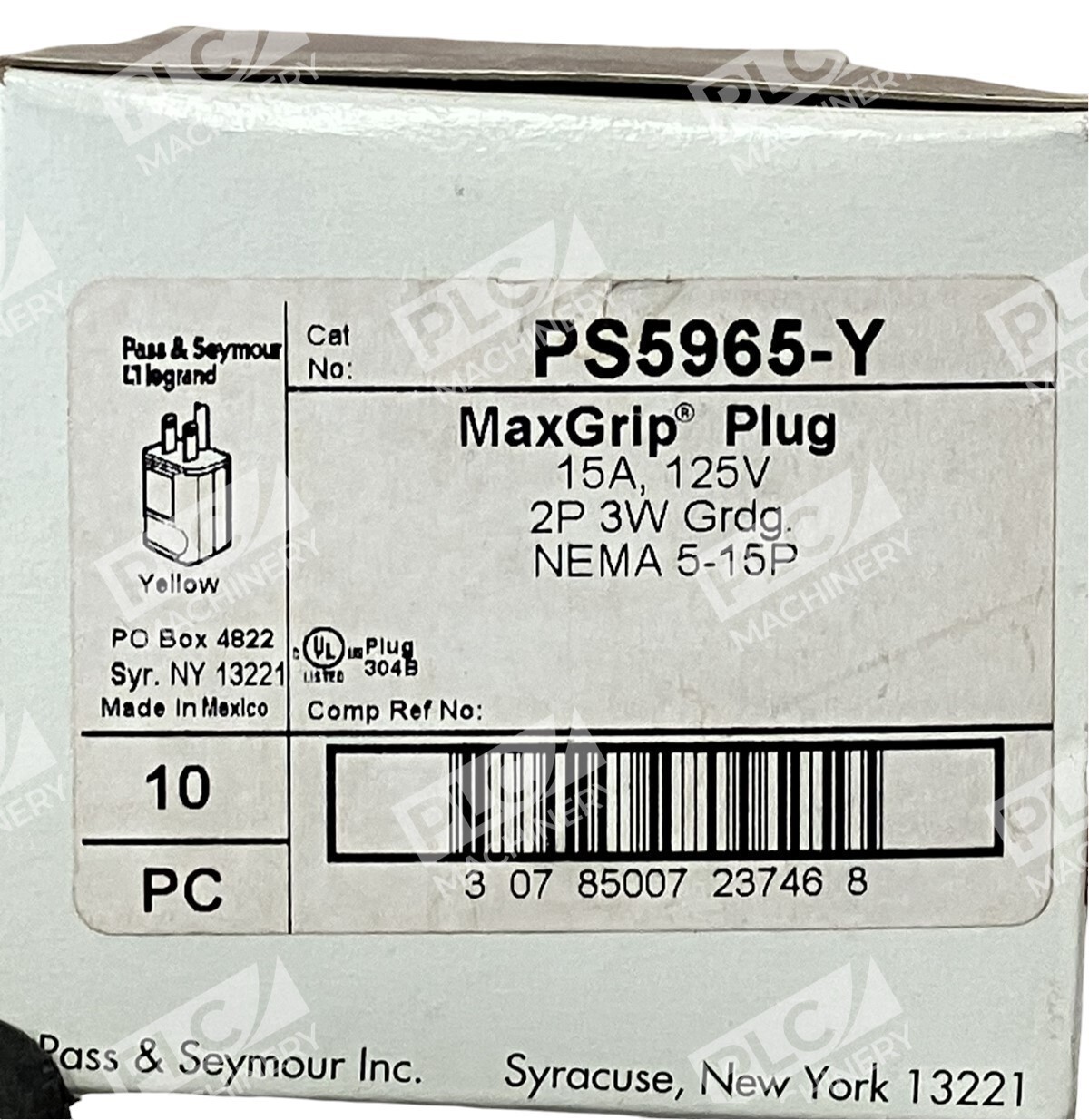

<li><strong>Part Number:</strong> PS5965-Y</li>
<li><strong>Current Rating:</strong> 15A</li>
<li><strong>Voltage Rating:</strong> 125V AC</li>

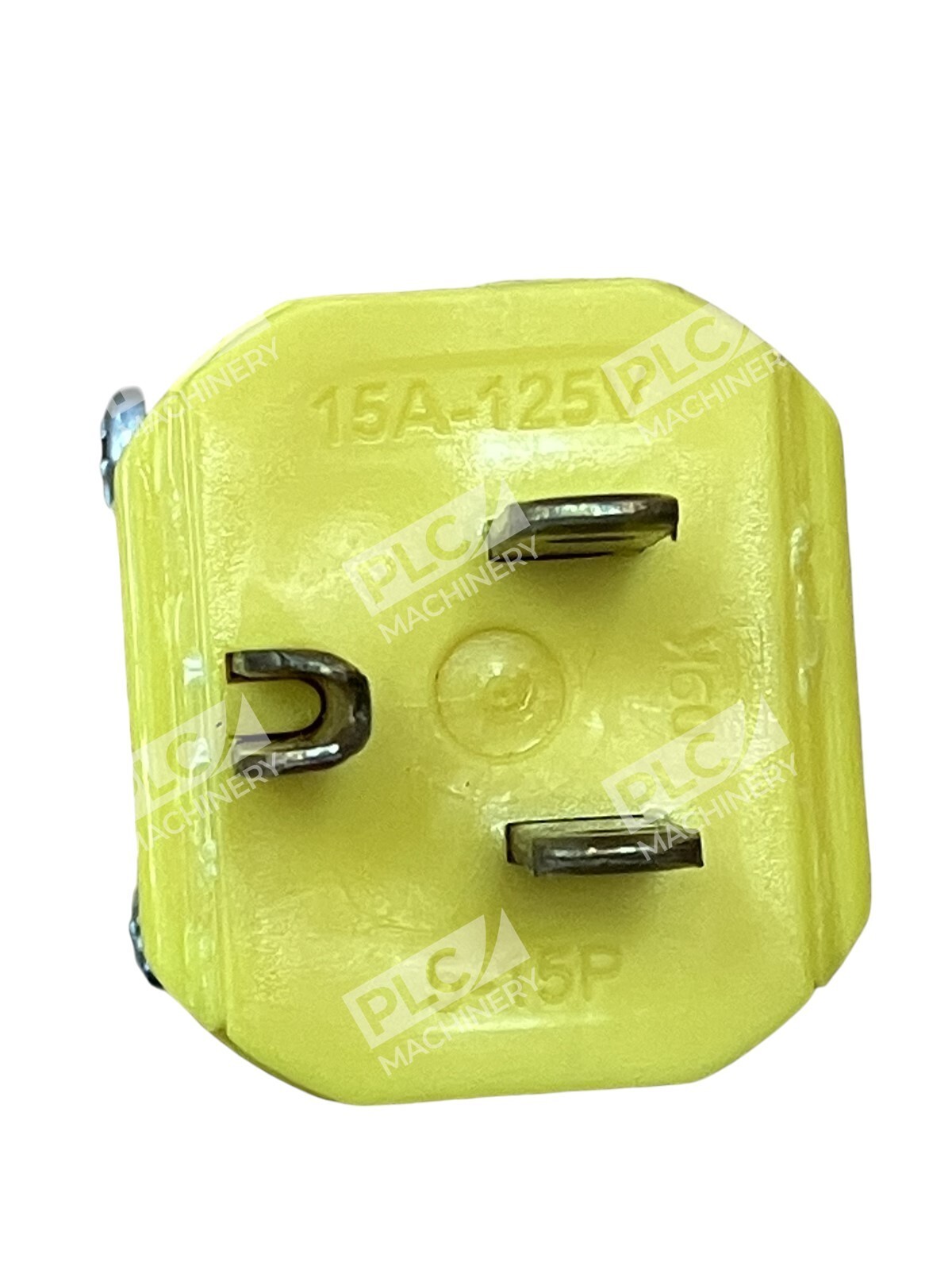

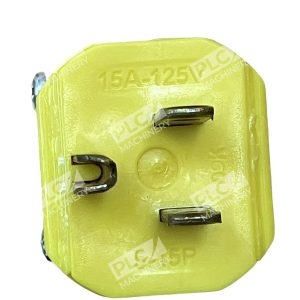

<li><strong>Configuration:</strong> NEMA 5-15P</li>
<li><strong>Poles & Wires:</strong> 2-Pole, 3-Wire (with ground)</li>
<li><strong>Wire Size:</strong> #18 to #12 AWG</li>
<li><strong>Cord Diameter Range:</strong> 0.230" to 0.720" (5.8 mm to 18.3 mm)</li>
<li><strong>Body Material:</strong> Nylon (Polyamide)</li>
<li><strong>Color:</strong> Yellow</li>
<li><strong>Operating Temperature:</strong> -40°C to +75°C</li>
<li><strong>Dimensions:</strong> 1.34" W x 1.83" H (approx. 34 mm x 46 mm)</li>
<li><strong>Weight:</strong> 0.15 LB per unit</li>
<li><strong>Manufacturer:</strong> Pass & Seymour (Legrand)</li>
<li><strong>Country of Origin:</strong> Mexico</li>
<li><strong>UPC:</strong> 785007237467</li>
</ul>
<h2>Typical Applications</h2>
<ul>
<li>Industrial equipment and machinery power connections</li>
<li>Facility and plant maintenance electrical connections</li>
<li>Commercial construction and temporary power systems</li>
<li>Portable tools and work-site equipment</li>
<li>Hospital-grade electrical installations requiring impact resistance</li>
<li>Any 15A 125V AC straight blade application requiring durability and safety</li>
</ul>
<h2>Compatibility & Replacements</h2>
<h3>Compatible With</h3>
<ul>
<li>NEMA 5-15R receptacles and standard 125V AC outlets</li>
<li>Any 15A 125V power source or extension cord outlet</li>
<li>Industrial and commercial electrical systems rated 125V 15A</li>
</ul>
<h3>Replaces / Drop-In Replacement For</h3>
<ul>
<li>Other Pass & Seymour MaxGrip M3 straight blade plugs (PS5965 series)</li>
<li>Standard NEMA 5-15P plugs from competing manufacturers</li>
<li>Legacy industrial-grade 15A 125V straight blade connectors</li>
</ul>
<h3>Works With</h3>
<ul>
<li>Standard NEMA 5-15R receptacles and outlet boxes</li>
<li>Industrial power distribution systems (125V AC circuits)</li>
<li>Cord sets and extension cords with compatible terminals</li>
</ul>
