<h2>Overview</h2>

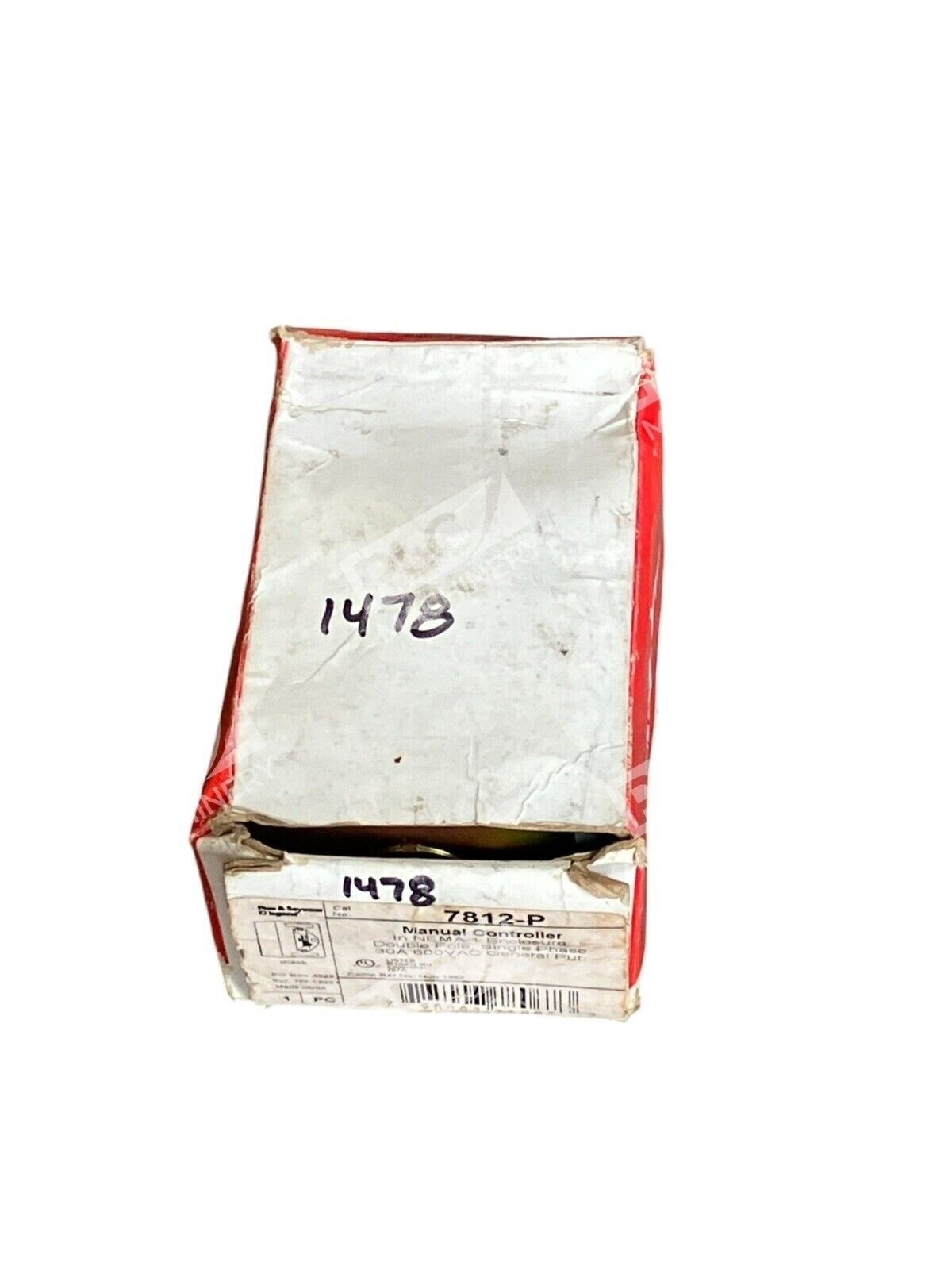

<p>The <strong>Pass & Seymour 7812-P</strong> is a manual controller switch designed for reliable single-phase power distribution in industrial and commercial settings. This discontinued model features a double pole configuration with a NEMA 1 nylon enclosure, making it suitable for general-purpose indoor use where moisture and dust protection is required.</p>
<h2>Key Features</h2>
<ul>
<li>Double pole, single phase configuration for synchronized two-conductor switching</li>
<li>Manual toggle actuated operation for direct on/off control</li>
<li>NEMA 1 nylon enclosure rated for general industrial environments</li>
<li>UPC: 78500778067</li>
<li>Made in Mexico, buy-American compliant sourcing</li>
</ul>
<h2>Technical Specifications</h2>
<ul>
<li>Voltage: 600V AC</li>
<li>Current Rating: 30 amps</li>
<li>Poles: 2 (double pole)</li>
<li>Phase: Single phase</li>
<li>Enclosure Type: NEMA 1 nylon</li>
<li>Dimensions: 2.825 in. (W) × 3.91 in. (H) × 2.8 in. (D)</li>
<li>Control: Manual toggle actuated</li>
</ul>
<h2>Typical Applications</h2>
<p>The 7812-P is commonly used in:</p>
<ul>
<li>General motor disconnect and manual on/off control</li>
<li>Industrial pump and compressor circuits</li>
<li>Commercial HVAC equipment switchgear</li>
<li>Machinery and equipment branch circuit protection</li>
<li>Retrofit applications in existing industrial control panels</li>
</ul>
<h2>Compatibility & Replacements</h2>
<h3>Compatible With</h3>
<ul>
<li>Industrial 600V single-phase power systems</li>
<li>Standard control panel installations with NEMA 1 enclosures</li>
<li>Manual disconnect applications per NEC Article 430 motor branch circuit requirements</li>
<li>Wall plate options including Pass & Seymour TradeMaster, Radiant, and metal plates</li>
</ul>
<h3>Replaces / Drop-In Replacement For</h3>
<p>The 7812-P is a discontinued product. For direct replacement compatibility with existing installations, verify specific load requirements and voltage ratings with your system integrator. Similar current-production alternatives include other manual controller series from Pass & Seymour/Legrand, such as the 7842-series for 40A applications.</p>
<h3>Works With</h3>
<ul>
<li>Pass & Seymour/Legrand wall plate accessories</li>
<li>Standard industrial electrical wiring practices and NEC compliance</li>
<li>Manual control systems without electronic logic or programmable controllers</li>
</ul>
