Overview

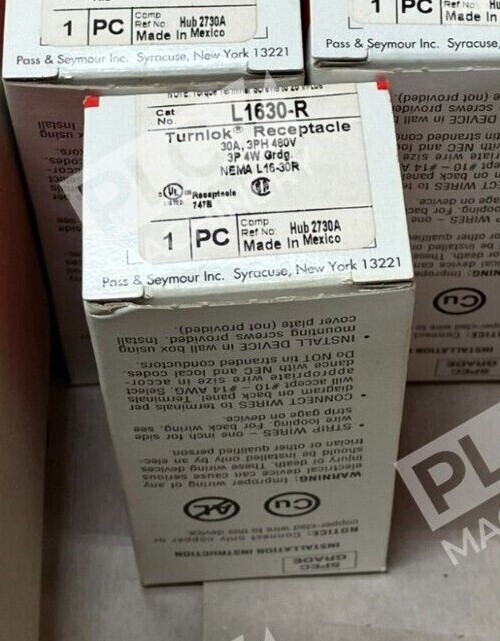

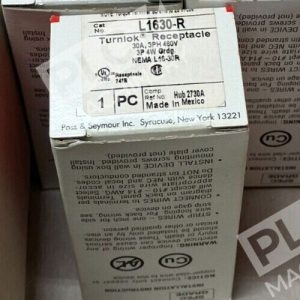

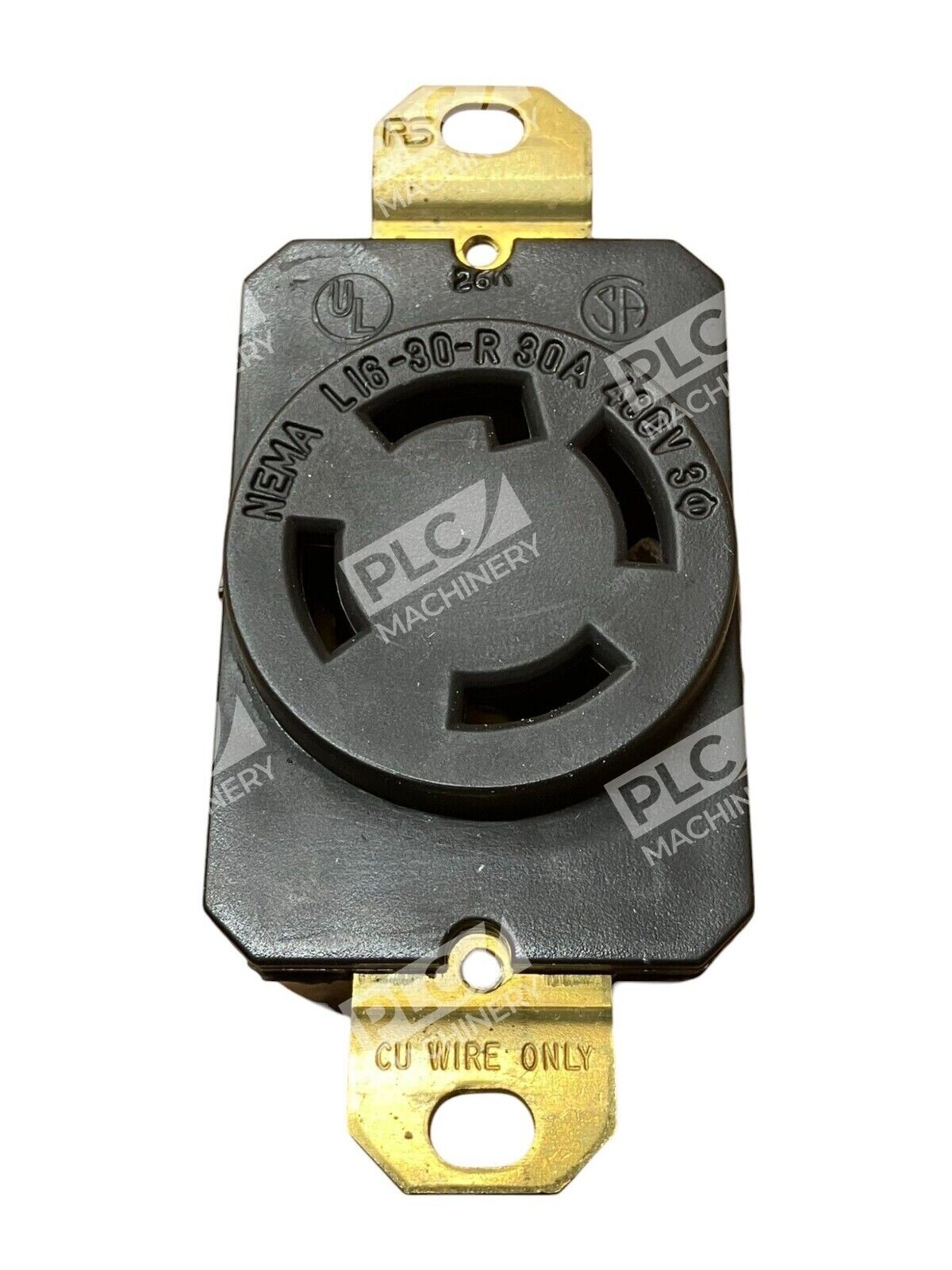

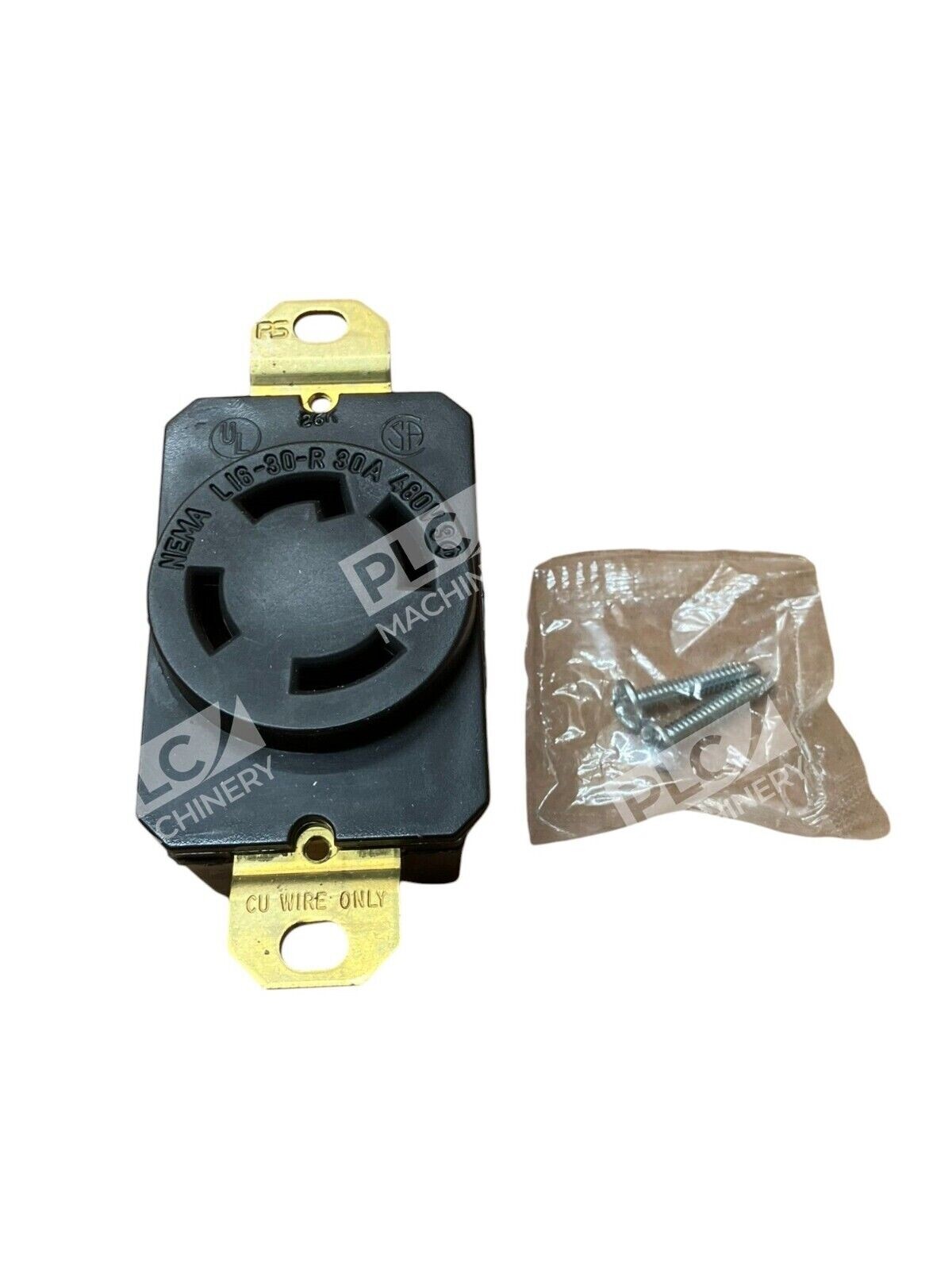

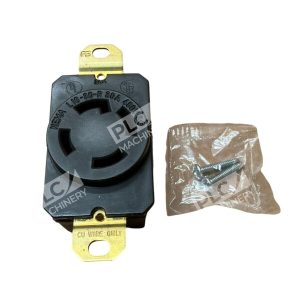

The Pass & Seymour L1630-R is a locking single receptacle designed for 480V three-phase industrial applications. This TurnlokĀ® registered device combines compact design with rugged construction, providing a safe disconnect solution between equipment loads and power sources. The receptacle accepts a matching L1630P plug and is fully rated under NEMA L16-30R configuration.
Key Features
- Compact, impact-resistant nylon face and body, ultrasonically welded for strength
- One-piece high-grade brass contacts for excellent conductivity and heat-rise resistance
- Single-piece solid brass mounting strap (free of rivets)
- Face color coding by voltage for quick identification and proper mating
- Clearly marked NEMA configuration, rating, and third-party listing on face
- Both side and back wire terminal capability with screw-pressure plates
- Locking interface engaged/disengaged by simple rotationāno tools required
Technical Specifications
- Voltage Rating: 480 VAC, 3-phase
- Current Rating: 30 Amp
- Configuration: NEMA L16-30R (2-pole, 3-wire with ground)
- Poles: 2
- Wires: 4 (3-phase + ground)
- Wire Gauge: Accepts #14ā#10 AWG (4 AWG standard)
- Material: Thermoplastic (nylon) body; solid brass contacts and mounting strap
- Mounting: Flush mount
- Dimensions: 1.61ā³ W Ć 3.28ā³ H Ć 1.19ā³ D
- Face Diameter: 1.545ā³
- Operating Temperature: ā40Ā°C to +75Ā°C
- Certifications: UL 498, CSA C22.2, RoHS Compliant, cULus Listing #140596
- Grade: Industrial/Specification Grade
- Type: Single Receptacle (female)
Typical Applications
- Industrial manufacturing equipment and machinery disconnect points
- Temporary or permanent 480V 3-phase power distribution
- OEM, construction, and mobile equipment installations
- MRO (maintenance, repair, operations) electrical connections
- Portable or stationary generators and power transfer switches
- Heavy equipment charging and power supply stations
Compatibility & Replacements
Compatible With
- Pass & Seymour L1630P (matching plug connector)
- Pass & Seymour TurnlokĀ® angle plug adapter L203045AN (for angled connection requirements)
- Industrial disconnect and power distribution systems rated for 30A 480V 3-phase
- Weatherproof covers 7425Y with enclosure WPB23 (non-IP44 rated)
Replaces / Drop-In Replacement For
- Direct replacement for Pass & Seymour L1630R (same part, hyphenated vs. non-hyphenated designation)
- Older or worn NEMA L16-30R receptacles in existing industrial installations
- Alternative to generic 30A 480V locking receptacles lacking specification-grade durability
Works With
- NEMA-compliant 480V 3-phase electrical systems
- Industrial control panels and switchgear
- Motor starters and VFD (variable frequency drive) disconnect stations
- Temporary power distribution systems and job site electrical infrastructure
