<h2>Overview</h2>

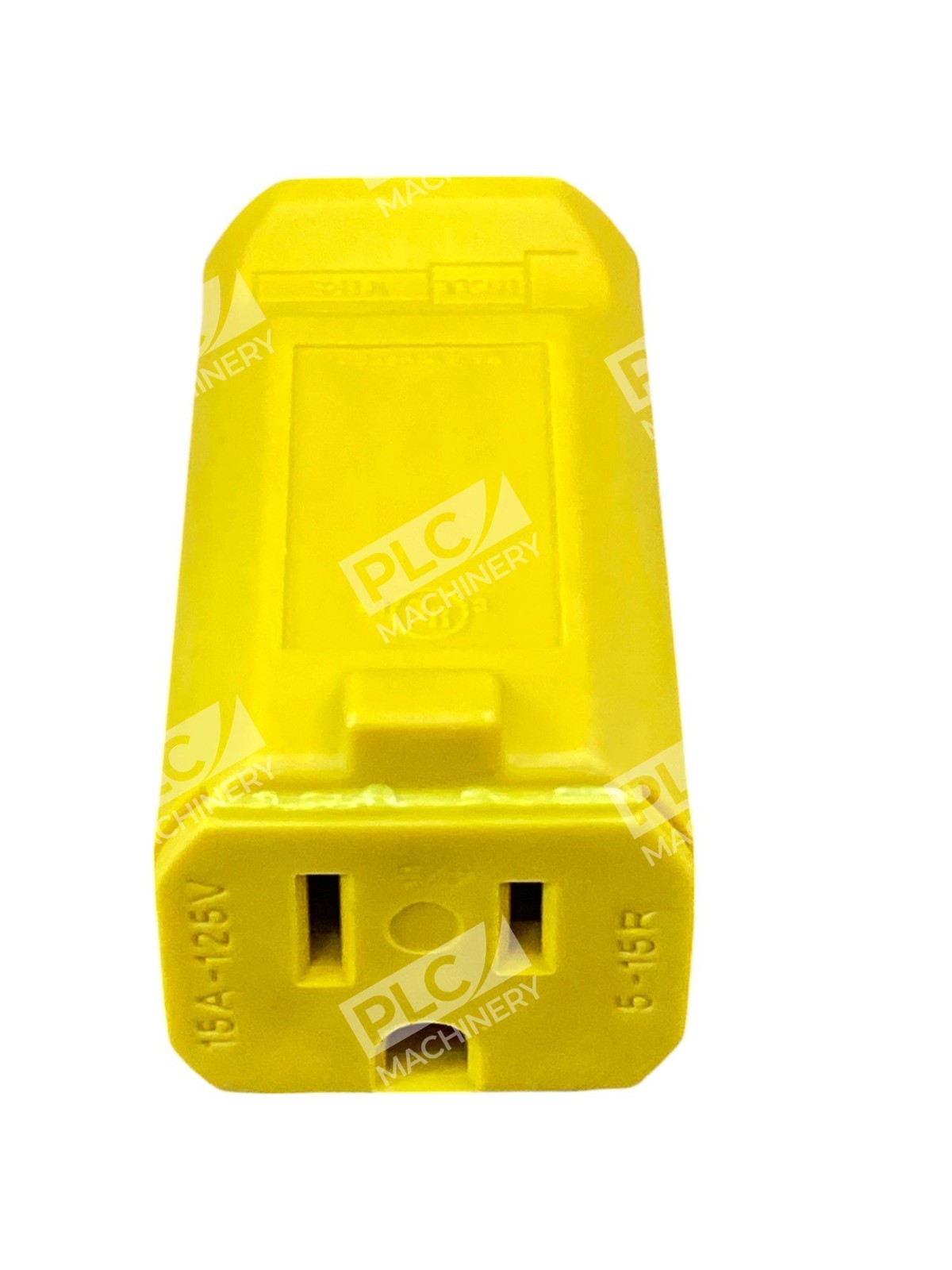

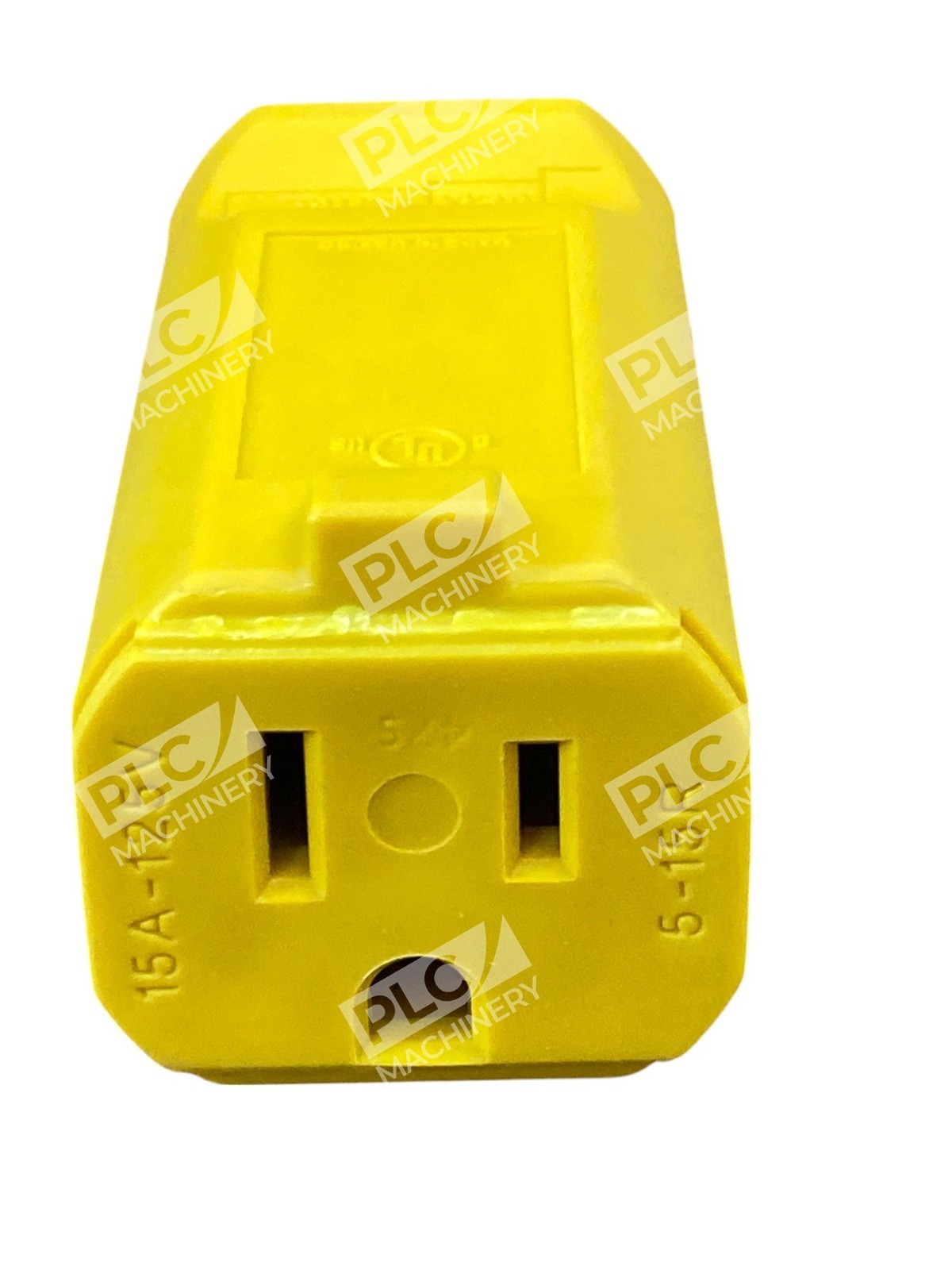

<p>The <strong>Pass Seymour PS5969-Y</strong> is a MaxGrip straight blade connector rated for 15 amperes at 125 volts. It features a NEMA 5-15R receptacle configuration with 2-pole, 3-wire grounding and is constructed from impact-resistant nylon for durability in commercial and residential environments. The yellow nylon housing provides visual identification and is backed by decades of Pass & Seymour engineering focused on field reliability.</p>
<h2>Key Features</h2>
<ul>
<li><strong>MaxGrip M3 Design:</strong> <cite index="5-6">Tri-drive assembly and terminal screws with self-hinged nylon housings install quickly and easily.</cite></li>
<li><strong>Self-Hinge Housing:</strong> <cite index="1-2">Self-hinge swings wide open to make quick, easy work of light, clean connections.</cite></li>
<li><strong>Enclosed Terminals:</strong> <cite index="5-5">Enclosed terminals provide solid, internally-clamped connections.</cite></li>

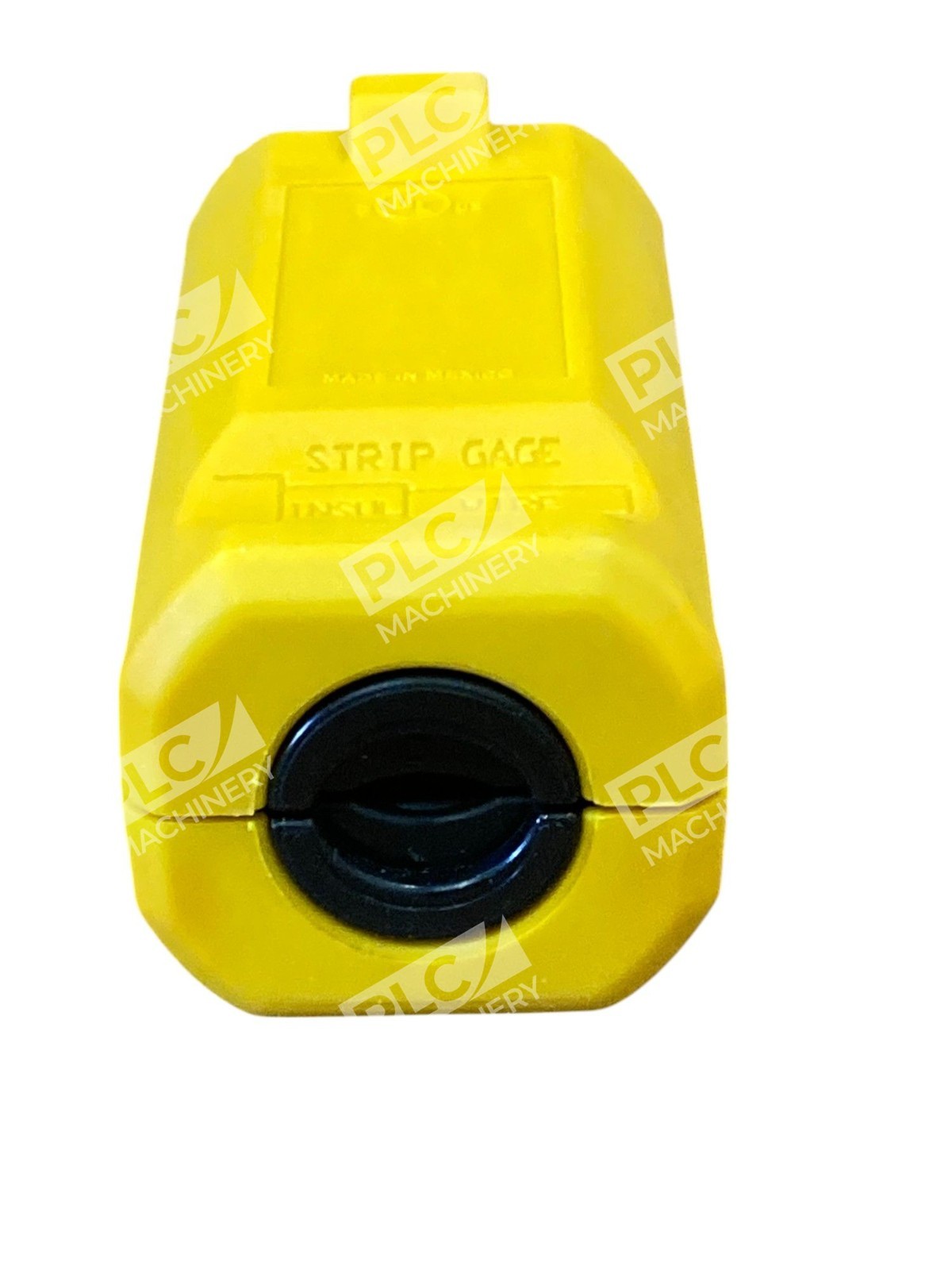

<li><strong>High Retention Cord Grip:</strong> <cite index="5-7">Rugged construction and high retention cord grips help them shrug off impacts and constant use.</cite></li>
<li><strong>Impact & Crush Resistance:</strong> <cite index="10-10">Tough nylon construction with crush / impact resistance that exceeds hospital grade and fed Spec requirements.</cite></li>
</ul>
<h2>Technical Specifications</h2>
<ul>
<li><strong>Voltage Rating:</strong> 125 VAC</li>
<li><strong>Current Rating:</strong> 15 Amperes</li>
<li><strong>Configuration:</strong> 2-Pole, 3-Wire Grounding</li>
<li><strong>NEMA Standard:</strong> NEMA 5-15R (straight blade, non-locking)</li>
<li><strong>Conductor Size:</strong> 4 AWG (cable range 0.23–0.72 in. diameter)</li>
<li><strong>Connection Type:</strong> Screw Terminal</li>
<li><strong>Housing Material:</strong> Nylon (Yellow)</li>
<li><strong>Dimensions:</strong> 1.83 in. H × 1.34 in. W</li>
<li><strong>Enclosure Rating:</strong> IP20</li>
<li><strong>Grounding:</strong> Grounding wire terminal</li>
</ul>
<h2>Typical Applications</h2>
<p>The PS5969-Y is used in commercial and residential power distribution, including industrial machinery connections, stage and event lighting, portable power tools, and temporary power supplies. Its screw-terminal design and high-retention grip make it suitable for stationary cord-to-chassis installations where vibration and impact resistance are required. The MaxGrip design is particularly valuable in maintenance-heavy environments where quick disconnects and reconnects occur frequently.</p>
<h2>Compatibility & Replacements</h2>
<h3>Compatible With</h3>
<ul>
<li>NEMA 5-15P male plugs (standard U.S. straight-blade)</li>
<li>125V, 15A power cords and cables</li>
<li>Commercial and residential electrical panels</li>
<li>Industrial equipment requiring stationary power entry</li>
</ul>
<h3>Replaces / Drop-In Replacement For</h3>
<p>The PS5969-Y is a direct replacement for other Pass & Seymour MaxGrip M3 straight blade connectors of the same voltage and amperage rating. Verify specific model compatibility with your system integrator before ordering if replacing an older generation connector.</p>
<h3>Works With</h3>
<ul>
<li>Standard NEMA 5-15P plugs and receptacles</li>
<li>UL-listed 125V power distribution systems</li>
<li>Hospital-grade electrical environments (meets or exceeds requirements)</li>
</ul>
